Pepwave AP One AC mini Manuale utente
Pepwave AP One Series:
AP One Enterprise / AP One AC mini / AP One In-Wall / AP One 300M / AP One Flex 300M
Pepwave AP Pro Series:
AP Pro / AP Pro 300M / AP Pro Duo
May 2023
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. Copyright © 2016 Pepwave Ltd. All Rights Reserved. Pepwave and the
Pepwave logo are trademarks of Pepwave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of
their respective owners.
Table of Contents
1 Introduction and Scope 4
2 Product Features and Benefits 5
3 Package Contents 6
3.1 AP One Enterprise 6
3.2 AP One AC mini 6
3.3 AP One In-Wall 6
3.4 AP One 300M 6
3.5 AP One Flex 300M 6
3.6 AP Pro / AP Pro 300M / AP Pro Duo 6
4 Hardware Overview 7
4.1 AP One Enterprise 7
4.2 AP One AC mini 8
4.3 AP One In-Wall 9
4.4 AP One 300M 10
4.5 AP One Flex 300M 11
4.6 AP Pro / AP Pro 300M / AP Pro Duo 12
5 Installation 13
5.1 Installation Procedures 14
6 Using the Dashboard 15
6.1 General 15
6.2 AP 17
7 Configuration 19
7.1 System 19
7.1.1 Admin Security 19
7.1.2 Firmware 21
7.1.3 Time 21
7.1.4 Event Log 22
7.1.5 SNMP 23
7.1.6 Controller 25
7.1.7 Configuration 26
http://www.pepwave.com
2
Copyright © 2015 Pepwave
7.1.8 Reboot 27
7.2 AP 27
7.2.1 Wireless SSID 27
7.2.2 Settings 37
7.2.3 WDS 40
7.3 Network 41
7.3.1 WAN 41
7.3.2 LAN 43
7.3.3 PepVPN 46
8 Tools 49
8.1 Ping 49
8.2 Traceroute 49
8.3 Nslookup 50
9 Monitoring Device Status 51
9.1 Device 51
9.2 Client List 51
9.3 WDS Info 52
9.4 Portal 52
9.5 Rogue AP 53
9.6 Event Log 53
10 Restoring Factory Defaults 54
11 Appendix 55
12 Datasheets 55
http://www.pepwave.com
3
Copyright © 2015 Pepwave
1 Introduction and Scope
Our AP Series of enterprise-grade 802.11b/g/n Wi-Fi access points is engineered to
provide fast, dependable, and flexible operation in a variety of environments, all
controlled by an easy-to-use centralized management system. From the small but
powerful AP One AC mini to the top-of-the-line AP One 300M our AP Series offers
wireless networking solutions to suit any business need, and every access point is
loaded with essential features such as multiple SSIDs, VLAN, WDS, and Guest Protect.
A single access point provides as many as 32 virtual access points (16 on single-radio
models), each with its own security policy (WPA, WPA2, etc.) and authentication
mechanism (802.1x, open, captive portal, etc.), allowing faster, easier, and more
cost-effective network builds. Each member of the AP Series family also features a
high-powered Wi-Fi transmitter that greatly enhances coverage and performance while
reducing equipment costs and maintenance.
http://www.pepwave.com
4
Copyright © 2015 Pepwave
2Product Features and Benefits
Key features and benefits of AP Series access points:
● High-powered Wi-Fi transmitter enhances coverage and lowers cost of
ownership.
● Independent security policies and encryption mechanisms for each virtual access
point allow fast, flexible, cost-effective network builds.
● Centralized management via InControl reduces maintenance expense and time.
● WDS support allows secure and fast network expansion.
● Guest Protect support guards sensitive business data and subnetworks.
● WMM (Wi-Fi Multimedia) and QoS (Quality of Service) support keeps video and
other bandwidth-intensive data flowing fast and lag-free.
http://www.pepwave.com
5
Copyright © 2015 Pepwave
3Package Contents
3.1 AP One Enterprise
1 x AP One Enterprise
1 x Instruction sheet
3.2 AP One AC mini
1 x AP One mini
1 x Omni-directional antenna
1 x Power supply
1 x Instruction sheet
3.3 AP One In-Wall
1 x AP One In-Wall
1 x Mounting kit
1 x Instruction sheet
3.4 AP One 300M
1 x AP One 300M
2 x Omni-directional antennas
1 x Power supply
1 x Instruction sheet
3.5 AP One Flex 300M
1 x AP One Flex 300M
1 x Pepwave Passive PoE Injector
1 x Power supply
1 x Instruction sheet
3.6 AP Pro / AP Pro 300M / AP Pro Duo
1 x AP Pro / AP Pro 300M / AP Pro Duo
1 x Instruction sheet
1 x Installation guide
http://www.pepwave.com
6
Copyright © 2015 Pepwave
4Hardware Overview

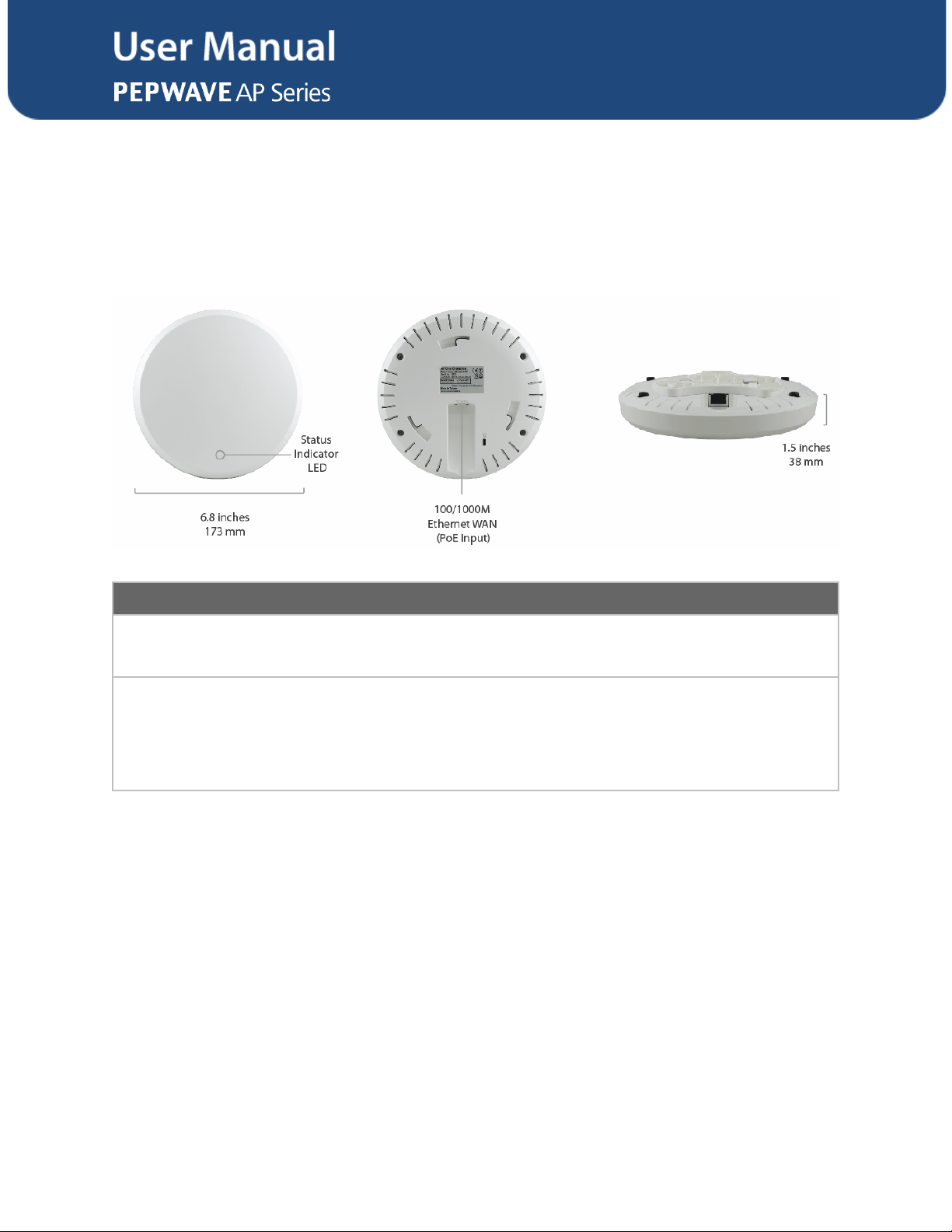

4.1 AP One Enterprise
Bottom View Top View Front View
LED Indicators
Status
RED – Access point initializing
GREEN – Access point ready
LAN 1
OFF – No device connected to Ethernet port
BLINKING – Ethernet port sending/receiving data
ON – Powered-on device connected to Ethernet port
Note that LAN 5 displays the status of the uplink connection
http://www.pepwave.com
7
Copyright © 2015 Pepwave
4.2 AP One AC mini
Front View Rear Panel View
LED Indicators
Status
RED – Access point initializing
GREEN – Access point ready
Wi-Fi
OFF – 2.4/5GHz Wi-Fi radio off
BLINKING – AP sending/receiving data
GREEN – 2.4/5GHz Wi-Fi radio on
Note that this model includes a 2.4GHz Wi-Fi radio and a 5GHz Wi-Fi radio that can
operate simultaneously to increase speed and reduce interference.
http://www.pepwave.com
8
Copyright © 2015 Pepwave
4.3 AP One In-Wall
Front View (US) Front View (International)
Rear Panel View Top View
LED Indicators
Status
RED – Access point initializing
GREEN – Access point ready
WLAN 1/2
OFF – 2.4/5GHz Wi-Fi radio off
BLINKING – AP sending/receiving data
GREEN – 2.4/5GHz Wi-Fi radio on
Note that this model includes a 2.4GHz Wi-Fi radio and a 5GHz Wi-Fi radio that can
operate simultaneously to increase speed and reduce interference. WLAN1 displays
the status of the 2.4GHz Wi-Fi radio, while WLAN2 displays the status of the 5GHz
Wi-Fi radio.
LAN 1-5
OFF – No device connected to Ethernet port
BLINKING – Ethernet port sending/receiving data
ON – Powered-on device connected to Ethernet port
Note that LAN 5 displays the status of the uplink connection
http://www.pepwave.com
9
Copyright © 2015 Pepwave
4.4 AP One 300M
Front View Rear Panel View
LED Indicators
Power
On – Power On
OFF – Power Off
Status
RED – Access point initializing
GREEN – Access point ready
Wireless
OFF – 2.4/5GHz Wi-Fi radio off
BLINKING – AP sending/receiving data
GREEN – 2.4/5GHz Wi-Fi radio on
Note that this model can operate in either 2.4GHz or 5GHz mode, depending on Wi-Fi
radio settings.
http://www.pepwave.com
10
