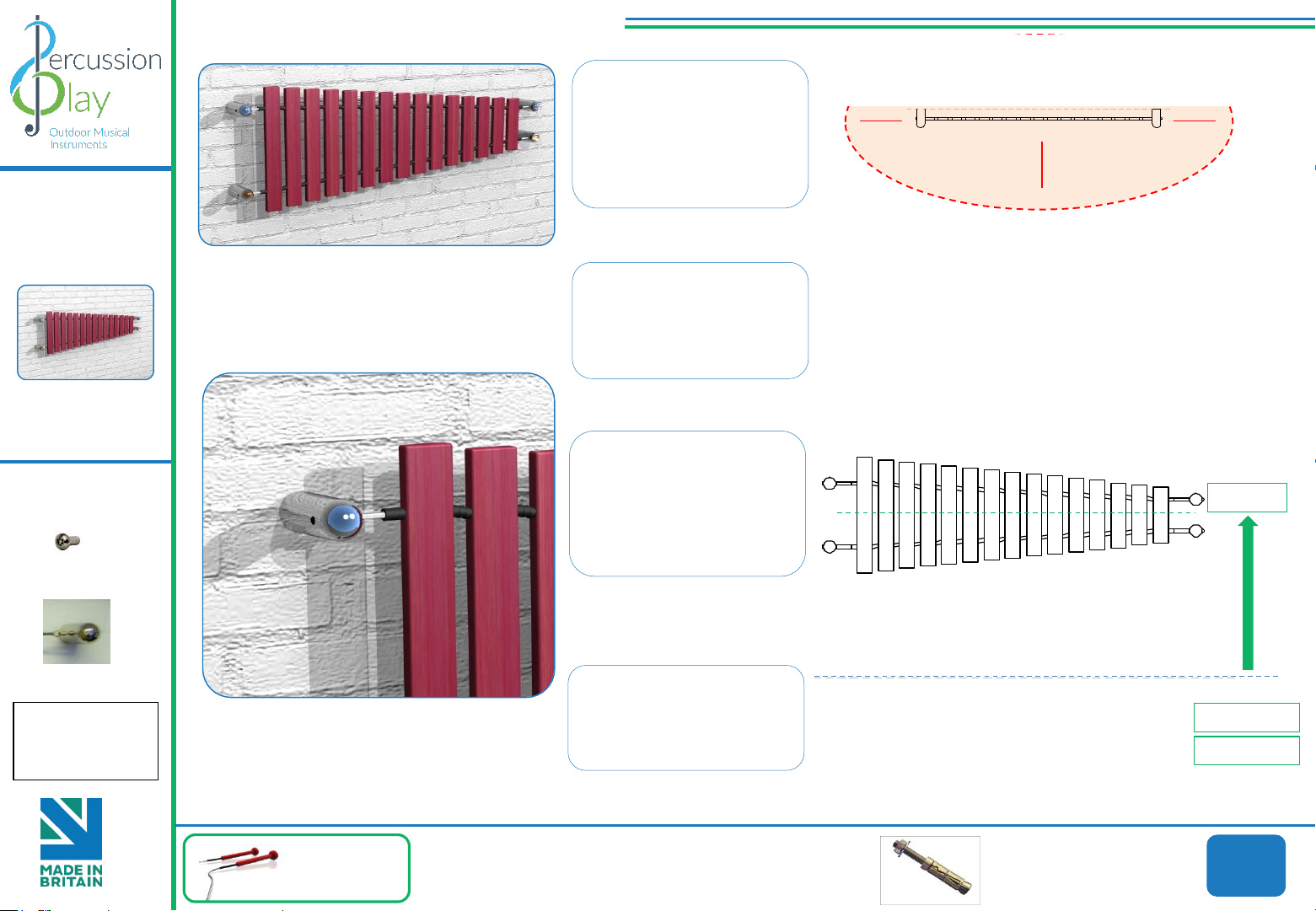

Percussion Play Wall Marimba Manuale utente

Instrument

Components: KS1,KS2

KS2 - 850mm

Ground Surface

KS1 - 700mm

Installation Instructions

14 Kg

4. Once all mounts are fixed

in place attach the notes

using M8 Barrel Nuts and Pin

torx bit.

1. Mark hole positions on wall,

then drill to manufacturers

specified diameter and depth

of M10 rawl bolt (See Wall Fix

installation sheet)

2. Once holes are drilled

insert M10 rawl bolts into

holes and set in place to

secure tightly

3. Attach wall mounts onto

rawl bolts making sure they

are tight to the wall and have

the large holes to the outside.

Use a long tool to tighten

further.

Pair Small Red

Beaters X1

Weight of heaviest part 12kg (Wall Marimba Notes)

BS EN 1176

Wall Fixed

M8 Barrel Nut

Wall mounts

Install Instrument with 1m free space (from widest point) around it.

Wall Marimba

Page 1 of 3

Wall fixings are not supplied, installer will select suitable

method of fixing. Suggested Fixing M10 Rawl Bolt

Metric Conversion:

700mm/ 28”

850mm/ 33”

1m/ 39”

Spares available from

percussionplay.com or from your

local distributor

Wall Fixed

Instrument

Components:

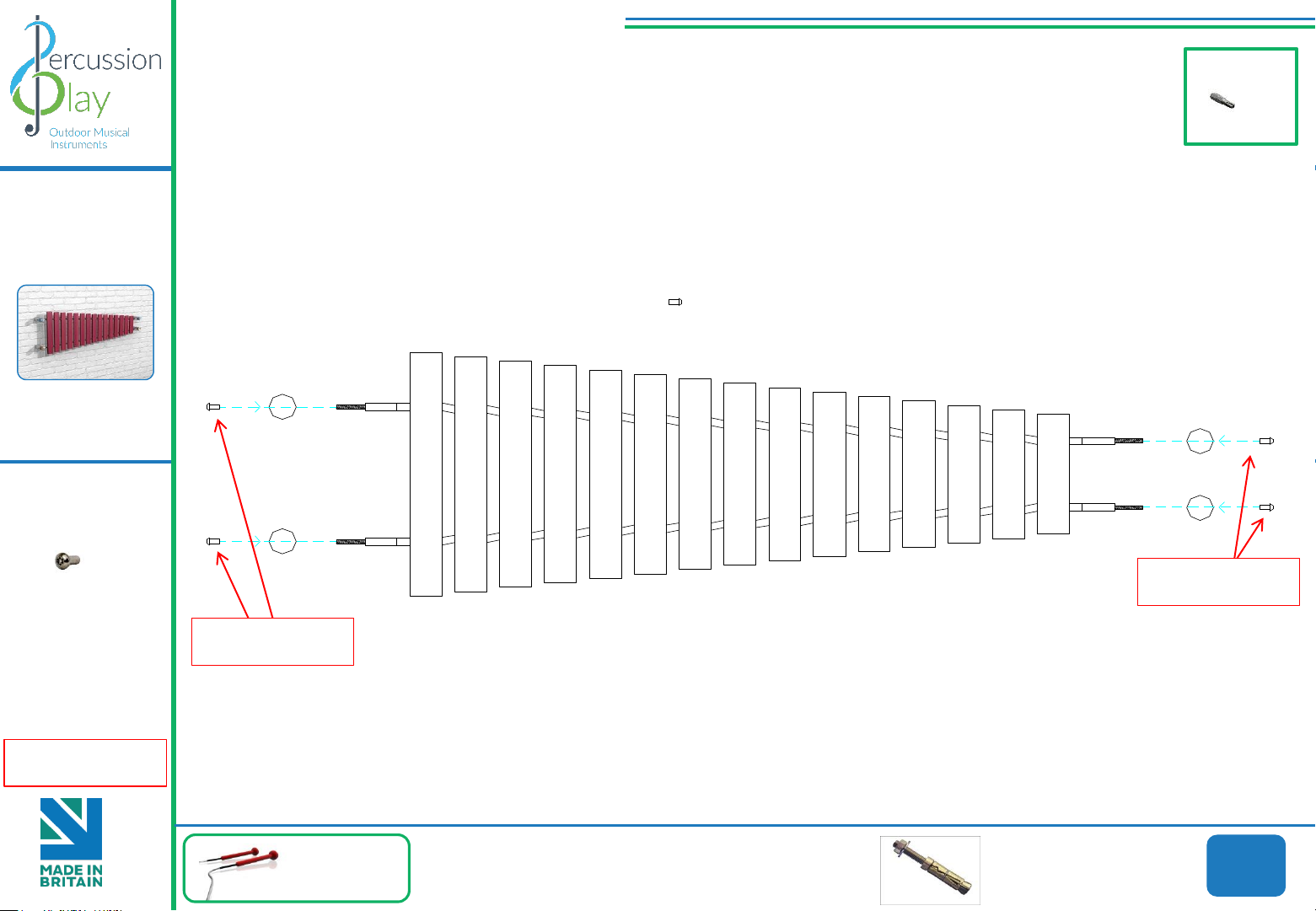

Assembly Guide PPWMAR

M8 Barrel Nut

14 Kg

Pair Small Red

Beaters X1

Wall Marimba

Page 2 of 3

TX 40 Driver Bit

Tools:

BS EN 1176

COMPONENTS LIST:

M8 Barrel Nut Pin torx X4

Wall fixings are not supplied, installer will select suitable

method of fixing. Suggested Fixing M10 Rawl Bolt

Thread Lock Solution

Required (Not Supplied)

Thread Lock Solution

Required (Not Supplied)

Thread Lock Solution

Required (Not Supplied)

Spares available from

percussionplay.com or from your

local distributor

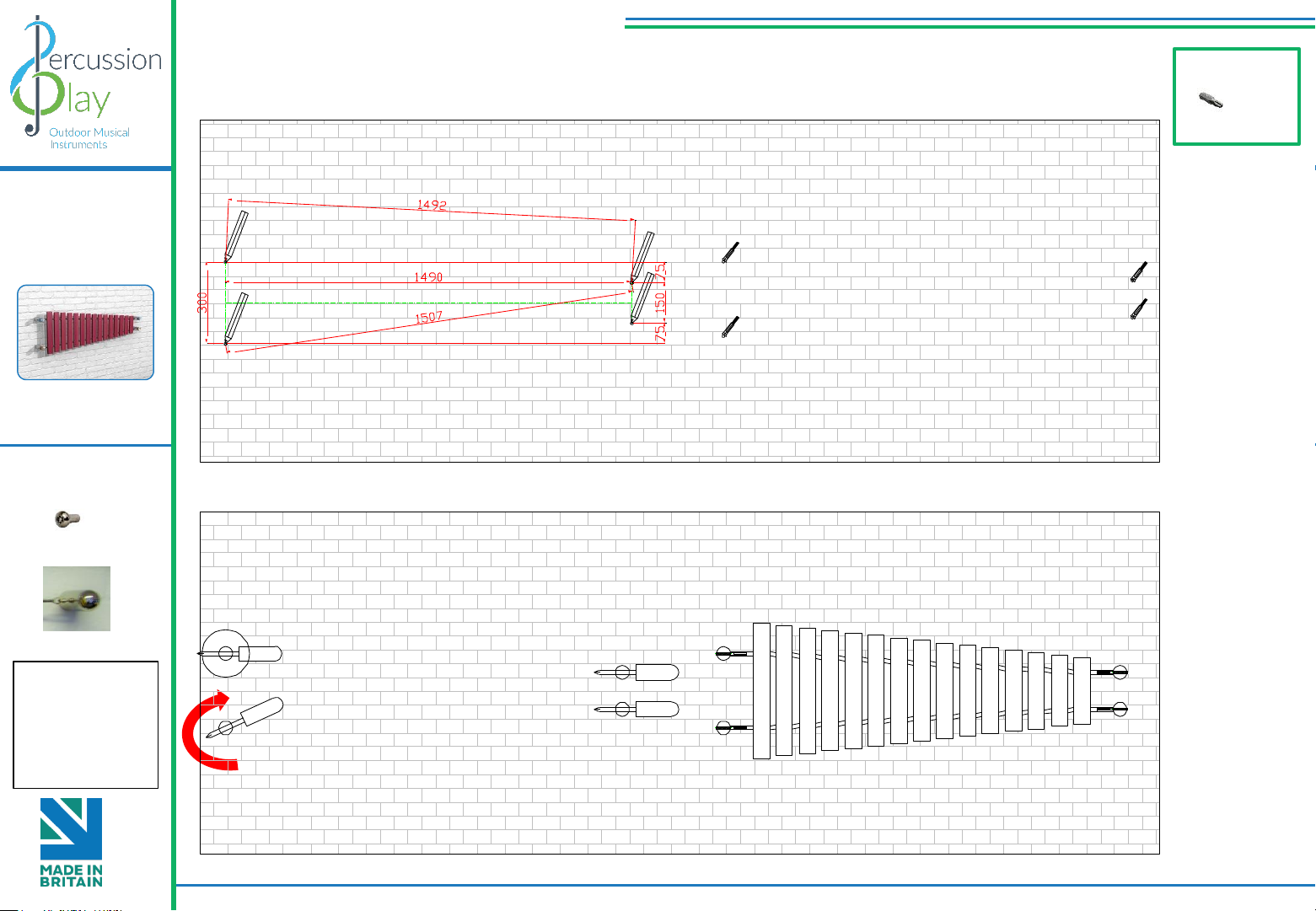

Wall Fix Installation

(1.1)

TX 45 Driver Bit

Tools:

BS EN 1176

Wall Fixed

Instrument

Components:

M8 Barrel Nut

Wall Marimba

Page 3 of 3

Wall mounts

1. Mark hole positions . 2. Drill holes .

3. Fit wall mounts . 4. Attach notes .

Metric Conversion:

1507mm 59 21/64”

1492mm/ 58 47/64”

1490mm/ 58 21/32”

300mm/ 11 13/16”

150mm/ 5 29/32”

75mm/ 3”
