Percussion Play Surface Fixed Manuale utente

Install

Instrument

with 1.5m free

space (from

widest point)

around it.

1.5m

Surface Fixed

Babel Drum

Page 1 of 2

1. Unpack ground fixing legs

3no.

Installation Instructions

Played with hands

22 Kg

13.4 Kg

Ground Fix

Components:

Weight of heaviest part 17.5kg (Large Babel Drum)

Weight of heaviest part 13.4kg (Small Babel Drum)

BS EN 1176

Metric Conversion:

200mm/ 8”

400mm/ 16”

570mm/ 22”

600mm/ 24”

700mm/ 28”

770mm/ 30”

870mm/ 34”

1070mm/ 42”

1.5m/ 59”

CAUTION: Drum

surface can get hot

in direct sunlight, if

possible install in

shaded areas.

Spares available form

percussionplay.com or from your

local distributor

2. Lay packaging out on floor

or assemble on non-abrasive

surface to prevent marking of

polished stainless steel.

3. Align holes on legs to holes

on surface fixing(opposite end

to polished domes) and secure

in place using 3no. M10 x

30mm Screws provided

Tools required TX 45 Driver

Bit)

4. Invert assembled frame so

domed ends face upwards.

5. Place 8mm Hex Key

supplied into hole in leg and

lock into internal bolt.

6. Remove M10 nut on

opposite side of leg and

keeping Hex Key in place, slide

black polyurethane damper

over bolt until flush with end

of bolt. Repeat for other 2 legs

8. Align holes in side of babel

drum with bolts on legs.

9. Using 8mm Hex Key screw

bolts into drum to secure in

place.

Use thread locking solution

All hole locations are laser cut

for accuracy to ensure holes in

drum align perfectly with legs.

7. Unpack babel drum leaving

black film in place to protect.

10. Using TX40 driver provided

secure M8 x 25mm security

bolts into external holes in

legs 3no. Use thread lock

solution

Instrument

Components:

M8x25mm Pin Torx

Ground Surface

990mm

Large 8 note

Small 6 note

1005mm

11.Locate Babel Drum in

desired location and mark

holes to fix to desired surface.

12. Fix to Surface using

recommended ground

anchors (Ground Anchors are

not supplied)

13. Make sure all fixings are

covered and secure using

cover caps provided

M10x30 Security Screw

2 Part Cover Cap

x4 Ground Anchors

not supplied

Locate the Surface fix

Plate into the leg of the

instrument.

Fix instrument to Surface

fix plate using M10

Screws and use thread

locking solution to

prevent fixings working

loose.

Fix Surface Plate to the

ground surface Ground

Anchors Not provided

cover fixings with caps

provided

Surface Fixed

Babel Drum

Page 2 of 2

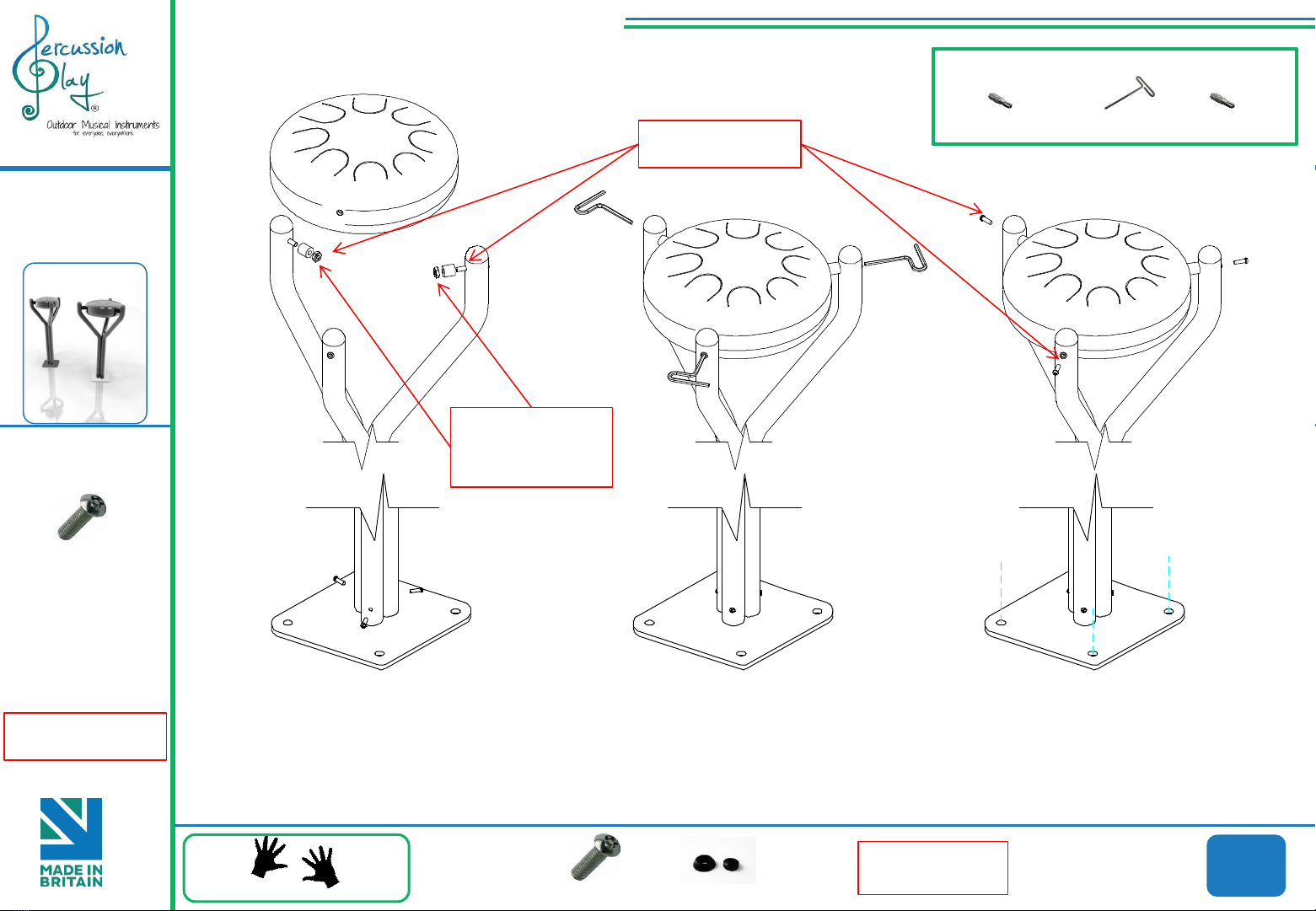

Assembly Guide PPBDL-S

Played with hands

Instrument

Components:

Ground Fix

Components:

22 Kg

13.4 Kg

BS EN 1176

Spares available form

percussionplay.com or from your

local distributor

M8x25mm Pin Torx

1 2 3

Thread Lock Solution

Required

Thread Lock Solution

Required

Hex T Key

TX 40 Driver Bit

Tools:

Remove M10

Nuts before

installing Drum

M10x30 Security Screw

2 Part Cover Cap

x4 Ground Anchors

not supplied

TX 45 Driver Bit
