Percussion Play Congas Manuale utente

Surface Fixed

2. Attach Surface Fixing posts

to legs(1.2) (See Ground Fix

Post Installation Sheet)

1. Attach the steel leg to each

of the congas with the

M10x50 security screws,

square washers and PU

mounts. (1.1) (See Assembly

Guide)

Ground Surface

Small –850mm

Medium –850mm

Large- 850mm

Installation Instructions

(1.1)

Instrument

Components:

M10x50 Security Screw

M10x50x3 Square washer

Surface Fix

Components:

PU 200 Mount

PU 250 Mount

Install Instrument

with 1.5m free space

(from widest point)

around it.

1.5m

Played with hands

Congas

Page 1 of 2

Weight of heaviest part 3.8kg (Large drum Small Congas)

Weight of heaviest part 4.5kg (Large drum Medium Congas)

Weight of heaviest part 5.2kg (Large drum Large Congas)

BS EN 1176

14.8 Kg

15 Kg

20 Kg

M10 Barrel Nut

M10x70 Security Screw

x1 Ground Anchors

not supplied

4. Fix to Surface using

recommended ground

anchors not supplied

3.Locate Plate in desired

location and mark holes to fix

to desired surface.

5. Make sure all fixings are

covered and secure using

cover caps provided

2 Part Cover Cap

(1.2)

Metric

Conversion:

178mm/ 7”

850mm/ 33”

1.5m/ 59”

Spares available from

percussionplay.com or from your

local distributor

850mm

from Plate

PPCONG FRONT PPCONG SIDE

PPCONG PLAN

M10x30 Pin torx X4

M10x50x3 square washer X4

COMPONENTS LIST:

PU MOUNT 200 X2

PU MOUNT 250 X2

M10x70 Pin torx X1

M10 Barrel Nut Pin torx X1

Surface Fixed

Instrument

Components:

Assembly Guide PPCONG

(1.1)

Surface Fix

Components:

M10x50 Security Screw

M10x50x3 Square washer

200 Mount

250 Mount

Played with hands

Congas

Page 2 of 2

TX 45 Driver Bit

Tools:

BS EN 1176

14.8 Kg

15 Kg

20 Kg

M10 Barrel Nut

M10x70 Security Screw

x1 Ground Anchors

not supplied

2 Part Cover Cap

Thread Lock Solution

Required (Not Supplied)

Thread Lock Solution

Required (Not Supplied)

Spares available from

percussionplay.com or from your

local distributor

M10x50 Security Screw X4

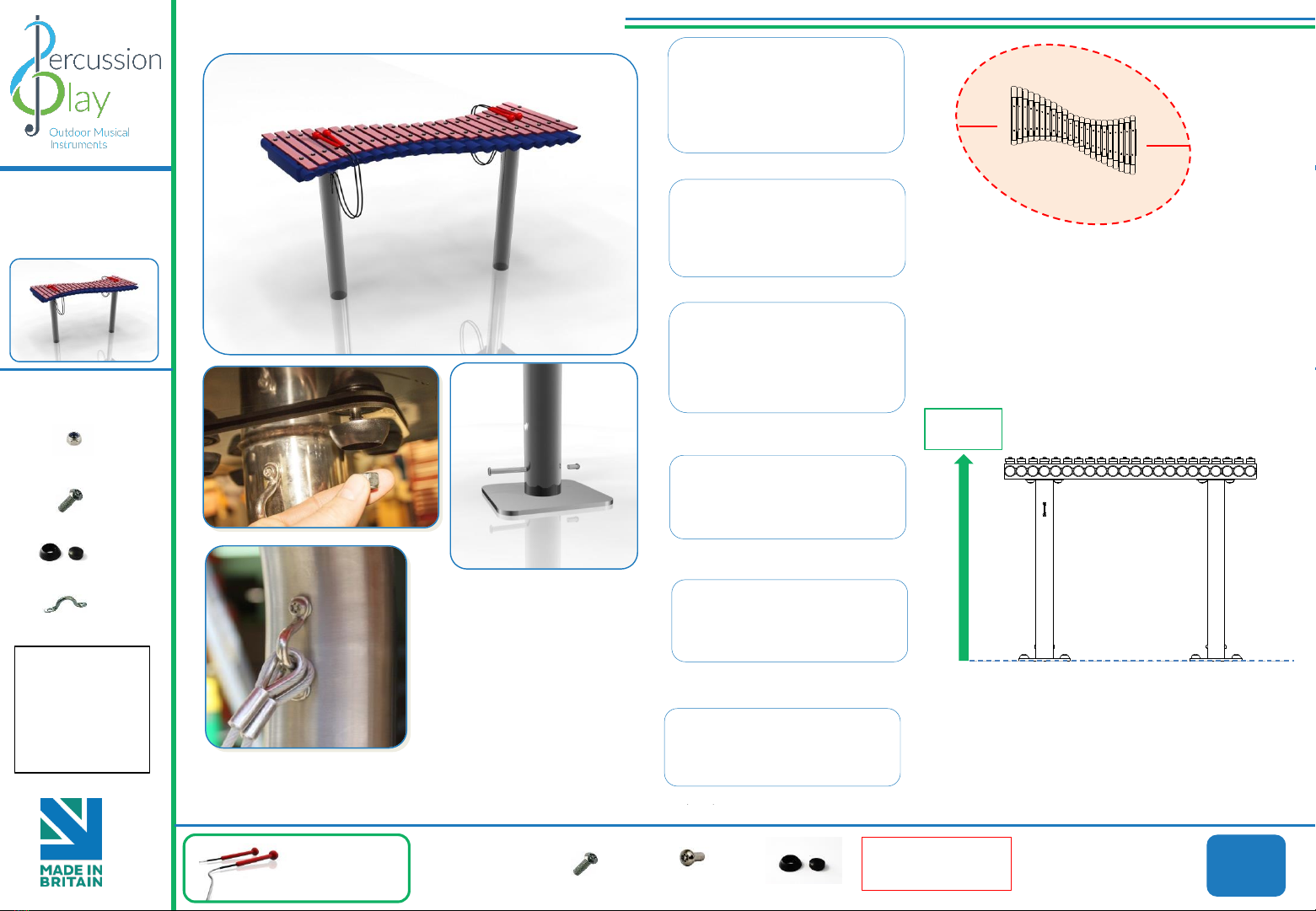

Surface Fixed

Duo

Page 1 of 3

Ground Surface

850mm

from Plate

Installation Instructions

(1.1) (1.2)

(1.3)

Instrument

Components:

M8 Nyloc Nut

M6x20 Security Screw

M6 Saddle Strap

2 Part Cover

Cap

6. Attach the 1 pair of beater

to the saddle strap on the leg.

(1.3)

28 Kg

1. Attach the steel legs to the

base of the instrument with

the M8 Nyloc Nuts and 2 part

security caps. (1.1) (See

Assembly Guide)

Install Instrument

with 1.5m free space

(from widest point)

around it.

1.5m

Pair Small Red

Beaters X2

Weight of heaviest part 14kg (Duo)

BS EN 1176

Metric

Conversion:

178mm/ 7”

232mm/ 9”

750mm/ 29 1/2”

850mm/ 33”

1.5m/ 59”

Spares available from

percussionplay.com or from your

local distributor

6. Attach the 1 pair of beater

to the saddle strap on each

leg. (1.3)

Ground Anchors

not supplied

2. Attach Surface Fixing posts

to legs(1.2) (See Ground Fix

Post Installation Sheet)

4. Fix to Surface using

recommended ground

anchors not supplied

3.Locate Plate in desired

location and mark holes to fix

to desired surface.

5. Make sure all fixings are

covered and secure using

cover caps provided

Surface Fix

Components: M10 Barrel Nut

M10x70 Security Screw

2 Part Cover Cap

2 Part Cover Cap X8

M10 Nut X8

M10x200 Threaded Bar X4

COMPONENTS LIST:

Saddle Strap X2

M6x20 Pin torx X4

PPDUO FRONT PPDUO SIDE

M8 Nyloc nut X8

M10x70 Pin torx X2

M10 Barrel Nut Pin torx X2

Surface Fixed

Assembly Guide PPDUO

(1.1)

28 Kg

Pair Small Red

Beaters X2

Duo

Page 2 of 3

BS EN 1176

Thread Lock Solution

Required (Not Supplied)

Thread Lock Solution

Required (Not Supplied)

Instrument

Components:

M8 Nyloc Nut

M6x20 Security Screw

M6 Saddle Strap

2 Part Cover

Cap

TX 30 Driver Bit

TX 45 Driver Bit

Tools:

Ground Anchors

not supplied

Surface Fix

Components: M10 Barrel Nut

M10x70 Security Screw

2 Part Cover Cap

750 232

Post

Centres

Spares available from

percussionplay.com or from your

local distributor

Locate the Surface fix

Plate into the leg of the

instrument.

Fix instrument to Surface

fix plate using M10 bolt

and Barrel Nut and use

thread locking solution

to prevent fixings working

loose.

Fix Surface Plate to the

ground surface Ground

Anchors Not provided

cover fixings with caps

provided

Surface Fixed

Components:

Surface Fix Post Installation

(1.1)

12 3

Duo

Page 3 of 3

M10 Barrel Nut

M10x70 Security Screw

TX 45 Driver Bit

Tools:

BS EN 1176

Thread Lock Solution

Required (Not Supplied)

Thread Lock Solution

Required (Not Supplied)

2 Part Cover Cap

Surface Fixed

100mm

1785mm

2490mm

Ground

Surface

Installation Instructions

M10 Barrel Nut

M10x50 Security Screw

Surface Fix

Components:

1. Attach Surface Fixing plates

to the base of each chime(1.1)

(See Surface Fix Plate

Installation Sheet)

117 Kg

Install Instrument

with 1.5m free space

(from widest point)

around it.

1.5m

Played with hands

Instrument

Components:

Emperor

Chimes

are pre-

assembled

Emperor Chimes

Page 1 of 2

Weight of heaviest part 25kg (XL Chime)

BS EN 1176

Metric Conversion:

100mm/ 4”

1.5m/ 59”

1785mm/ 70”

2490mm/ 98”

Spares available from

percussionplay.com or from your

local distributor

2 Part Cover Cap

x24

(1.1)

4. Fix to Surface using

recommended ground

anchors not supplied

2.Locate Chimes to desired

location and mark holes to fix

to desired surface.

5. Make sure all fixings are

covered and secure using

cover caps provided

Ground Fixed

Surface Fix Plate Installation

(1.1)

M10 Barrel Nut

M10x50 Security Screw

Components:

Emperor Chimes

Page 2 of 2

TX 45 Driver Bit

Tools:

BS EN 1176

Thread Lock Solution

Required (Not Supplied)

2 Part Cover Cap

x24

(1.1)

Locate the Surface fix

Plate into the leg of the

instrument.

Fix instrument to Surface

fix plate using M10 bolt

and Barrel Nut and use

thread locking solution

to prevent fixings working

loose.

Fix Surface Plate to the

ground surface Ground

Anchors Not provided

cover fixings with caps

provided

12 3

Repeat Parts 1-3 for all 6 chimes

Thread Lock Solution

Required (Not Supplied)

Surface Fixed

Freechimes

Alto/ Soprano

Page 1 of 3

Components:

1. Carefully lay 2 x legs on a

level surface and check

distance between legs is

equal. Line up pre drilled

holes in the backboards with

the holes in legs and ensure

the instrument is aligned

square with the legs. Fix in

place using M8x40mm

screws supplied (see

installation guide)

Installation Instructions

6. Beaters can be fixed to

Steel posts with fixings

provided

KS1,2,

KS1 –800mm

KS2 –950mm

Adult - 1200mm

Ground Surface

Pair Small

Beaters X1 16 Kg

BS EN 1176

1.5m

Weight of heaviest part 8.35kg (Freechimes)

1.5m

Install Instrument

with 1.5m free space

(from widest point)

around it.

M6x20mm

Secure Screw

Eye Straps

M8x40mm

Secure Screw

Ground Fix

Components:

Metric Conversion:

600mm/ 24”

800mm/ 31”

950mm/ 37”

1200mm/ 47”

1.5m/ 59”

2. Attach Surface Fixing posts

to legs (See Surface Fix Post

Installation Sheet)

4.Fix Surface Plate to level

surface using Coachscrews,

Rawlbolts, chemical anchors

or similar as deemed

appropriate by Installer.

(It is your responsibility to

ensure that the existing

surface is suitable to

receive the appropriate

fixing)

3.Locate Instrument in

desired location and mark

holes to fix to desired surface.

5. Make sure all fixings are

covered and secure using

cover caps provided

M10x70 Security Screw

M10 Barrel Nut

2 Part Cover Cap

x8 Spares available from

percussionplay.com or from your

local distributor

COMPONENTS LIST:

Saddle Strap X2

M10x50 Pin torx X4

M6x20 Pin torx X4

M10x70 Pin torx X2

M10 Barrel Nut Pin torx X2

Surface Fixed

Assembly Guide PPFREC

16 Kg

BS EN 1176

Freechimes

Alto/ Soprano

Page 2 of 3

Pair Small

Beaters X1

TX 30 Driver Bit

TX 45 Driver Bit

Tools:

Components:

M6x20mm

Secure Screw

Eye Straps

M8x40mm

Secure Screw

Ground Fix

Components:

Thread Lock Solution

Required (Not Supplied)

Thread Lock Solution

Required (Not Supplied)

M10x70 Security Screw

M10 Barrel Nut

2 Part Cover Cap

x8 Spares available from

percussionplay.com or from your

local distributor

M8 X 40 Pin Torx X4

Surface Fixed

Surface Fix Post Installation

M10 Barrel Nut

M10x70 Security Screw

Components: Ground fix tube

protrudes 300mm

from ground surface

that inserts into the

base of the chime post

TX 45 Driver Bit

Tools:

BS EN 1176

Thread Lock Solution

Required (Not Supplied)

Freechimes

Alto/ Soprano

Page 3 of 3

Locate the Surface fix

Plate into the leg of the

instrument.

Fix instrument to Surface

fix plate using M10 bolt

and Barrel Nut and use

thread locking solution

to prevent fixings working

loose.

Fix Surface Plate to the

ground surface Ground

Anchors Not provided

cover fixings with caps

provided

12 3

Thread Lock Solution

Required (Not Supplied)

2 Part Cover Cap

Altri manuali per Congas

Indice

Altri manuali Percussion Play Strumento musicale

Percussion Play

Percussion Play Soprano Quartet Manuale utente

Percussion Play

Percussion Play Cavatina Manuale utente

Percussion Play

Percussion Play Tubular Bells Manuale utente

Percussion Play

Percussion Play CAVATINA Manuale di servizio

Percussion Play

Percussion Play Ground Fixed Marimba Manuale utente

Percussion Play

Percussion Play Duo Manuale utente

Percussion Play

Percussion Play Congas Manuale utente

Percussion Play

Percussion Play Freechimes Diatonic Symphony Manuale utente

Percussion Play

Percussion Play PPBDL-S Manuale utente

Percussion Play

Percussion Play Quintet Ensemble Manuale utente

Percussion Play

Percussion Play Rainbow Trio Metallophone Manuale utente

Percussion Play

Percussion Play PPBDL-S Manuale utente

Percussion Play

Percussion Play Freechimes Pentatonic Symphony Manuale utente

Percussion Play

Percussion Play Cadenza Manuale utente

Percussion Play

Percussion Play Emperor Chimes Manuale utente

Percussion Play

Percussion Play Soprano Pentatonic Manuale utente

Percussion Play

Percussion Play Rainbow Bongos Manuale utente

Percussion Play

Percussion Play Freechimes Symphony Manuale utente

Percussion Play

Percussion Play Wall Marimba Manuale utente

Percussion Play

Percussion Play Surface Fixed Manuale utente

Percussion Play

Percussion Play Surface Fixed Tubular Bells Manuale utente

Percussion Play

Percussion Play Cavatina Manuale utente

Percussion Play

Percussion Play Cadenza Manuale utente

Percussion Play

Percussion Play Rainbow Trio Metallophone Manuale utente

Manuali Strumento musicale popolari di altre marche

Kawai

Kawai CN17 Manuale utente

Yamaha

Yamaha PCY130 Manuale utente

Korg

Korg SP-170S Manuale utente

Roland

Roland ep-97 Manuale utente

Roland

Roland LX-15 Manuale utente

Johannus

Johannus Rembrandt 200 Manuale utente

Yamaha

Yamaha Clavinova CVP-709 Manuale utente

Yamaha

Yamaha YC-20 Manuale utente

Yamaha

Yamaha Clavinova CVP-609 Manuale utente

Casio

Casio celviano ap-700 Manuale utente

Yamaha

Yamaha PSR-E473 Manuale utente

Modulus

Modulus Quantum Series Manuale utente

Gear4music

Gear4music SDP-4 Manuale utente

HOMCOM

HOMCOM 390-006 Manuale utente

Xotic Guitars

Xotic Guitars ProVintage Series Manuale utente

Sadowsky

Sadowsky MetroLine Series Manuale utente

Bosendorfer

Bosendorfer CEUS Manuale utente

Gewa

Gewa UP 260 G Manuale utente
