Perlesmith PSTVS21 Manuale utente
Model：PSTVS21
V1.0
TV Stand Instruction Manual
Thank you for choosing this PERLESMITH product! At
PERLESMITH we strive to provide you with the best quality
products and services in the industry. Please share your
experience of our product with others at
www.perlesmith.com/pages/reviews if you are satisfied.
Should you have any issues, please don't hesitate to contact
us.
Technical Support:
1-800-556-6806 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
[email protected] (US）
[email protected] (CA)
Website:
www.perlesmith.com

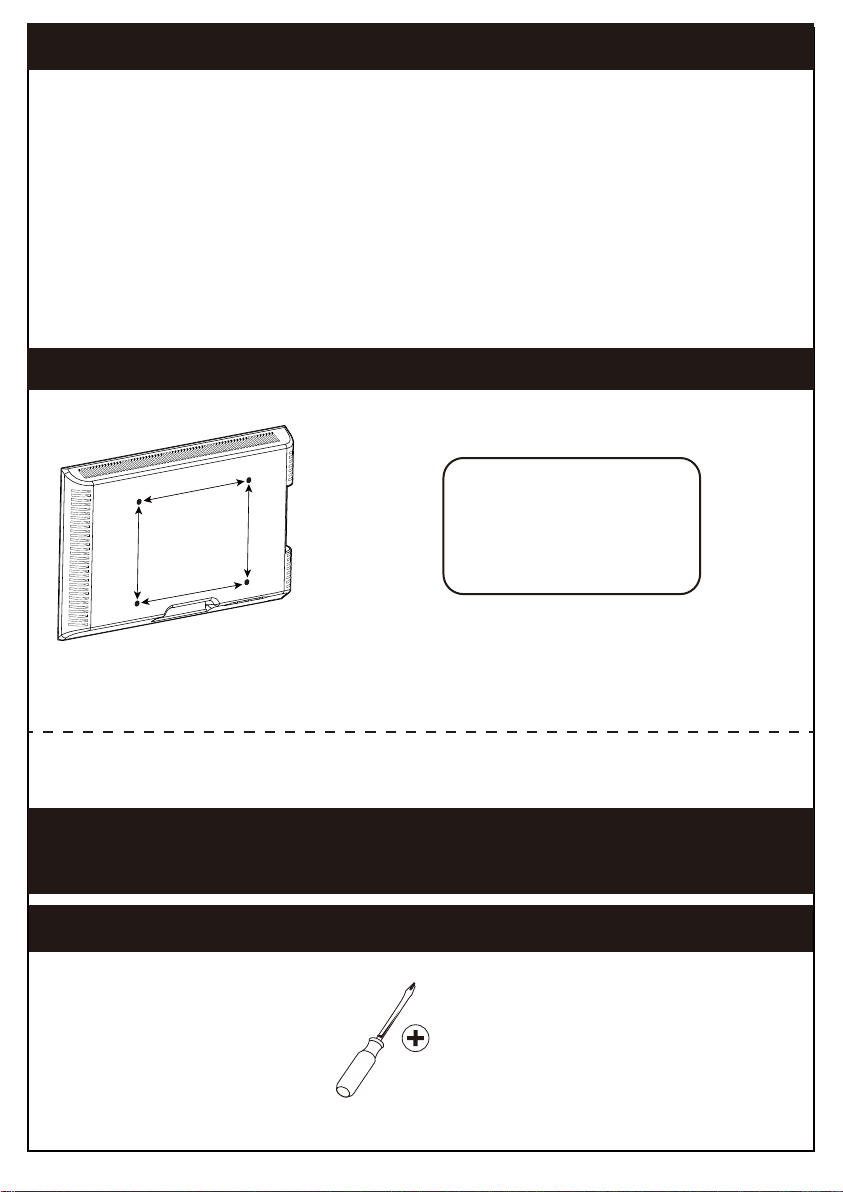

Tools Needed [Not Included]
Phillips Screwdriver
IMPORTANT SAFETY INSTRUCTIONS
Check the VESA Pattern of TV Before the Installation
100 mm ≈ 4 in.
200 mm ≈ 7 7/8 in.
400 mm ≈ 15 3/4 in.
600 mm ≈ 23 5/8 in.
300 mm ≈ 11 3/4 in.
MAX:600mm/24 in.
MAX
:400mm/15.7 in.
Minimum VESA pattern:100mm/4 in.(W)x100mm/4 in.(H)
If your TV VESA is greater than 600x400 mm/24x16 in. or less
than VESA 100x100mm/4x4in., this TV stand is NOT compatible.
If this TV stand is NOT compatible, please contact customer service at suppor-
product.
Please carefully read all instructions before attempting installation. If you do
not understand the instructions or have any concerns or questions, please
contact our Technical Support line at 1-800-556-6806 or customer service
at [email protected] (US)/[email protected] (CA)
CAUTION: Avoid potential personal injuries and property damage!
Do not use this product for any purpose that is not explicitly specified in this
manual. Do not exceed weight capacity. We are not liable for damage or
injury caused by improper mounting, incorrect assembly or inappropriate use.
01 02 03 04 05 06 07 08 09 10 11
(F) x6
Foot Pad
(B) x3
M6x25mm Bolt
Supplied Parts and Hardware for Step 1
Supplied Parts and Hardware for Step 2
(03)
Plastic Cover (x1)
5/32in.(4mm)
(I) x1
Allen Key
Note: Shown in accordance with
the actual size
Supplied Parts and Hardware
WARNING: This product contains small items that could be
a choking hazard if swallowed.
Before starting assembly, verify all parts are included and un-
damaged. Do not use damaged or defective parts. lf you
require replacement parts, contact our Product Support line at
1-800-556-6806 or customer service at supportus@per-
• Please note: Not all hardware included in this package will be
used.
(01) x1
Tempered Glass Base
(02)
Support Pillar (x1)
(D) x3
Steel Washer
(C) x3
Plastic Washer
(04) x1
TV Plate
(E2) x4
M6x 8mm Bolt
Note: The bolt is shown in accordance with
the actual size.
(06) x1
Swivel Component
(E1) x4
M6x 45mm Bolt
5/32in.(4mm)
(I) x1
Allen Key
01 02 03 04 05 06 07 08 09 10 11
(TV1) x4
M6x15mm
Bolt
(TV2) x4
M6x35mm
Bolt
(TV3) x4
M8x15mm
Bolt
(TV4) x4
M8x35mm
Bolt
(TV5) x4
M8x50mm
Bolt
(TV6) x4
Washer
(TV7) x4
φ8.5 Washer
(TV8)x8
L2.5mm
Spacer
(TV9)x4
L10mm
Spacer
(TV10)x4
L22mm
Spacer
(05) x2
TV Bracket
Note: The bolts and spacers are shown in accordance with the actual size
Supplied Parts and Hardware for Step 3
Supplied Parts and Hardware for Step 4
（H）x2
Wire Clip
01 02 03 04 05 06 07 08 09 10 11
Connect the support pillar [02] to tempered glass base [01]
Step 1-2
Place foot pads [F] to the painted side of the tempered glass base
[01] in the corners
Step 1-1
Step 1 Assemble the Base
Supplied Parts and Hardware for Step 5
F
01
DC
B
I
Note：Kindly note that the tempered glass base is designed
to show the shiny glass side facing up
Attach the tempered glass base by using bolts [B], steel washers [D] and
plstic washers [C].
(G) x2
Safety Lock
You may need assistance with this step
Back Side
Front Side
02
03
01 02 03 04 05 06 07 08 09 10 11
The First Choice
The Second Choice
The Third Choice
Note: There are three choices for
height adjustment. You can choose
your desired height position while
connecting the swivel component
[06] and TV plate [04] to support
pillar [02].
Step 2 Connect the TV Plate [04] to Support Pillar [02]
The First Choice The Second Choice The Third Choice
2-1
E1
06
2-2
I
Note: Make sure the bump of the TV
plate faces back side of the TV stand.
You may need assistance with this step
E2
04
I
Back Side
01 02 03 04 05 06 07 08 09 10 11
Only one bolt size fits your TV.
Select TV Bolts
Step 4 Secure the TV Brackets [05] to TV
Too Long
Correct Correct
Too Short
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Note: If necessary, the spacers can be used in multi-layer. If the installation
fails after trying various methods, please contact customer service at
M6 M8
Step 3 Secure the Wire Clips [H] to Support Pillar [02]
Attach wire clips H
02
H
01 02 03 04 05 06 07 08 09 10 11
TV6
TV7
TV8/TV9/TV10
TV2/TV4/TV5
TV7
Alternate Spacer Setups
05
CAUTION: Ensure the TV
brackets [05] are EQUALLY
CENTERED on your TV and
securely fastened in place.
Option A (For Flat Back TV)
Option B (For Flat Back TV)
UP
TV6
TV1
TV3
The spacers must be used with washers (TV7)
to stop spacers from falling down.
PLEASE NOTE: The bolt hole
locations on your TV may vary in
accordance of the manufactur-
ers design of the TV. We are
only illustrating possible loca-
tions of the bolt holes.
01 02 03 04 05 06 07 08 09 10 11
TV6
TV7
TV8/TV9/TV10
TV2/TV4/TV5
Alternate Spacer Setups
TV6
TV7
TV8/TV9/TV10
TV2/TV4/TV5
Spacers may be necessary for 2 holes ONLY.
Option D (For TV with A “Bump”)
Option C (For Round Back TV)
The spacers must be used with washers (TV7)
to stop spacers from falling down.
The spacers must be used with washers (TV7) to stop spacers from falling down.
TV6
TV1
TV3
TV6
TV1
TV3
01 02 03 04 05 06 07 08 09 10 11
TV6
TV7
TV8/TV9/TV10
TV2/TV4/TV5
Alternate Spacer Setups
Option E
For cable interference or inset holes, use
spacers [TV8], [TV9] and [TV10] to create
extra space between the TV and TV brackets
TV brackets are three-height-adjustable.
You can choose the proper height.
The second
choice The first
choice
The third
choice
Step 5 Attach TV to the TV Plate [04] and Manage the Wires
Alternate Spacer Setups
The spacers must be used with washers (TV7) to stop spacers from falling down.
