Perlesmith PSTVMC06 Manuale utente
Model: PSTVMC06
TV Cart Instruction Manual V2.0(B)
Thank you for choosing this PERLESMITH product! At PERLESMITH we strive to
provide you with the best quality products and services in the industry. Should
you have any issues, please don't hesitate to contact us at
Technical Support:
1-800-556-6806 Mon-Fri 8am - 8pm(CST)
Other Info:
Minimum VESA pattern: 100mm/4 in (W)x100mm/4 in (H)
200 mm ≈ 7 7/8 in
400 mm ≈ 15 3/4 in
100 mm ≈ 4 in
300 mm ≈ 11 3/4 in
MAX:400mm/16 in
MAX:400mm/16 in
Check the VESA Pattern of Your TV before the Installation
If your TV VESA is greater than 400x400 mm/16x16 in or less than VESA
100x100mm/4x4 in, this TV cart is NOT compatible.
If this TV cart is NOT compatible, please contact customer service at
[email protected](US)/ [email protected](CA) to find a
compatible product.
Important Safety Information
• Please read through these instructions completely before attempting installation.
If you do not understand the instructions or have any concerns or questions,
please contact customer service at [email protected](US)/
• Check package contents against Supplied Parts and Hardware List to assure
that all components were received undamaged. Do not use damaged or defective
parts. lf you require replacement parts, contact customer service at
[email protected](US)/ [email protected](CA)
• Not all parts and hardware included will be used.
• Do not use this product for any purpose or in any configuration not explicitly
specified in this instruction. We hereby disclaim any liability for injury or damage
arising from incorrect assembly, incorrect mounting, or incorrect use of this
product.
Serious or fatal crushing injuries can occur from tip over. To help prevent tip over:
● Never allow children to climb, stand, hang, or play on any part of TV or TV cart.
● Use tip over restraint or anchor to attach the TV cart against wall.
Use of tip over restraints may only reduce, but not eliminate risk of tip over.
Tip over Warning
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16
(4pcs)
(4pcs)
M4x12mm
M4x30mm
Bolt
TV2 (4pcs)
M6x16mm
Bolt
TV3 (4pcs) TV4 (4pcs)
M6x35mm
Bolt
TV5 (4pcs)
M8x50mm
Bolt
M8x25mm
Bolt
TV6 (4pcs) TV7 (4pcs) TV8 (8pcs)
Washer with
3 Holes D8
2.5mm
Spacer
TV9 (4pcs)TV10 (4pcs)
10mm
Spacer
22mm
Spacer
Hardware for Attaching TV Brackets to TV
A (1pc)
M10x35mm
D10x30x2.5mm
01 (1pc)
07 (2pcs) 09 (1pc)
05 (1pc)
06 (1pc)
I (1pc)
08 (1pc)
02 (2pcs) 03 (2pcs) 04 (4pcs)
B (12pcs)
M6x12mm
D (2pcs)C (2pcs) E (2pcs) G (2pcs) F (1pc) H (1pc)
10 (2pcs) 11 (1pc) 13 (2pcs)12 (1pc)

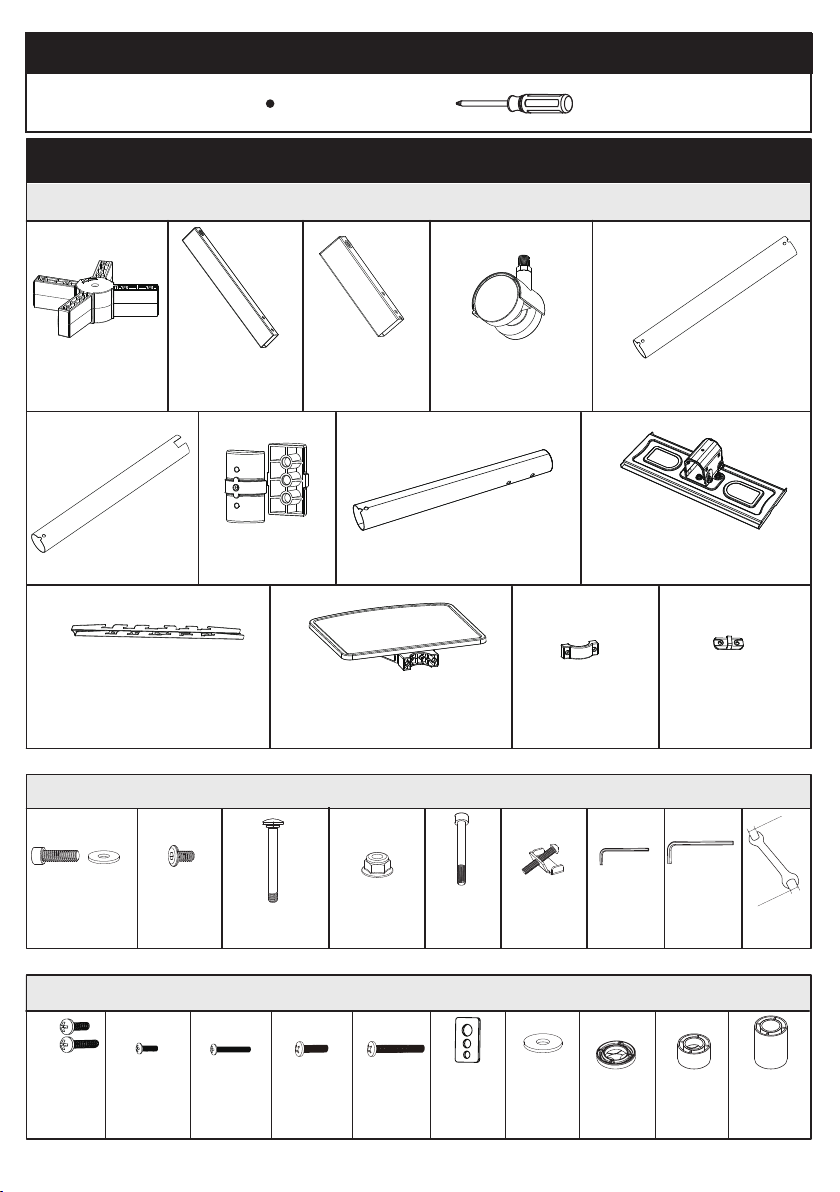

Supplied Parts and Hardware
Supplied Parts
Hardware for Assembling the TV Cart
Phillips Screwdriver
Tools Needed (Not lncluded)
M5x55mm 5/32 in (4mm) 5/16 in (8mm)
10mm
12mm
TV1
Tube Connector Long Square
Tube
Short Square
Tube Caster Middle Pole
Lower Pole Pole Connector Upper Pole TV Plate
TV Bracket Shelf Connecting Plate Cable Clip
Washer Nut Bolt Safety
Lock
Bolt Bolt Small
Allen Key
Large
Allen Key
Wrench
Washer
(01)
(02)
Bolt M8
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16
Step 1 Assemble the Base
Secure the short square tubes [03] and long square tubes [02] to the tube
connector [01] using bolts [B] and Allen key [F] .
5/32 in (4mm)
Small Allen Key
Tube Connector
B
5/32 in (4mm)
Small Allen Key
F
x1 x2
x2 x8
Long Square
Tube
x1
Short Square
Tube M6x12mm
Bolt
01 02
03
01 03
02 B
F
Front Side
Back Side
Small Allen Key
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16
06
06
A
H
01
Step 2
Step 3
04
02
03
I
Screw the Casters [04] to the Short Square Tube [03] and
Long Square Tube [02]
Secure the Lower Pole [06] to the Center of the Tube
Connector [01]
15/32 in (12mm)
Wrench
Note: The groove on the lower pole [06] should be
aligned with the groove on the tube connector [01]. 5/16 in (8mm)
Large Allen Key
Lock Unlock
x4
Caster
04
x1
Wrench
10mm
12mm
I
A
5/16 in (8mm)
Large Allen Key
H
x1 x1
x1
Lower Pole
06
M10x35mm
Bolt Washer
D10x30x2.5mm
Large Allen Key
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16
Step 4
06
05
07
F
07
Secure the Middle Pole [05] to Lower Pole [06]
Note: The convex grooves on the pole connector [07] should be aligned with the grooves on
the lower pole [06] and middle pole [05].
5/32 in (4mm)
Small Allen Key
4-1. Conenet the two parts of pole
connector [07].
4-2. Insert the assembled pole
connector [07] to the lower pole [06].
4-3. Insert the middle pole [05] to the
pole connector [07]
4-4.Tighten the preassembled setscrew
[T] to secure the two poles [05] and [06]
T
5/32 in (4mm)
Small Allen Key
F
x1 x1
x1
Middle Pole
05
Pole Connector
07
Small Allen Key
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16

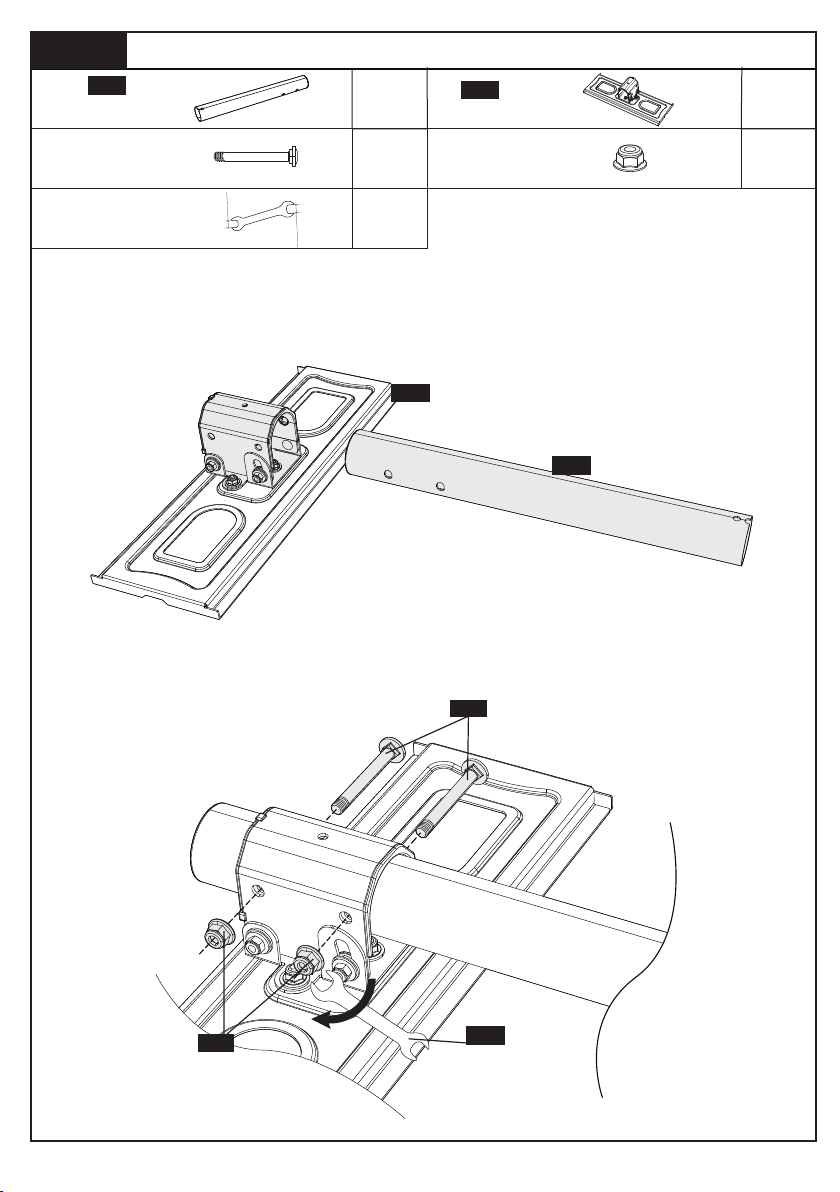

Step 5
C
Secure the TV Plate [09] to the Upper Pole [08]
5-1 Slide the upper pole [08] to the TV plate [09].
5-2 Secure the upper pole [08] to the TV plate [09] by tightening
the bolts [C] and nuts [D].
Upper Pole
D
x1 x1
x2 x2
TV Plate
x1
M8
Nut
08 09
Wrench
10mm
12mm
I
C
Bolt
08
09
DI
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16
5/32 in (4mm)
Small Allen Key
Step 6
07
08
05
F
Secure the Upper Pole [08] to the Middle Pole [05]
Front Side
Back Side
Note: Make sure the TV plate faces the front side of the TV cart.
6-1. Conenet the two parts of pole
connector [07].
6-2. Insert the assembled pole
connector [07] to the middle pole [05].
6-3. Insert the upper pole [08] to the
assembled pole connector [07].
6-4.Tighten the preassembled
setscrew [T] to secure the two poles
[05] and [08].
07
T
Note: The convex grooves on the pole
connector [07] should be aligned with
the grooves on the upper pole [08]
and middle pole [05].
x1 x1
Pole Connector
07 5/32 in (4mm)
Small Allen Key
F
Small Allen Key
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16
Step 7
13
B
F
Secure the Cable Clip [13] to the Connecting Parts
of the Poles
5/32 in (4mm)
Small Allen Key
5/32 in (4mm)
Small Allen Key
F
x2 x4
x1
Cable Clip
13
B
M6x12mm
Bolt
Small Allen Key
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16
Step 8
Secure the Brackets to the TV
Note: The bolts are shown in accordance with the actual size
M6 TV2 x4
M6 x 16mm
TV3 x4
M6 x 35mm
M4 TV1(01) x4
M4 x 12mm
TV1(02)x4
M4 x 30mm
M8
TV4x4
M8 x 25mm
TV5 x4
M8 x 50mm
X2
TV Bracket
10
Note: The washers and spacers are shown in accordance with the actual size
TV6x4
Washer
TV7 x4
D8 Steel Washer
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16
