Pfaff ClassicStyle home 2029 Manuale utente
ClassicStyle home
2029
Owner’s manual
This houshold sewing machine is designed to comply with IEC/EN 60335-2-28 and UL1594.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety precautions should always be followed, including the following:
Read all instructions before using this household sewing machine.
DANGER - To reduce the risk of electric shock:
• A sewing machine should never be left unattended when plugged in. Always unplug this sewing machine
from the electric outlet immediately after using and before cleaning.
• Always unplug before relamping. Replace bulb with same type rated 5 Watt.
WARNING - To reduce the risk of burns, fire,
electric shock, or injury to persons:
• Do not allow to be used as a toy. Close attention is necessary when this sewing machine is used by or
near children or infirm person.
• Use this sewing machine only for its intended use as described in this manual. Use only attachments
recommended by the manufacturer as contained in this manual.
• Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the sewing machine to the nearest authorized
dealer or service center for examination, repair, electrical or mechanical adjustment.
• Never operate the sewing machine with any air openings blocked. Keep ventilation openings of the
sewing machine and foot control free from the accumulation of lint, dust, and loose threads.
• Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
• Always use the proper needle plate. The wrong plate can cause the needle to break.
• Do not use bent needles.
• Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
• Switch the sewing machine off (“0”) when making any adjustment in the needle area, such as threading
needle, changing needle, threading bobbin, or changing presser foot, etc.
• Always unplug the sewing machine from the electrical outlet when removing covers, lubricating, or when
making any other user servicing adjustments mentioned in the instruction manual.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administrated.
• To disconnect, turn all controls to the off (“0”) position, then remove plug from outlet.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
SAVE THESE INSTRUCTIONS
32
01
15
11
1413
9
12
8
7
6
45
10
0. Standard Presser Foot with IDT
820250-096
1. Fancy Stitch Foot with IDT
820253-096
2. Fancy Stitch Foot
820278-096
3. Blindhem/Overlock Foot with IDT
820256-096
4. Zipper Foot with IDT
820248-096
5. Buttonhole Foot
820295-096
6. Bulb Remover/Needle Plate Changer
820292-096
7. Buttonhole Guide
820294-096
8. Spool cap
93-036 048-44/000, 93-035 050-44/000, 93-036 049-44/000
9. Felt pad
93-033 064-06/000
10. Bobbins
412 76 79-01
11. Needle box
48-020 804-32/000
12. Edge Guide/Quilting Guide
820251-096
13. Second spool holder
93-033 063-44/000
14. Seam ripper
99-053 016-91/000
15. Brush
93-847 979-91/000
Presser feet (standard accessories)
For more information about accessories, please contact your PFAFF dealer.
Create your own beautiful living!
Congratulations!
You have purchased a top quality Pfaff sewing machine with great features, especially suitable for creating
textiles and accessories for your home.
ClassicStyle home2029
with its ease of use, selection of decorative stitches and practical features will make
your sewing a special experience.
To learn about your
ClassicStyle home2029
, follow the instructions for the
expression2028
.
Your
ClassicStyle home2029
has the same features as the
expression2028
, except from some stitches and
accessories. In this manual other accessories are described, they are optional and can be purchased from your
Pfaff dealer.
16
15
14
13
12
11
10
9
8
7
6
5
4
32
1
18
17
33
32
31
29
28
27
26
25
24
2322
21
19
20
30
1 -/+ button A (stitch width/pattern
width controls)
2 -/+ button B (stitch length/pattern
length controls)
3 -/+ button C (stitch density/balance
controls)
4 Carrying handle
5 Handwheel
6 Direct selection buttons
7 Stitch selection button
8 Connection socket “lead cord”
9 Connection socket “foot control”
10 Master switch
11 Base plate
12 Removable accessory tray
13 Presser foot holder with presser foot
14 Integrated dual feed/IDT
15 Integrated needle threader
16 "Reverse sewing” button
17 Threading slots
18 Needle thread tension
19 Take-up lever
20 Presser foot lifter
21 Thread guide
22 Spool holder with spool cap
23 Hole for second spool holder
24 Lid with stitch chart
25 Bobbin winder
26 Bobbin door
27 Free arm
28 Sewing bulb (max. 5 W)
29 Thread cutter
30 “Pattern mirror” button/”Lock”
button
31 Thread take-up
32 Needle holder with retaining (set)
screw
33 Needle plate
Parts of the sewing machine
Congratulations! You have purchased a high-
quality product that offers unique advantages.
It features the very latest in design and
technology, and this instruction book is just as
uncomplicated as your PFAFF sewing machine.
If you now take time enough to study the
instruction book, nothing can go wrong. After
all, this is the only way to learn all the things
the machine can do, and to make full use of
them.
If you have any further questions, that is no
problem! Your PFAFF dealer will be at your
service with any help or advice you need.
So now you can get started! We wish you many
enjoyable hours of creating your fashion ideas.
Modern, uncomplicated
Sewing by push-button control
1:2
Introduction
TABLE OF CONTENTS
1. Introduction
Utility stitches expression 2028 1:4
Utility stitches expression 2028 1:5
Decorative stitches 1:6
2. Preparations
Carrying case 2:1
Lid 2:1
Electrical connection 2:2
Connecting the foot control 2:2
Voltage Switch 2:2
Accessory tray 2:3
Removing the accessory tray 2:3
Bobbin winding 2:4-5
Thread tension 2:6
Inserting the bobbin 2:6
Threading the needle 2:7
Integrated Needle threader 2:8
Presser foot lifter 2:8
Drawing-up the bobbin thread 2:9
Bobbin thread 2:9
Thread cutter 2:9
Changing the presser foot 2:9
Setting the needle thread tension 2:10
Winding a bobbin through the needle 2:10
Changing the needle 2:12
Threading the twin needle: 2:12
The IDT (Integrated Dual Feed) 2:13
Lowering the feed dog 2:13
3. Sewing
Stitch selection 3:1
Altering stitches 3:1
Altering the stitch width 3:1
Altering the needle position 3:1
Altering the pattern width e.g. Stitch 25 3:2
Altering the stitch/pattern length 3:2
Altering the stitch density 3:2
Balance 3:3
Reverse sewing 3:3
“Pattern mirror” 3:3
"Lock" button 3:4
Twin needle 3:4
Explanation of the sewing
recommendations table 3:6
Sewing in zippers 3:6
Basting stitch 3:7
Top stitching 3:7
Blind hem stitch 3:8
Overlock stitches 3:9
Free Motion Sewing 3:10
Bridging stitch 3:11
Cross hem stitch 3:11
Rolled hem with hemmer No. 7 3:12
Shell edging 3:12
Buttonholes 3:13
Inserting the sensormatic buttonhole
guide: 3:13
Attaching buttonhole foot 3:13
Fully automatic buttonhole 3:13
Semi-automatic buttonhole 3:14
Manual buttonhole 3:15
1:3
Introduction
Buttonhole with gimp thread 3:16
Sewing on buttons 3:17
Buttonhole tips: 3:17
General notes on decorative sewing 3:18
Changing the pattern width 3:18
Changing the pattern length 3:18
Free motion embroidery 3:19
Tapering 3:19
Quilt stitch 3:19
Cross-stitch 3:20
Hemstitching 3:20
4. Maintenance
Changing the needle plate 4:1
Cleaning 4:1
Changing the light bulb 4:2
Sewing problems and their solutions 4:3
1:4
1234567890 11121310
Introduction
Utility stitches expression™ 2028
Stitch No. Description Application Presser-
foot
1 Straight stitch For seaming and topstitching up to 6 mm. 13 needle positions
available for edgestitching or sewing in zippers.
0
2 Stretch triple straight
stitch
For reinforced seams such as trousers, under arm seams or
decorative topstitching. With 13 needle positions.
1
3 Zigzag stitch, Center
needle position
For Ànishing seams on fabrics, applique, and inserting lace. 0
4 Elastic stitch Strong stitch for seam Ànishes, sewing elastic, darning tears, and
patches.
0
5 Blind hem stitch For securing hems invisibly on woven fabrics 3
6 Elastic blind hem stitch For securing hems invisibly and Ànishing the edge on stretch
fabrics.
3
7 Closed overlock stitch For hemming and overlapping stretch fabrics in one operation. The
closed seam prevents fabric edges from fraying.
3
8 Bridging stitch For bridging, decorative hemstitching and crazy quilting. 0
9 Linen buttonhole Buttonhole for blouses, shirts and linen. 5
0 Button attaching program For two-hole or four-hole buttons. 2
10 Basting stitch For basting project pieces together. 1
11 Zigzag stitch Right/Left
needle position
For applique, couching over cords and creating eyelets. 3
12 Lightning stretch stitch For joining light weight stretch fabrics and decorative
embellishment
1
13 Decorative elastic stitch For joining overlapped seams on bulky fabrics such as leathers
and terry cloth.
0
1:5
17 18 19 20 21 22 23 24 2514 15 16 26
Introduction
Utility stitches expression 2028
Stitch No. Description Application Presser-
foot
14 Lightning stretch stitch For joining light weight stretch fabrics and decorative
embellishment.
1
15 Stretch triple zigzag stitch Elastic stitch for decorative hems and topstitching. 1
16 Overlock stitch For joining and overcasting stretch fabrics in one operation. 3
17 Honeycomb stitch Elastic, decorative stitch for ornamental hem Ànishing on
stretch fabric, for decorative elastic application and sewing
with elastic thread in the bobbin.
0
18 Cross hem stitch Provides a highly elastic decorative seam for hems on
sportswear and casual wear.
0
19 Closed overlock stitch For joining and overcasting woven fabric and easily fraying
fabrics in one operation. The overcast edge thread prevents the
fabric edges from fraying.
3
20 Pullover stitch Join and overcast open knit fabrics and jersey. 3
21 Light-knit fabric patching
stitch
For sewing and patching light knit wear (undergarments etc.) 3
22 Cross stitch Classic decorative stitch for garments, linen and kitchen
towels.
1
23 Cross stitch Classic decorative stitch for garments, linen and kitchen
towels.
1
24 Hem stitching For ornamental hem stitching. Can be used with wing needle. 1
25 Hem stitching For ornamental hem stitching. Can be used with wing needle. 1
26 Hem stitching For ornamental hem stitching. Can be used with wing needle. 1
1:6
34 35 36 39 40 42 43
53
59
46
60
41
48 49 51
54
52
38
55 63
44 45
37
28
27 29 30 31 32 33
67
47 50
64 66
65
61585756 62
68
Introduction

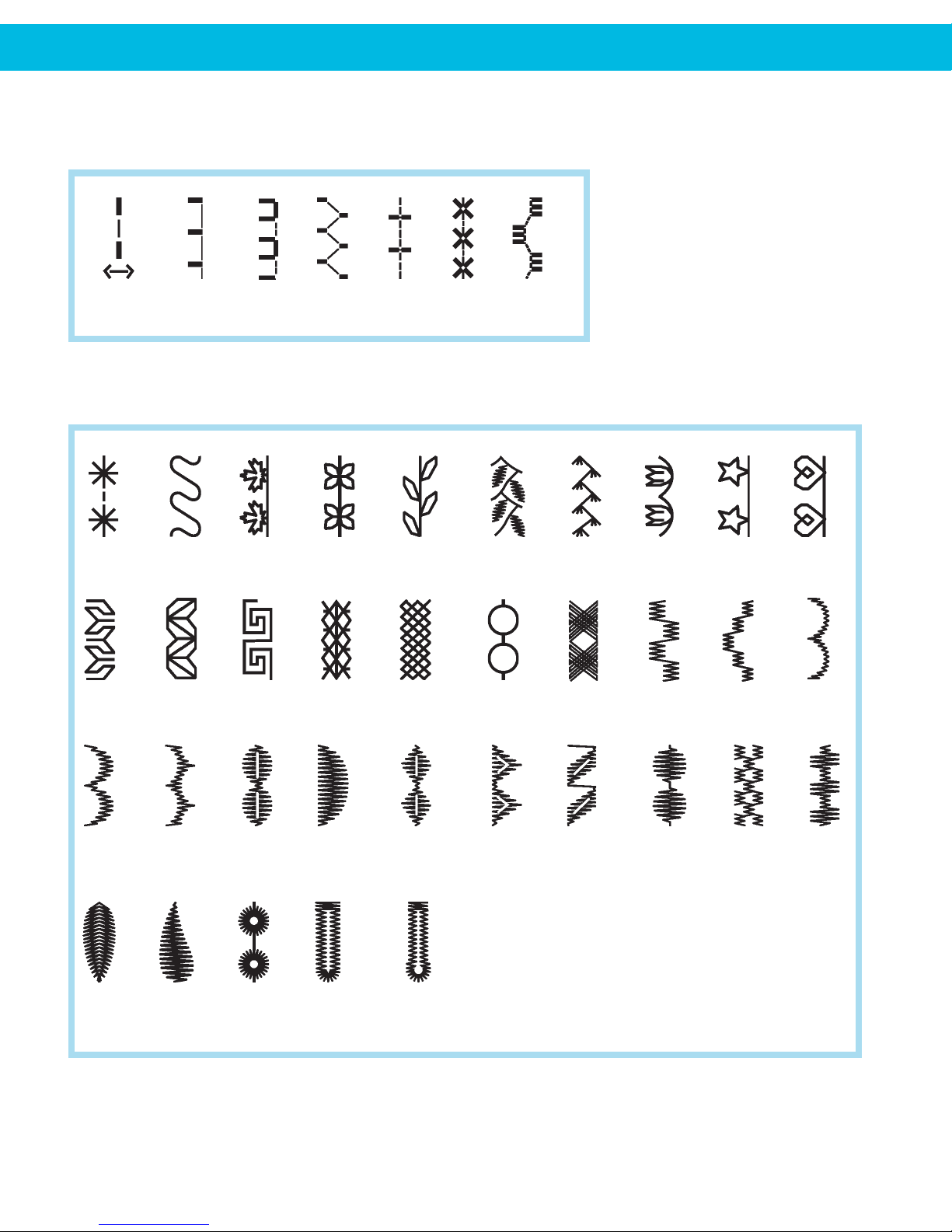

Decorative stitches expression 2028
Quilt stitches 2028
Indice
Altri manuali Pfaff Macchina da cucire
Pfaff
Pfaff PowerLine 2235 Manuale utente
Pfaff
Pfaff QUILT ARTIST II Manuale utente
Pfaff
Pfaff 5625-657/01 Manuale utente
Pfaff
Pfaff creative 1472 Manuale utente
Pfaff
Pfaff Espression line Manuale utente
Pfaff
Pfaff 212 Manuale utente
Pfaff
Pfaff EXPRESSION 2038 - Manuale utente
Pfaff
Pfaff 114 Manuale utente
Pfaff
Pfaff Coverstyle Manuale utente
Pfaff
Pfaff 3334 Manuale utente
Pfaff
Pfaff admire 1000 Manuale utente
Pfaff
Pfaff Hobby 301 Manuale utente
Pfaff
Pfaff 3516-1/25 Manuale utente
Pfaff
Pfaff 1591 Guida
Pfaff
Pfaff 2438 plusline Manuale utente
Pfaff
Pfaff ClassicStyle 1525 Manuale utente
Pfaff
Pfaff 561 Manuale utente
Pfaff
Pfaff Embroidery Machines Manuale utente
Pfaff
Pfaff 73 Manuale utente
Pfaff
Pfaff 571 Guida
