Phanteks ECLIPSE G300A Manuale utente

up to 360 up to 240

INSTALLATION GUIDE

INSTRUCTIONS

Thank you for choosing Phanteks. Please take a moment to

carefully go through the manual. This manual will walk you

through all of the features the Eclipse G300A has to offer and

installation steps to build a full system.

Phanteks will not take responsibility for any damages incurred due to incorrect

installation or usage of this product.

VERSION 1.0

| www.phanteks.com 01

USB 3.0 TYPE-A

USB 3.0 TYPE-C

AUDIO/MIC

RESET BUTTON

POWER BUTTON

SSD + MOTHERBOARD

SCREW

18x

MB STAND-OFF

PSU SCREW

HDD SCREW

STAND-OFF TOOL

D-RGB 120MM FAN

1x pre-installed DBK01

3x pre-installed DBK02

ZIP TIE

360 FRONT AIO COOLER 240 TOP AIO COOLER

FRONT TOP REAR CLEARANCE

FANS

RADIATOR

120mm

3x 2x 1x

up to 120

140mm

CPU cooler height

GPU length

Powersupply

E-ATX

160 mm

365 mm with front fans

210 mm

up to 260 mm width

AIO 240

AIO 360

Because of the special front bracket, the front supports a radiator

up to 360. When using this option, the maximum GPU length is

335mm.

The top supports a radiator up to 240. When using this option,

the maximum GPU length is 365mm with 3 front 120mm fans.

120MM

This manual is for the following models:

PH-EC300GA_DBK01

PH-EC300GA_DBK02

Satin Black |1x D-RGB Fan Back

Satin Black |3x D-RGB Fans Front

INCLUDED ACCESSORIES FRONT I/O

FAN & RADIATOR SUPPORT

335mm 365mm

D-RGB MOTHERBOARD ADAPTER

INSTALLATION GUIDE

LEFT SIDE PANEL REINSTALL SIDE PANEL

MOTHERBOARD POWERSUPPLY

RIGHT SIDE PANEL FRONT PANEL & DUST FILTERS

Loosen the 2 thumb screws and slide to

remove the tempered glass side panel.

Remove the glass panel, set it aside in a

safe location to prevent damage.

When returning the left side panel, align

the bottom right with the slit in the chassis.

Slide the panel forward and secure with 2

thumb screws at the back.

Remove front panel by pulling the panel from below.

Install the ATX motherboard using 9x motherboard screws.

For M-ATX Motherboards follow the motherboard instructions to

move the stand-offs to the correct position.

Slide in the power supply from the side and secure it with the

4x PSU screws. It is recommended to connect all needed cables

beforehand.

Loosen the 2 captive thumb screws and slide to remove the right

side panel.

| www.phanteks.com

THUMBSCREW

REMOVE

THUMBSCREW

REMOVE

MOTHERBOARD

SCREWS

INSTALL

9x PSU SCREW

INSTALL

REMOVE EXTERNAL PANELS

HARDWARE INSTALLATION

Make sure to hold the side panel while

sliding it outwards to prevent any damage

when removing.

CAUTION

PSU FILTER

TOP FILTER

PSU

INSTALLATION GUIDE 03

STORAGE |2.5” SSD

STORAGE |3.5” HDD

Loosen the thumb screw on the SSD backplate to remove it, for

easy installation of the 2.5” SSD’s.

Hold the 3.5” HDD into place and secure it with 4x HDD screws

from the bottom.

Lay the chassis on it’s side for easy access.

The backplate can hold up to 3x 2.5” SSD’s. Use 4x SSD screws

per SSD to secure it in location.

| www.phanteks.com

Connect the front I/O cables to the allocated connectors on the

motherboard to use all front I/O buttons and inputs.

MOTHERBOARD FRONT I/O

SSD SCREW

INSTALL

HDD SCREW

INSTALL

INSTALLATION GUIDE

VERSION 1.0

2.5”

SSD

2.5”

SSD

2.5”

SSD

FRONT I/O

THUMBSCREW

LOOSEN

POWER_SW

Put a piece of cloth underneath

the chassis to prevent any

damage.

PRO TIP

POWER

SWITCH

PWR

LED

RESET

SWITCH

INSTALLATION GUIDE

04 | www.phanteks.com

VERTICAL GPU BRACKET (PH-VGPUKT4.0_03R)

The G300A chassis supports the Phanteks Vertical GPU Bracket.

The Vertical GPU Bracket supports 3 and 4 slot GPU’s with access

to the GPU connectors on slot 1 and 2.

It can be easily installed in the PCI slot area. Follow the instructions

that are included with the Vertical GPU bracket.

OPTIONAL UPGRADE

The D-RGB fan needs a controller to function.

Connect to an ARGB-equipped motherboard with the included

D-RGB Motherboard adapter or use a Phanteks D-RGB Controller.

The Phanteks D-RGB Controller is sold separately (PH-CTHUB_DRGB_01).

More Phanteks D-RGB lighting products can be

daisy-chained easily with the JST-connector.

OPTION 1.

MOTHERBOARD CONTROL

OPTION 2.

PHANTEKS D-RGB CONTROLLER

CONNECT TO THE D-RGB CONTROLLER WITH

JST CONNECTOR.

DAISY-CHAIN PHANTEKS D-RGB PRODUCTS TOGETHER

WITH THE JST-CONNECTOR.

PHANTEKS DRGB CONTROLLER SOLD SEPARATELY

(PH-CTHUB_DRGB_01)

EXPAND WITH MORE D-RGB PRODUCTS

D-RGB FAN

D-RGB FAN MOTHERBOARD

D-RGB CONTROLLER

D-RGB CABLES

As a Phanteks customer, you are priority number one. We have a dedicated team across the globe to deliver the experience you

deserve.

CUSTOMER CARE

RMA and Technical Support Americas

Hours: Monday-Friday 9:00-5:00 PST

Phone number: +1(909)598-2115

Email: [email protected]

Facebook: @Phanteks

RMA and Technical Support International

Email: [email protected]

Facebook: @Phanteks

For spare parts and optional upgrades please visit:

www.axpertec.com (EU) | www.phanteksusa.com (US)

SUPPORT & WARRANTY

D-RGB CONTROL D-RGB EXPANSION

Questo manuale è adatto per i seguenti modelli

Altri manuali Phanteks Hardware per computer

Phanteks

Phanteks GLACIER G30 STRIX Manuale utente

Phanteks

Phanteks GLACIER G3090Ti MSI Manuale utente

Phanteks

Phanteks GLACIER C350AP Manuale utente

Phanteks

Phanteks GLACIER G30 AORUS RTX 3090 Manuale utente

Phanteks

Phanteks GIGABYTE XTREME GLACIER G2080Ti Manuale utente

Phanteks

Phanteks Glacier C399A Manuale utente

Phanteks

Phanteks GLACIER DUAL EVO Series Manuale utente

Phanteks

Phanteks NV5 PREMIUM D-RGB KIT Manuale utente

Phanteks

Phanteks EVOLV SHIFT XT Manuale utente

Phanteks

Phanteks Evolve Shift XT Manuale utente

Phanteks

Phanteks GLACIER R160C Manuale utente

Phanteks

Phanteks GLACIER G40 MSI Manuale utente

Phanteks

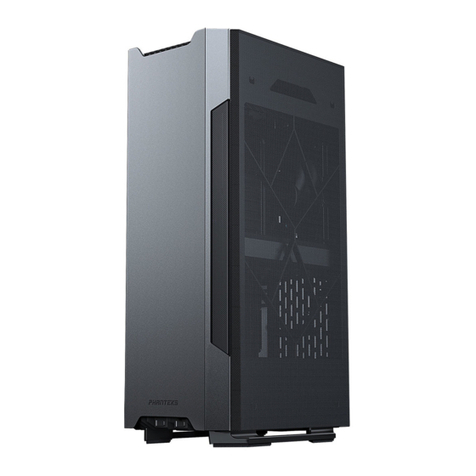

Phanteks EVOLV SHIFT 2 Manuale utente
