Phanteks EVOLV SHIFT 2 Manuale utente

USER MANUAL V1.0

SHIFT 2

SHIFT 2 air

Thank you

for choosing

SHIFT 2

SHIFT 2 air

TABLE OF CONTENTS

Introduction

Specications

Exploded View

Accessories

Getting started

Installing the bottom fan

Installing the Power Supply

Installing cooling

Installing the Motherboard

Installing the GPU

Installing drives

Connecting Front I/O

Cable Management (internal ext)

Lighting Control

Dust Filters

Optional Upgrades

Warranty

1. WHAT’S INSIDE?

2. CHOOSE YOUR SETUP

3. SUPPORT

SHIFT 2

SHIFT 2 air

INTRODUCTION

Welcome to Phanteks!

The Evolv Shift 2 (air) builds on the unique form factor of the original Evolv Shift and brings a compact chassis

that packs plenty of power and is extremely space ecient with its small footprint. The Evolv Shift 2 (air) will

look impressive anywhere with the tempered glass or mesh fabric panels on both sides.

Phanteks believes that meaningful designs are created through

the fusion of form and function.

The Phanteks team

SHIFT 2

SHIFT 2 air

SPECIFICATIONS

*Depends on model.

PCI SLOTS & DRIVE BAYS

PCI slots 2x (2.9 slot)

Internal 3.5” 1x

Internal 2.5” 4x (2 included)

FAN 120 MM 140MM

Rear 2x 2x (1x included)

Bottom 1x 1x

RADIATOR 120 MM

Rear 1x

CASE SPECIFICATIONS

Dimensions

Shift 2 170x490x274mm (6.7x19.3x10.8 in)

Shift 2 air 186x490x274mm (7.3x19.3x10.8 in)

Form Factor Vertical SFF

Materials

Steel chassis, Aluminium panels,

Tempered glass window*, Fabric Side

panels*

MB Support Mini-ITX

Front I/O Power button, 2x USB 3.0, D-RGB Mode,

D-RGB Color

Connectors Power switch, USB 3.0, SATA, D-RGB

expansion, D-RGB third-party, D-RGB MB

INCLUDED ACCESSORIES

140 mm SK D-RGB PWM Fan 1x

GPU bracket 1x

Riser Cable PCI-e 3.0 x 16 1x

Dual SSD bracket 1x

Toolbox 1x

Accessory Bag 1x

CLEARANCE

CPU cooler height 85 mm (3.3 in)

GPU length 335 mm (13.2 in)

GPU cooler thickness Up to 2.9 slots, 59mm

GPU width Up to 150mm (5.9 in)

Rear 120mm radiator Max 157x148mm

45mm thickness with SFX

30mm thickness with SFX-L

SUPPORT

Contact (International) [email protected]

Contact (America) suppor[email protected]

Warranty 5 Years, see page 27

SHIFT 2

SHIFT 2 air

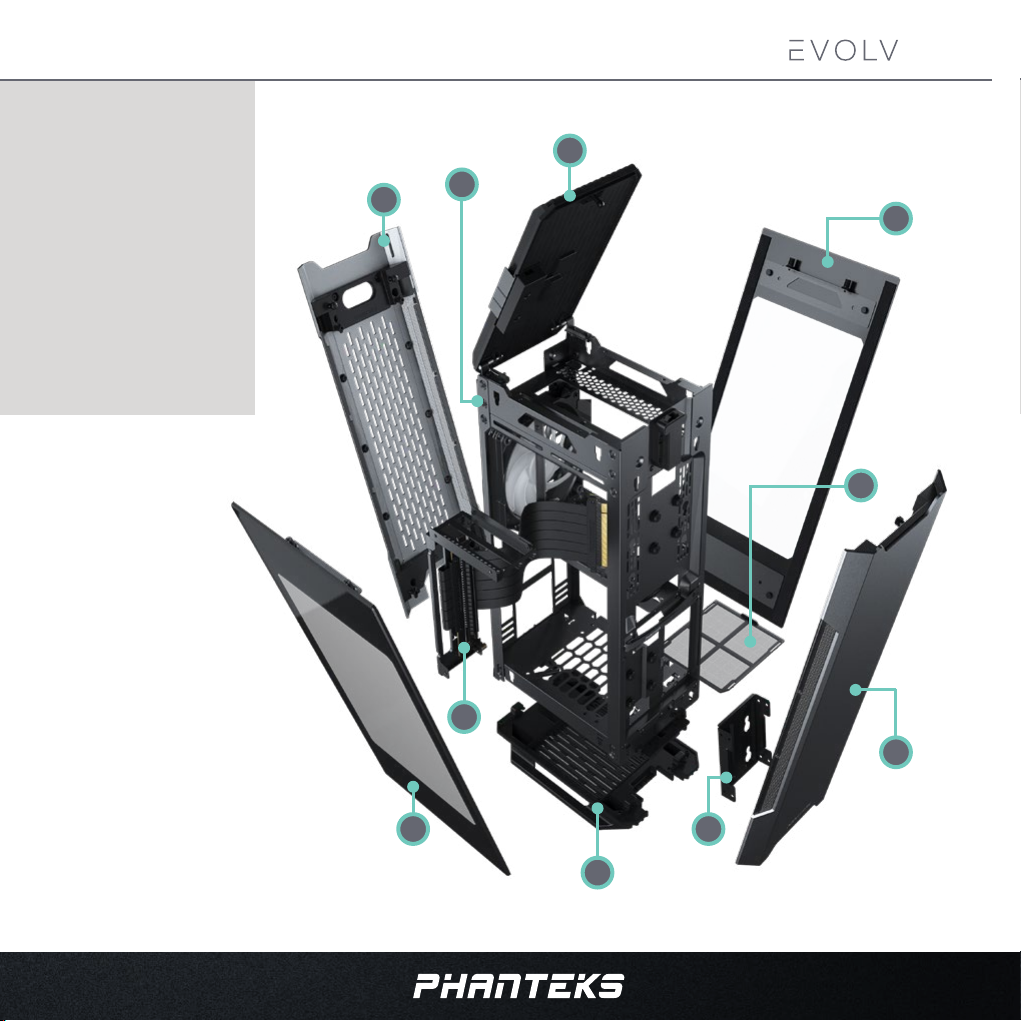

1. Chassis

2. Front Panel

3. Rear Panel

4. Left Side Panel

5. Right Side Panel

6. Top Grill

7. Bottom Grill

8. GPU Bracket

9. Dual SSD Bracket

10. Bottom Dust Filter

EXPLOADED VIEW

SHIFT 2

SHIFT 2 air

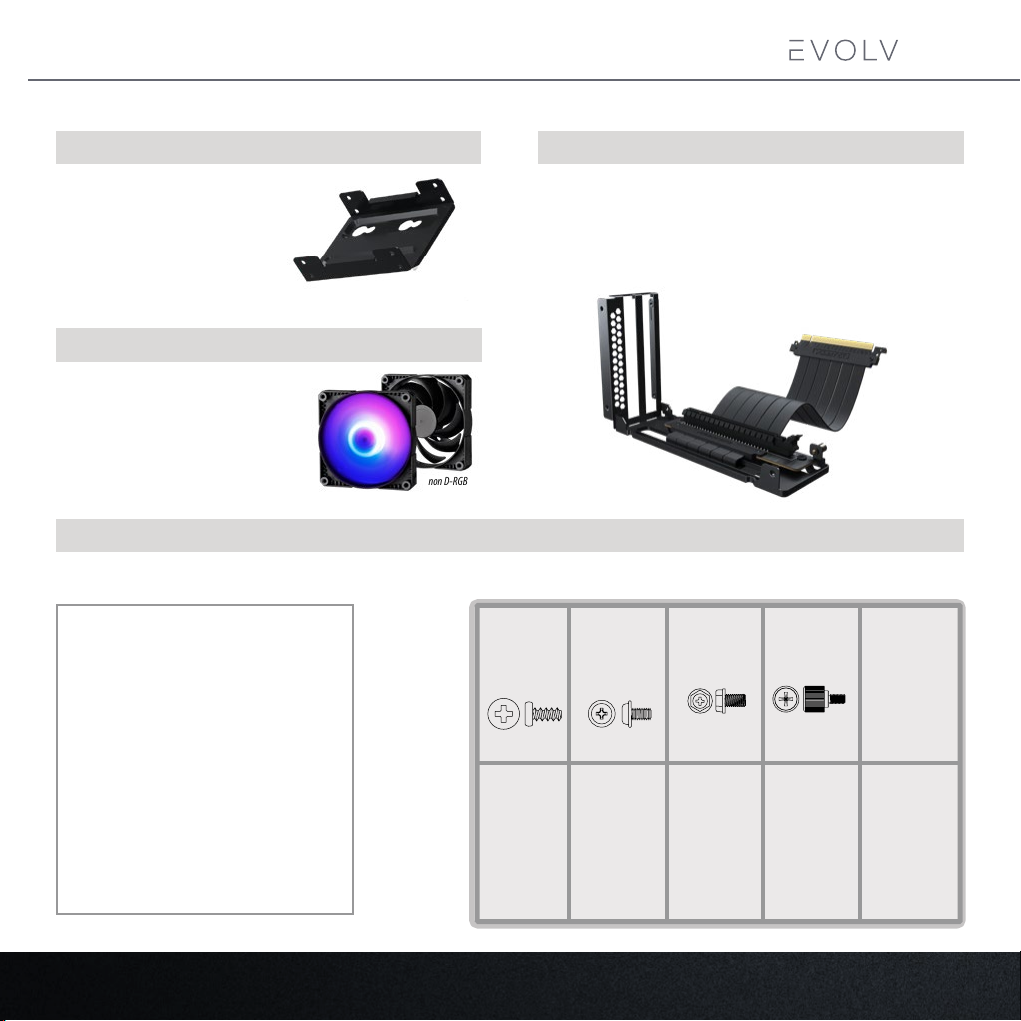

ACCESSORY BAG AND TOOLBOX

ACCESSORIES

SK (D-RGB*) PWM FAN 140 MM

- Pre-installed

- Hight static pressure

- Silent operation

* Shift 2 Air comes with non D-RGB version

D-RGB version

non D-RGB

version

6x Zip Tie 150mm

Phanteks Logo Badge

Accessory bag Toolbox

PSU screw

Fan screw M3x5 mm

Motherboard /

SSD screw

Silver Thumb

Screw

8x 20x 1x

DUAL 2.5” SSD BRACKET

- Pre-installed

- For 2x 2.5” SSD drives

GPU BRACKET WITH RISER CABLE

- Pre-installed

- PCI-e 3.0 x16 riser cable

- Reversable mounting options

SHIFT 2

SHIFT 2 air

GETTING STARTED

PREPARATIONS

• The Evolv Shift 2 case is designed to support installation in a standing position.

• Don’t turn on the power to your system until installation is complete.

• Discharge your body’s static electric charge by touching a grounded surface before performing any hardware procedure.

• Make sure to consult the manuals of your hardware before installation.

RECOMMENDED INSTALLATION PROCESS

A unique chassis design like the Shift 2 (air) comes with a dierent approach to the installation process.

That is why we recommend to follow these installation tips:

- Follow the component installation order as shown in this manual.

- Pre-route the cables for each installed component as shown at each step.

- Wait with connecting cables until the end of the installation process.

Depending on hardware components such as power cable length the cable routing can be dierent.

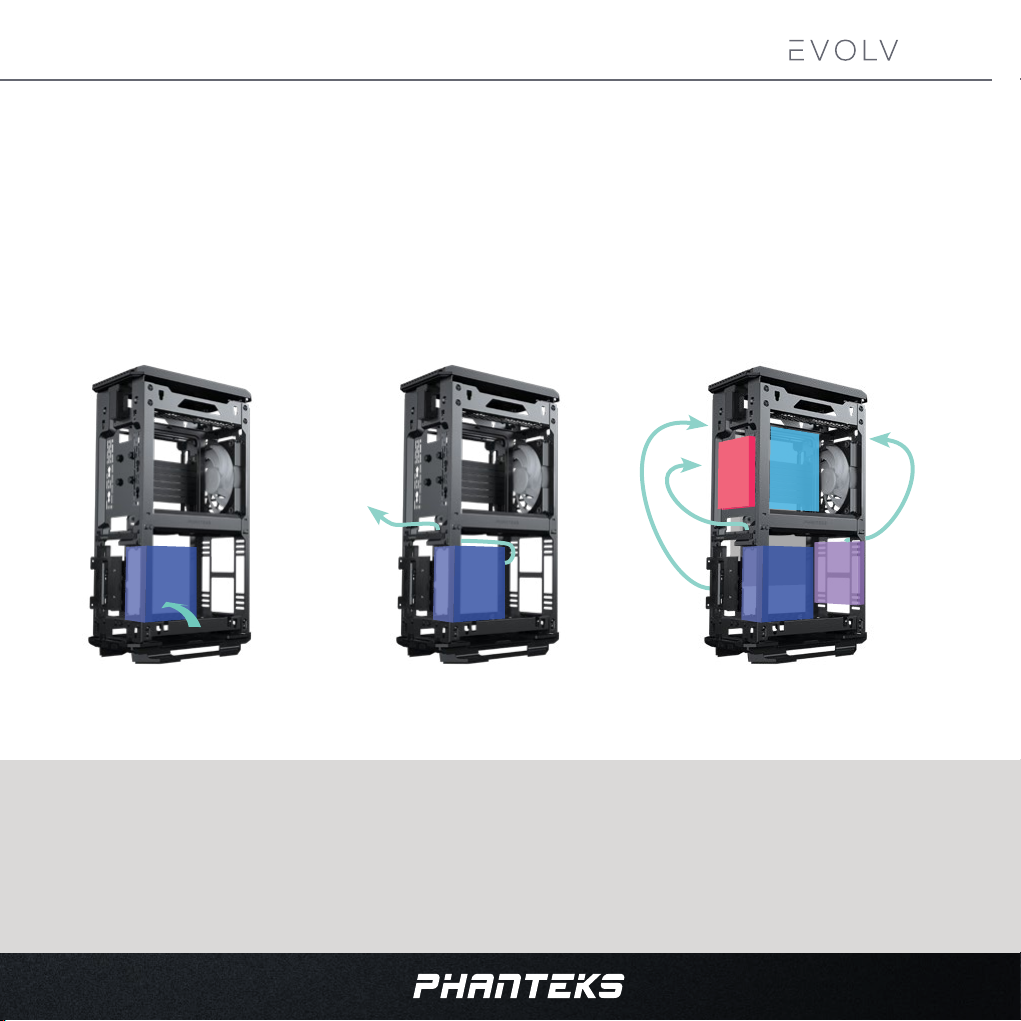

1. INSTALL COMPONENT 2. PRE-ROUTE CABLES

TO THE OUTSIDE

3. CONNECT ALL CABLES AT THE END

OF THE INSTALLATION PROCESS

SHIFT 2

SHIFT 2 air

GETTING STARTED

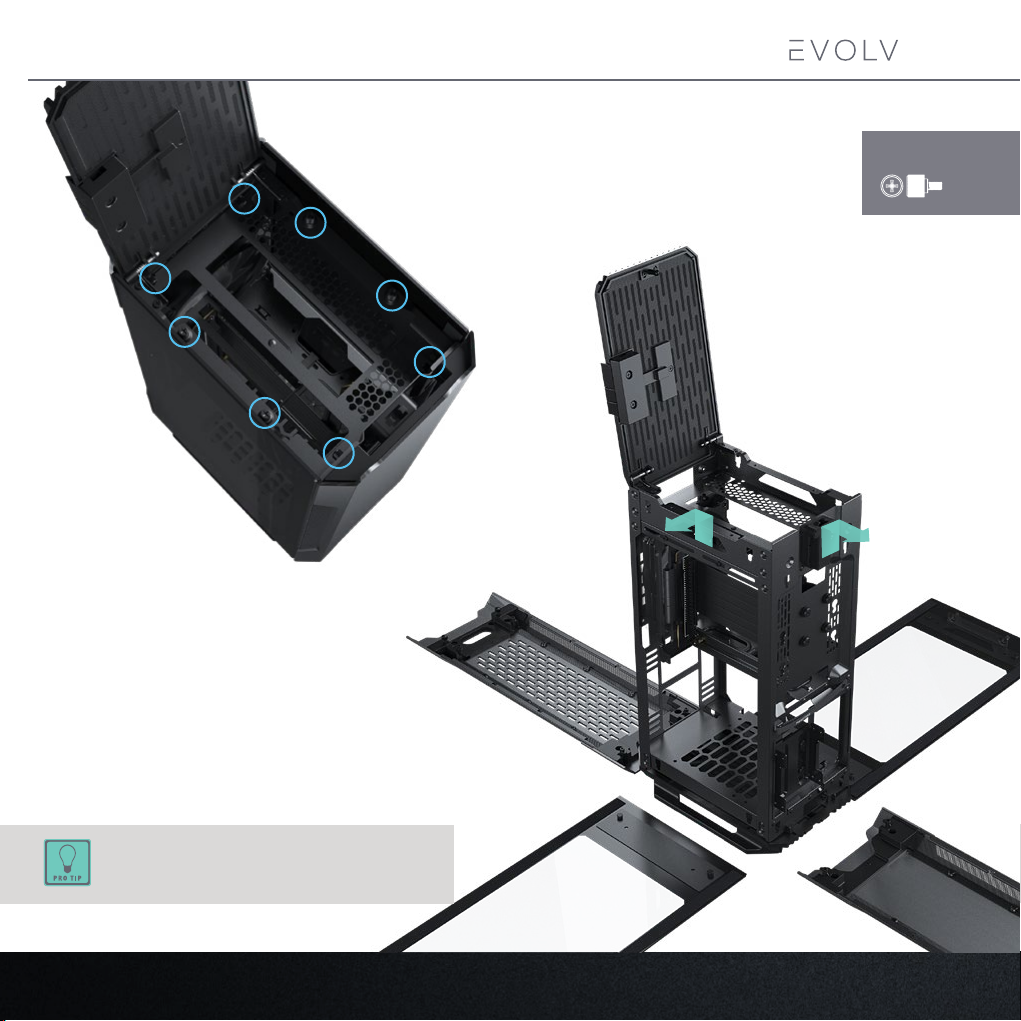

LOOSEN:

PRESS THE TOP GRILL TO OPEN IT

LOOSEN ALL THUMB SCREWS

SLIDE THE PANELS UP

TAKE THE PANELS OUT

To remove or mount the rear panel the top grill must

be closed.
