Phanteks GLACIER G40 MSI Manuale utente

INSTALLATION GUIDE V1.0

GLAC IER G40 MSI GPU BLOCK

PH-GB4090MS_BK01/CR01/MW01_BP

PACKAGE CONTENTS

WARNING - This product is intended for advanced users. Improper installation may result in damage to your equipment.While all eorts have

been made to provide the most comprehensive information possible, Phanteks assumes no liability expressed or implied for any damage(s) occurring to your

components as a result of using Phanteks cooling products, either due to mistake or omission on our part in the below instructions, or due to failure or defect in

the Phanteks cooling products. Do not disassemble the water block.Warranty will be voided.

STEP 1. REMOVING STOCK COOLER

MSI RTX 4090 GAMING(X) TRIO

MSI RTX 4090/4080 SUPRIM (X)

Unscrew all highlighted screws to remove

the stock cooler and backplate.

Some SUPRIM models require

you to remove these 2 screws.

Secure again with 2x M3 Nuts and

original screws.

Make sure to unplug the LED and Fan

cables when you remove the stock cooler.

backplate screws

MSI SUPRIM PCB version: V510-2.2

stock cooler screws

Clean o the original thermal compound.

We recommend using isopropanol alcohol.

Remove the protective lm and place the

the thermal pads on the correct position

on the PCB.

Apply the Phanteks Thermal Compound to

the center of the GPU chip.

STEP 2. APPLYING THERMAL PASTE & PADS

Make sure to remove the protective lm on

both sides of the thermal pads.

MSI RTX 4090/4080 SUPRIM (X) / GAMING(X) TRIO

Keep for step 3

GB4090MS block

QTY: 1

GB4090MS backplate

QTY: 1

GLACIER stop tting

QTY: 2

Support bracket

QTY: 1

Block thermal pads

QTY: 2 pre-cut pieces

M2.5x5 screws/washers

QTY: 4/4

M3x10 screw (1x)

M3 Nut (2x)

Backplate thermal pads

QTY: 2 pre-cut pieces

M2.5x8 ush screws

QTY: 11

Thermal compound

QTY: 1

Phanteks D-RGB cable

QTY: 1

Motherboard cable

QTY: 1

12 11 11 11 11 11

6 6 6 6

10 12

3 3

11 11

1111

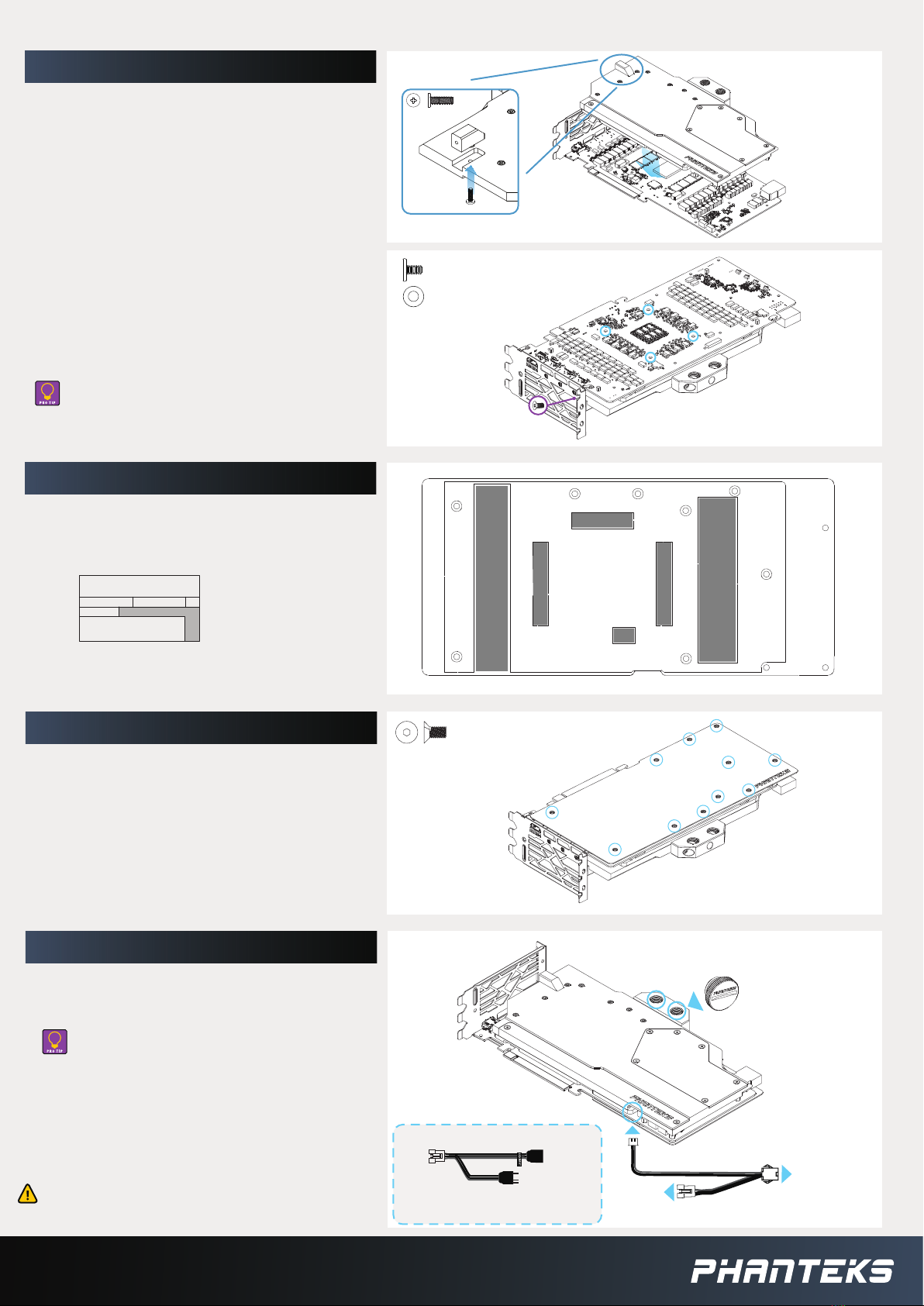

STEP 5. INSTALL THE BACKPLATE

Carefully position the backplate onto the

graphics card. Align the mounting holes on

the PCB with the holes on the backplate.

Secure the backplate with 11 M2.5x8mm

ush screws to the PCB.

11x

STEP 4. APPLYING THERMAL PADS

Remove the protective lm on both sides

and place the thermal pads on the correct

position on the backplate.

STEP 3. MOUNT THE WATER BLOCK

Secure the support bracket to the GPU block

rst.

Carefully position the water block onto the

graphics card. Align the mounting holes on

the PCB with the holes on the water block.

Secure the water block with 4 M2.5x5mm

screws and washers to the PCB.

Secure the Support Bracket with the original

cooler screw.

Make sure to lay the GPU with the water

block at down without resting on the

PCI bracket. Secure with original

screw.

Always perform a leak test before

providing power to any system components.

STEP 6. INSTALL INTO THE SYSTEM

1. Connect the D-RGB cable to the D-RGB

strip in the water block.

2. Install the GPU into the system.

3. Install the waterloop and Stop Fittings

Use the Motherboard cable to connect

the LED strip to the motherboard.

Opotional:

All Phanteks D-RGB products can be

daisy-chained together.

Connect to

Phanteks Case / Motherboard Cable

2 3

2 2
