Phanteks Power Combo INSTALLATION GUIDE

PACKAGE CONTENTS

SPECIFICATIONS

POWER COMBO DEVICE

(PH-PWCOM_2P1M)

QTY: 1

HOOK AND LOOP MOUNT

QTY: 2

Description:

Used for installing the Power

Splitter in a universal case.

RELEASE BUTTON

INDICATOR LED LIGHT

OUTPUT : Motherboard

- 24-Pin

- 2x 8-Pin

INPUT 1:PSU

- 24-pin

- 2x 8-pin

PH-PWCOB_2P1M

PH-PWCOB_2P1M, Phantek’s patented design Power Combo is a unit that will allow users to connect

two power supply to power up one motherboard. Phanteks’ Power Combo allows you to add more

power without the high cost of a high end power supply. A true plug and play, the Power Combo

requires no cutting and splicing of the wires.

INSTALLATION

STEP 1. CONNECTING PSU TO POWER COMBO

8-Pin cable from PSU

Second 24 Pin cable

from PSU

24-Pin cable from PSU

FOR OPTIMAL PERFORMANCE FROM THE POWER COMBO, PLEASE CHECK

THE TOTAL POWER CONSUMPTION NEEDED FOR YOUR SYSTEMS AND

CHOOSE YOUR PSU’S WITH THE CORRECT POWER OUTPUT REQUIRED.

1. Connect the provided 24-pin and 8-pin from your power suppIies to the

24-pin and 8-pin Input 1 and Input 2 on the Power Combo. (This step is

required)

2. Optional: If your power supply has two 8-pin connector you can

connect both in for additional power.

DO NOT PLUG THE PCI-E CABLES INTO THE 8-PIN INPUT ONTHE POWER COMBO

Power supply’s PCI-E cables should be connected directly to GPU cards and

not to the Power COMBO

8-Pin cable from PSU

8-Pin cable from

PSU

8-Pin cable from

PSU

INPUT 2:PSU

- 24-pin

- 2x 8-pin

MAKE SURE THE POWER COMBO DEVICE WILL FIT INTHE MOUNTING AREA

Installing in universal case:

1. Stick one of the“hook and loop”sheet on the Power Combo bottom.

2. Stick the other“hook and loop”sheet on the desired installation area

in the chassis.

3. Place the Power Combo device onto the“hook and loop”sheet

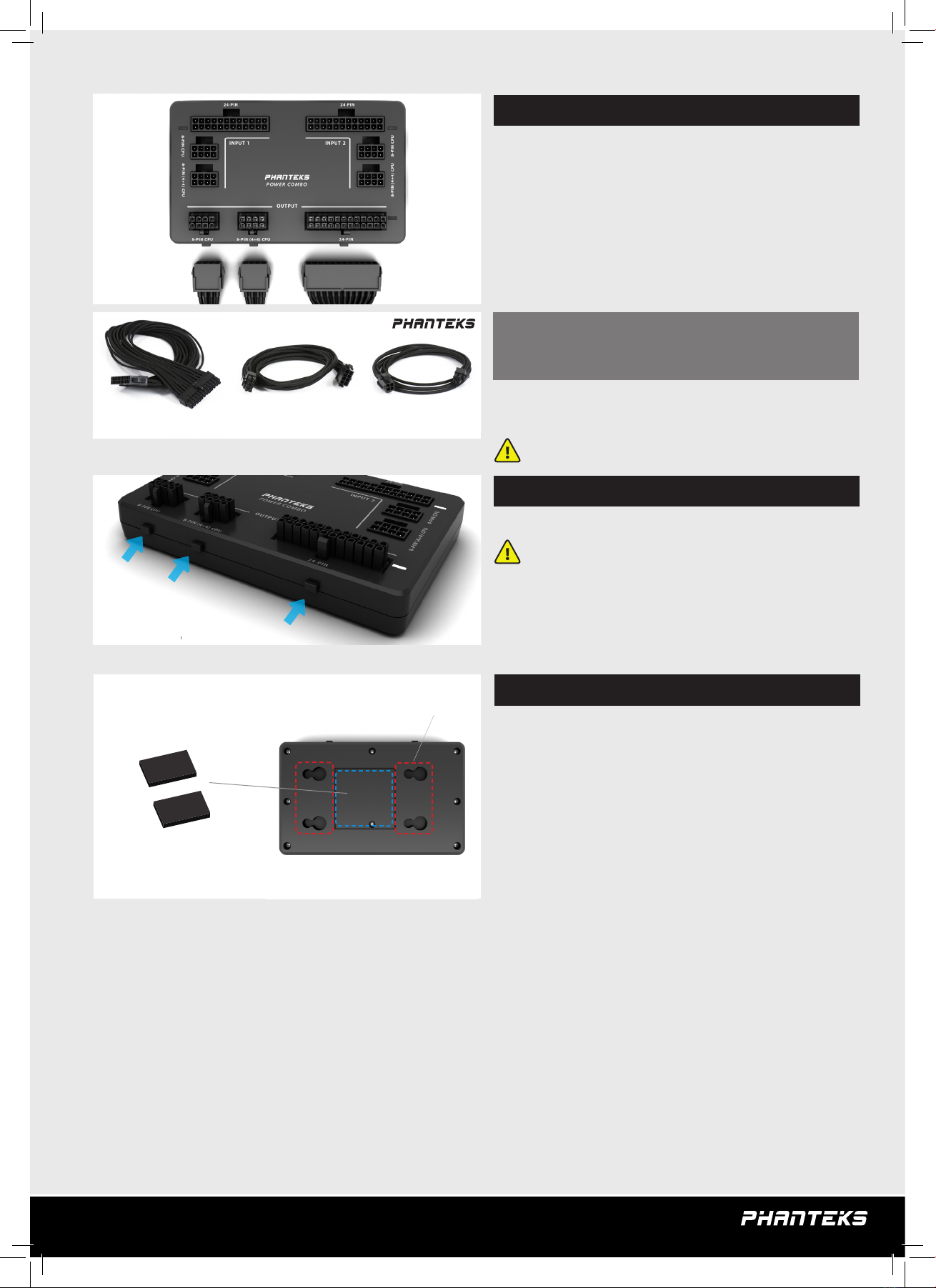

STEP 2. CONNECTING MOTHERBOARDS

REMOVING THE CABLES

STEP 3. MOUNTING THE POWER COMBO

24-PIN / 8-PIN EXTENSION CABLES ARE REQUIRED FOR CONNECTING THE POWER

COMBO TO MOTHERBOARD (cables are not included).

Connect the 24-pin / 8-pin extension cables from the Output on

the Power Combo to your motherboard. If connected correctly, LED

indicator will light up when systems are on.

*When to connect to the 2nd 8-pin connector?

If you have a motherboard with a 2nd 8-pin connector or another 4-pin

connector. (For 4-pin connector use an 8 pin to 4+4 pin cagle)

8-PIN EXTENSION

TO SYSTEM

24-PIN EXTENSION

TO SYSTEM

Push the release button to pull the cables out.

STICK ON POWER SPLITTER

STICK ON CHASSIS

HOOK AND LOOP SHEET

Installing in Compatible Phanteks Cases:

*Please make sure to check

WWW.PHANTEKS.COM

for compatible products.

1. Align the Power Combo to the Drop-N-Lock mounting rubbers

2. Slide to lock the Power Combo in place.

DO NOT PLUG THE PCI-E CABLES INTO THE 8-PIN OUTPUT ONTHE POWER COMBO

DO NOT UNPLUG THE CABLESWHEN THE POWER COMBO IS ON

PH-CB24P PH-CB8P PH-CB4P

NOT INCLUDED

The power combo is compatible with all standard extension cables on the market.

However, we recommend to use Phanteks’*extension cables which are designed with

extended length (500mm) for better cable management. Please check

WWW.PHANTEKS.COM for more information.

DROP -N-LOCK
