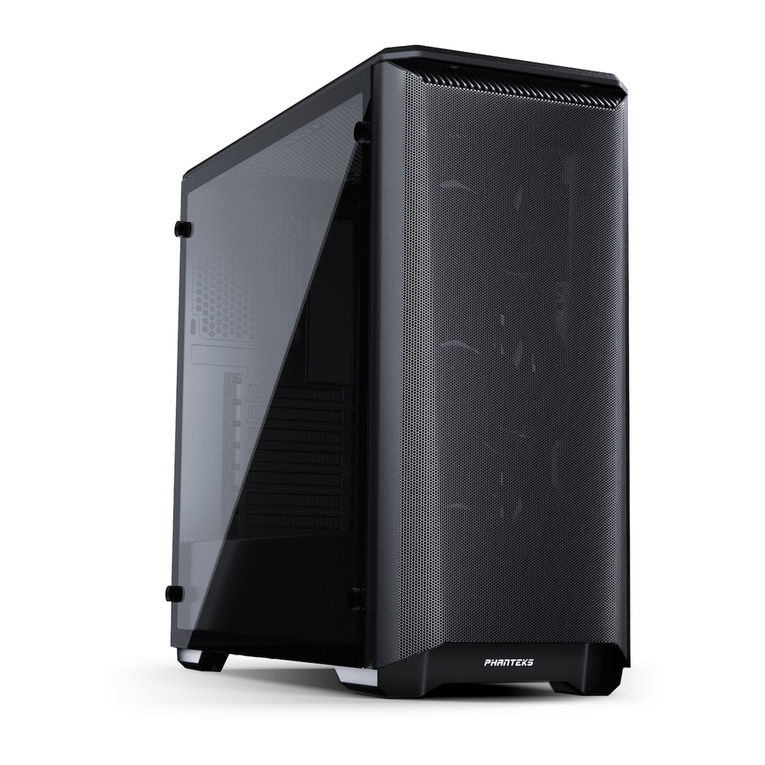

Phanteks Eclipse p400 Manuale utente

USER’S MANUAL

FULL VERSION

INTRODUCTION

Congratulations on your purchase of the Phanteks

Eclipse Series Case and welcome to the User’s

Guide. Phanteks believes that meaningful designs

are created through the fusion of form and

function.

CAUTION

Please take a moment to carefully go through the installation

guide. Phanteks will not take responsibility for any damages

incurred due to incorrect installation and incorrect usage of this

product. Thank you.

Phanteks continues its user friendly design chassis

with the new Eclipse Series P400. Without much

effort, the P400 allows users to create a clean and

beautiful system. Ambient RGB illumination adds

character while the solid metal exterior gives the

case a simple elegant design. The P400 is suitable for

beginners and experienced system builders with all

the extra features.

The P400S comes with sound damping panels and

a 3-speed fan controller to enhance acoustical

performance.

TABLE OF CONTENTS

1. SPECIFICATIONS ................................................................................................................................................................................................................. 5

2. EXPLODED VIEW ................................................................................................................................................................................................................ 6

3. ACCESSORIES ..................................................................................................................................................................................................................... 8

4. I/O PORTS ............................................................................................................................................................................................................................. 9

5. CONNECTIONS ................................................................................................................................................................................................................... 10

6. PANEL REMOVAL ................................................................................................................................................................................................................. 11

7. MOTHERBOARD INSTALLATION ................................................................................................................................................................................... 13

8. POWER SUPPLY INSTALLATION ..................................................................................................................................................................................... 14

9. FILTERS REMOVAL .............................................................................................................................................................................................................. 15

10. FANS COMPATIBILITY ....................................................................................................................................................................................................... 16

11. HARD DRIVE INSTALLATION .......................................................................................................................................................................................... 17

12. HARD DRIVE CAGE ............................................................................................................................................................................................................ 18

13. DROP-N-LOCK SSD BRACKET ......................................................................................................................................................................................... 19

14. WATERCOOLING INSTALLATION ................................................................................................................................................................................... 20

15. OPTIONAL UPGRADES ...................................................................................................................................................................................................... 22

16. SUPPORT AND SERVICES ................................................................................................................................................................................................. 24

1. SPECIFICATIONS

CLEARANCE

Graphic card 395 mm (15.2 in)

280 mm (11.0 in) Optional HDD brackets installed

CPU cooler 170 mm (6.7 in)

Cable Management 25 mm (1.0 in)

PSU (including cable) 270 mm (10.6 in)

Warranty 5 Years*

CASE SPECIFICATIONS

Dimension 210 mm x 465 mm x 470 mm (W x H x D)

8.3 in x 18.3 in x 18.5 in

Form Factor Mid Tower

Material(s) Steel chassis, steel exterior, ABS

Motherboard support ATX, Micro ATX, Mini ITX

E-ATX *(up to 272mm wide, unable to use

rubber grommets)

Front I/O 2x USB 3.0, Mic, Headphone, Reset,

LED Color Control, *3-Speed Fan

controller (*Eclipse P400S models only)

Side window Yes, Eclipse P400 (PH-EC416P)

Yes, Eclipse P400S (PH-EC416PSW)

No, Eclipse P400S closed panel(PH-EC416PSC)

EXPANSION & DRIVE BAYS

Expansion slots 7

Internal 3.5” 6 (2x included)

Internal 2.5” (dedicated) 2 (2x included)

COOLING (FANS)

120 mm 140 mm

Front 3x (1x included) 2x

Top 2x 2x

Rear 1x (1x included) -

LIQUID COOLING

120 mm (Radiator) 140 mm (Radiator)

Front Up to 360* Up to 280

Top - -

Rear 120 -

* 360 radiator requires the removal of the midplate cover

2. EXPLODED VIEW

1. Chassis

2.Top Panel

3. SSD Brackets

4. Fans

5. Right Side Panel

6. Front Panel

7. HDDTray

8. Hard Drive Cage

9. Front Dust Filter

10.Window Left Side Panel

11. Mid-plate Bracket

12. Rear Dust Filters

13.Top Covers (P400S

models only)

14.Top Dust Filter

1. Châssis

2. Filtres de poussière inférieurs

3. Support SSD

4. Fans

5. Panneau latéral droit

6. Panneau frontal

7. Bacs HDD

8. Enclos du disque dur

9. Couvercle de grille du

panneau frontal

10. Panneau latéral gauche

11. Plaque centrale multifonctions

12. Panneau supérieur

13. Couvercles de ventilation supérieurs

14. Filtre à poussière supérieur

1.Telaio

2. Filtri antipolvere inferiori

3. Staa SSD

4. Fans

5. Pannello laterale destro

6. Pannello frontale

7.Vassoi per disco rigido

8. Cage disco rigido

9. Copertura di rete frontale

10. Pannello laterale sinistro

11. Piastra centrale multifunzione

12. Pannello superiore

13. Pannelli superiori per la ventilazione

14. Filtro antipolvere superiore

1. Chassi

2. Painel Superior

3. Suporte do SSD

4. Fans

5. Painel Lateral Direito

6. Painel frontal

7.Tabuleiros de HDD

8. Berço do Disco Rígido

9.Tampa de malha frontal

10. Painel Lateral Esquerdo

11. Placa média multifuncional

12. Filtros de Pó Inferiores

13.Tampas deVentilação Superior

14. Filtro de pós superior

1. Chasis

2. Panel superior

3. SSD-Halterung

4. Fans

5. Panel lateral derecho

6. Panel frontal

7. Bandejas de unidad de disco duro

8. Compartimento de disco duro

9. Cubierta de malla frontal

10. Panel lateral izquierdo

11. Placa central multifuncional

12. Filtros de polvo inferiores

13.Tapas de ventilación superiores

14. Filtro de polvo superior

1. Gehäuse

2. Untere Staublter

3. Suporte do SSD

4. Fans

5. Rechte Seitenblende

6. Frontblende

7. Festplatteneinsätze

8. Festplattenkäg

9.Vordere Gitterabdeckung

10. Linke Seitenblende

11. Multifunktionale Platte in der Mitte

12. Untere Staublter

13. Obere Belüftungsabdeckungen

14. Oberer Staublter

1. Behuizing

2.Toppaneel

3. SSD beugel

4. Fans

5. Rechter zijpaneel

6.Voorpaneel

7. Harde schijf houder

8. Harde schijf kooi

9.Voorzijde stof lters

10. Linker zijpaneel

11. Multifunctional mid-plate

12. Bodem stof lter

13. Bovenzijde ventilatie deksels

14. Stof lter boven

3. ACCESSORIES

Top Dust Filters (P400S only)

Filtre à poussière supérieur

Filtro antipolvere superiore

Filtro de pós superior

Filtro de polvo superior

Oberer Staublter

Stof lter boven

4. I/O PORTS

ECLIPSE SERIES

QUICK INSTALLATION GUIDE

1. I/O PANEL

2. PANEL REMOVAL

1. USB 3.0

2. Microfone

3. Fone de ouvido

4. Redenição de Energia

5. Botão de Alimentação

6. LED

7. FAN (P400S only)

8. HDD LED

1. USB 3.0

2. Microphone

3. Casque

4. Réinitialisation de

l’alimentation

5. Bouton d’alimentation

6. LED

7. FAN (P400S only)

8. HDD LED

1. USB 3.0

2. Microfono

3. Cue

4. Ripristino alimentazione

5.Tasto d’alimentazione

6. LED

7. FAN (P400S only)

8. HDD LED

1. USB 3.0

2. Micrófono

3. Cascos

4. Resetear

5. Botón de alimentación

6. LED

7. FAN (P400S only)

8. HDD LED

1. USB 3.0

2. Microphone

3. Headphone

4. Reset

5. Power Button

6. LED

7. FAN (P400S only)

8. HDD LED

Unscrew the 4 thumb screws (A.) to remove the side panels (B)

Dévissez les vis à main pour enlever les panneaux latéraux.

Lösen Sie die 4 Rändelschrauben zum Entfernen der seitlichen Blenden.

Svitare le 4 viti per rimuovere i pannelli laterali.

Desaperte os 4 parafusos para remover os painéis laterais.

Desatornille los 4 tornillos de pulgar para retirar los paneles laterales.

Schroef 4 duimschroeven los om de zijpanelen te verwijderen.

For the front panel, place your hands on the area shown and pull outward.

Pour le panneau avant, placez vos mains sur la zone achée, et tirez vers l’extérieur.

Positionieren Sie auch bei der Frontblende Ihre Hände an der angezeigten Stelle

und ziehen Sie sie dann nach außen.

Per il pannello anteriore, posizionare le mani sull’area mostrata e tirare verso

l’esterno.

Para o painel frontal, coloque as mãos na área ilustrada e puxe para fora.

Para sacar el panel frontal, coloque las manos en el área indicada y tire hacia afuera.

Voor het verwijderen van het voorpaneel, trek het paneel naar u toe zoals aange-

geven op de tekening.

This is a quick installation guide to help you get started with the Eclipse P400(s).

For the full (detailed) version of the manual please visit WWW.PHANTEKS.COM.

4. Reset/sw

6. LED

7. FAN

(Only in Model: P400S)

3. Headphone

2. Microphone

1. USB 3.0

5. Power Button

8. HDD LED

Please take a moment to carefully go through the quick installation guide. Phanteks will not take

responsibility for any damages incurred due to incorrect installation and usage of this product.

SIDE PANEL REMOVAL

A. B.

FRONT PANEL REMOVAL

*Located underneath top panel

1. USB 3.0

2. Mikrofon

3. Kopfhörer

4. Reset

5. Ein-/Austaste

6. LED

7. FAN (P400S only)

8. HDD LED

1. USB 3.0

2. Microfoon

3. Hoofdtelefoon

4. Power Reset

5. Power knop

7. FAN (P400S only)

8. HDD LED

IntA P2_D+

IntA P2_D-

GND

IntA P2_SSTX+

IntA P2_SSTX-

GND

IntA P2_SSRX+

IntA P2_SSRX-

Vbus

No Pin

IntA P1_D+

IntA P1_D-

GND

IntA P1_SSTX+

IntA P1_SSTX-

GND

IntA P1_SSRX+

IntA P1_SSRX-

Vbus

USB 3.0

5. CONNECTIONS

AUDIO

RGB LED STRIP FAN CONTROL (P400S MODELS ONLY)

AGND

AVCC

MIC2_JD

LINE2_JD

MIC2 L

MIC2 R

FRO-R

F_IO_SEN

FRO-L

PANEL

Power SW

(Power LED)

Supports up to 10x fans using Y-splitters,

PH-CB-Y3P (not included)

Connects Phanteks’mulicolor LED strip for

interior lighting, PH-LEDKT_M1 (not included) /

PH-LEDKT_M2 (not included)

Reset SW

H.D.D LED
