Phanteks Evolv Shift Manuale utente

USER MANUAL V2.0

Thank you

for choosing

1. What’s inside?

Specications 3

Exploded view 4

Accessories 5

2. Setup your system

Overview 6

Remove side panels 8

Cable management 9

Installing power supply 10

Adjust case feet 11

Installing motherboard 12

Installing drives 13

Installing cooling 14

Dual AIO setup 15

Installing graphics card 16

Connecting front I/O 18

3. Pro tips

Dust lters 19

Expand & upgrades 20

4. Support

Warranty 22

TABLE OF CONTENTS

SPECIFICATIONS

Dimensions

Shift (WxHxD)

Shift Air (WxHxD)

Height (Incl. Feet)

Form Factor

Materials

MB Support

PSU Support

Front I/O

PCI slots

Internal 3.5”

Internal 2.5”

Front

Bottom

Front

Bottom

Premium Fan 140 mm

GPU Bracket

PCI-e x16 Risercable

2.5” SSD bracket

CPU Cooler

Graphics card length

Bottom Radiator *

*Depending on GPU length

Contact (International)

Contact (America)

Warranty

170 mm x 470 mm x 274 mm

(6.7 in x 18.5 in x 10.8 in)

186 mm x 470 mm x 274 mm

(7.4 in x 18.5 in x 10.8 in)

484 mm (19.1 in)

Small Form Factor

Anodized aluminum panels

Powder coated steel chassis

Tempered glass / Fabric mesh side panels

Mini-ITX

SFX

Power button, 2x USB 3.0, RGB button

2x (Can be upgraded to 3 if no 3.5”is installed)

2x 2x (1 installed)

1x 1x

120 -

For dual aio setup: max 120x27 mm radiators

See page 22

82mm (3.2 in)

350 mm (13.8 in)

55 mm (2.2 in)

[email protected]

5 Years*

CASE SPECIFICATIONS INCLUDED ACCESSORIES

CLEARANCE

SUPPORT

PCI SLOTS & DRIVE BAYS

FAN

RADIATOR

120 MM

140 MM

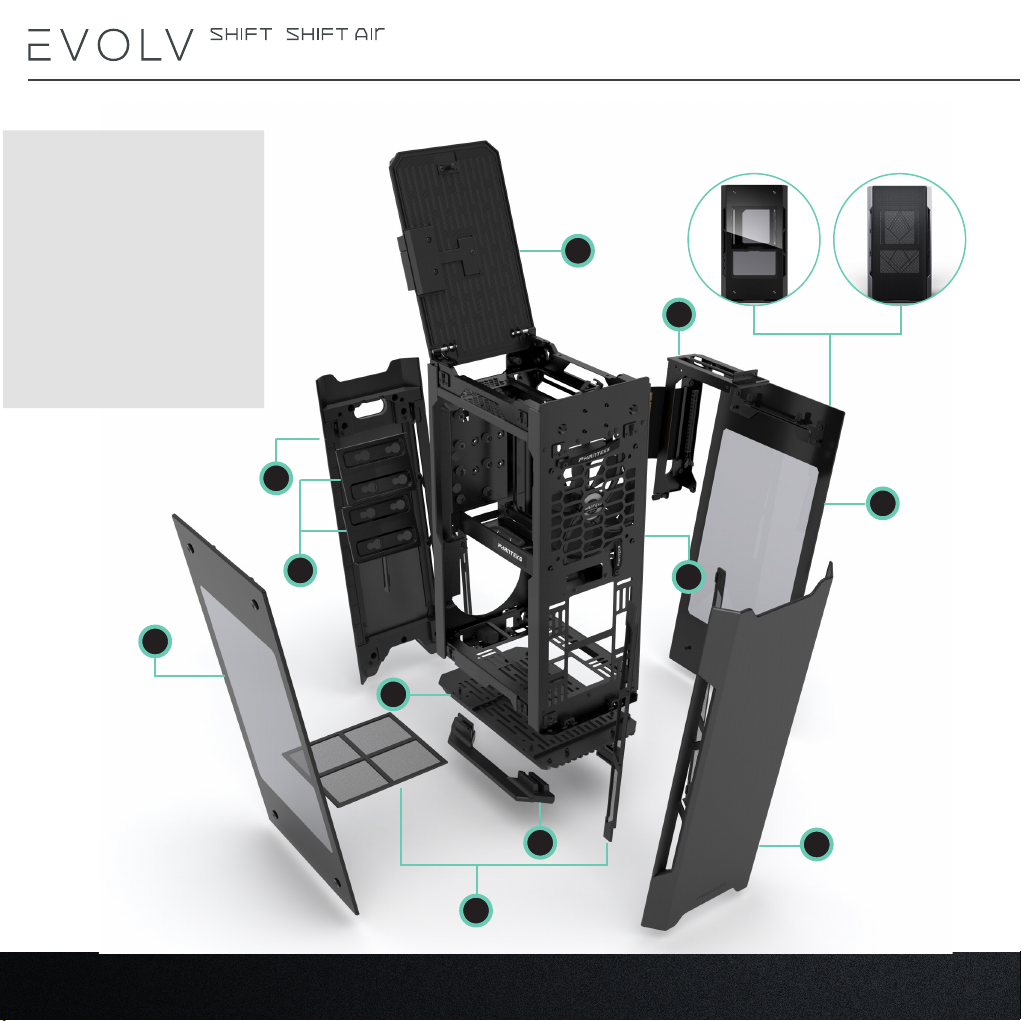

1. Chassis

2. Front Panel

3. Rear Panel

4. Top Grill

5. Bottom Grill

6. Right Side Panel

7. Left Side Panel

8. GPU Bracket

9. Case Feet

10. SSD bracket

11. Dustfilters

EVOLV SHIFT

GLASS PANELS

EVOLV SHIFT AIR

FABRIC PANELS

EXPLOADED VIEW

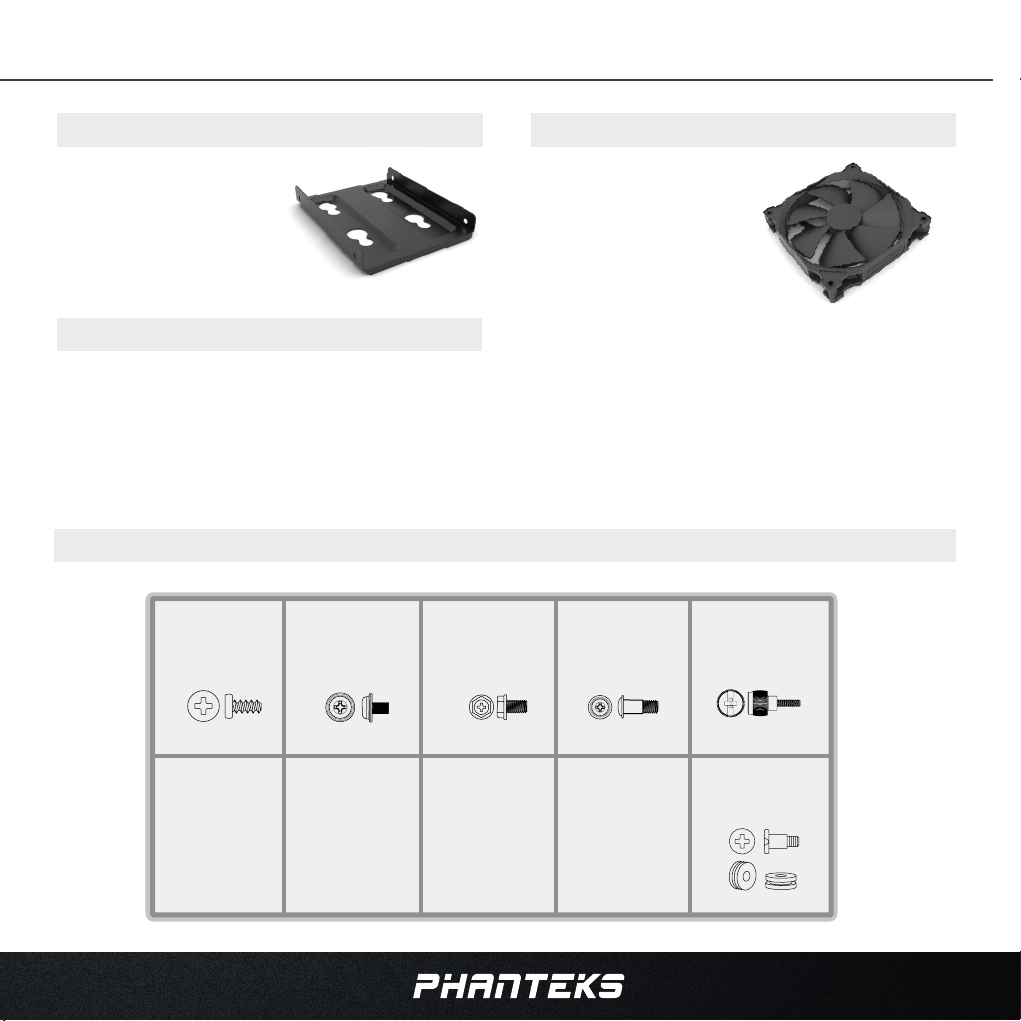

ACCESSORY BAG

PREMIUM FAN 140 MM

- Pre-installed

- Hight static pressure

- Silent operation

2.5” SSD BRACKET

- 2 Pre-installed

- For 2.5”SSD

TOOLBOX

Fan screw M3x5 mm

Motherboard

/SSD

6-32x6 mm

PSU/GPU

bracket

18x 1x4x8x

6-32x6 mm

Thumb screw

- 6x Zip Tie 150 mm

- Phanteks Logo Badge

- 4x Rubber Feet (for horizontal placement)

6-32x8 mm

HDD screw

6-32x8 mm +

Rubber rings

Drop-N-Lock SSD

ACCESSORIES

The Evolv Shift gives you the

ultimate flexiblity to place it

anywhere in the house.

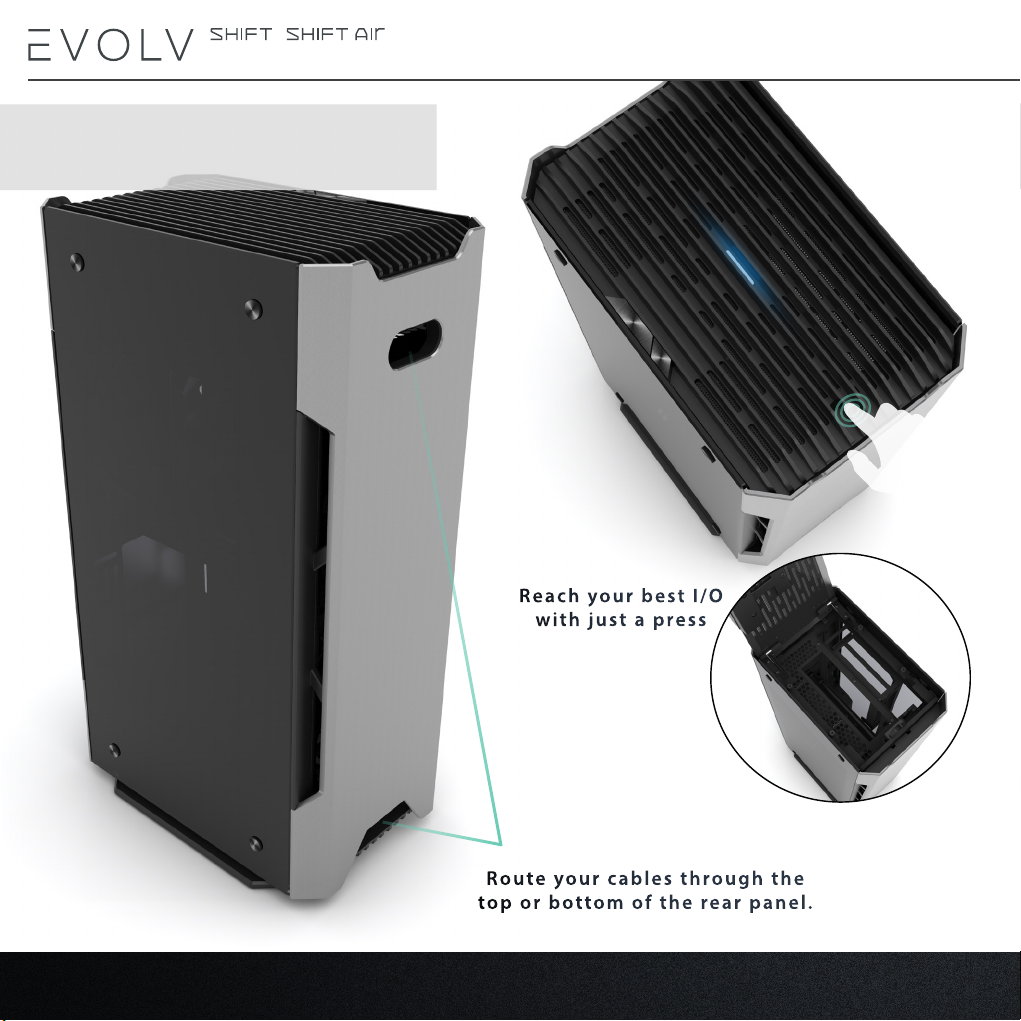

CABLE ROUTING

Route your cables through the

top or bottom of the rear panel.

EASY ACCESS

Reach your best I/O

with just a press

OVERVIEW

PLACE HORIZONTAL

Use the four rubber feet

included in the toolbox.

PLACE VERTICAL

Minimize the footprint.

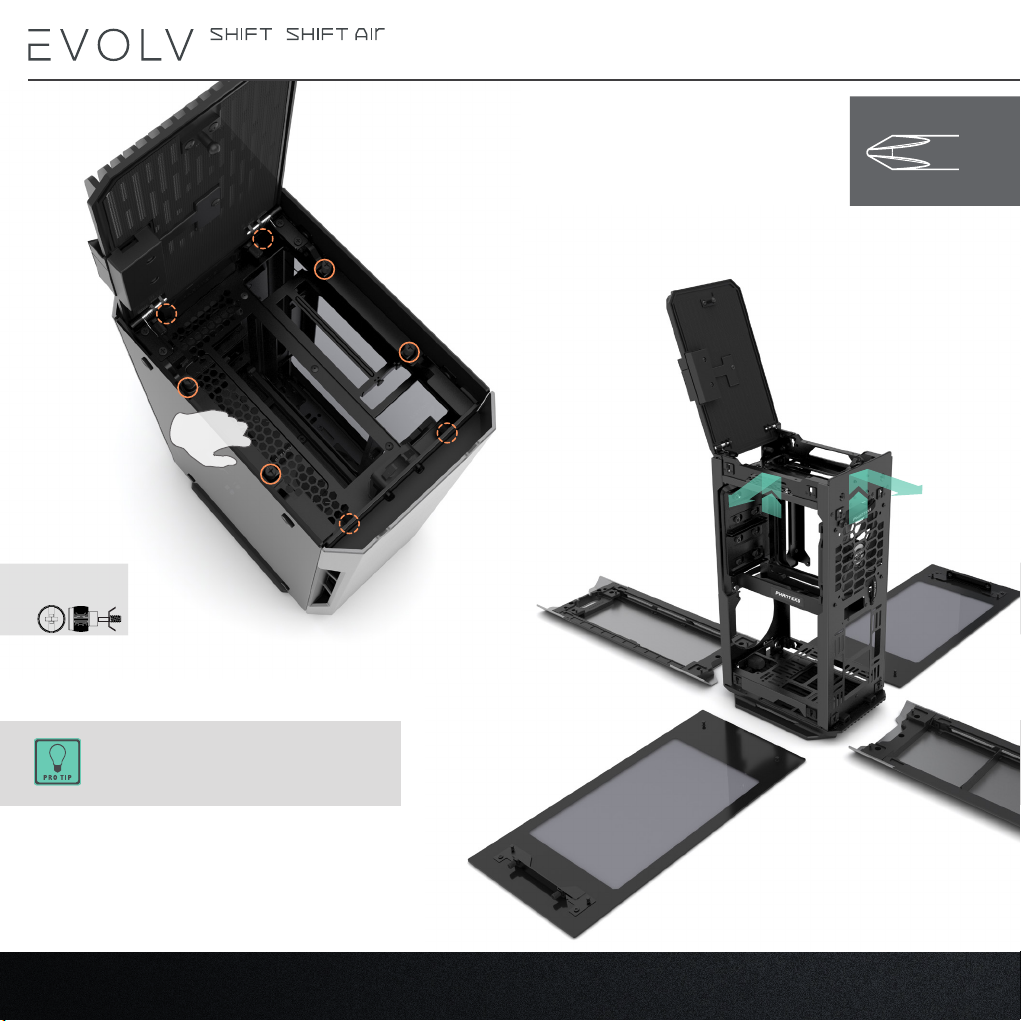

1. LOOSEN THUMB SCREWS

LOOSEN:

2. SLIDE SIDE PANEL UP

3. TAKE SIDE PANEL OUT

Each panel is mounted securely with 4 slide to lock pins

and 2 captive thumb screws. Removing all side panels

gives you full 360 degree access to the whole system.

REMOVE SIDE PANELS

REQUIRES:

FIRST TIME USE
