EN Quick Start Guide

o HOST

to HOST

to HOST to HOST

CAN box

Screen

to HOST

Main unit

to CAN

box

Red

White

Yellow

White

Black

Red

English

Install the car audio

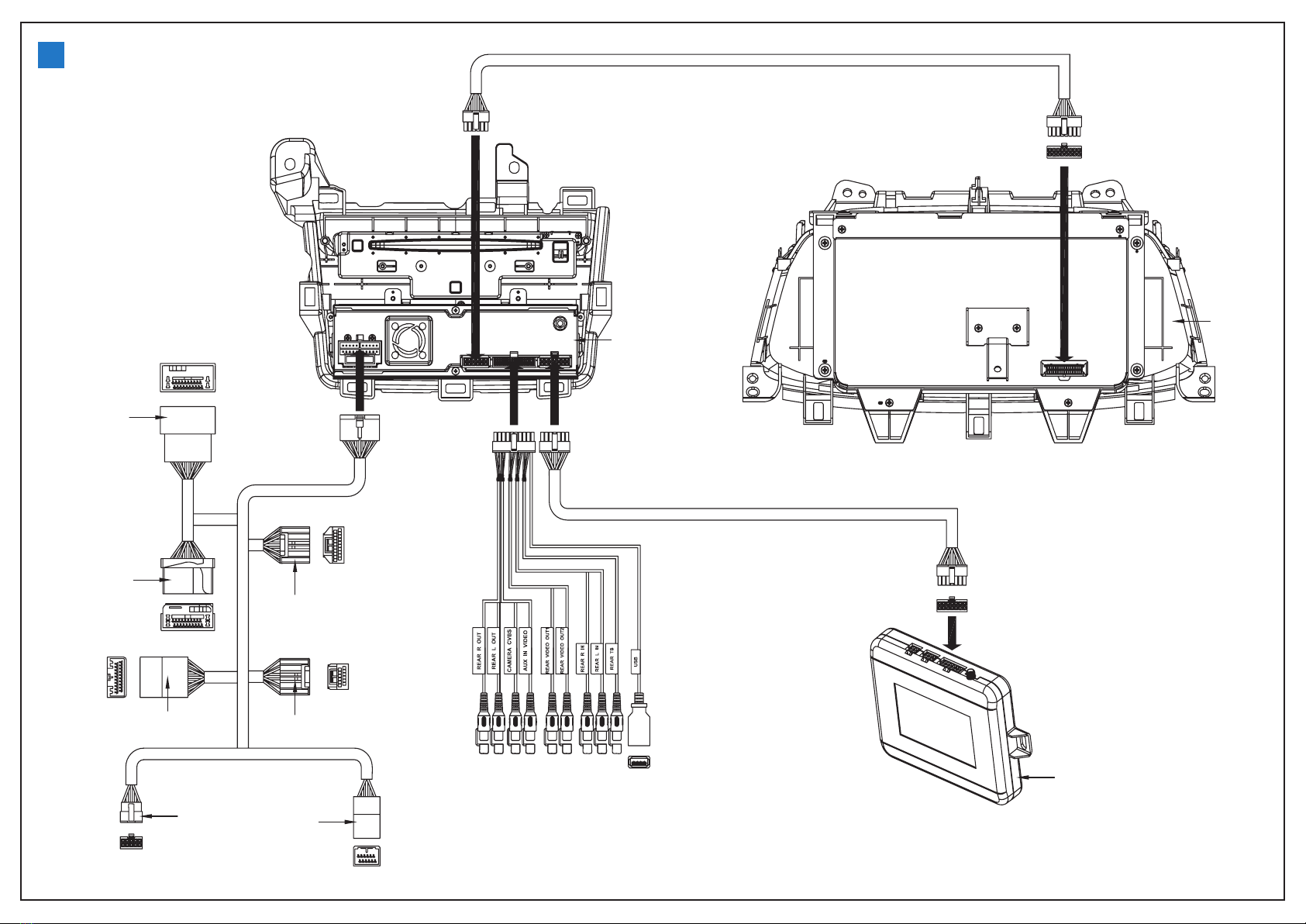

Connect wires 1

Caution

Ensure that all loose leads are insulated with

•

electrical tape.

1Check the car’s wirings carefully, then make

the other connections.

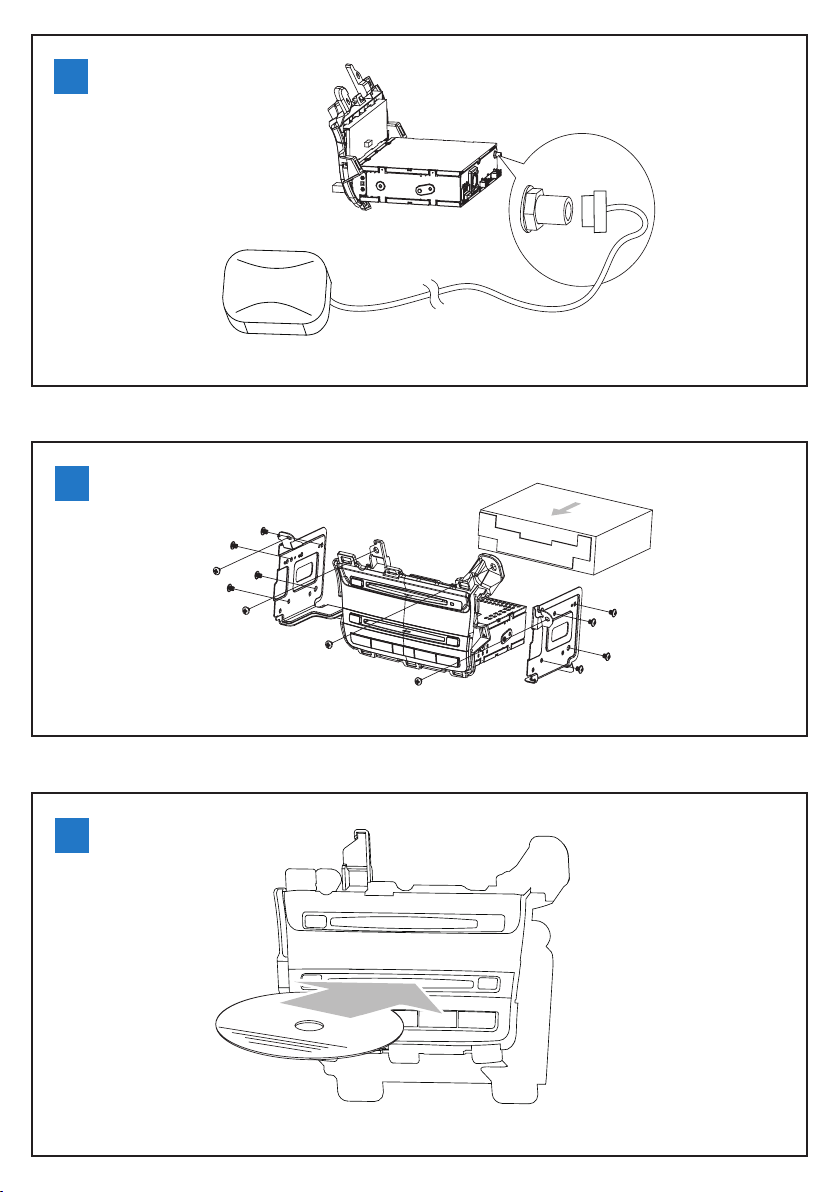

Connect GPS antenna 2

To receive signal from satellites, connect the

supplied GPS antenna to your car and the

system.

1Connect the supplier GPS antenna to the

system rst.

2Stick the other end of the GPS antenna to a

metal surface of the car.

Mount in the dashboard 3

1If the car does not have an on-board drive

or navigation computer, disconnect the

negative terminal of the car battery.

2Ensure that the horizontal slant of the

car dashboard opening is between 0 and

20 degrees. The unit cannot be used if the

dashboard opening’s slant angle is above

20 degrees.

3 Install the supplied screen brackets and x

the screen to the car.

4Remove the disc loader from the host

car audio system and then install the disc

loader to the unit.

5Install the mounting brackets to the unit

with screws.

6 Slide the unit into the dashboard and x it

to the car with four screws.

7Reconnect the negative terminal of the car

battery.

Turn on

Caution

Risk of road accidents! Never watch video or

•

adjust settings while you drive.

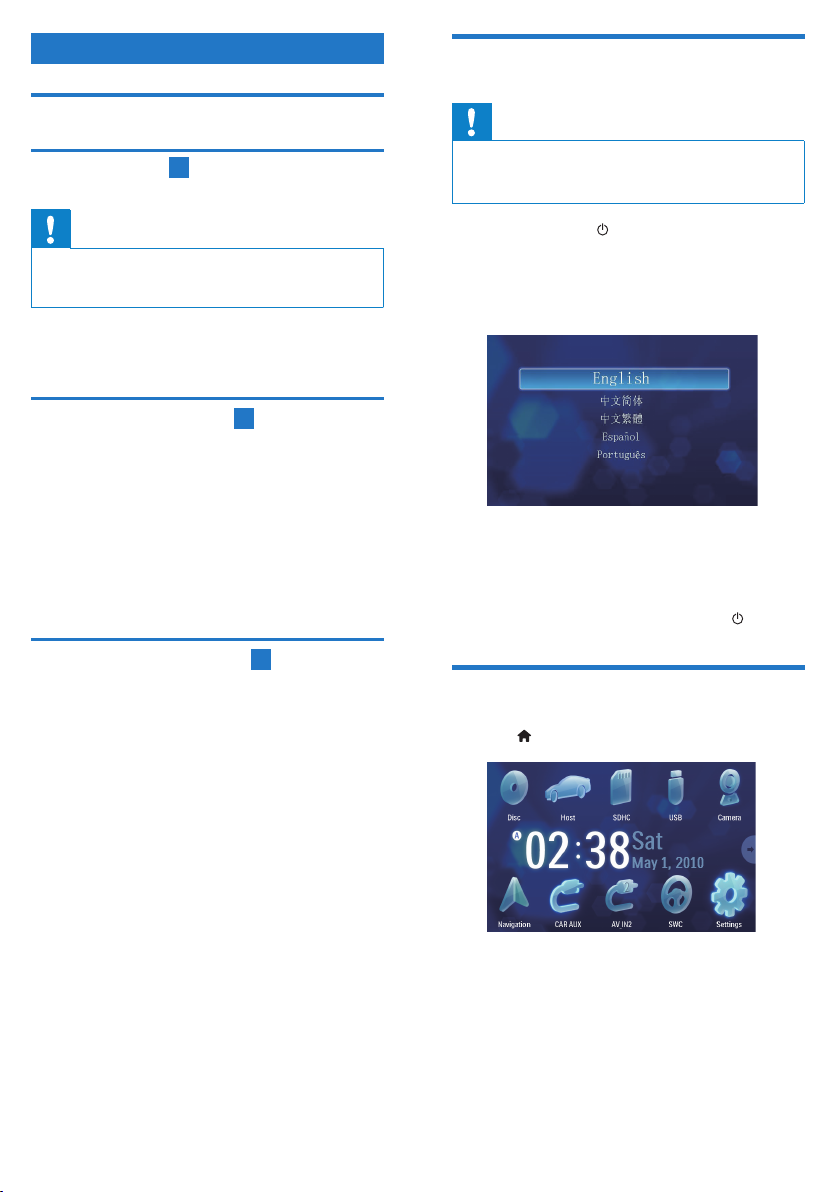

1Press and hold /MUTE to turn on the

unit.

The available OSD (On-Screen Display)»

languages are displayed.

2Tap a language to select.

The OSD language is changed to the»

selected language immediately.

To turn off the unit, press and hold• /MUTE.

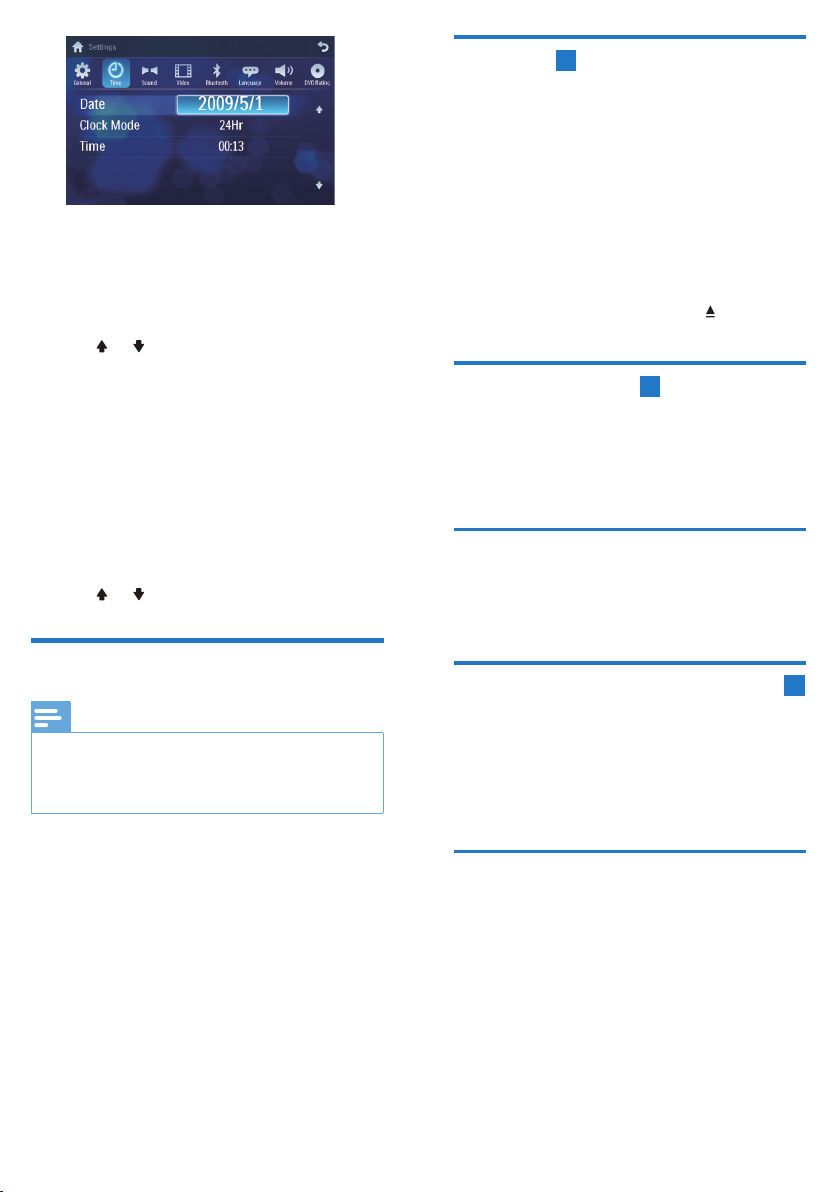

Set date and time

1Tap to display main menu.

2Tap [Settings].

3Tap [Time].

The date/time setup menu is displayed.»

Set date

1Tap [Date].

2Tap on the displayed date information.

A submenu is displayed.»

3Tap or to set year, month and day.

Set clock mode

1Tap [Clock mode].

2Tap on [12Hr] or [24Hr] to select clock

mode.

Set time

1Tap [Time].

2Tap on the displayed time.

A submenu is displayed.»

3Tap or to set hour and minute.

Use map

Note

You may need to upgrade the map (sold•

separately) before using it (see “Upgrade the

map” section)

1Tap the upper left corner to display home

menu.

2Tap [Navigation].

The navigation menu is displayed in a»

few seconds.

3Refer to the map manual to operate the

navigation tool.

Play disc 4

You can play video, audio or images stored on the

following discs:

DVD video, DVD-R, DVD-RW•

VCD•

Audio CD, CD-R, CD-RW•

1Insert a disc into the disc slot with the label

side facing up.

Play starts automatically.»

To remove the disc, press».

Play USB device 5

1Open the USB socket cover.

2Insert the USB device to the USB socket.

Play starts automatically.»

Remove the USB device

1Switch to another (non-USB) source.

2Remove the USB device.

Insert USB or SD/MMC card 6

1Open the USB/SD/MAP socket cover.

2Insert the SD/MMC card into the SD/MMC

card slot.

Play starts automatically.»

Remove the SD/MMC card

1Switch to another source.

2Press the card until you hear a click sound.

The card is now disengaged.»

3Remove the SD or MMC card.

CID3691_00_QSG_V1.0
