CONTROLS

TOP AND FRONT PANELS

1DIGITAL EQUALIZER – selects volume or the

various frequencies for adjustment: volume,

bass, mid and high frequencies

2VOLUME/SOUND CONTROL CENTER –

adjusts the volume level and digital equalizer

settings

3DIGITAL DBB (Dynamic Bass Boost) –

enhances the bass

4INCREDIBLE SURROUND – creates a super-

enhanced stereo effect

5POWER slider – selects the sound source for

CD/ TUNER/ TAPE and also

switches the set off

6CASSETTE RECORDER keys:

RECORD 0– starts recording

PLAY 1– starts playback

SEARCH 5, 6– fast winds/rewinds the tape

OPEN•STOP /9 – opens the cassette

compartment;

– stops the tape

PAUSE ;– pauses recording or playback

7OPEN•CLOSE – opens/ closes the CD door

8TUNING – tunes to radio stations

9STOP 9– stops CD playback or erase a CD

programme

0PLAY•PAUSE 2; – starts or interrupts CD

playback

!BATT LOW – indicates when battery power is

running low

@PROG – programmes CD tracks and reviews

the programme

#SEARCH ∞, §

– searches back and forward within a CD track;

– skips to the beginning of a current CD track/

previous/ subsequent track

$Display – shows the status of the set

%REPEAT – repeats a track / CD programme /

entire CD

^SHUFFLE – plays CD tracks in random order

&BAND – selects waveband

BACK PANEL

*p– 3.5 mm headphone socket

(Telescopic aerial – improves FM reception

)AC MAINS – inlet for mains cord

¡Battery door

English

Environmental information

All unnecessary packaging material has been omitted. We have done our utmost to make the

packaging easy to separate into three mono-materials: cardboard (box), expandable polystyrene

(buffer), polyethylene (bags, protective foam).

Your set consists of materials which can be recycled if disassembled by a specialized

company. Please observe the local regulations regarding the disposal of packing

materials, exhausted batteries and old equipment.

POWER SUPPLY

English

Whenever convenient, use the power supply if you want to

conserve battery life. Make sure you remove the plug from the

set and wall socket before inserting batteries.

BATTERIES (OPTIONAL)

1. Open the battery compartment and insert six batteries, type

R-20, UM-4 or D-cells, (preferably alkaline) with the correct

polarity as indicated by the "+" and "-" symbols inside the

compartment.

2. Replace the compartment door, making sure the batteries are

firmly and correctly in place. The set is now ready to operate.

–If BATT LOW lights up, battery power is running low.

– The BATT LOW indicator eventually goes out if the

batteries are too weak.

– Incorrect use of batteries can cause electrolyte leakage and

will corrode the compartment or cause the batteries to burst.

Therefore:

–Do not mix battery types, e.g. alkaline with carbon zinc.

Only use batteries of the same type for the set.

– When inserting new batteries, do not try to mix old

batteries with the new ones.

– Remove the batteries if the set is not to be used for a long

time.

–Batteries contain chemical substances, so they

should be disposed of properly.

For users in the U.K.: please follow the instructions on page 2.

USING AC POWER

1. Check if the mains voltage as shown on the type plate

located on the bottom of the set, corresponds to your local

power supply. If it does not, consult your dealer or service

centre.

2. If your set is equipped with a voltage selector, adjust the

selector so that it matches with the local mains.

3. Connect the mains lead to the wall socket and the set is now

ready for use.

4. To disconnect the set from the mains completely, remove the

plug from the wall socket.

AZ 1550/00 page 5

6 x D-cells - R20 - UM4

MAINS

BASIC FUNCTIONS TUNER

English

SWITCHING ON AND OFF

•Adjust the POWER slider to the desired sound source: CD,

TUNER or TAPE.

•The set is switched off when the POWER slider is in the

TAPE/OFF position and the keys on the tape deck are released.

– The volume, sound settings and tuner presets will be retained

in the set's memory.

ADJUSTING VOLUME AND SOUND

1. Turn the VOLUME/ SOUND CONTROL CENTER control

clockwise to increase or anti-clockwise to decrease volume on

the set.

™Display shows the volume level indication, VOL and a number

from 0-32.

2. To adjust the bass, mid and high frequency levels, press

DIGITAL EQUALIZER once or more until the desired option is

displayed. While the option is shown, turn the VOLUME/

SOUND CONTROL CENTER control to increase or decrease

(- 5 to + 5 steps maximum) the desired tone.

™VOLUME can also be adjusted in this way with a level range

from 0-32.

3. Press DIGITAL DBB to switch dynamic bass boost on or off.

™If on, the DIGITAL DBB light goes on.

4. Press INCREDIBLE SURROUND to switch the surround sound

effect on or off.

™If on, the INCREDIBLE SURROUND light goes on.

Note: The effect of INCREDIBLE SURROUND may vary with

different types of music.

TUNING TO RADIO STATIONS

1. Select TUNER source.

2. Press BAND once or more to select your waveband.

3. To tune to a radio station, use the TUNING knob.

To improve radio reception:

• For FM, pull out the telescopic aerial.

Incline and turn the aerial. Reduce its length if the signal is too

strong (very close to a transmitter).

• For MW and LW, the set is provided with a built-in aerial so the

telescopic aerial is not needed. Direct the aerial by turning the

whole set.

AZ 1550 /00 page 6

CD REWRITABLE

CD SYNCRO STRAT R

AZ1550

CDRADIOCASSETTERECORDER

STOPPLAY•PAUSE

–

•

VOL

CDREWRITABLECOMPATIBLE

CDSYNCROSTRATRECORDING

1550

ETTERECORDER

SHUFFLE

REPEAT

BAND

CD REWRITABL

CD SYNCRO STRA

AZ1550

CDRADIOCASSETTERECORDER

STOPPLAY•PAUSE

CD PLAYER

English

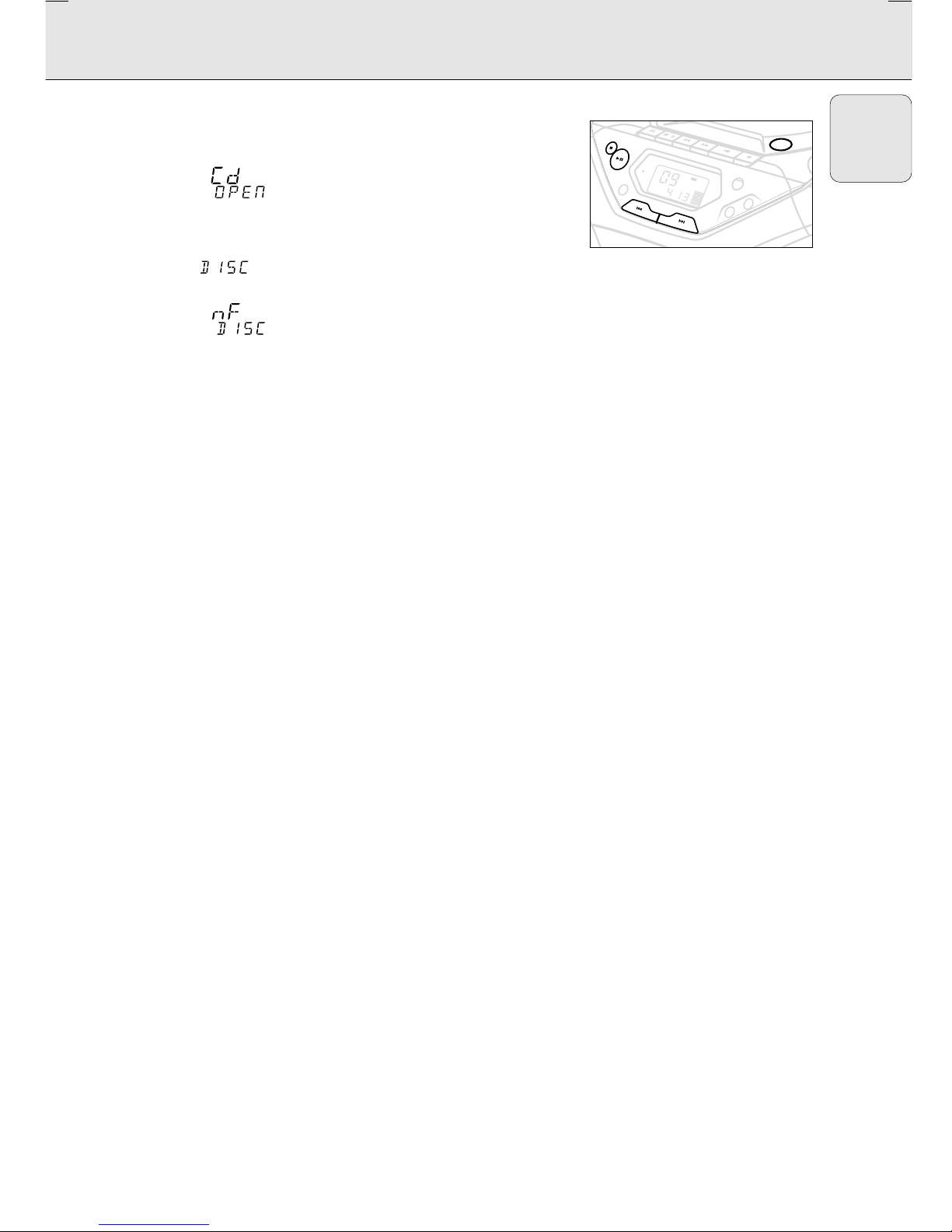

Playing a CD

1. Select CD source.

2. Press OPEN•CLOSE to open the CD door.

™Display: when you open the CD door.

3. Insert a CD or CD-R(W) with the printed side facing up and

press OPEN•CLOSE to close the CD door.

™Display: as the CD player scans the contents of a CD.

The total number of tracks and playing time are then shown.

™Display: is shown if the CD R(W) is not finalised.

4. Press PLAY•PAUSE 2; to start playback.

™Display: Current track number and elapsed playing time of the

track during CD playback.

5. To pause press PLAY•PAUSE 2;. Press PLAY•PAUSE 2;

again to resume play.

™The display freezes and the elapsed playing time flashes when

playback is paused.

6. To stop CD playback, press STOP 9.

Note: CD playback will also stop when:

– the CD door is opened;

– the CD has reached the end (unless you have selected

REPEAT ALL);

– you select another source: TAPE / TUNER.

Selecting a different track

• Press SEARCH ∞or §once or repeatedly until the desired

track number appears in the display.

• If you have selected a track number shortly after loading a CD

or in the PAUSE position, you will need to press

PLAY•PAUSE 2; to start playback.

Finding a passage within a track

1. Press and hold down on SEARCH ∞or §.

– The CD is played at high speed and low volume.

2. When you recognize the passage you want,

release SEARCH ∞or §.

– Normal playback continues.

Note: During a CD programme or if SHUFFLE/ REPEAT active,

searching is only possible within a track.

AZ 1550/00 page 7

AZ1550

CDRADIOCASSETTERECORDER

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

STOPPLAY•PAUSE

PROG

SHUFFLE

REPEAT

BAND

CD PLAYER

English

Different play modes: SHUFFLE and REPEAT

You can select and change the various play modes before or during

playback. The play modes can also be combined with PROGRAM.

SHUFFLE - tracks of the entire CD/ programme are played in

random order

SHUFFLE and REPEAT ALL - to repeat the entire CD/ programme

continuously in random order

REPEAT ALL - to repeat the entire CD/ programme

REPEAT and SHUFFLE REPEAT - plays the current (random) track

continuously

1. To select your play mode, press the SHUFFLE or REPEAT

button before or during playback until the display shows the

desired function.

2. Press PLAY•PAUSE 2; to start playback if in the STOP

position.

• Playback starts immediately if you have selected a SHUFFLE

mode.

3. To return to normal playback, press the respective SHUFFLE or

REPEAT button until the various SHUFFLE / REPEAT modes are

no longer displayed.

– You can also press STOP 9to cancel your play mode.

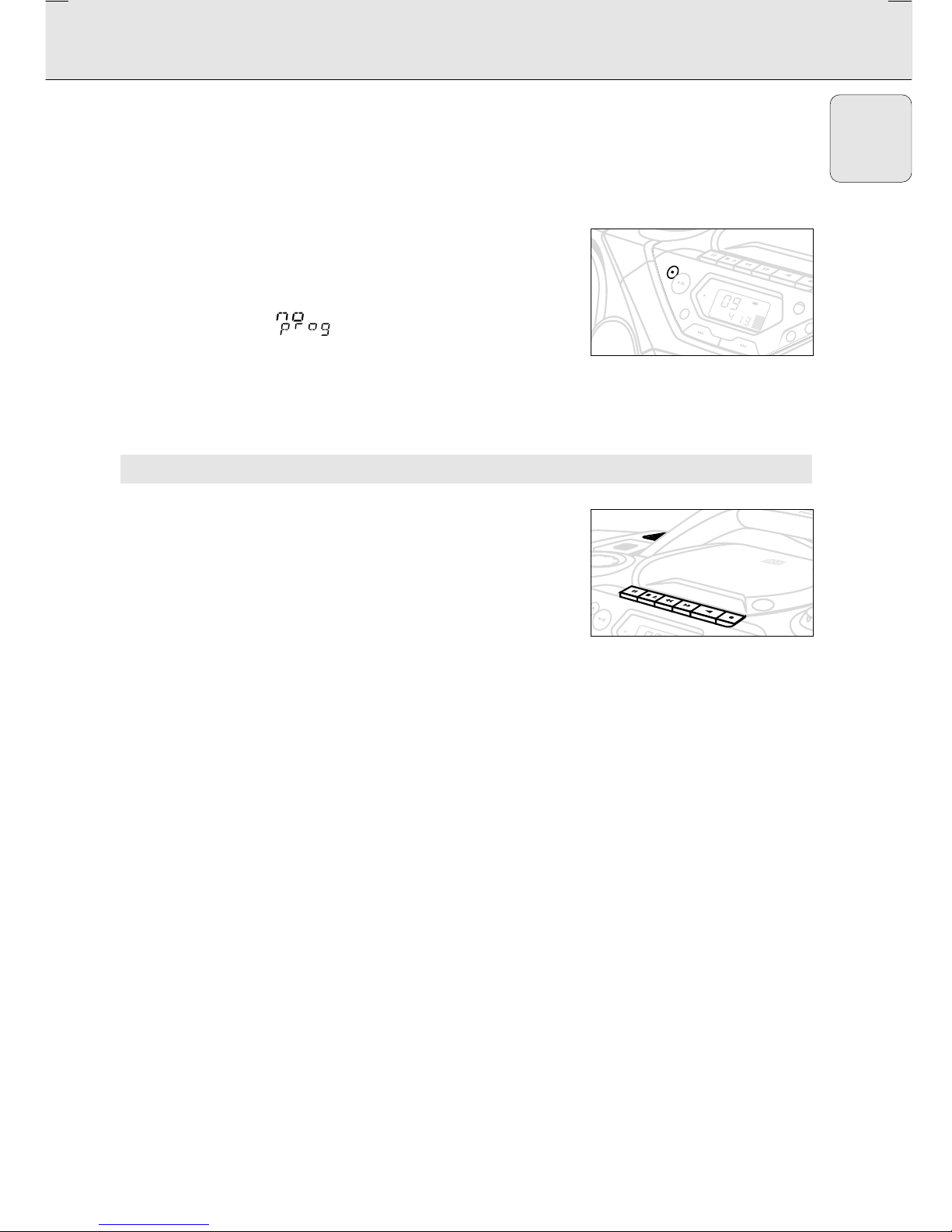

Programming track numbers

Programme in the STOP position to select and store your CD tracks

in the desired sequence. If you like, store any track more than once.

Up to 20 tracks can be stored in the memory.

1. Press SEARCH ∞or §once or more to select your desired

track number.

2. Press PROG.

™Display: PROG and the selected track number.

appears briefly.

™If you attempt to programme without first selecting a track

number, is shown.

3. Press PROG to confirm the track number to be stored.

4. Repeat steps 1-2 to select and store all desired tracks.

™is displayed if you attempt to programme more than

20 tracks.

5. To start playback of your CD programme,

press PLAY•PAUSE 2;.

Note: if you have selected the tracks during CD playback, first

press STOP 9then PLAY•PAUSE 2;.

AZ 1550 /00 page 8

AZ1550

CDRADIOCASSETTERECORDER

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

STOPPLAY•PAUSE

PROG

SHUFFLE

REPEAT

BAND

AZ1550

CDRADIOCASSETTERECORDER

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

STOPPLAY•PAUSE

PROG

SHUFFLE

REPEAT

BAND

AZ1550

CDRADIOCASSETTERECORDER

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

STOPPLAY•PAUSE

PROG

SHUFF

REPEAT

BAND

CD PLAYER CASSETTE RECORDER

English

Reviewing the programme

In the stop position or during playback, press and hold down

PROG for a while until the display shows all your stored track

numbers in sequence.

Erasing a programme

You can erase the programme by:

– pressing STOP 9once in the STOP position;

– pressing STOP 9twice during playback.

• The display shows briefly and PROG disappears.

The programme is also erased by:

– pressing the CD door open;

– selecting another source: TAPE/ TUNER.

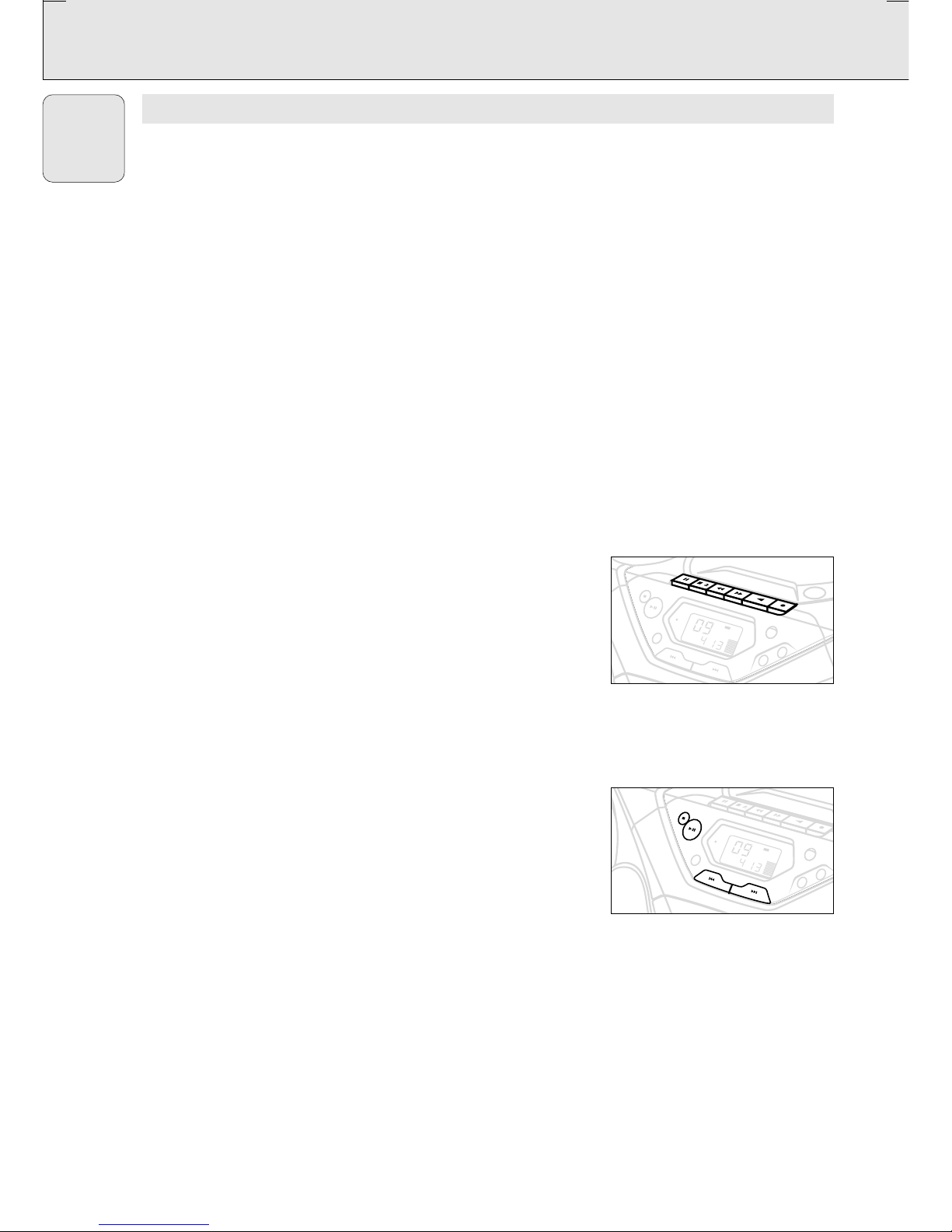

CASSETTE PLAYBACK

1. Select TAPE source.

™The display shows TAPE throughout tape operation.

2. Press OPEN•STOP /9 to open the cassette door.

3. Insert a recorded cassette and close the cassette door.

4. Press PLAY 1to start playback.

5. To interrupt playback press PAUSE ;. To resume, press this

key again.

6. By pressing SEARCH 5or 6on the set fast winding of the

tape is possible in both directions.

7. To stop the tape, press OPEN•STOP /9.

•The keys are automatically released at the end of the tape,

except if PAUSE ;has been activated.

Note: The sound source cannot be changed while playing a

cassette.

AZ 1550/00 page 9

SYNC

AZ1550

CDRADIOCASSETTERECORDER

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

STOPPLAY•PAUSE

PROG

SHUFFLE

REPEAT

BAND

CD REWRITABLE COMPATIBLE

CD SYNCRO STRAT RECORDING

AZ1550

CDRADIOCASSETTERECORDER

SOUND CONTROL CEN

TER

BAT

LOW

STOPPLAY•PAUSEB

AND

GENERAL INFORMATION ON RECORDING

• Recording is permissible insofar as copyright or other rights of

third parties are not infringed.

• This deck is not suited for recording on CHROME (IEC II) or

METAL (IEC IV) type cassettes. For recording, use only

NORMAL type cassettes (IEC I) on which the tabs have not

been broken.

• The best recording level is set automatically. Altering the

VOLUME, INCREDIBLE SURROUND, DIGITAL EQUALIZER or DBB

controls will not affect the recording in progress.

• At the very beginning and end of the tape, no recording will

take place during the 7 seconds, when the leader tape passes

the recorder heads.

• To protect a tape from accidental erasure, have the tape in

front of you and break out the left tab.

Recording on this side is no longer possible. To record over this

side again, cover the tabs with a piece of adhesive tape.

Synchro Start CD recording

1. Select CD source.

2. Insert a CD and if desired, programme track numbers.

3. Press OPEN•STOP /9 to open the cassette door.

4. Insert a suitable tape into the cassette deck and close the

cassette door.

5. Press RECORD 0to start recording.

– Playing of the CD programme starts automatically from the

beginning of the programme. It is not necessary to start the CD

player separately.

To select and record a particular passage within a track:

• Press and hold down on SEARCH ∞or §.

• When you recognize the passage you want, release SEARCH

∞or §.

• To interrupt CD playback press PLAY•PAUSE 2;.

• Recording will begin from this exact point in the track when

you press RECORD 0.

6. For brief interruptions during recording, press PAUSE ;. To

resume recording, press PAUSE ;again.

7. To stop recording, press OPEN•STOP /9.

CD PLAYER CASSETTE RECORDER

English

AZ 1550 /00 page 10

AZ1550

CDRADIOCASSETTERECORDER

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

STOPPLAY•PAUSE

PROG

SHUFFLE

REPEAT

BAND

BLE

COMPA

STRAT RECORDI

AZ1550

CDRADIOCASSETTERECORDER

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

STOPPLAY•PAUSE

PROG

SHUFFLE

REPEAT

BAND

RECORDING GENERAL INFORMATION

English

Recording from the tuner

1. Tune to the desired radio station (see Tuning to radio stations).

2. Press OPEN•STOP /9 to open the cassette door.

3. Insert a suitable tape into the cassette deck and close the

cassette door.

4. Press RECORD 0to start recording.

5. For brief interruptions, press PAUSE ;. To resume recording,

press PAUSE ;again.

6. To stop recording, press OPEN•STOP /9.

General maintenance

• Do not expose the set, batteries, CDs or cassettes to humidity,

rain, sand or excessive heat caused by heating equipment or

direct sunlight.

• To clean the set, use a soft, slightly dampened chamois leather.

Do not use any cleaning agents containing alcohol, ammonia,

benzene or abrasives as these may harm the housing.

Safety information

• Place the set on a hard and flat surface so that the system

does not tilt. Make sure there is adequate ventilation to

prevent the system from overheating.

• The mechanical parts of the set contain self-lubricating

bearings and must not be oiled or lubricated.

AZ 1550/00 page 11

CD REWRITABLE COMPATIBLE

CD SYNCRO STRAT RECORDING

AZ1550

CDRADIOCASSETTERECORDER

SOUND CONTROL CENTER

BAT

LOW

STOPPLAY•PAUSEBAND

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Philips Lettore CD

Philips

Philips CD 740 Manuale utente

Philips

Philips 7000 series Manuale utente

Philips

Philips AZ7680 Manuale utente

Philips

Philips AZD102/05 Manuale utente

Philips

Philips CDR 765 Guida rapida

Philips

Philips AZ1575/11 Manuale utente

Philips

Philips AX 7104 Manuale utente

Philips

Philips CDI 220 Manuale utente

Philips

Philips AZ7374 Manuale utente

Philips

Philips AZ6834 - Portable Radio Cass Rec Manuale utente

Philips

Philips CD 824 Manuale utente

Philips

Philips Expanium EXP2461/17 Manuale utente

Philips

Philips AZ5737 Manuale utente

Philips

Philips AZ6836 Manuale utente

Philips

Philips AZ1834/79 Manuale utente

Philips

Philips CDC 752 Manuale utente

Philips

Philips FW2017 Manuale utente

Philips

Philips AZ7261 - Cd Personal Manuale utente

Philips

Philips AZ8075 - Portable Radio Cass Rec Manuale utente

Philips

Philips Magnavox AZ 7337 Manuale utente

Philips

Philips EXP2301 Manuale utente

Philips

Philips AZ7446/17Z Manuale utente

Philips

Philips AZ783 Scheda informativa del prodotto

Philips

Philips AX3211 Manuale utente

Manuali Lettore CD popolari di altre marche

RCA

RCA RP-7923 Manuale utente

Pioneer

Pioneer DEH-P3550MP XM Manuale utente

Lasonic

Lasonic MSU-2020 Manuale utente

THOMSON

THOMSON RCD150 Manuale utente

Denon

Denon DCD-1420 Manuale utente

Panasonic

Panasonic SJ-MR100 Manuale utente

Onkyo

Onkyo DX-7210 Manuale utente

Sony

Sony MZ-R3 Manuale utente

Denon

Denon DVM-4800 Manuale utente

JBL

JBL MR-32 Manuale utente

RCA

RCA RCD152 Manuale utente

Technics

Technics SL-PS770A Manuale utente

Clarion

Clarion compact disc Manuale utente

Sony

Sony MZ-M10 Manuale utente

Rotel

Rotel RCD 975 Manuale utente

Pioneer

Pioneer CLD-D790 Manuale utente

Optimus

Optimus CD-8250 Manuale utente

Audiovox

Audiovox CE101A - annexe 1 Manuale utente
