Es necesario que lea cuidadosamente su instructivo de manejo.

Descripción: Tocadiscos de CD portatil

Modelo: AZ 7780, AZ 7781, AZ 7782, AZ 7783, AZ 7784

AZ 7880, AZ 7881, AZ 7882, AZ 7883, AZ 7884

Alimentación: 110–127/220–240 V; ~50–60 Hz

Consumo: 4 W (AY 3170)

8 W (AY 3160)

Importador: Philips Mexicana, S.A. de C.V.

Domicilio: Norte 45, # 669, Col. Industrial Vallejo

Localidad y Telefono: C.P. 02300 México D.F., Tel. 7284200

Exportador: Philips Hong Kong, Ltd.

País de Origen: China

Nº de Serie: ______________________________

LEA CUIDADOSAMENTE ESTE INSTRUCTIVO

ANTES DE USAR SU APARATO.

No abrir, riesgo de choque eléctrico

Verifique que el voltaje de alimentación

sea el requerido para su aparato

ATENCIÓN

Para evitar el riesgo de choque eléctrico, no quite la tapa.

En caso de requerir servicio, dirijase al personal calificado.

PRECAUCIÓN - ADVERTENCIA

México n

AZ7884/01.4 eng 6/21/00 5:42 PM Page 2

ESA

DBB

MODE

PROG

AZ7884/01.4 eng 6/21/00 5:42 PM Page 3

AZ7884/01.4 eng 6/21/00 5:42 PM Page 4

English

Controls .................................................6

Quick start .............................................7

Power supply.....................................8–9

Battery pack/Headphones...................10

General information ............................11

CD play..........................................12–13

Features.........................................14–18

In-car connection.................................19

Troubleshooting.............................20–21

Français

Commandes.........................................22

Mise en service rapide........................23

Alimentation électrique ................24–25

Bloc accumulateur/Ecouteurs .............26

Informations générales .......................27

Lecture CD.....................................28–29

Fonctions spéciales.......................30–34

Raccordement en voiture ....................35

Pannes et remèdes .......................36–37

Español

Controles .............................................38

Descripción rápida...............................39

Suministro eléctrico......................40–41

Unidad de baterías/Auriculares..........42

Información general ............................43

Reproducción de CD......................44–45

Características ..............................46–50

Conexión para el automóvil ................51

Localización de averías.................52–53

Guarantees

Polizia de garantia

Mexico.........................................70–71

Philips product warranty for

Australia......................................72–73

Guarantee and service for

New Zealand ....................................74

∑

AZ7884/01.4 eng 6/21/00 5:42 PM Page 5

CONTROLS, refer to the illustration on page 3

12; .................switches the set on, starts and interrupts CD play

29....................stops CD play, erases a program, activates charging and switches

the set off

3§..................skips and searches forward

4.......................display

5∞..................skips and searches backward

6DBB................DYNAMIC BASS BOOST switches the bass enhancement on/off

7MODE............selects the different playing possibilities: SHUFFLE,

SHUFFLE REPEAT ALL, REPEAT, REPEAT ALL and SCAN

8RESUME........stores the last position played

HOLD ............locks all buttons

OFF.................switches RESUME and HOLD off

9PROG .............programs tracks and reviews the program

0p....................3.5 mm headphone and remote control socket

!VOL E.......adjusts the volume

@4.5V DC..........socket for external power supply

#.......................typeplate

$OPEN 2.........opens the CD lid

%ESA................ELECTRONIC SHOCK ABSORPTION ensures continuous playback

regardless of vibrations and shocks

English

This set complies with the radio interference requirements of the

European Community

AZ7884/01.4 eng 6/21/00 5:42 PM Page 6

English

QUICK START

1OPEN

ESA

DBB

MODE

PROG.

LR6

UM3

3CD 4

DBB

MODE

HOLD➟OFF

ESA

MODE

PROG.

6PLAY 7VOLUME

1. 2.

!!!

~1sec

AZ7884/01.4 eng 6/21/00 5:42 PM Page 7

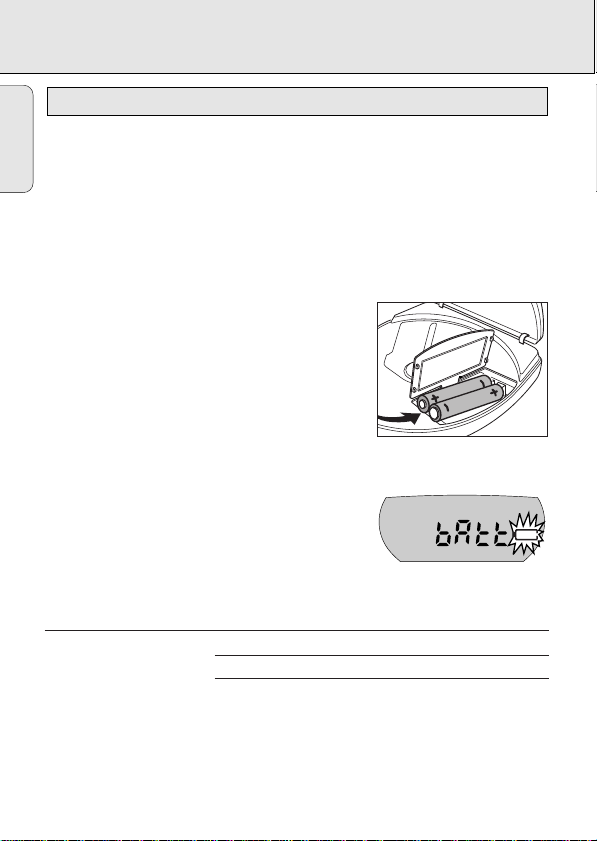

POWER SUPPLY

With this set you can use either:

• normal batteries (preferably Philips),

• alkaline batteries (type LR6, UM3 or AA), or

• the rechargeable Ni-Cd battery pack AY 3361. Make sure you purchase this special

battery pack, as any pack other cannot be recharged.

Inserting batteries

1Push OPEN 2to open the CD lid.

2Open the battery compartment and insert either

2 alkaline batteries or the rechargeable battery pack.

Notes: – Old and new or different types of batteries

should not be used in combination.

– Remove batteries if they are empty or if the

set will not be used for a long time.

Batteries contain chemical substances, so they should be disposed of properly.

Indication of empty batteries

• Replace the batteries or connect the mains adapter

as soon as Ais flashing and bAtt is displayed.

Average playing time of batteries under normal conditions

Battery type ESA on ESA off

Normal 31⁄2hours 31⁄2hours

Alkaline 14 hours 15 hours

Ni-Cd battery pack 4 hours 5 hours

Batteries (supplied or optionally available)

English

AZ7884/01.4 eng 6/21/00 5:42 PM Page 8

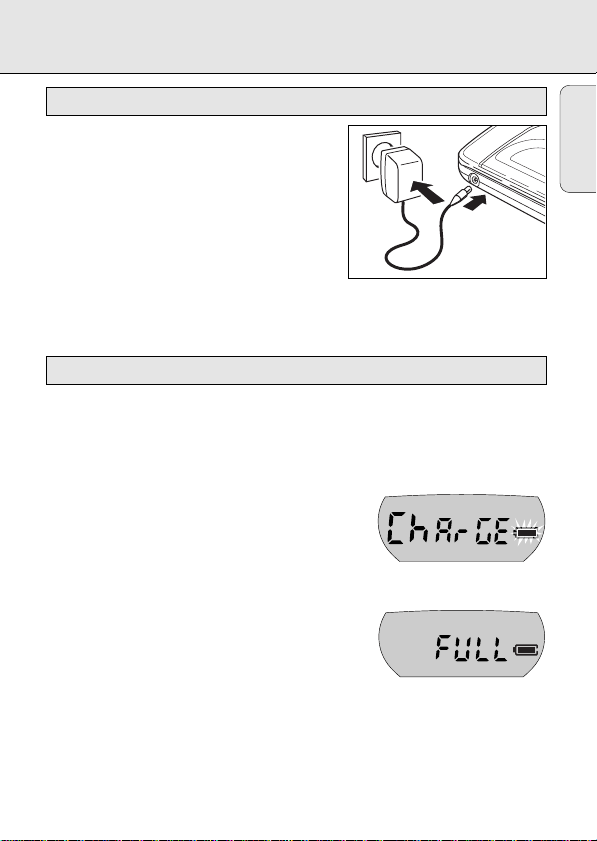

POWER SUPPLY

Only use the AY 3170 or AY 3160 mains adapter

(4.5 V direct current, positive pole to the center

pin). Any other product may damage the set.

1Make sure the local voltage corresponds to the

adapter’s voltage.

2Connect the mains adapter to the 4.5V DC

socket of the player and to the wall socket.

Note: Always disconnect the adapter when you are not using it.

1Make sure you insert the rechargeable Ni-Cd battery pack AY 3361.

2Connect the mains adapter to the 4.5V DC socket of the player and to the wall

socket.

3If necessary press 9once or twice until the set is

switched off.

yais flashing, ChArGE is displayed.

• Recharging stops when you switch on the set or when 8 hours have passed by.

4When the battery pack is recharged fully, ais

shown and FULL is displayed.

Note: It is normal for the battery pack to become warm

during recharging.

Recharging the battery pack

Mains adapter (supplied or optionally available)

English

AZ7884/01.4 eng 6/21/00 5:42 PM Page 9

BATTERY PACK/HEADPHONES

• Recharging already charged or half-charged batteries will shorten their lifetime.

Therefore, after using the battery pack a few times, discharge it completely before

recharging.

• To avoid a short circuit, the battery pack should not touch any metal objects.

• When the battery pack quickly becomes empty after recharging, the end of its

lifetime has been reached.

Connecting the headphones

• Connect the supplied headphones to p.

Note:

can also be used for connecting your HiFi

system (signal lead) or your car radio (adapter

cassette or signal lead). In both cases, the volume

of the CD player must be set to position 8.

Headphones (AY 3677)

Battery pack handling

English

Use your head when using headphones

• Hearing safety: Do not play your headset at a high volume. Hearing experts advise

against continuous extended play. If you experience a ringing in your ears, reduce

the volume or discontinue use.

• Traffic safety: Do not use while operating a motorized vehicle. It may create a traffic

hazard and it’s illegal in many areas. You should use extreme caution or temporarily

discontinue use in potentially hazardous situations. Even if your headset is an

open-air type designed to let you hear outside sounds, don’t turn up the volume so

high that you can’t hear what’s around you.

AZ7884/01.4 eng 6/21/00 5:42 PM Page 10
