Philips AJ 3650 Manuale utente

Clock Radio AJ 3650

User Manual

AJ3650_12_EN 1/25/08 14:49 Page 1

REPEAT ALARM/BRIGHTNESS CONTROL

DATE/SET TIME AUTO SCAN

FOCUS

DISPLAY

AJ3650_12_EN 1/25/08 14:49 Page 2

DC IN 7.5V

Model No. : AJ3650/12

DC 3V CR2032 (Backup Battery)

Ext AC-DC Adaptor

DC 7.5V 1A

Designed and Developed by Philips, Holland

Clock memory

back up

CR2032 battery

PUSH

TUNING

PRESET

VOLUME

(

AJ3650_12_EN 1/25/08 14:49 Page 3

AJ3650_12_EN 1/25/08 14:49 Page 4

English

SUPPLIED ACCESSORIES

– 1 switching power adapter

(Model: DSA-9W-69F EU 075100, Input: 100-240V~50/60 Hz, 0.5 A,

Output: 7.5 V, 1.0 A)

– 1 outdoor temperature sensor

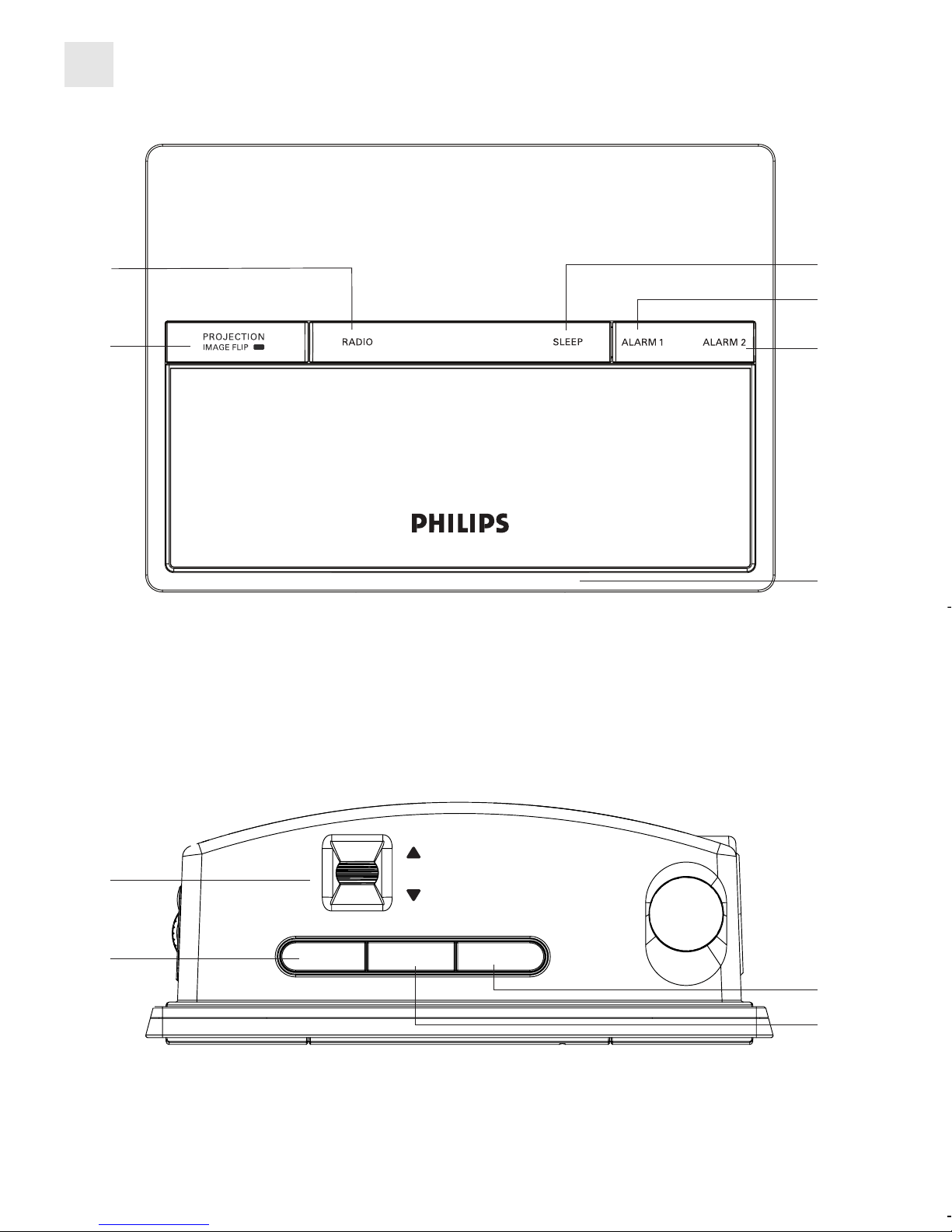

FRONT and TOP PANEL

(See 1)

1PROJECTION/IMAGE FLIP

–toggles projection on and off

–LED light on/off indication

–switches project brightness levels between: bright, dim, very dim

–press and hold it to flip the image

RADIO

– switches the radio on/off

– displays radio frequency

3SLEEP

– switches sleep timer between: 15->30-> 60->90->120->OFF

4ALARM 1

–

press it to switch on or off ALARM 1

–

press and hold it to set time and alarm sound of ALARM 1

–press it to display status of

ALARM 1

5ALARM 2

–

press it to switch on or off ALARM 2

–

press and hold it to set time and alarm sound of ALARM 2

–press it to display status of

ALARM 2

REPEAT

ALARM/BRIGHTNESS CONTROL

–turns off the alarm temporarily and repeats alarm after 9 minutes

–

press it to turn on blue background light

–

press and hold it to turn off blue background light

AJ3650_12_EN 1/25/08 14:49 Page 5

AUTO SCAN

–in tuner mode, press and hold it to scan radio stations automatically and

stores them as preset stations

–clock and projection mode, press and hold it to search the outdoor tempera-

ture sensor

DATE/SET TIME

–press and hold it to

set time, date, and year

–press it to

display date and day of week

9DISPLAY

–

press it to toggle between indoor and outdoor temperatures

–

press and hold it to display indoor temperature, outdoor temperature, and day of

week cyclically

0FOCUS

– adjusts focus of the projector to make projection clear

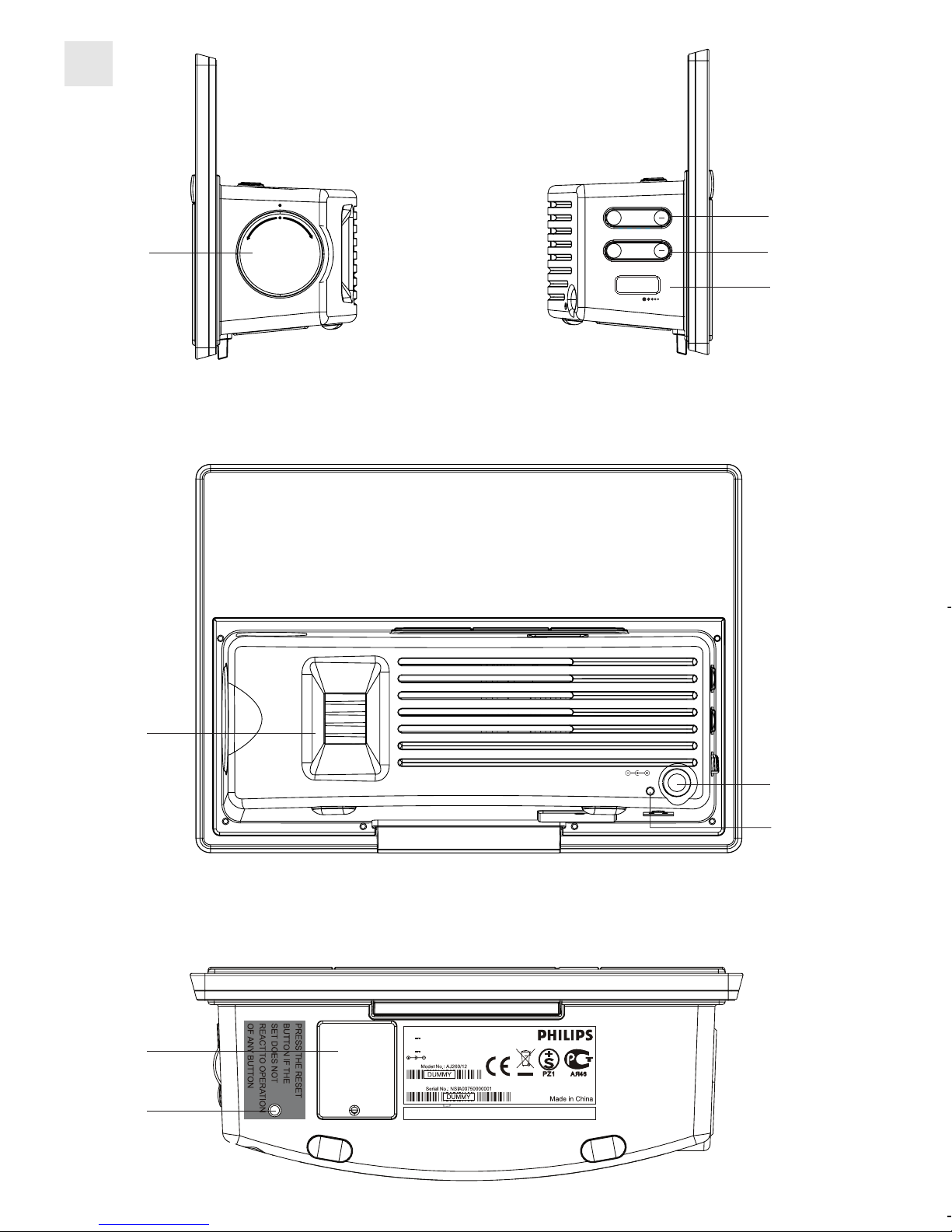

LEFT, RIGHT, and BACK PANEL

(See 2)

PUSH

–

press it to pop out the projection lens for angle adjustment

@ PRESET +/-

–

selects a preset station

–

press and hold it to set current frequency as the preset station

–

adjusts the preset station number in radio mode

–

selects a track of relaxation music during setting sleep timer

#TUNING +/-

–

tunes to radio stations

–

sets time, date, and year

–

selects alarm sounds during alarm setting

$VOLUME

–

adjusts the sound level

AJ3650_12_EN 1/25/08 14:49 Page 6

DC IN

– socket for AC/DC 7.5 V adapter

Pigtail

–temperature sensor and antenna to enhance FM reception

& RESET

–

press if the set does not react to operation of any button

* Battery compartment

–

holds the clock backup battery

( IMAGE ROTATE

–

rotates the image by 90 degrees clockwise or counterclockwise

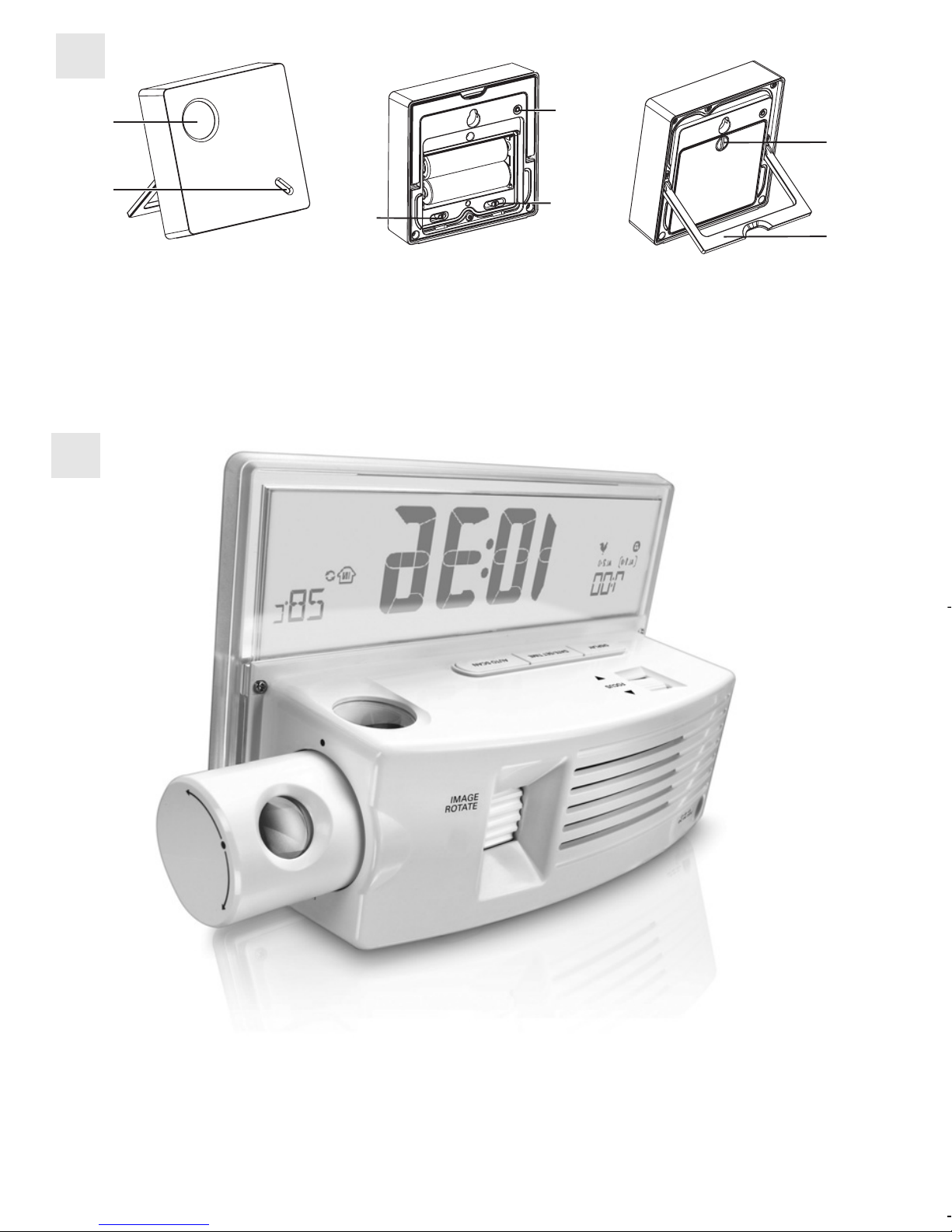

Controls on the sensor

(See 3)

1LCD display

–shows current temperature, and low battery indication of the sensor

2LED light

– flashes when the sensor is transmitting

3RESET

– resets to start transmitting

4(oC oF) Slide Switch

– selects between Centigrade (oC) or Fahrenheit (oF) temperature unit dis-

play

5CHANNEL 1/ 2 /3

– selects RF channel to transmit and receive between the senor and the

main unit

6Door lock

– turns to lock and un-lock the sensor door.

7Sensor support

– pulls out to stand the sensor

POWER SUPPLY

Mains adapter

Connect the mains adapter to the set's DC IN socket and to the power socket.

Always disconnect the mains adapter if you are not using the set.

AJ3650_12_EN 1/25/08 14:49 Page 7

Helpful hints:

To avoid damage to the set, use only the adapter supplied!

SETTING THE CLOCK

The clock uses 24-hour time format.

Important!

Pull out the plastic protective sheet to activate the clock backup battery

(CR2032). This battery is included and installed in the set.

Manual setting

1. Press and hold DATE/SET TIME to enter the clock setting mode.

™

Year digits start flashing.

Hold down or press TUNING +/- repeatedly to set the current year.

3. Press DATE/SET TIME

to confirm.

™

Month digits start flashing.

Hold down or press TUNING +/- repeatedly to set the current month.

5. Press DATE/SET TIME

to confirm.

™

Date digits start flashing.

Hold down or press TUNING +/- repeatedly to set the current date.

7. Press DATE/SET TIME

to confirm.

™

Date and Month indicators, D and M, start flashing.

Press TUNING +/- repeatedly to set the desired date format.

9. Press DATE/SET TIME

to confirm.

™

Hour digits start flashing.

10.

Hold down or press TUNING +/- repeatedly to set the current hour.

11. Press DATE/SET TIME

to confirm.

™

Minute digits start flashing.

12.

Hold down or press TUNING +/- repeatedly to set the current minute.

13. Press DATE/SET TIME

to confirm.

™

Hr and offset number start flashing.

14.

Press TUNING +/- repeatedly to set the desired hour offset value.

15. Press DATE/SET TIME

to confirm.

RADIO

AJ3650_12_EN 1/25/08 14:49 Page 8

TUNING TO RADIO STATONS

Automatic tuning

•Press and hold TUNING +/- to automatically tune to the next or previous station of

sufficient reception.

Manual tuning

•Press TUNING +/- briefly or repeatedly until you reach the desired frequency.

To improve reception:

Extend and position the pigtail fully to obtain optimum reception.

STORING PRESET STATIONS

You can store up to a total of 15 radio stations in the memory.

Manual scanning

1. Tune to your desired station (see

TUNING TO RADIO STATONS

2. To store a preset station, hold down

PRESET +/-

briefly until

the preset number

appears.

3. Press

PRESET +/-

repeatedly to select the preset station number.

•You can overwrite a preset station by storing another frequency in its place.

Automatic scanning

1. Press and hold

AUTO SCAN

until the frequency digits start flashing.

™

The set scans all available stations and stores them as preset stations in

sequence.

™

The set starts to play preset 1 when finishes scanning.

LISTENING TO RADIO

Press

RADIO

once to switch on the radio.

™

Display shows the radio frequency of the last selected station briefly

before returning to the clock time. Your preset station is also shown if you

are listening to a preset station.

Adjust volume by turning VOLUME

Press

RADIO

to switch off.

Helpful hints:

AJ3650_12_EN 1/25/08 14:49 Page 9

–

When clock time is displayed, to view the current radio frequency,

•Press RADIO

twice.

•For preset stations, press the respective PRESET button once or repeatedly.

USING THE ALARM

Two different alarm times can be set. This can be useful when you and your part-

ner need to be woken up at different time. Besides, you can set different alarm

sounds respectively among tuner or sounds of nature.

SETTING THE ALARM

1. Press and hold ALARM 1 until hour digits start flashing.

Hold down or press TUNING +/- repeatedly to set the desired hour.

3. Press ALARM 1

to confirm.

™

Minute digits start flashing.

Hold down or press TUNING +/- repeatedly to set the desired minute.

5. Press ALARM 1

to confirm.

™

starts flashing.

6. Press

TUNING +/- repeatedly to select the desired alarm sound.

7. Press ALARM 1

to confirm.

Repeat the steps above but press

ALARM 2

instead of

ALARM 1

to set the

other alarm.

Helpful hints:

–

If you have selected radio as the alarm sound, make sure you have properly tuned

to a station and set the volume before turning off the radio.

–

To check the alarm time setting for ALARM 1 or ALARM 2, press ALARM 1 or

ALARM 2.

–

It is not possible to adjust the alarm time during an alarm call or alarm repeating mode.

SWITCHING OFF THE ALARM

REPEAT ALARM

This repeats your alarm call at 9 minute intervals.

•

During the alarm call, press REPEAT

ALARM /BRIGHTNESS CONTROL

™

larm sound indicator

flashes during a repeat alarm.

•

Repeat if desired.

AJ3650_12_EN 1/25/08 14:49 Page 10
