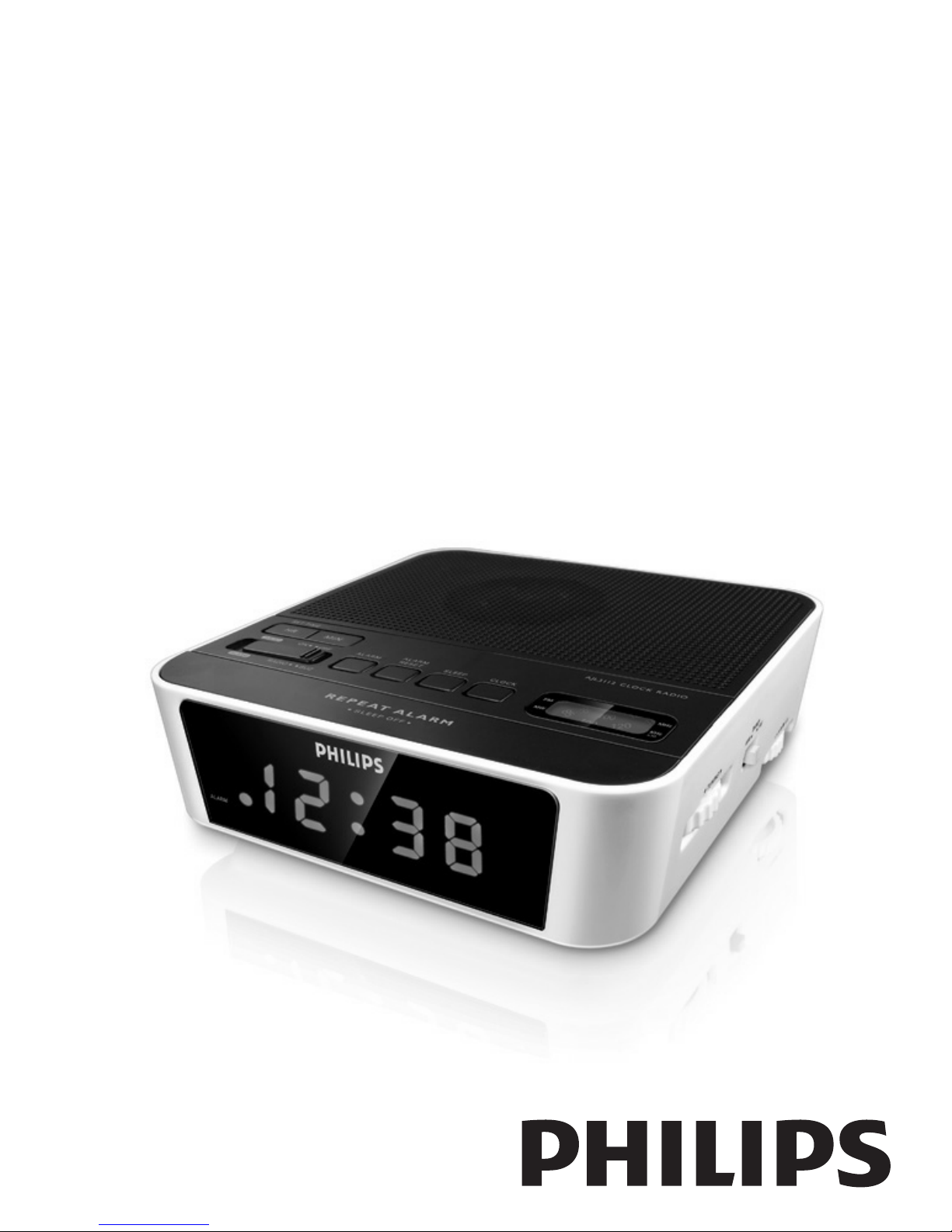

Philips AJ3112 Manuale utente

lock Radio

ww.philips.com/welcome

User manual

AJ3112

AJ3112_IFU_05_Eng 4/8/10 10:19 Page 1

#%^ $

678

AJ3112_IFU_05_Eng 4/8/10 10:19 Page 2

English

CONTROLS (see fig. 1)

1DISPLAY - shows the clock/ alarm time and status of the set

2ALARM indicator -

lights up when alarm is activated

3Frequency indicator - shows the radio frequency of your selected waveband

4REPEAT ALARM / SLEEP OFF

- switches off the active alarm for a 8-9 minute period

- switches off the sleep function

5CLOCK - sets the clock time

6SLEEP

- activates the radio for sleep function

- adjusts the sleep period

7ALARM RESET - stops the active alarm for 24 hours

8ALARM - sets the alarm function

9RADIO / ALARM

RADIO ON: switches on the radio

RADIO OFF: switches off the radio/alarm

ALARM - RADIO: activates the radio for alarm

ALARM - BUZ: activates the buzzer for alarm

0SET TIME HR / MIN

- adjusts the hours / minutes for clock / alarm / sleep time

!Power cord -

connects to wall outlet

@Pigtail - improve FM reception

#VOLUME - adjusts the sound level

$Battery door - opens to store a 9 volts 6F22 battery (not included) for clock

memory backup.

%FM/MW - selects FM/MW waveband

^TUNING - tunes to radio stations

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your

product at www.philips.com/welcome.

AJ3112_IFU_05_Eng 4/8/10 10:19 Page 3

Important notes for users in the U.K.

Mains plug

This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type

of plug proceed as follows:

1Remove fuse cover and fuse.

2Fix new fuse which should be a BS1362 3 Amp, A.S.T.A. or BSI approved type.

3Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an

appropriate plug fitted in its place. If the mains plug contains a fuse, this should

have a value of 3 Amp. If a plug without a fuse is used, the fuse at the distribu-

tion board should not be greater than 5 Amp.

Note: The severed plug must be disposed of to avoid a possible shock hazard

should it be inserted into a 13 Amp socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral

(N), brown = live (L). As these colours may not correspond with the colour mark-

ings identifying the terminals in your plug, proceed as follows:

•Connect the blue wire to the terminal marked N or coloured black.

•Connect the brown wire to the terminal marked L or coloured red.

•Do not connect either wire to the earth terminal in the plug, marked E (or e) or

coloured green (or green and yellow).

Before replacing the plug cover, make certain that the cord grip is clamped over

the sheath of the lead - not simply over the two wires.

Recording and playback of material may require consent. See Copyright Act 1956

and The Performer’s Protection Acts 1958 to 1972.

AJ3112_IFU_05_Eng 4/8/10 10:19 Page 4

INSTALLATION

POWER SUPPLY

Check if the power supply, as shown on the type plate located on the bot-

tom of the set, corresponds to your local power supply. If it does not, consult

your dealer or service center.

Connect the plug to the wall outlet.

To disconnect the set from the power supply completely, remove the

plug from the wall outlet.

CLOCK MEMORY BACKUP

The clock memory backup allows your alarm and clock time settings to be stored

for up to a day when there is a power interruption e.g. power failure. The com-

plete clock radio and display illumination will be switched off. As soon as the

power supply returns, the display will indicate the correct time.

Remove the battery door to insert a 9 volts 6F22 type battery (not included)

for backup.

Replace the battery door.

NOTE:

If no backup battery is installed or the power interruption is prolonged,

you will need to set the clock and alarm times again.

Batteries contain chemical substances so they should be disposed of

properly.

AJ3112_IFU_05_Eng 4/8/10 10:19 Page 5

RADIO

You can use this set solely as a radio!

Adjust

RADIO / ALARM

RADIO ON

to switch on the radio.

Select your waveband by adjusting the

FM/MW

switch

Adjust TUNING to tune to your desired station

Turn the VOLUME control to adjust the volume level

Adjust

RADIO / ALARM

to OFF to switch off the radio.

To improve reception:

FM:

Extend and position the pigtail fully to obtain optimal reception.

MW:

uses a built-in antenna inside the set. Direct the antenna by adjust-

ing the position of your set

SETTING THE CLOCK / ALARM TIME

The time is displayed using the 24-hour clock.

Hold down CLOCK or ALARM.

Press

MIN

repeatedly, or hold down

MIN

to adjust minute

and/or hour.

Release CLOCK or ALARM and

MIN

when you reach the correct set-

ting.

™The set clock time will show on the display and start to run.

AJ3112_IFU_05_Eng 4/8/10 10:19 Page 6

SELECTING THE ALARM MODE

To use the alarm, you must set the alarm time first. You can choose from two

different alarm modes to wake you up: by radio or buzzer.

Select your choice of alarm mode by adjusting

RADIO / ALARM

RADIO

BUZ

™

The alarm indicator (AL) will light up.

Helpful Hint:

•

If you have selected the radio mode, make sure you have adjusted the vol-

ume loud enough to wake you.

•

The buzzer is set at a fixed volume and cannot be adjusted.

SWITCHING OFF THE ALARM

There are three ways of switching off the alarm. Unless you cancel the alarm

completely, the 24 hour alarm reset option will be automatically selected after

1 hour and 59 minutes, from the time your alarm time first goes off.

24 HOUR ALARM RESET

If you want the alarm mode to be stopped immediately but also wish to retain

the same alarm setting for the following day:

•

Press ALARM RESET during the alarm call.

™

The alarm indicator (AL) will remain on.

CANCELING THE ALARM COMPLETELY

To cancel the set alarm time before it goes off, or during the alarm call:

•

Adjust

RADIO / ALARM

to OFF position.

™

The alarm indicator (AL) will light off.

AJ3112_IFU_05_Eng 4/8/10 10:19 Page 7

REPEAT ALARM

This repeats your alarm call at 9-minute intervals.

During the alarm call, press REPEAT ALARM

SLEEP

OFF

™

The alarm indicator (AL) will remain on.

SLEEP

This set has a built-in timer which enables the set to be automatically switched

off during radio playback after a set period of time. This allows you to lie back,

listen and fall asleep. The maximum sleep time is 1 hour and 59 minutes.

Setting SLEEP

Set

RADIO / ALARM

to OFF position.

Set the sleep time to activate sleep function by selecting on the following

ways:

•

Simply press

SLEEP

to set your sleep time to 59 minutes.

•

Hold down

SLEEP

, and press

MIN

repeatedly to adjust sleep time from 59

minutes downward.

•

Hold down

SLEEP

and press

to get one more hour sleep time (1:59)

™

To cancel sleep, press REPEAT ALARM

SLEEP

OFF

Notes for battery disposal

Your product contains batteries covered by the European

Directive 2006/66/EC, which cannot be disposed with normal

household waste. Please inform yourself about the local rules on

separate collection of batteries because correct disposal helps to

prevent negative consequences for the environmental and human

health.

AJ3112_IFU_05_Eng 4/8/10 10:19 Page 8

SAFETY INFORMATION

•

Install the unit near the AC outlet and where the AC plug can be easily

reached.

•

Where the MAINS plug is used as the disconnect device, the disconnet device

shall remain readily operable.

•

Place the set on a hard and flat surface so that the system does not tilt.

•

If you do not intend to use the set for a long time, withdraw the power plug

from the wall outlet. In addition to this, it is advisable to remove the battery

from the clock radio. This will prevent any danger of leakage and the clock

radio will not be damaged.

•

Do not expose the set, batteries to humidity, rain, sand or excessive heat

caused by heating equipment or direct sunlight.

•

The apparatus shall not be exposed to dripping or splashing.

•

Adequate ventilation with a minimum gap of 15cm between the ventilation

holes and surrounding surfaces is necessary to prevent heat build-up.

•

The ventilation should not be impeded by covering the ventilation openings

with items, such as newspapers, table-cloths, curtains, etc..

•

No objects filled with liquids, such as vases, shall be placed on the appartus.

•

No naked flame sources, such as lighted candles, should be placed on the

apparatus.

•

To clean the set, use a soft, slightly dampened chamois leather. Do not use

any cleaning agents containing alcohol, ammonia, benzene or abrasives as

these may harm the housing.

•

Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION

Use of controls or adjustments or performance of procedures other than

herein may result in unsafe operation.

This set complies with the radio interference requirements of the

European Union.

AJ3112_IFU_05_Eng 4/8/10 10:19 Page 9

TROUBLESHOOTING

If a fault occurs, first check the points listed below before taking the set for repair.

If you are unable to remedy a problem by following these hints, consult your dealer or

service center.

WARNING: Under no circumstances should you try to repair the set yourself, as this

will invalidate the warranty. Do not open the set as there is a risk of

electric shock.

Problem

–Possible Cause

•Remedy

No sound/power

–Volume not adjusted

•Adjust the volume

Occasional crackling sound during FM broadcast

–Weak signal

•

Adjust the position of the Pigtail

Continuous crackling/hiss disturbance during MW broadcast

–Electrical interference from TV, computer, fluorescent lamp, etc.

•Move set away from other electrical equipment

The alarm does not function

–

Alarm time not set and or alarm mode not selected

•Set

the alarm time and / select alarm mode

–Volume too low for RADIO

•Adjust the volume

–

Radio alarm not adjusted to radio station

•Tune to a radio station

AJ3112_IFU_05_Eng 4/8/10 10:19 Page 10
