Philips DVP620VR/17B Manuale operativo

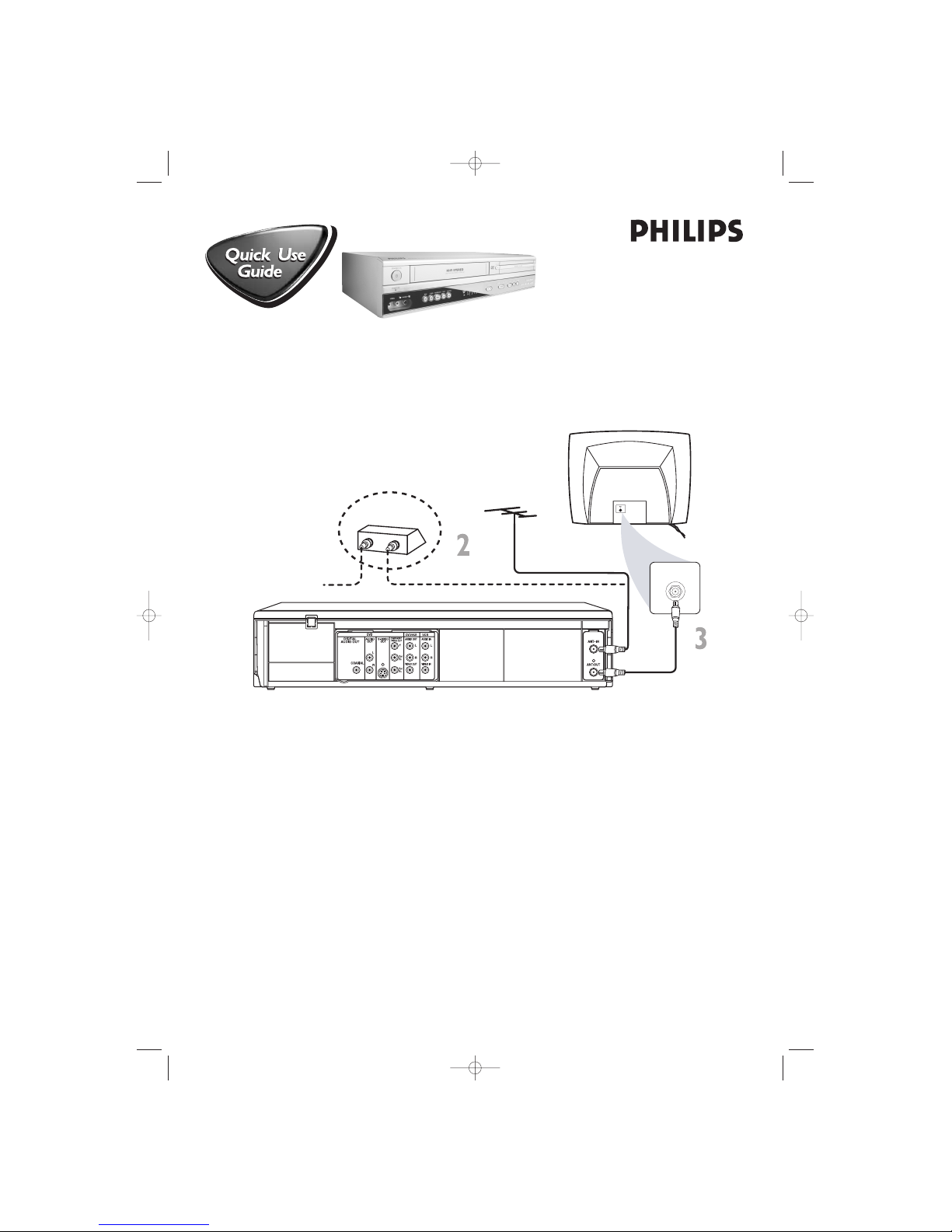

There are many ways to connect your new DVD/VCR to your Television and other equipment.This Quick-Use

Guide shows the easiest, most common connection.

Higher quality connections are explained in the accompanying owner’s manual and will provide better sound or

picture if your TV and/or audio system is compatible.

REAR OF TV

(EXAMPLE ONLY)

ANTENNA IN

RF COAXIAL CABLE

IN OUT

CABLE BOX

(Optional)

CABLE TV SIGNAL

ANTENNA or

CABLE TV SIGNAL

1Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you

have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.

2Connect your Antenna TV signal directly to the AERIAL jack on the rear of the DVD/VCR using an RF cable

(not supplied).

If you have a Cable Box (or Satellite Receiver), connect the OUT jack of the Cable Box/Satellite Receiver to the

AERIAL jack on the DVD/VCR using an RF coaxial cable (not supplied).

3Connect the supplied black RF coaxial cable to the DVD / VCR’s ANT-OUT jack and to yourTV’s ANTENNA

IN jack. The TV’s ANTENNA IN jack may be labelled 75-ohm,TV IN, or RF IN. Check your TV manual for details.

4Plug the power cords of the DVD/VCR and the TV into an active power outlet.

5Turn on the TV power. Set the TV to a video channel. (If you cannot use channel 3 at your TV, you can use

channel 4 instead. However, you must correspondingly set the DVD/VCR’s output channel 3 or 4. See the

accompanying DVD/VCR owner’s manual for details.)

6Press the STANDBY-ON 2button on the DVD/VCR or its remote to turn on the DVD/VCR. The first

time you turn on the DVD/VCR, you should complete the VCR setup. See the other side of this Quick-

Use Guide for details.

DVP620VR

DVP620VR/17 QUG_rev2 28/05/2004 08:44 PM Page 1

STANDBY-ON

SOURCE

POWERON

VIDEO AUDIO REW F.FWD PLAY

RECORD CHANNEL VCR

OPEN/CLOSE

DVD STOP PLA

ONETOUCH RECORDING • LONG PLAY

STOP/EJECT

STANDBY-ON

PLAY

DVDVCR VCR/TV

MENU MENU

DISC/VCR

RETURN TITLE

A-B

CLEAR/RESET SLOW

SUBTITLE ZOOM

ANGLE

REPEAT REPEAT

AUDIO

SEARCH MODE

DISPLAY

SKIP / CH

SYSTEM

PAUSESTOP

MARKER RECORDTIMER SET

SPEED

1 2 3

890

+10

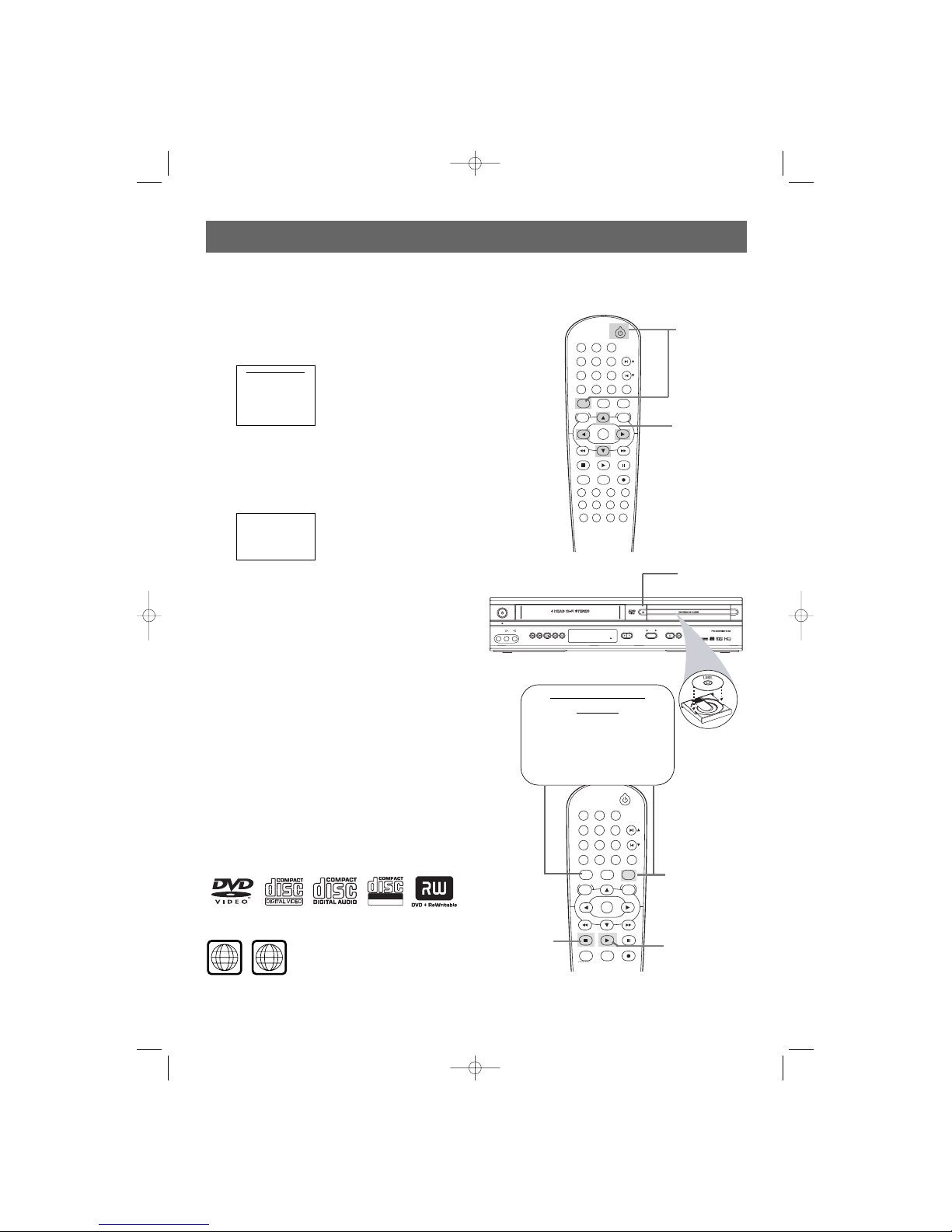

Quick-Use Guide (cont’d)

Playing a Disc

1With the TV and DVD /VCR on, press the DVD

button to put the DVD / VCR in the DVD mode.

2Press OPEN/CLOSE /to open the disc tray.

Put a Disc in the tray with the label facing up and the shiny side

facing down.

Press OPEN/CLOSE /again to close the disc tray.

3Playback may start automatically. If not, press PLAY B.

If a DVD Disc menu appears, use the 1,2,3,4or Number

buttons to select features or start playback. Follow the

instructions in the menu.

4To stop playing a Disc, press STOP 9.

Setting Up the VCR the First Time

1Turn on the TV and set it to channel 3 or 4.

2Press VCR, then press STANDBY-ON 2.The VCR light will

appear on the front of the DVD/VCR. The display shown below

will appear.

3Press 3or 4to select English, French, or Spanish as the

language for VCR displays. Then, press 2.

4The AUTO SET UP message will appear. Press 2to set up TV

channels for the VCR. When setup is complete, the lowest TV

channel will appear on the TV.

AUTO SET UP

PUSH 2

LANGUAGE SELECT

2ENGLISH [ON]

FRANCAIS

ESPAÑOL

PUSH 2

Playable Discs

The DVD Player of the DVD/VCR will play the following Discs.

DVDs must have a Region Code of ALL regions or Region 1.

DVDs must be recorded in the NTSC or PAL Color System.Your TV

must also have the NTSC or PAL color system

ALL

Recordable

ReWritable

Turn on the TV to

channel 3 or 4.

3-4

STANDBY-ON

PLAY

DVDVCR VCR/TV

MENU MENU

DISC/VCR

RETURN TITLE

A-B

CLEAR/RESET SLOW

SUBTITLE ZOOM

ANGLE

REPEAT REPEAT

AUDIO

SEARCH MODE

DISPLAY

SKIP / CH

SYSTEM

PAUSESTOP

MARKER RECORDTIMER SET

SPEED

Remote Control

Setting

Before using the remote:

• Press ‘DVD’ for DVD

functions.

• Press ‘VCR’ for VCR

functions.

8239 300 31723

OVMN04133A/H9620UD***

DVP620VR/17 QUG_rev2 28/05/2004 08:44 PM Page 2
