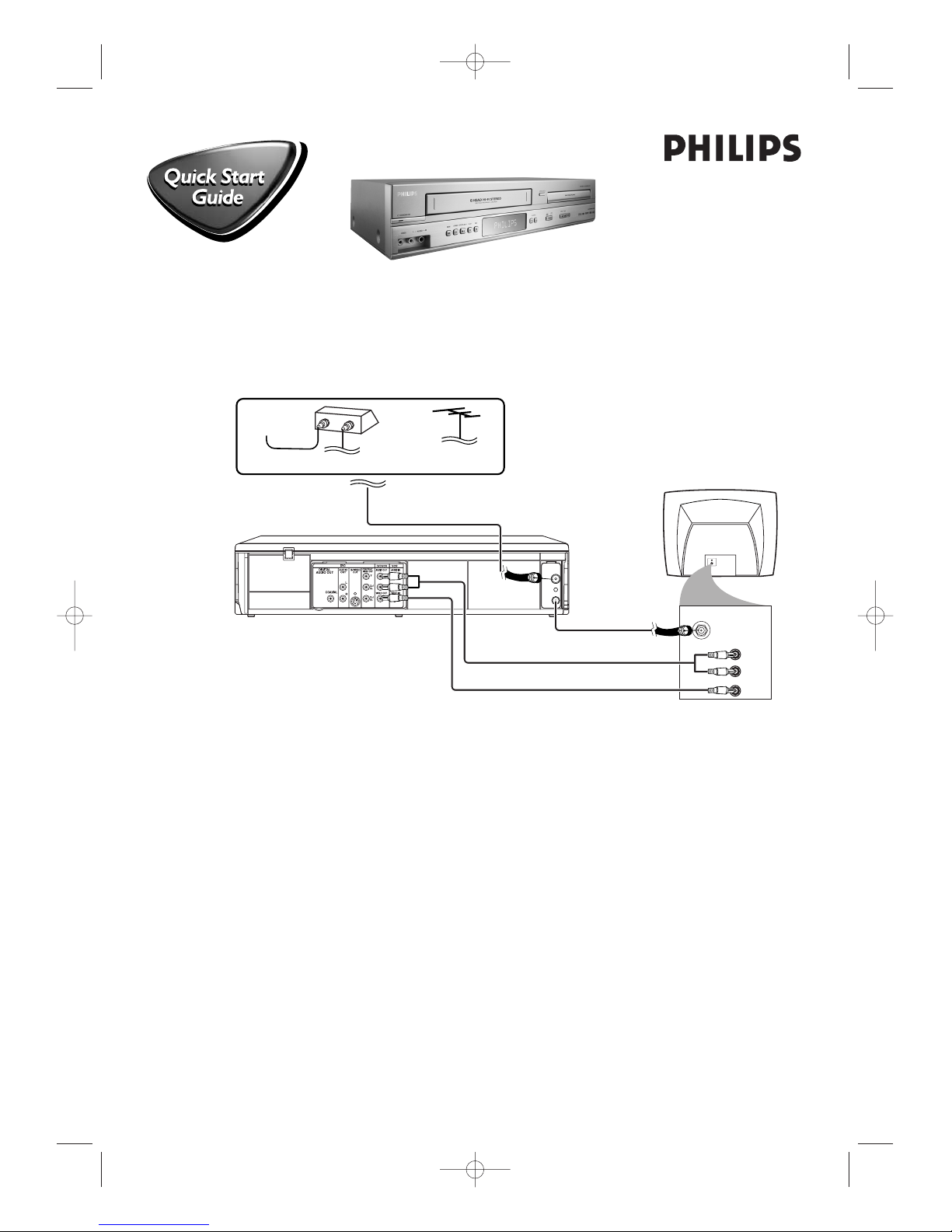

There are many ways to connect your new DVD/VCR to your Television and other equipment.This Quick Start

Guide shows the easiest, most common connection.

Higher quality connections are explained in the accompanying owner’s manual and will provide better sound or

picture if your TV and/or audio system is compatible.

DVP3200V/75

AERIAL

RF OUT

REAR OF TV

(EXAMPLE ONLY)

IN OUT

ANTENNA IN

AUDIO IN

VIDEO IN

4Audio Cable

RF COAXIAL CABLE

5Video Cable

AUDIO and VIDEO IN Jacks onTV

2Antenna or Cable TV Signal to ANT-IN Jack

CABLE BOX

(Optional)

CABLE TV SIGNAL

ANTENNA or

CABLE TV SIGNAL

1Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you

have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.

2Connect your Antenna TV signal or, if you have a Cable Box/Satellite Receiver, the OUT jack of your Cable

Box/Satellite Receiver to the AERIAL jack on the rear of the unit using the supplied RF coaxial cable.

3Connect another RF coaxial cable (not supplied) to the unit’s RF OUT jack and to your TV’s ANTENNA IN

jack.

The TV’s ANTENNA IN jack may be labelled 75-ohm,TV IN or RF IN. Check your TV manual for details

4Connect the red and white audio cable (supplied) to the red and white DVD/VCR AUDIO OUT jacks on

the DVD/VCR and to the red and white AUDIO IN jacks on the TV.

5Connect the yellow video cable (supplied) to the DVD/VCR VIDEO OUT jack on the DVD/VCR and to

the VIDEO IN jack on the TV. The VIDEO IN jack on the TV is usually yellow and may be labelled CVBS, Composite

or Baseband video.

6Plug the power cords of the unit and the TV into an active power outlet.

7Turn on the TV and set it to the correct Audio/Video In channel.

8Press STANDBY-ON 2on the unit or 2on the remote to turn on the unit. The first time you turn on the

unit, you should complete the VCR setup. See the other side of this Quick Start Guide for details.

E8B23AD_QSG_EN 4/26/06 6:59 PM Page 1

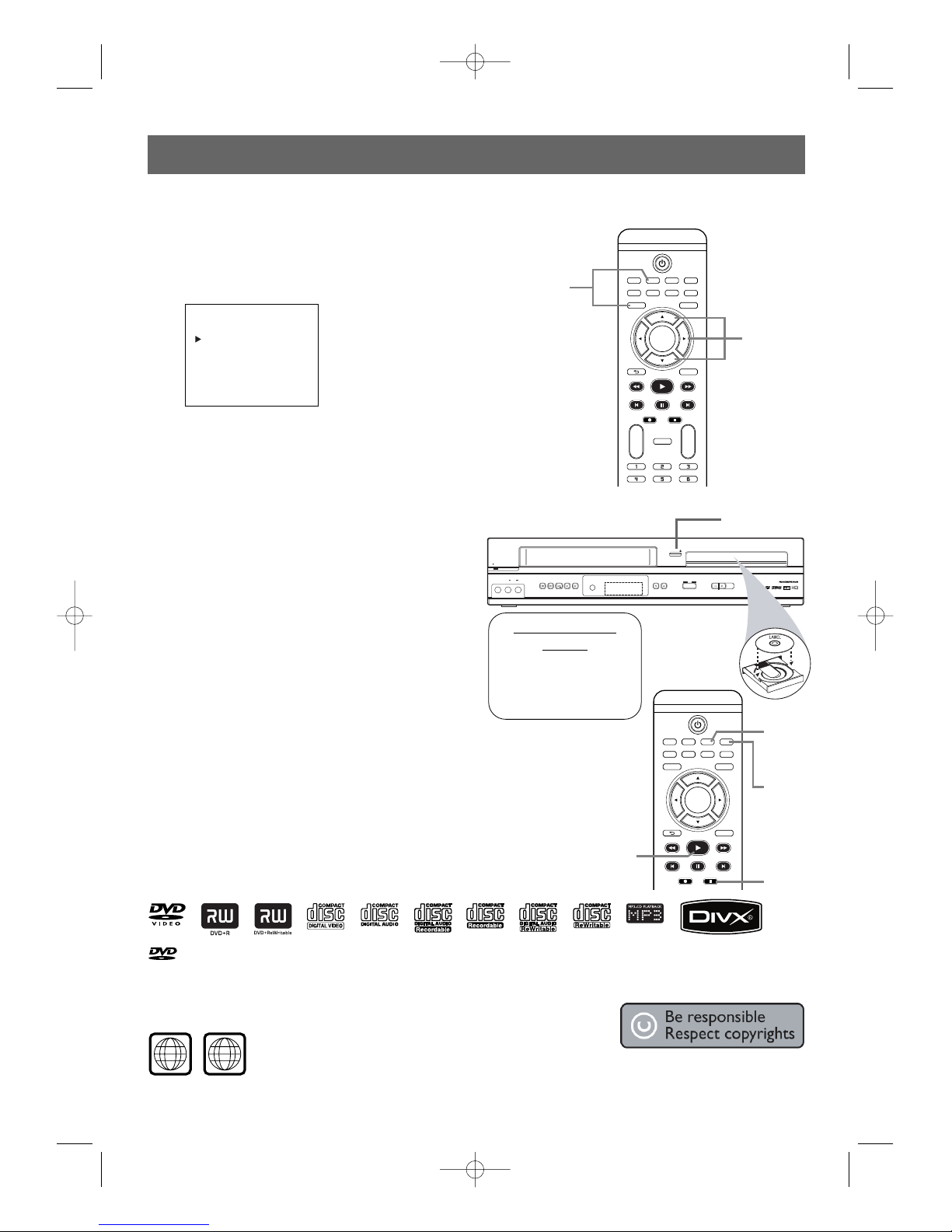

Playing a Disc

1With the TV and the unit on, press DVD to put

the unit in the DVD mode.

2Press OPEN/CLOSE to open the disc tray.

Put a disc in the tray with the label facing up and the

shiny side facing down.

3Press PLAY B.

Tr ay closes and playback starts automatically.If not,

press PLAY Bagain.

If a DVD disc menu appears, use 3/ 4/ 1/ 2,OK or

the numerical key pads to select features or start playback.

Follow the instructions in the menu.

4To stop playing a disc, press STOP 9.

VCR SLOW VCR DVD OPEN/CLOSE

SUBTITLE AUDIO ANGLE ZOOM

DVD

SETUPMENU

DISC/VCR

DISPLAY

TIMER SET

BACK

PLAY

REW FFW

PREV NEXTPAUSE

REC STOP

REPEAT

A-B

Quick Start Guide (cont’d)

Setting Up the VCR the First Time

1Turn on the TV and set it to video channel.

2Press VCR, then press DISC/VCR MENU. The VCR light will

appear on the front of the unit.The display shown below will

appear.

3Press 3or 4to select “INITIAL”, then press 2.

Press 3or 4to select “CH TUNING”, then press 2.

Press 3or 4to select “AUTO”.

4Press 22to set up TV channels for the VCR. The AUTO SET

UP message will appear.When setup is complete, the lowest TV

channel will appear on the TV.

Playable Discs

The DVD player of this unit will play the following discs.

is a trademark of DVD Format/Logo Licensing Corporation.

Windows Media is a trademark of Microsoft Corporation.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are

used under license.

DVDs must have a Region Code of ALL regions or Region 4.

DVDs must be recorded in the NTSC or PAL Color System.Your TV must also

have the NTSC or PAL color system.

4ALL

3-4

TIMER

SET UP

INITIAL

8239 300 47581

1VMN22794*****

E8B23AD

Turn on the TV video

channel.

STOP PLAY

REW F.FWD PLAY

REC CHANNELSTOP/EJECT

VIDEO AUDIOLR

SOURCE

STANDBY-ON

VCR DVD

DVD

OPEN/CLOSE

VCR SLOW VCR DVD OPEN/CLOSE

SUBTITLE AUDIO ANGLE ZOOM

DVD

SETUPMENU

DISC/VCR

DISPLAY

BACK

PLAY

REW FFW

PREV NEXTPAUSE

REC STOP

Remote Control

Setting

Before using the remote:

• Press DVD for DVD

functions.

• Press VCR for VCR

functions.

E8B23AD_QSG_EN 4/26/06 6:59 PM Page 2
