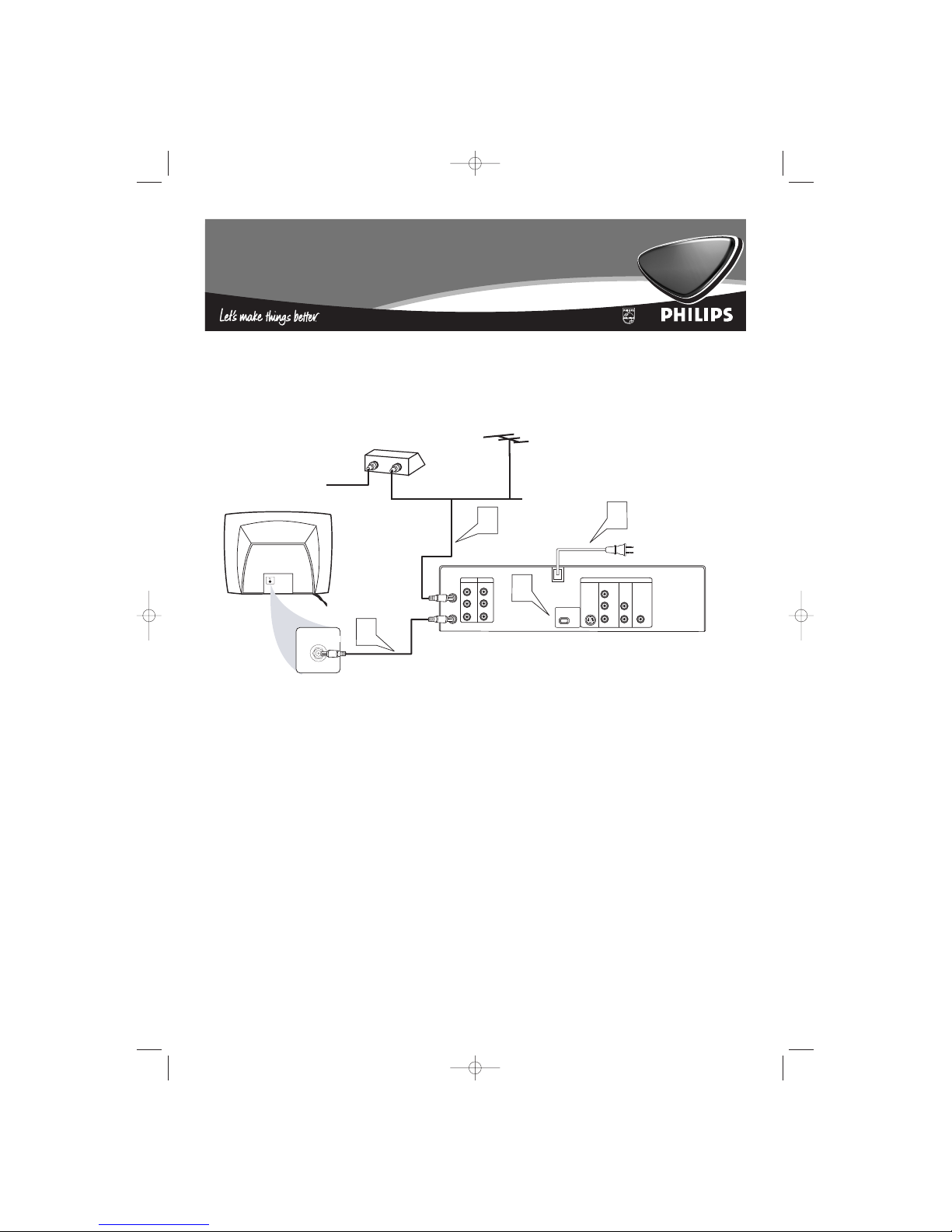

There are many ways to connect your new DVD/VCR to your Television and other equipment.This Quick-Use

Guide shows the easiest, most common connection.

Higher quality connections are explained in the accompanying owner’s manual and will provide better sound or

picture if your TV and/or audio system is compatible.

ANT-IN

ANT-OUT

DVD/VCR VCR

AUDIO OUT AUDIO IN

VIDEO OUT VIDEO IN COAXIAL

DVD

S-VIDEO

OUT COMPONENT

VIDEO OUT

Pb/

AUDIO

OUT DIGITAL

AUDIO OUT

Pr/

I P

PROGRESSIVE

REAR OF TV

(EXAMPLE ONLY)

ANTENNA IN

IN OUT

RF COAXIAL CABLE

CABLE

TV SIGNAL

ANTENNA or

CABLE TV SIGNAL

CABLE BOX OR

1Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you

have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.

2If you do not have a Cable Box, simply connect your Antenna or Cable TV signal directly to the ANT-IN jack

on the rear of the DVD/VCR.

If you do have a Cable Box (or Satellite Receiver), first connect the Cable TV (or Satellite) signal to the IN

jack on the Cable Box/Satellite Receiver. Then, use an RF coaxial cable (like the one supplied) to connect the

OUT jack of the Cable Box/Satellite Receiver to the ANT-IN jack on the DVD/VCR.

3Connect the supplied black RF coaxial cable to the DVD/VCR’s ANT-OUT jack and to your TV’s ANTENNA

IN jack. The TV’s ANTENNA IN jack could be labelled 75-ohm, TV IN, or RF IN. Check your TV manual for details.

4Set the INTERLACE/PROGRESSIVE SCAN SELECTOR to INTERLACE (I).

5Connect the power cords of the DVD/VCR,TV, and Cable Box (if applicable) to a power outlet.

6Turn on the TV power. Set the TV to channel 3. (If you cannot use channel 3 at your TV, you can use channel 4

instead. However, you must set the DVD/VCR’s output channel to 4. See the accompanying DVD/VCR owner’s manu-

al for details.)

7Press STANDBY-ON 2on the DVD/VCR or its remote to turn on the DVD/VCR. The first time you

turn on the DVD/VCR, you should complete the VCR setup. See the other side of this Quick-Use Guide

for details.

DVD750VR

Quick-Use Guide

750VR qug3 30/07/2003 4:57 PM Page 1

8239 300 26702

H9420UD/0VMN03701*****

Quick-Use Guide (cont’d)

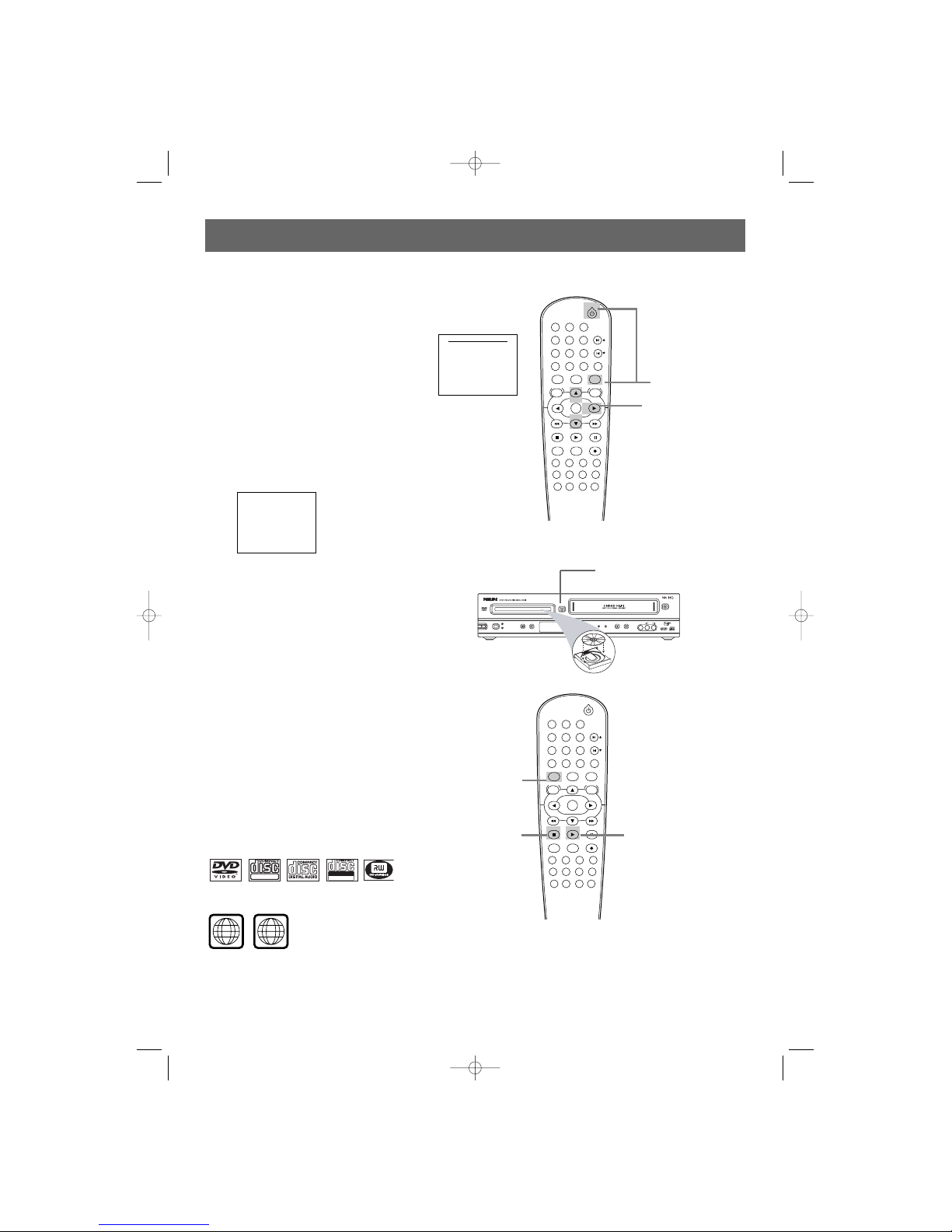

Playing a Disc

1With the TV and DVD/VCR on, press the DVD

button to put the DVD/VCR in DVD mode.

2Press OPEN/CLOSE /to open the disc tray. Put

a Disc in the tray with the label facing up and the

shiny side facing down.

Press OPEN/CLOSE /again to close the tray.

3Playback may start automatically. If not, press

PLAY B.If a DVD Disc menu appears, use the 431

2, OK, or Number buttons to select features or start

playback. Follow the instructions in the menu.

4To stop playing a Disc, press STOP 9.

Setting Up the VCR the First Time

1Turn on the TV and set it to channel 3.

2Press VCR, then press STANDBY-ON 2

to turn on the DVD/VCR. This display will

appear only the first time you turn on the

DVD/VCR. (If you have turned on the power

previously, you will not see this menu. See the

owner's manual to select a language and set up

channels.)

3Press 3or 4to select English, French, or Spanish as the

language for VCR displays. Then, press 2.

4The AUTO SET UP message will appear. Press 2to set up TV

channels for the VCR. When set up is complete, the lowest

TV channel will appear on the TV.

AUTO SET UP

Playable Discs

The DVD Player of the DVD/VCR will play the following Discs.

DVDs must have a Region Code of ALL regions or Region 1.

DVDs must be recorded in the NTSC Color System.

ALL

DIGITAL VIDEO

Recordable

ReWritable

STANDBY-ON

PLAY

VCR/TV

VCRDVD

MENU MENU

SYSTEM

RETURN TITLE

A-B

CLEAR/RESET SLOW

SUBTITLE ZOOM

ANGLE

REPEAT REPEAT

AUDIO

SEARCH MODE

DISPLAY

SKIP / CH

DISC/VCR

PAUSESTOP

VCR Plus+ RECORDTIMER SET

SPEED 1 2 3

890

+10

Turn on

the TV to

channel 3.

3-4

STANDBY-ON

PLAY

VCR/TV

VCRDVD

MENU MENU

SYSTEM

RETURN TITLE

A-B

CLEAR/RESET SLOW

SUBTITLE ZOOM

ANGLE

REPEAT REPEAT

AUDIO

SEARCH MODE

DISPLAY

SKIP / CH

DISC/VCR

PAUSESTOP

VCR Plus+ RECORDTIMER SET

SPEED 1 2 3

890

+10

OPEN/CLOSE

STOP/EJECT

STANDBY-ON SOURCE STOP PLAY

DVD

VCR

RECORD

TIMER RECORD RECORD PLAY VIDEO AUDIO

PROGRESSIVESCAN DVD VIDEO/CD PLAYER

LANGUAGE SELECT

2 ENGLISH [ON]

FRANCAIS

ESPAÑOL

750VR qug3 30/07/2003 4:57 PM Page 2
