Philips DVP3200V/37B Manuale utente

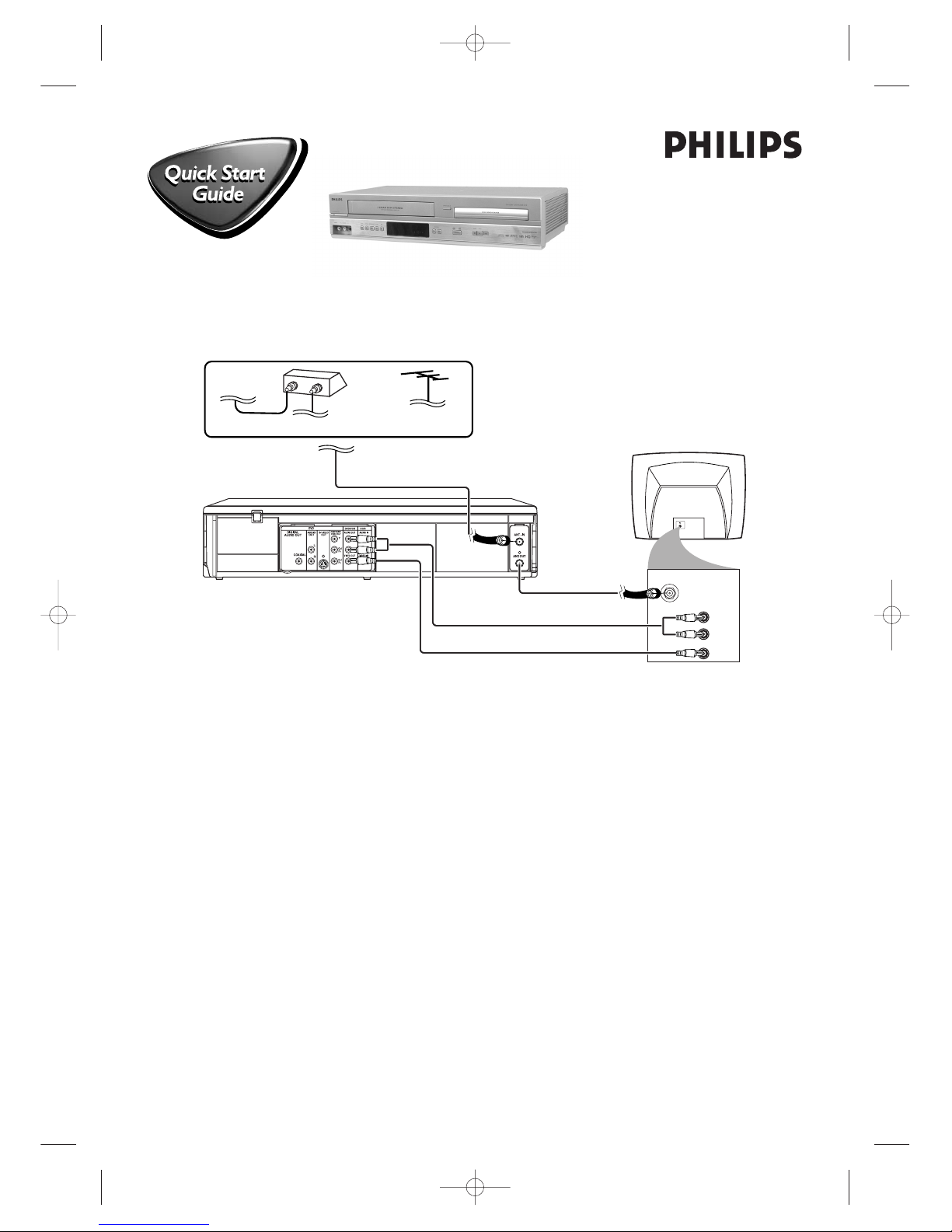

There are many ways to connect your new DVD/VCR to yourTelevision and other equipment.This Quick Start

Guide shows the easiest, most common connection.

Higher quality connections are explained in the accompanying owner’s manual and will provide better sound or

picture if your TV and/or audio system is compatible.

REAR OF TV

(EXAMPLE ONLY)

IN OUT

ANTENNA IN

AUDIO IN

VIDEO IN

4Audio Cable

RF COAXIAL CABLE

5Video Cable

Audio and Video IN Jacks on TV

2Antenna or Cable TV Signal to ANT-IN Jack

CABLE BOX

(Optional)

CABLE TV SIGNAL

ANTENNA or

CABLE TV SIGNAL

DVP3200V/37

1Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you

have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.

2Connect your Antenna TV signal or, if you have a Cable Box/Satellite Receiver, the OUT jack of your Cable

Box/Satellite Receiver to the ANT-IN jack on the rear of the DVD/VCR using the supplied RF coaxial cable.

3Connect another RF coaxial cable (not supplied) to the DVD/ VCR’s ANT-OUT jack and to yourTV’s

ANTENNA IN jack.

The TV’s ANTENNA IN jack may be labelled 75-ohm,TV IN, or RF IN. Check your TV manual for details

4Connect the red and white audio cable (supplied) to the red and white DVD/VCR AUDIO OUT jacks on

the DVD/VCR and to the red and white AUDIO IN jacks on theTV.

5Connect the yellow video cable (supplied) to the DVD/VCR VIDEO OUT jack on the DVD/VCR and to

the VIDEO IN jack on the TV. The VIDEO IN jack on the TV is usually yellow and may be labelled CVBS, Composite,

or Baseband video.

6Plug the power cords of the DVD/VCR and the TV into an active power outlet.

7Turn on the TV and set it to the correct Audio/Video In channel.

8Press yor STANDBY-ONyon the front panel to turn on the DVD/VCR. The first time you turn on

the DVD/VCR, you should complete the First-time DVD/VCR Setup. See the other side of this Quick

Start Guide for details.

E8A21UD_QSG_EN 4/3/06 5:22 PM Page 1

TV/VIDEO VCR DVD VCR Plus+

SUBTITLE AUDIO ANGLE ZOOM

DVD

SETUPMENU

DISC/VCR

DISPLAY

TIMER SET

BACK

PLAY

REW FFW

PREV NEXTPAUSE

REC STOP

REPEAT

A-B

Playable Discs

The DVD Player of the DVD/VCR will play the following Discs.

is a trademark of DVD Format/Logo Licensing Corporation.

Windows Media is a trademark of Microsoft Corporation.

DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

DVDs must have a Region Code of ALL regions or Region 1.

ALL

STOP PLAY

REW F.FWD PLAY

REC CHANNELSTOP/EJECT

VIDEO AUDIOLR

SOURCE

STANDBY-ON

VCR DVD

DVD

OPEN/CLOSE

TV/VIDEO VCR DVD VCR Plus+

SUBTITLE AUDIO ANGLE ZOOM

DVD

SETUPMENU

DISC/VCR

DISPLAY

TIMER SET

BACK

PLAY

REW FFW

PREV NEXTPAUSE

REC STOP

REPEAT

A-B

CLEAR

REC MODE SEARCH MODE TITLE

8239 300 47521

1VMN22605*****

E8A21UD

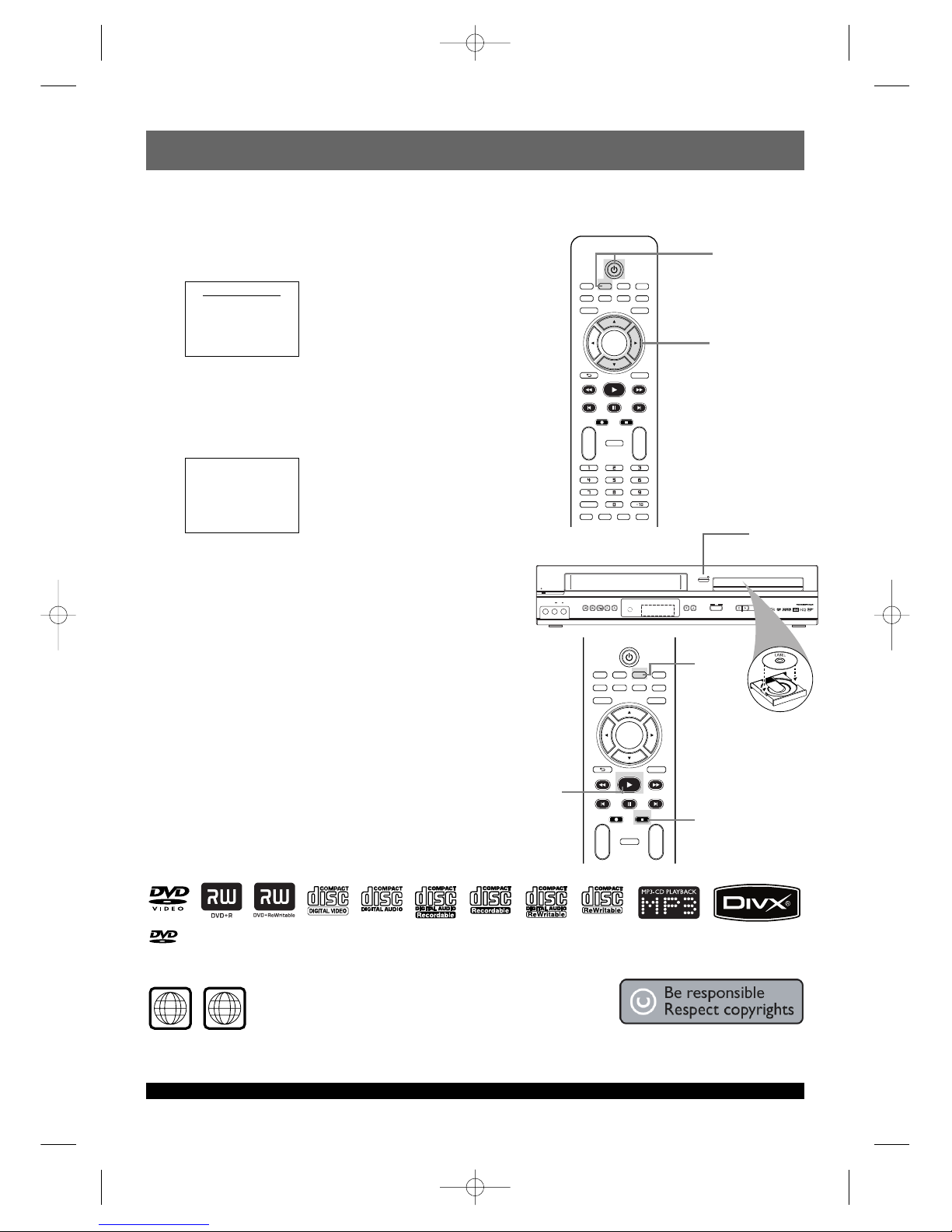

Quick Start Guide (cont’d)

Playing a Disc

1Turn on the TV and set it to the correct Audio/Video In

channel.

2With the TV and DVD/VCR turned on, press DVD to put

the DVD/VCR in DVD mode.

3Press OPEN/CLOSE Ato open the disc tray.

Put a disc in the tray with the label facing up and the shiny side

facing down.

Press PLAY Bto close the disc tray.

4Playback may start automatically. If not, press PLAY B.

If a DVD Disc menu appears, use the sBKL,OK, or Number

buttons to select features or start playback. Follow the

instructions in the menu.

5To stop playing a Disc, press STOP C.

First-Time DVD/VCR Setup

1Turn on the TV and set it to the correct Audio/Video In

channel.

2Press VCR, then press y.VCR light will appear on the front

of the DVD/VCR. The TV display shown below will appear.

3Press Kor Lto select ENGLISH, FRANCAIS (French), or

ESPAÑOL (Spanish) as the language forVCR on-screen

displays. Then, press B.

4The AUTO SET UP message will appear. Press Bto set upTV

channels for the VCR. When setup is complete, the lowest TV

channel will appear on the TV.

Turn on the TV and set it to the

correct Audio/Video In channel.

3-4

NEED HELP! Visit our website at www.philips.com/usasupport

DVDs must be recorded in either the NTSC or PAL color system.

Your TV must also have the NTSC or PAL color system.

LANGUAGE SELECT

BENGLISH [ON]

FRANCAIS

ESPAÑOL

PUSH B

AUTO SET UP

PUSH B3

E8A21UD_QSG_EN 4/3/06 5:22 PM Page 2
