Philips DVP620VR/78 Manuale operativo

There are many ways to connect your new DVD/VCR to your Television and other equipment.This Quick-Use

Guide shows the easiest, most common connection.

Higher quality connections are explained in the accompanying owner’s manual and will provide better sound or

picture if your TV and/or audio system is compatible.

REAR OF TV

(EXAMPLE ONLY)

ANTENNA IN

RF COAXIAL CABLE

IN OUT

CABLE BOX

ANTENNA or

CABLE TV SIGNAL

ANTENNA or

CABLE TV SIGNAL

1Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you

have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.

2If you do have a Cable Box (or Satellite Receiver), first connect the Cable TV (or Satellite) signal to the IN

jack on the Cable Box/Satellite Receiver. Then, use an RF coaxial cable (like the one supplied) to connect

the OUT jack of the Cable Box/Satellite Receiver to the ANT-IN jack on the DVD / VCR.

If you do not have a Cable Box, simply connect your Antenna or Cable TV signal directly to the ANT-IN jack

on the rear of the DVD / VCR.

3Connect the supplied black RF coaxial cable to the DVD / VCR’s ANT-OUT jack and to your TV’s ANTENNA

IN jack. The TV’s ANTENNA IN jack may be labelled 75-ohm,TV IN, or RF IN. Check yourTV manual for details.

4Plug the power cords of the DVD/VCR and the TV into an active power outlet.

5Turn on the TV power. Set the TV to channel 3 or 4. (If you cannot use channel 3 at your TV, you can use chan-

nel 4 instead. However, you must set the DVD/VCR’s output channel to 4. See the accompanying DVD/VCR owner’s

manual for details.)

6Press the STANDBY-ON button on the DVD/VCR or its remote to turn on the DVD/VCR. The first

time you turn on the DVD/VCR, you should complete the VCR setup. See the other side of this Quick-

Use Guide for details.

DVP620VR

DVP620VR QUG-NEW2 03/02/2004 10:52 AM Page 1

STANDBY-ON

SOURCE

POWERON

VIDEO AUDIO REW F.FWD PLAY

RECORD CHANNEL VCR

OPEN/CLOSE

DVD STOP PLA

ONETOUCH RECORDING • LONG PLAY

STOP/EJECT

STANDBY-ON

PLAY

DVDVCR VCR/TV

MENU MENU

DISC/VCR

RETURN TITLE

A-B

CLEAR/RESET SLOW

SUBTITLE ZOOM

ANGLE

REPEAT REPEAT

AUDIO

SEARCH MODE

DISPLAY

SKIP / CH

SYSTEM

PAUSESTOP

MARKER RECORDTIMER SET

SPEED

1 2 3

890

+10

8239 300 2xxxx

0VMN04133/H9620UD*****

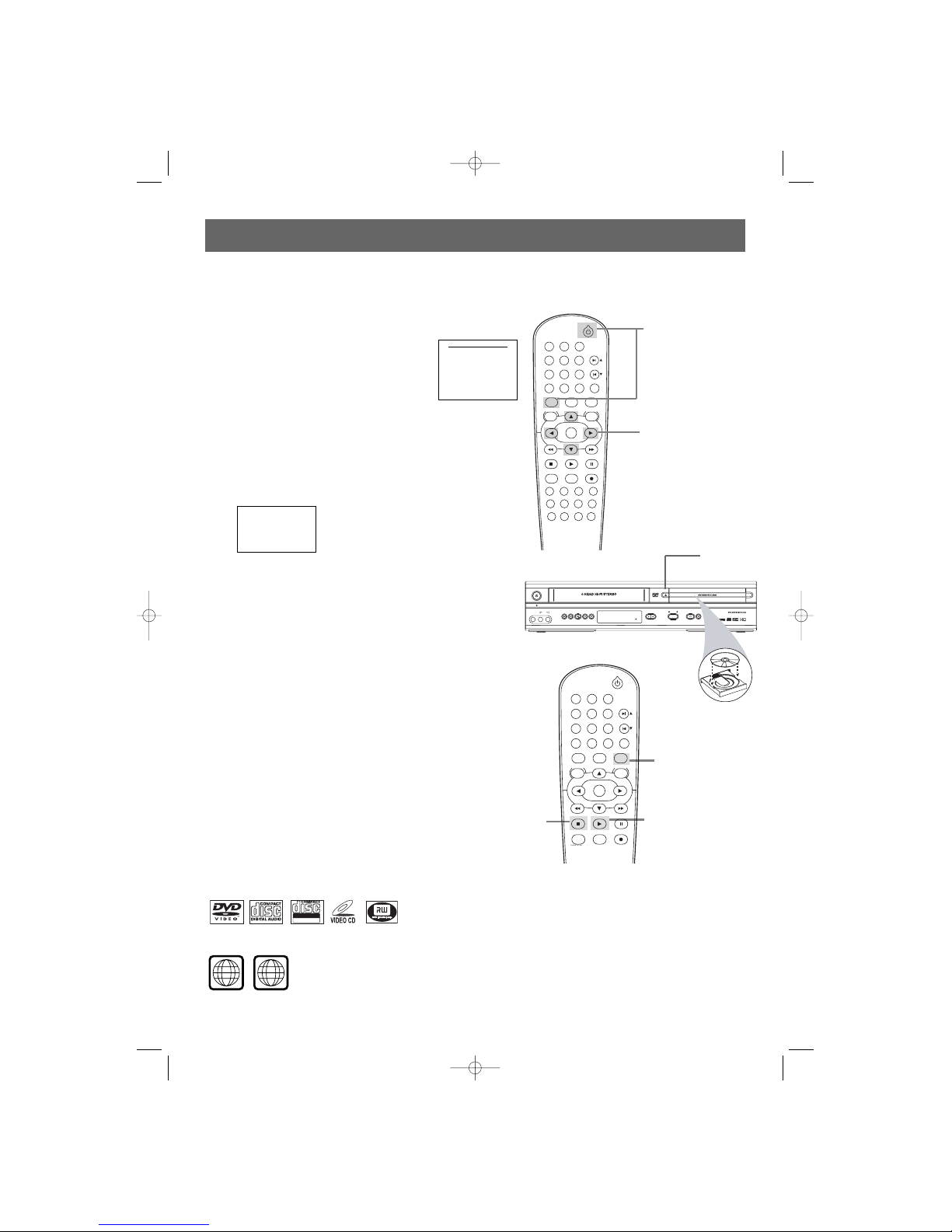

Quick-Use Guide (cont’d)

Playing a Disc

1With the TV and DVD /VCR on, press the DVD button to

put the DVD / VCR in the DVD mode.

Press STANDBY-ON to turn on the DVD/VCR.

2Press OPEN/CLOSE /to open the disc tray. Put a Disc in

the tray with the label facing up and the shiny side

facing down.

Press OPEN/CLOSE /again to close the disc tray.

3Playback may start automatically. If not, press PLAY B

again. If a DVD Disc menu appears, use the 1 234, ENTER,

or Number buttons to select features or start playback.

Follow the instructions in the menu.

4To stop playing a Disc, press STOP 9.

Setting Up the VCR the First Time

1Turn on the TV and set it to channel 3 or 4 or its

AUDIO/VIDEO In channel, depending on how you

connected the DVD/ VCR to a TV.

2Press VCR, then press STANDBY-ON.

The greenVCR light will appear on the front of

the DVD/ VCR. The display shown on right

will appear. This menu may mot appear if you

have already turned on DVD/VCR You may

turned on the DVD/VCR before to find the

Aufio/Video In channel of the TV. (See the owner's manual to

select a language and set up channels.)

3Press 3or 4to select English, French, or Spanish as the

language for VCR displays. Then, press 2.

4The AUTO SET UP message will appear. Press 2to set up TV

channels for the VCR. When set up is complete, the lowest

TV channel will appear on the TV.

AUTO SET UP

PUSH 2

Playable Discs

The DVD Player of the DVD/VCR will play the following Discs.

DVDs must have a Region Code of ALL regions or Region 1.

DVDs must be recorded in the NTSC Color System.

ALL

Recordable

ReWritable

Turn on

the TV to

channel 3.

3-4

LANGUAGE SELECT

2ENGLISH [ON]

FRANCAIS

ESPAÑOL

PUSH 2

STANDBY-ON

PLAY

DVDVCR VCR/TV

MENU MENU

DISC/VCR

RETURN TITLE

A-B

CLEAR/RESET SLOW

SUBTITLE ZOOM

ANGLE

REPEAT REPEAT

AUDIO

SEARCH MODE

DISPLAY

SKIP / CH

SYSTEM

PAUSESTOP

MARKER RECORDTIMER SET

SPEED

DVP620VR QUG-NEW2 03/02/2004 10:52 AM Page 2
