Philips SHC8525 Manuale utente

4ENGLISH

Index

Functional overview .....................................................................................................................4

Safety precautions .........................................................................................................................5

System compatibility ....................................................................................................................5

Using your FM wireless headphone system ............................................................6-8

Problem Solving .......................................................................................................................8-10

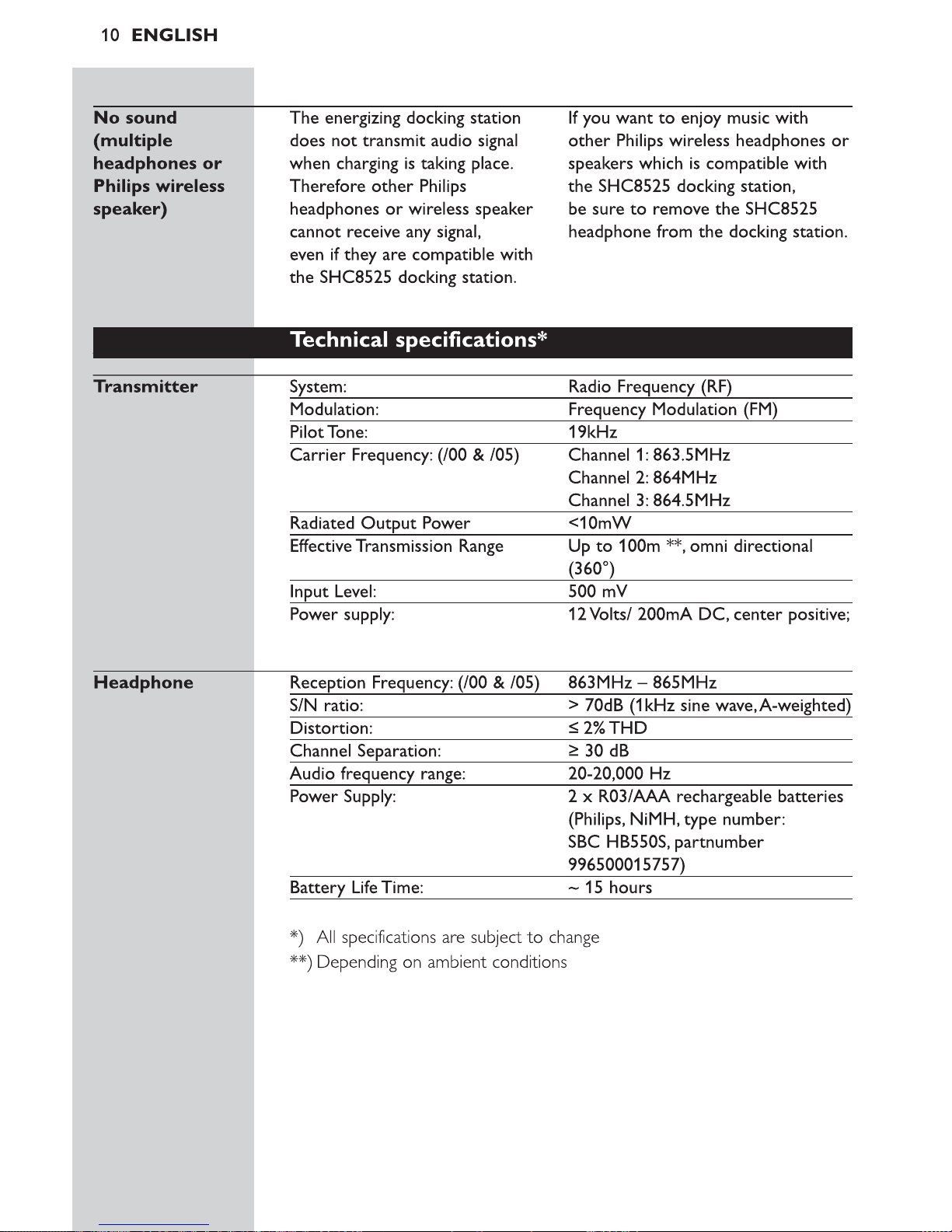

Technical Specification .............................................................................................................10

European Regulations ...............................................................................................................11

FM Wireless Headphone System

SHC8525

Congratulations! You have just bought one of the most sophisticated

FM wireless headphone system.

This system implements the latest FM wireless technology, which offers you

complete freedom of movement while enjoying your favourite movie or

music. With energizing docking station, your headphone can be recharged in

ease while it is not in use.This allows your headphone to be fully charged

and always be ready for use whenever you need to enjoy a movie.

To ensure you achieve the best performance from your FM wireless

headphone system, please read this manual carefully and keep it for future

reference.

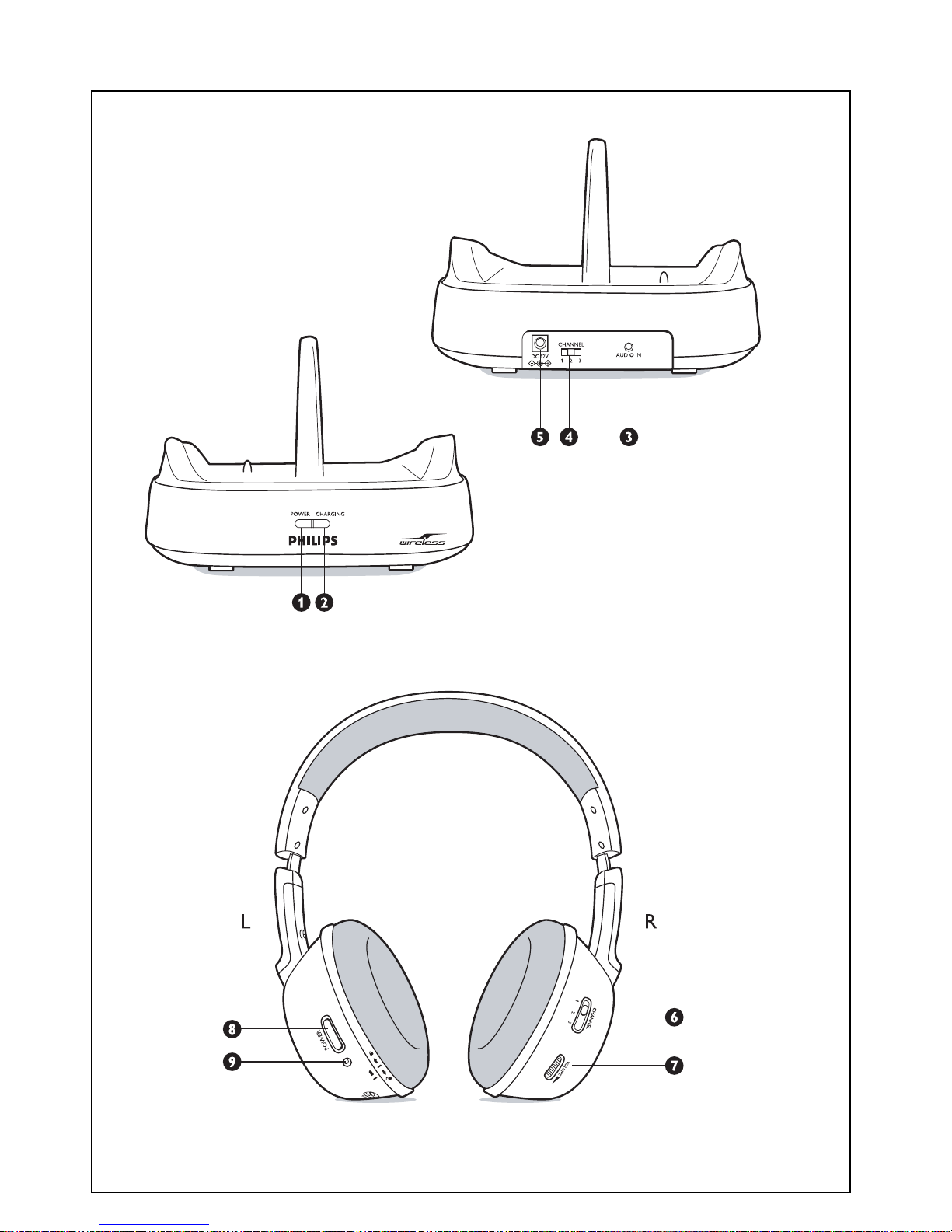

Functional overview -

Product illustrations on inside flap

A) Transmitter

1 Power on/off indicator

2 Charging indicator

3 3.5 mm stereo input jack

4 Channel switch

5 DC power input jack

B) Receiver

6 Manual tuning switch

7 Volume control

8 Power on/off button

9 Power on/off indicator/ low battery indicator

ENGLISH 5

Important information

Please read the following instructions carefully, and retain this booklet for

future reference.All the safety and operating instructions should be read

before using the FM wireless headphone system.

Safety precautions

• Prevent fire or shock hazard: do not expose this equipment to humidity,

rain, sand or excessive heat caused by heating equipment or direct

sunlight.

• Radio equipment for wireless audio applications is not protected against

disturbance from other radio services.

• Do not use cleansing agents containing alcohol, spirits, ammonia or

abrasives as they may harm the housing. Use a slightly dampened chamois

cloth to clean the housing.

• If fluid spills into the headphone system, remove the batteries

immediately and consult an authorized dealer.

• Do not use this product in damp places or close to water.

• Do not expose this product to extreme heat or direct sunlight.

• Do not disassemble the product. In the event of technical difficulties, take

it to your Philips retailer.

• Do not cover this product

• Inadequately protected or sensitive electronic equipment may be affected

by the use of this product.This interference may lead to damage to either

equipment. Please check whether or not surrounding equipment may be

affected by this product before you start using it.

•Hearing Safety! Continuous use at high volume may permanently

damage your hearing.

System compatibility

It is technically possible to use an additional number of FM wireless

headphones or Philips FM wireless speakers with a single transmitter if

they all*:

– operate in the 864 MHz band

– work according to the same modulation scheme

– can detect a 19kHz pilot tone

Please consult the appliance’s electrical specification sheets for

confirmation on compatibility.

This statement is to be interpreted from a technical point of view

only and does therefore not constitute any guarantee nor obligation

whatsoever regarding the commercial availability of single

FM wireless headphones /speakers compatible with SHC8525.

IMPORTANT!

• The energizing docking station does not transmit audio signal

when charging is activated.

WARNING!

• Before using the FM headphone for the first time, please ensure

that the batteries are fully charged for at least 16 hours.

This will guarantee a longer operating lifetime of batteries.

• This product complies with the latest safety regulations.

Please only charge the batteries with the docking station provided

(SHC8525) or with fully compatible charger.

Audio Connection

9Connect one end of the audio cable (3.5 mm stereo plug) to the

transmitter’s 3.5 mm STEREO INPUT JACK.

10 Connect the other end of the 3.5 mm stereo cable to either:

a) The headphone output of an audio source, such as TV, HiFi or PC.

Adjust the volume level of the audio source to a fixed reasonably high level;

for example 25% of the maximum level.

• In case your audio source has a 6.3mm headphone output, use the

supplied 3.5mm to 6.3mm stereo adapter plug.

IMPORTANT!

• In case of certain TVs, the headphone jack output level can only

be adjusted after accessing the TV on-screen menu.

b) The line output of an audio source, such as REC OUT or LINE OUT

(with the Y-cable supplied).

•Check if the red RCA plug (right channel) is connected to the right

channel (red) of the audio source.

•Check if the white RCA plug (left channel) is connected to the left

channel (white) of the audio source.

• In case the audio source has an adjustable RCA output level,

adjust the output level to the highest acceptable undistorted level.

11 Switch on your audio source and carefully increase the volume of the

audio source.

The POWER ON/OFF INDICATOR of the transmitter lights up when

signals are received.

12 Switch on the POWER ON/OFF button of the headphone.

The POWER ON/OFF INDICATOR will be switched on automatically.

ENGLISH 7

8ENGLISH

13 To tune the headphone to the correct transmission frequency,

choose 1 of the 3 provided frequency options

(the selected transmission frequency of the transmitter).

The headphone will quickly tune to the transmitter.

14 In case interference from neighbouring transmitters has occured, adjust

the transmission channel of the transmitter, then repeat step 13 to tune

the headphone to the transmitter.

15 Adjust the volume of the headphone to the desired listening level.

IMPORTANT!

• Avoid adjusting the listening volume level at the audio source as

this may compromise the audio quality on too low input levels.

Problem solving

If a fault occurs, first check the points listed below. If you are unable to

remedy a problem by following these hints, contact the helpline

(see ‘Need help?’) or consult your dealer.

Never try to open the set yourself as this will void the guarantee.

First, check all cables to ensure that they are connected correctly.

Problem Possible Cause Solution

Headphone fails No battery installed Follow step 1 to 4 of

to charge ‘Installing/replacing the batteries’

Wrong battery orientation Reposition the batteries according to

the engraved polarity symbol.

No power supply Make sure the docking station is

connected to the local mains power

supply through an adapter and follow

steps 5 to 7.

Charging pin of the docking station Lock the headphone in place, and

not in contact with the metal make sure the CHARGE

plate of the headphone INDICATOR light is on.

Wrong headphone orientation Reposition the headphone with

when placed onto the charging correct orientation.

dock

No sound/ Headphone power off Push the POWER ON/OFF

distorted sound BUTTON. The POWER ON/OFF

INDICATOR light turns on automatically

indicating the headphone is on.

No battery installed Follow step 1 to 4 of

‘Installing/replacing the batteries’

Wrong battery orientation Reposition the batteries according to

the engraved polarity symbol.

No power supply to transmitter Make sure the docking station is

connected to the local mains power

supply through an adapter and follow

step 5 to 7.

Battery power running low Follow steps 5 to 7 to recharge the

system.

Audio source not connected Make sure the audio output of your

audio source is connected to the

3.5 mm STEREO INPUT JACK of

your transmitter. Follow step 9 to 12.

Audio source is off Turn on your audio source.

Volume level set too low Adjust the volume level of your

audio source or the headphone.

Hearing Safety: Continuous use at a

high volume may permanently damage

your hearing.

Audio output level low In case of audio sources with

adjustable output level, adjust the

output level to a higher and

non-distorted level. IMPORTANT:

In case of certain TVs, the headphone

jack output level can only be adjusted

after accessing the TV on-screen menu.

Headphone not tuned to Select 1 of the 3 frequency options

the transmitter provided in the headphone (i.e. the

one selected at the transmitter) by

adjusting the MANUAL TUNING

SWITCH, then the headphone will

quickly tune to the transmitter.

Interference from other 1) Alter the transmitter’s frequency

radio sources channel. Select 1 of the 3 options for

best reception.We advise you to

select channel 1 as the first option.

Next adjust the headphone’s tuning

channel as described above.

2) Move transmitter or headphone

elsewhere

Receiver too far away from Move closer for reception

transmitter

Transmitter other than Make use of the SHC8525

SHC8525 is used transmitter provided. Some

transmitters already built into other

equipment may not be compatible

with the SHC8525 headphone

because of the advanced

technologies used.

ENGLISH 9
