Philips SHD8600/93 Manuale utente

Wireless HiFi Headphone

SHD8600

EN Quick start guide

www.philips.com/welcome

Quick start guide

efg

1 What’s in the box (Fig.A)

1) Headphones 2) Docking station

3) AC/DC adaptor 4) 3.5 - 6.3mm adaptor

5) RCA to 3.5mm audio cable 6) Quick start guide

7) 2 x AAA rechargeable NiMH batteries (SBC HB700)

2 Get Started

Note

Before using the headphones for the ﬁrst time, charge the supplied batteries for•

at least 4 hours.

If the volume of the audio source is insufﬁcient, the transmitter automatically turns•

off.

The energizing docking station does not transmit audio signal during charge.•

1Install/Replace supplied batteries (Fig. B).

2 Power on/off the headphones (Fig. C)

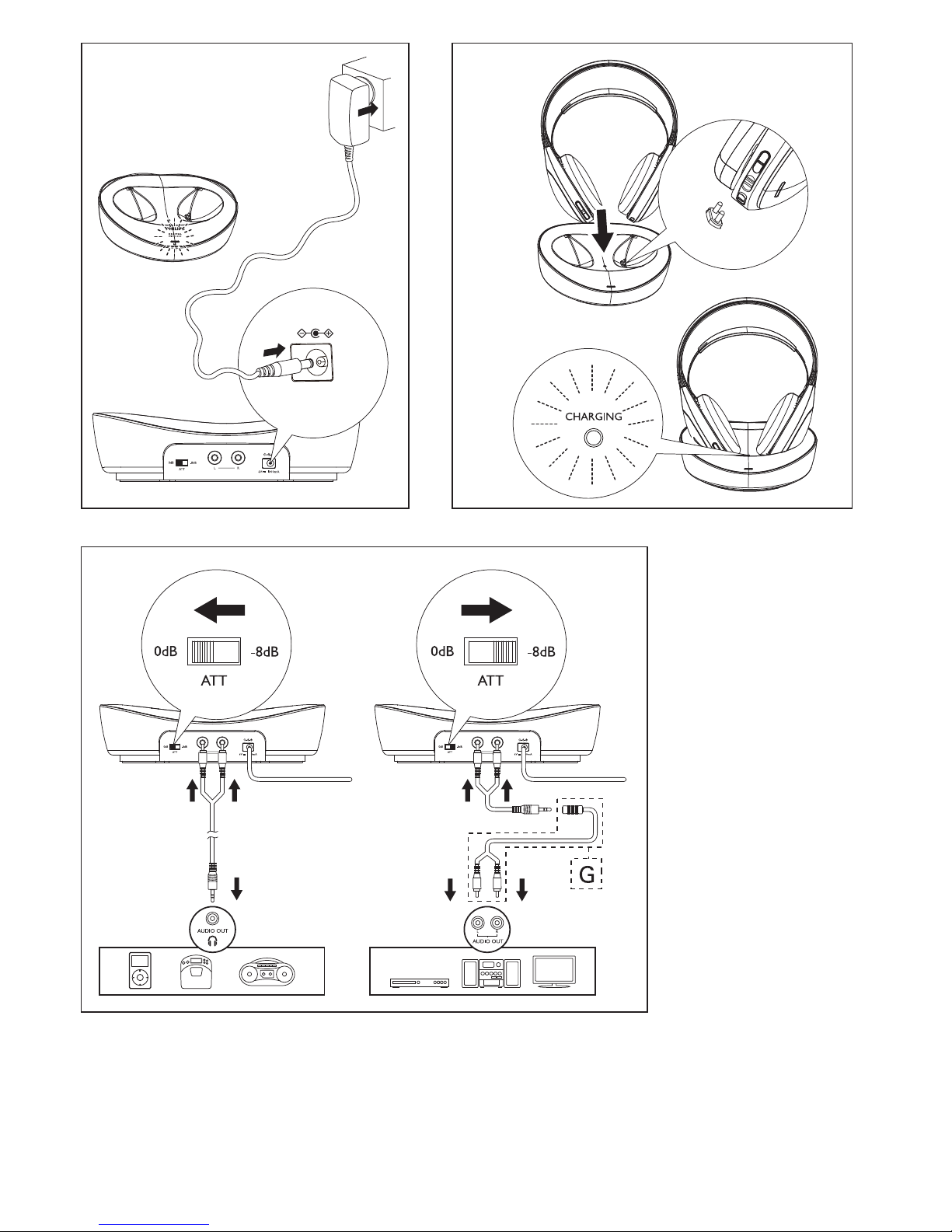

3 Power on the transmitter (Fig. D).

Charge the headphones (Fig. E).•

4 Connect audio and adjust ATT (Attenuation of audio input signal)

(Fig. F).

For portable CD player, MP3 player or other devices with 3.5mm•

triport socket output, switch ATT to 0dB.

For HiFi, TV, DVD player or other devices with RCA socket output,•

switch ATT to -8dB. (Fig. G: Jack to cinch connector, not supplied).

For an audio device with a 6.3mm headphone output, use the supplied•

3.5mm - 6.3mm stereo adaptor plug (Fig. A).

3 LED indication

Connection

established

Blue LED on Transmitter &

Headphones

Charging (≤70% full) Green LED on Transmitter Fast

blinking

Charging (> 70% full) Green LED on Transmitter Slow

blinking

Charging (100% full) Green LED on Transmitter On

Battery low Blue LED on Headphones Fast

blinking

Searching Blue LED on Headphones Slow

blinking

4 Sound indication

One “Beep” Battery is low.

“Beep, Beep” Battery goes out soon.

Alert “Beep” Volume at max/min vol. level.

For further product support, please visit www.philips.com/welcome

5 Adaptor specification

Region Adaptor type

number

Input

voltage

Output

voltage

Input fre-

quency

China SCV-005-050-

055-A2

100-240V 5V 550mA 50/60Hz

HK SBH-005-050-

055-A2

100-240V 5V 550mA 50/60Hz

AUS & NZ SSH-005-050-

055-A2

100-240V 5V 550mA 50/60Hz

6 Important

Hearing Safety

Danger

To avoid hearing damage, limit the time you use the headphones at high volume and•

set the volume to a safe level.The louder the volume, the shorter is the safe listening

time.

Be sure to observe the following guidelines when using your headphones.

Listen at reasonable volumes for reasonable periods of time.•

Be careful not to adjust the volume continuously upwards as your•

hearing adapts.

Do not turn up the volume so high that you can’t hear what’s around•

you.

You should use caution or temporarily discontinue use in potentially•

hazardous situations.

Excessive sound pressure from earphones and headphones can cause•

hearing loss.

Electric-, Magnetic- and Electromagnetic Fields (EMF)

1. Royal Philips Electronics manufactures and sells many products targeted at

consumers, which, like any electronic apparatus, in general have the ability

to emit and receive electromagnetic signals.

2. One of Philips’ leading Business Principles is to take all necessary health

and safety measures for our products, to comply with all applicable legal

requirements and to stay well within the EMF standards applicable at the

time of producing products.

3. Philips is committed to develop, produce and market products that cause

no adverse health effects.

4. Philips conﬁrms that if its products are handled properly for their intended

use, they are safe to use according to scientiﬁc evidence available today.

5. Philips plays an active role in the development of international EMF and

safety standards, enabling Philips to anticipate further developments in

standardization for early integration in its products.

General information

• To prevent ﬁre or shock hazard: Always keep this product dry.

Do not expose it to excessive heat by heating equipment or direct

sunlight.

No naked ﬂame sources, such as lighted candles, should be placed on•

the apparatus.

Do not allow your headset to be submerged in water.•

• To clean the product: Use a slightly dampened chamois cloth. Do not

use cleansing agents containing alcohol, spirits, ammonia or abrasives

as they may harm the product.

Do not disassemble the product.•

Transmission range: 15 meters, depending on ambient conditions.•

Do not operate or store the product in a place where temperature•

is below 0°C (32°F) or above 40°C (104°F) as this may shorten the

battery life.

Apparatus shall not be exposed to dripping or splashing.•

The mains plug of AC/DC adaptor is used as the disconnect device,•

the disconnect device shall be readily operable.

Only use Philips’ rechargeable shortened sleeve NiMH batteries with•

your headphones.

Other types of rechargeable or alkaline batteries cannot be charged•

with this system.

AAA alkaline batteries can be used to operate the headphones.•

Batteries (battery pack or batteries installed) shall not be exposed to•

excessive heat such as sunshine, ﬁre or the like.

Disposal of your old product

Your product is designed and manufactured with high quality materials and

components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it

means that the product is covered by the European Directive 2002/96/

EC.

Please inform yourself about the local separate collection system for electrical

and electronic products.

Please act according to your local rules and do not dispose of your old

products with your normal household waste. Correct disposal of your

old product helps to prevent potential negative consequences for the

environment and human health.

Your product contains batteries covered by the European Directive 2006/66/

EC, which cannot be disposed with normal household waste.

Please inform yourself about the local rules on separate collection of

batteries because correct disposal helps to prevent negative consequences

for the environmental and human health.

Attention should be drawn to the environmental aspects of battery disposal.

Notice for the European Union

Hereby, Philips Consumer Lifestyle, BU P&A, declares that this Philips

digital wireless headset SHD8600 is in compliance with the essential

requirements and other relevant provisions of Directive 1999/5/EC.

This product has been designed, tested and manufactured according to the

European R&TTE Directive 1999/5/EC.

Specifications are subject to change without notice.

Trademarks are the property of Koninklijke Philips Electronics N.V.

or their respective owners.

SHD8600_93_QSG_V1.1
