Philips CoreLine BN120C Series Manuale utente

Instructions de montage

Montageanleitung

Montage instruktie

Istruzioni di montaggio

Instrucciones de montaje

Instruções de montagem

Monteringsinstruktioner

Monteringsvejledning

Kokoonpano- ja kiinnitysohjeet

Montaj yönergesi

Instrukcja montazu

Szerelési utasítások

Návod k montázi

bycnherwbz gj vjynf:e

Návod k montáži

Mounting instructions

not supplied

2b click

Only BN120C

BN120C

BN121C

BN120Z MB

EOC 89971599

58 70

102

BN121C

BN120C

4441 000 18581

05 / 2013

Data subject to change without notice

Printed in China

www.philips.com/lighting

Indoor

max

35°

0°

220V

240V

IP20 IK02

850˚

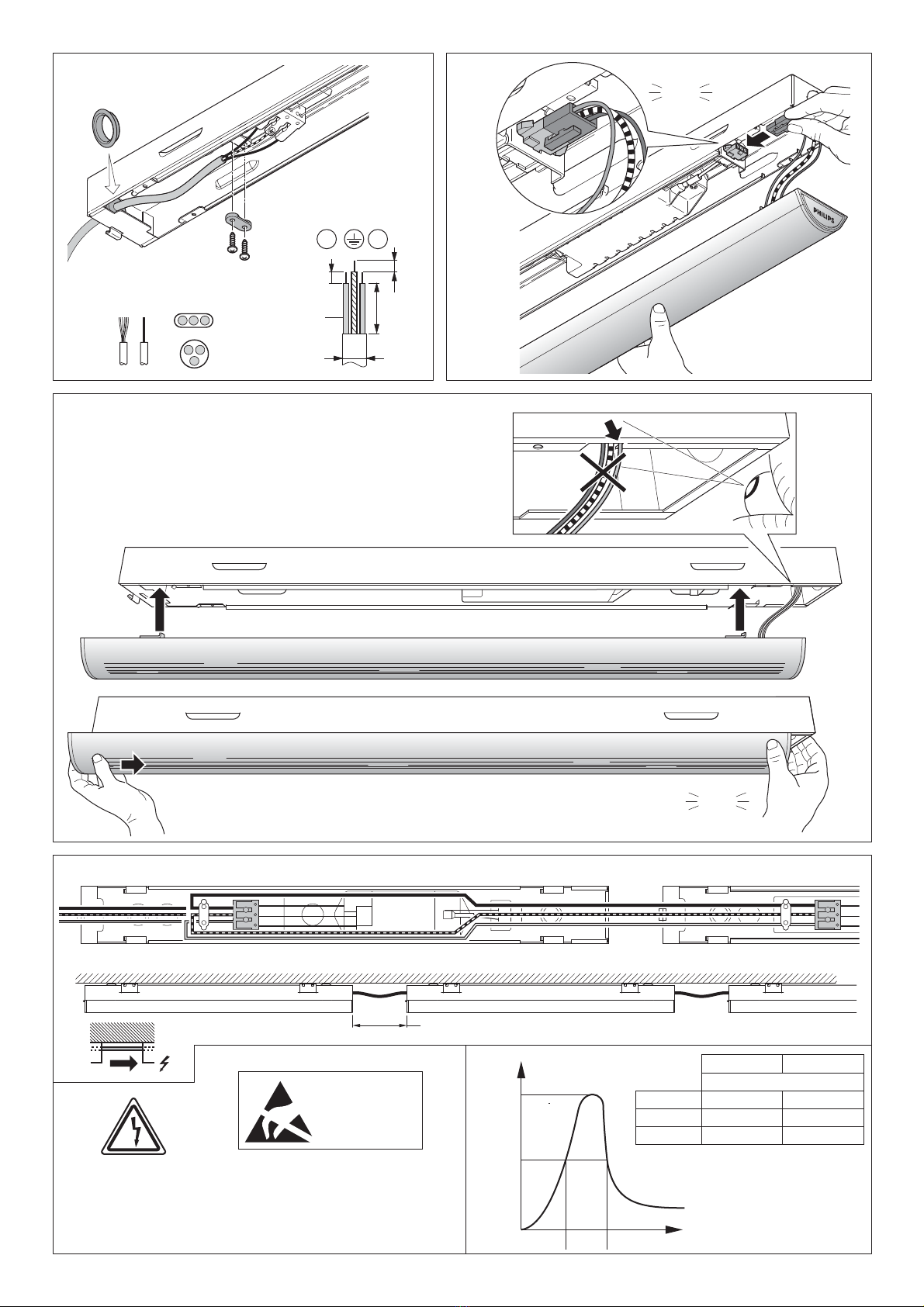

CoreLine Batten BN120C

CCT A B C D

System

Powercable

IEC Bracket

Max. battens linkable1

(i.e. cable 1.50mm2)

Main Circuit Breaker B10A

BN120C LED19S/840 PSU L600 0.93 4000K 572 460 415 395 1900 66

BN121C LED19S/840 PSU L600 0.93 4000K 572 460 415 395 1900 66

BN120C LED38S/840 PSU L1200 1.71 4000K 1134 984 894 874 3800 15

BN121C LED38S/840 PSU L1200 1.73 4000K 1134 984 894 874 3800 15

BN120C LED19S/830 PSU L600 0.93 3000K 572 460 415 395 1900 66

BN121C LED19S/830 PSU L600 0.93 3000K 572 460 415 395 1900 66

BN120C LED38S/830 PSU L1200 1.71 3000K 1134 984 894 874 3800 15

BN121C LED38S/830 PSU L1200 1.73 3000K 1134 984 894 874 3800 15

1 Maximum number of linkable products depending on wire gauge and main circuit breaker type.

For lower wire gauge maximum number of linkable products will be lower!

L N

max. Ø18

max. 3x2.50mm2

min. 3x0.75mm2

Live

Yellow-Green

Blue

ONLY BN120C

click

Inrush current

I mains (A)

I nom.

Time (us)

Tref

max/2

I max Inom. (A) 000.25

Electrical Characteristics

Imax. (A) 022

TRef (µs) 250

0.12

40W20W

min. 30mm Max. battens linkable (see table)

min. Ø 9

There are a few instructions regarding the maintenance of this LED luminaire.

This is to assure the lighting quality of this unique LED lighting concept.

- Do not touch electronic components! Electronic components are under high voltage.

- Do not stare into LED light beam.

- The luminaire shall be installed by a qualified electrician and wired in accordance with

the latest EEE electrical regulations or the national requirements.

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

SENSITIVE

DEVICES

ONLY BN120C
