Philips Iridium gen4 Guida utente

Printed in POLAND

Data subject to change without notice

Keep for future reference: www.philips.com/lighting

1/13

Iridium gen4

BGP501/502

outdoor

Max.

°C

Min.

°C

-40

R&TTE

RED

220V

240V

50Hz

60Hz

LEDs

Luminaire A B C D

Min BGP501

310

545

159

163

Medium BGP502

356

685

166

182

Dimensions in [mm]

Cxs(m )

4P1

(+/-10%)

Luminaire Driver MCB

B16A

nrush

current

6-10 22W FP 23 15A/360µs 4-12 5,5-18,4 0,061 0,0218 8

20 40W FP 21 21A/300µs 11-39 15-41,5 0,061 0,0218 8

6-10 22W FP 23 15A/360µs 4-14 5,5-16,6 0,081 0,0214 11

20 40W FP 21 21A/300µs 14-35 17,2-38,5 0,081 0,0214 11

30 75W FP 10 43A/260µs 37-54 40,5-58 0,081 0,0214 11

40-60 110W FP 10 47A/250µs 60-78 63-83 0,081 0,0214 11

60 165W FP 7 58A/340µs 83-106 89-110 0,081 0,0244 11

6-10 22W SR 21 18A/320µs 4-12 5,8-19 0,061 0,0218 8

20 40W SR 21 21A/300µs 11-39 15,4-42,5 0,061 0,0218 8

6-10 22W SR 21 18A/320µs 4-14 5,8-17,2 0,081 0,0214 11

20 40W SR 21 21A/300µs 14-35 17,6-39 0,081 0,0214 11

30 75W SR 33 4A/2700µs 37-54 41,5-59 0,081 0,0214 11

40-60 110W SR 23 4A/2700µs 60-78 63-82 0,081 0,0214 11

60 165W SR 13 11,5/100µs 83-106 89-110 0,081 0,0214 11

BGP502

BGP501

SR - Sensor Ready driver; FP - Full Prog driver

BGP501

4-18m

FLAT GLASS BOWL PC

CityTouch OLC NEMA SR

EasyAir OLC SR

Standarized SR Socket

2/13

Luminaire D E F

Mini BGP501

159

160

Medium BGP502 166 168 168

Dimensions

Wattstopper OLC SR

Standarized SR Socket

7-PIN NEMA Socket with cap 7-PIN NEMA Socket

CityTouch OLC COM SR

Standarized SR Socket Standarized SR Socket

Standarized SR Socket

Luminaire G

Mini BGP501

223

Medium BGP502 231

Dimensions

Luminaire H

Mini BGP501

184

Medium BGP502 200

Dimensions

Luminaire J

Mini BGP501

214

Medium BGP502 227

Dimensions

Luminaire K L M N

Mini BGP501

187

188

220

196

Medium BGP502 195 197 232 210

Dimensions

Standarized SR Socket

Luminaire

Mini BGP501

181

Medium BGP502 200

Dimensions

RF Antenna

WIDE

CityTouch OLC COM SR

Wattstopper OLC SR

3/13

2a 2b

2c 2d

2e 2f

2g 2h

2i 2j

Wattstopper OLC SR

IP66

IP66 IP66

green LED

check power

WIDE

SR compatibility

: For SR based luminaires only SR Certified components/sensors are to be used (see also:

http://www.lighting.philips.co.uk/oem-emea/products/driving-connected-lighting).

Functional compatibility of 2 (SR certified) components/sensors to be used in comb

ination as well as override possibility

of any line-

switch function used in a SR based luminaire, is to be released by the master component/sensor supplier. For

the use of NEMA 7pin socket on a SR based luminaire a full system verification is required. Not

following these advises

can/will cause risk of damage and non-compliance for which Signify cannot take any responsibility.

~20°1 2

~20°

4/13

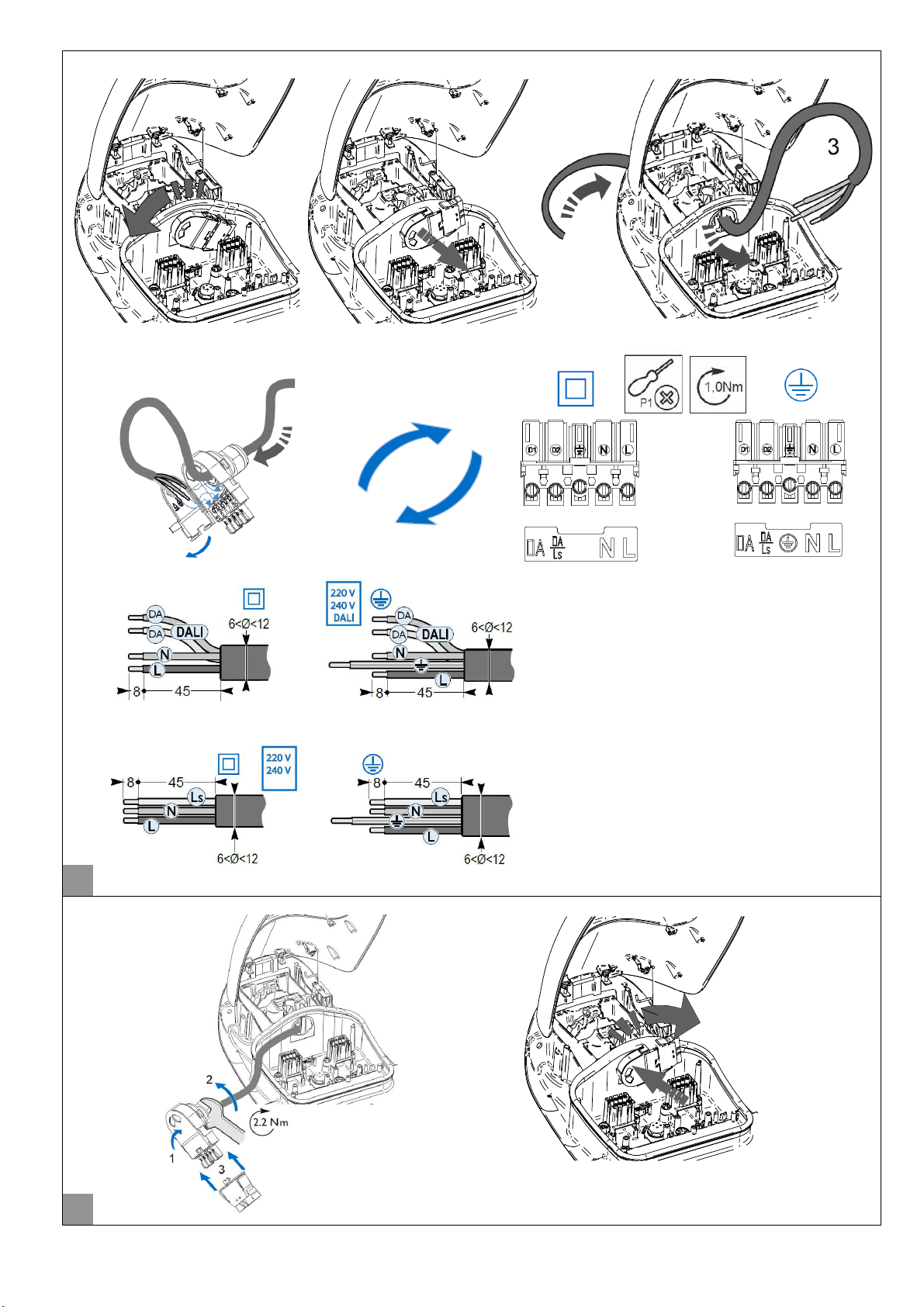

Version without cable

Disconnect before servicing

Mettre hors tension avant intervention

Offnen nur spannungsfrei

Demonteren voor onderhound

Togliere tensione prima di fare manutencione

Desconectar antes de manipular

Bryt str mmen f re lampbyte

ö ö

Side Entry (42/60)

Post Top (60/72)

Version with cable

456

Side Entry

(42/60)

Post Top

(60/72)

Spigot tilt angle

; 2,5

; 5

;

7,5

; 10

; -2,5

; -5

;

-7,5

; -10

5/13

6/13

7/13

LED+

LED-

NTC COM

NTC SIG

EQUI

L/S

LED+

LED-

NTC COM

NTC SIG

EQUI

L/S

LED+

LED-

NTC COM

NTC SIG

EQUI

SR+

SR-

AUX

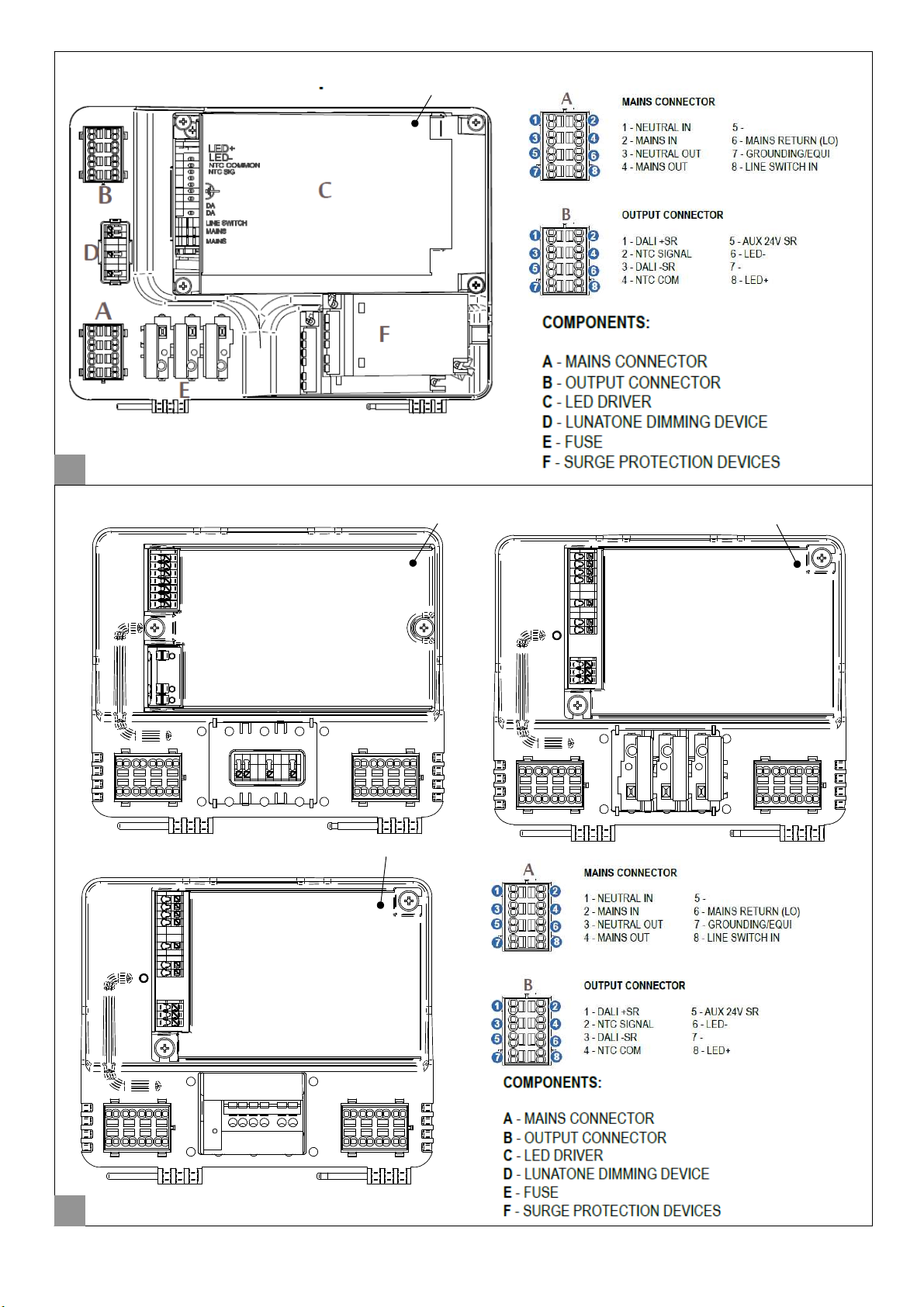

GEAR BOX IRG4 MINI components

NFC POINT

NFC POINT NFC POINT

NFC POINT

GEAR BOX IRG4 MEDIUM components

8/13

17Nm

5mm

17Nm

5mm

RF/ CTC

9/13

DDF1

DDFx - Dynadimmer

Ls-x - Lumistep

DDF2 DDF3 DDF27

DDF69 DDF93 LS-6 LS-8

10/13

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and

reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use.

Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.

Signify

Holding

The Netherlands

Digi Stre et Mic ro

BGP 615 12NC:

Servic eTag:

P0 0001 1630 53 6300 02
