Philips Master Colour CDM-R Manuale utente

H.I.D. lamps MASTER Colour CDM-R

CDM-R lamps have to be used in

combination with a ballast and an

ignitor or a suitable fully

electronic ballast, like the Philips

PrimaVision range.

For a satisfactory operation of the

lamp on conventional gear, the

mains supply should not fluctuate

more than 5% from the rated

voltage of the ballast. If there is a

constant deviation of more than

3 % of the rated voltage, another

ballast rating is recommended.

Burning position: universal.

Note

CDM-R is equipped with an

E27 lamp base, E27 lampholders

used must be suitable for

ignition peaks up to 5 kV.

Applications

- Accent/decorative lighting:

sparkling, theatrical effects in

display lighting, even in

surroundings with a high

luminance level like shop

windows.

- General lighting: in downlighters,

a warm, comfortable

atmosphere can be created.

The CDM-R comprises a range of

reflector metal halide lamps with

a warm colour impression

(3000 K) and excellent colour

rendering.

High beam intensities can be

created thanks to the small axial

discharge arc, optimally positioned

in the internal reflector.

Low operating costs result from

the high lamp efficacy, combined

with long lamp life compared to

incandescent and halogen lamps.

The CDM-R's unique "effect/lamp

volume" ratio increases flexibility

in application and allows powerful

lighting accents from

inconspicuous luminaires.

Ease of luminaire design is

provided since the CDM-R lamps

can be used in open luminaires.

In indoor applications comfort is

enhanced because of the

relatively low heat output of the

lamps.

The lamps contain a UV-Block

burner capsule for reduced fading

risks.

35 W PAR 20L 30º

35 W PAR 20L 10 degrees

35 W PAR 30L 10º 35 W PAR 30L 30º 70 W PAR 30L 10º

Dimensions in mm

Burning position

70 W PAR 30L 40º

∅97 max.

125 max.

∅65 max.

95 max.

Universal

PAR 30PAR 20

H.I.D. lamps MASTER Colour CDM-R

300 400 500 600 700 800

100

150

200

250

300 CDM

Wavelength in nm

mW per 5 nm

per lumen

12345

200

160

120

CDM

Time in min.

lamp current

lamp wattage

luminous flux

lamp voltage

92 96 100 104 108

125

115

105

CDM

Relative supply voltage in %

lamp current

lamp wattage

luminous flux

lamp voltage

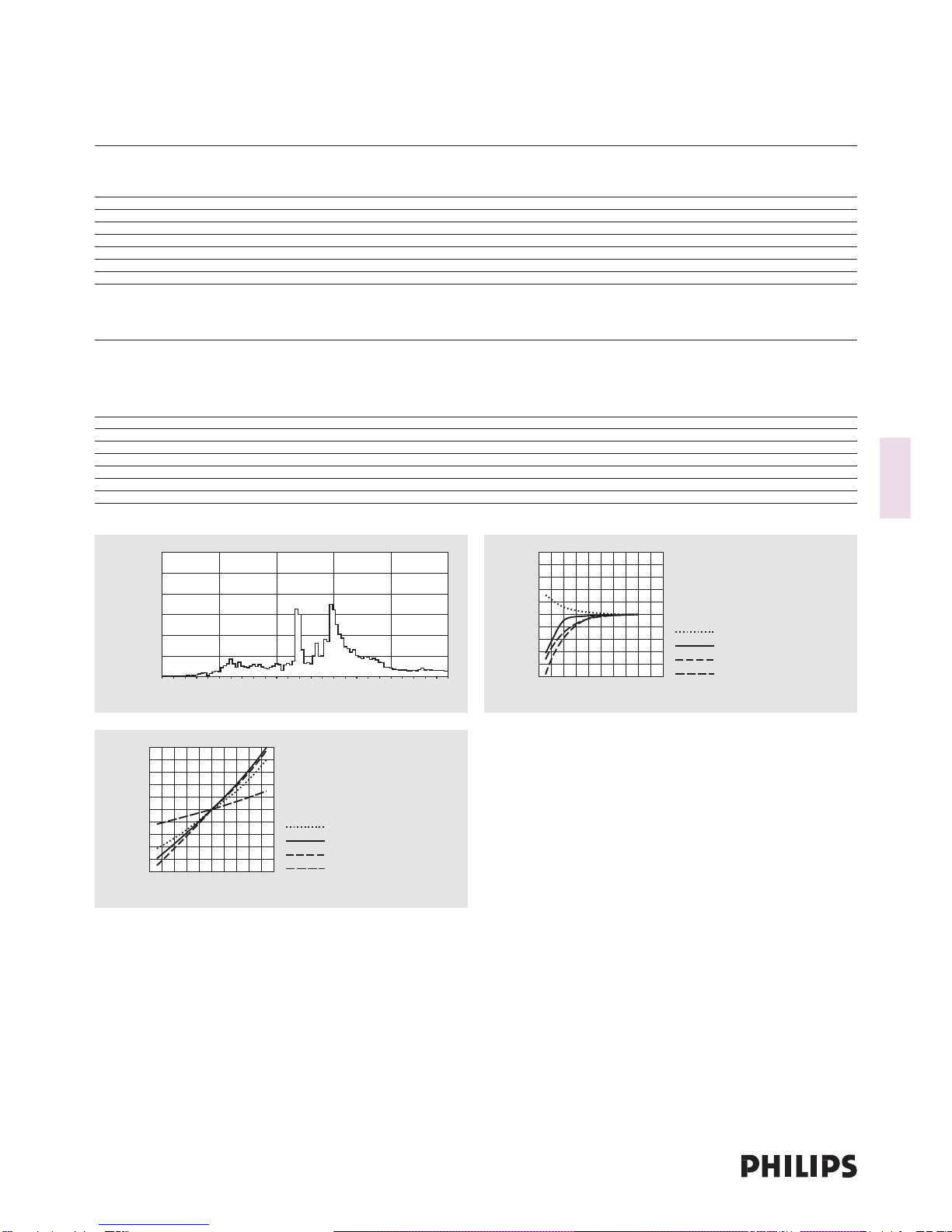

Spectral power distribution

Effects of mains voltage variations

Lamp performance during run-up

Commercial Type Cap/ Lamp Lamp Correlated Lumen Colour Max Lamp

name base wattage voltage colour output rendering luminous current

temperature reflector index intensity

WV Klm cdA

CDM-R

MASTER Colour CDM-R CDM-R 35W/830 PAR20L10DG E27 38 88 3000 2000 81 23000 0.5

MASTER Colour CDM-R CDM-R 35W/830 PAR20L30DG E27 38 88 3000 2000 81 5000 0.5

MASTER Colour CDM-R CDM-R 35W/830 PAR30L10DG E27 38 88 3000 2200 81 44000 0.5

MASTER Colour CDM-R CDM-R 35W/830 PAR30L30DG E27 38 88 3000 2200 81 7400 0.5

MASTER Colour CDM-R CDM-R 70W/830 PAR30L10DG E27 73 90 3000 4850 83 68000 1.0

MASTER Colour CDM-R CDM-R 70W/830 PAR30L40DG E27 73 90 3000 4850 83 10000 1.0

Commercial Type Maximum Maximum Chromaticity Chromaticity Minimum Nett EOC

name permissible permissible coordinate coordinate ignition weight

base/pinch bulb supply

temperature temperature voltage

°C °C x y V g

CDM-R

MASTER Colour CDM-R CDM-R 35W/830 PAR20L10DG 200 300 433 402 198 120 198082

MASTER Colour CDM-R CDM-R 35W/838 PAR20L30DG 200 300 433 402 198 120 198105

MASTER Colour CDM-R CDM-R 35W/830 PAR30L10DG 200 300 431 400 198 225 197016

MASTER Colour CDM-R CDM-R 35W/830 PAR30L30DG 200 300 431 400 198 225 197030

MASTER Colour CDM-R CDM-R 70W/830 PAR30L10DG 200 300 427 397 198 225 197054

MASTER Colour CDM-R CDM-R 70W/830 PAR30L40DG 200 300 427 397 198 225 197078

H.I.D. lamps MASTER Colour CDM-R

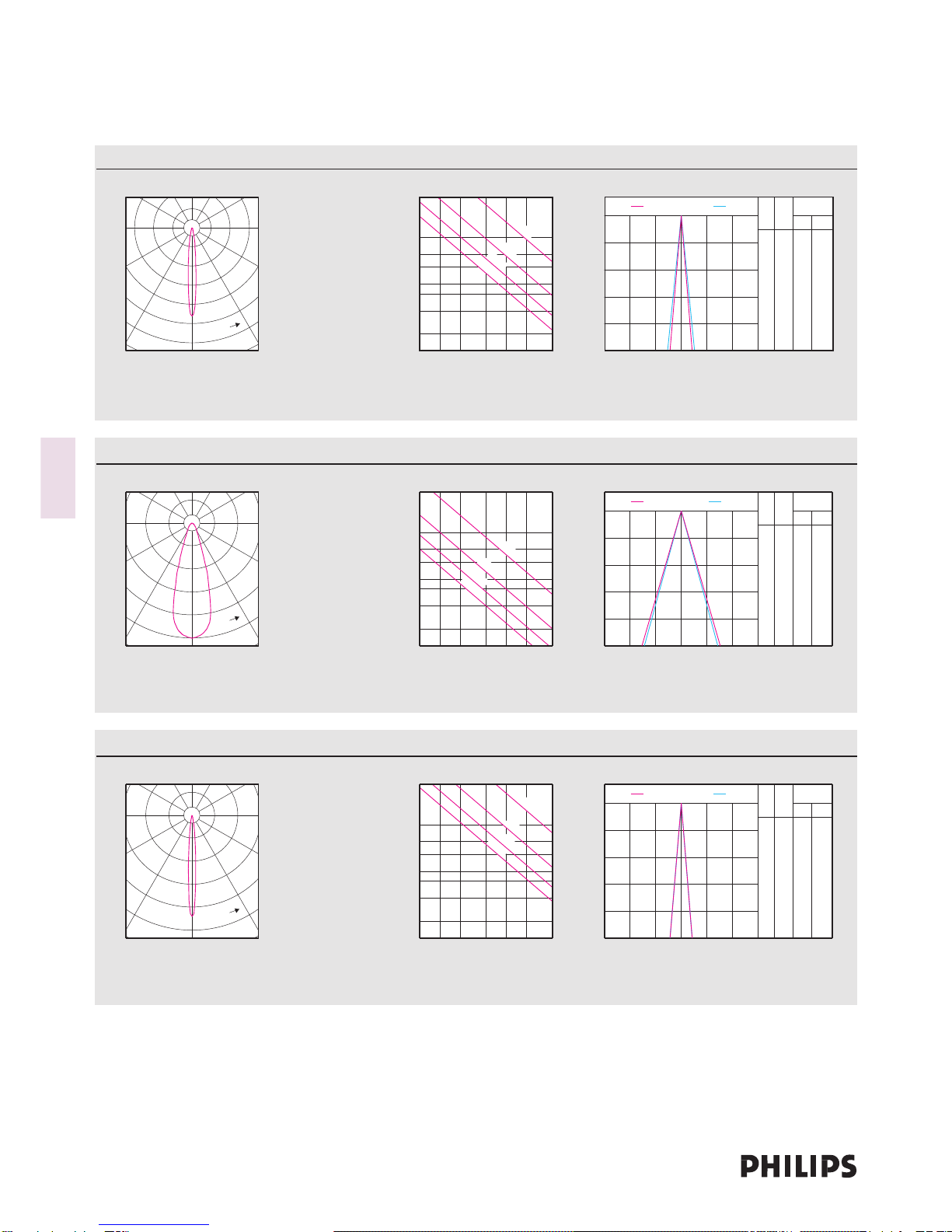

PAR 20/035 10D 1 x CDM-R20-35W / 830

LVE021920C

Polar intensity diagram

(cd) 0o

180o

30oo

60oo

90oo

120oo

120

5000

10000

15000

20000

25000

30000

Visual impact diagram

Accent

factor

100

Eh(lx)25 50 100 250 500 1000

2.00m

1.50m

1.00m

0.50m

Beam diagram

h(m) (m) (lx) VBA 1/2Imax

E0d(m)

0.50

1.00

1.50

2.00

2.501.5 1.0 0.5 0.0 0.5 1.0 1.5 (m)

0.50 92001 0.09 0.11

0.75 40889 0.13 0.16

1.00 23000 0.17 0.21

1.25 14720 0.22 0.26

1.50 10222 0.26 0.32

1.75 7510 0.31 0.37

2.00 5750 0.35 0.42

2.25 4543 0.39 0.47

2 x 6

max

VBA 2 x 5o

PAR 20/035 30D 1 x CDM-R20-35W / 830

LVE021910C

Polar intensity diagram

(cd) 0o

180o

30oo

60oo

90oo

120oo

120

1000

2000

3000

4000

5000

Visual impact diagram

Accent

factor

100

Eh(lx)25 50 100 250 500 1000

2.00m

1.50m

1.00m

0.50m

Beam diagram

h(m) (m) (lx) VBA 1/2Imax

E0d(m)

0.50

1.00

1.50

2.00

2.501.5 1.0 0.5 0.0 0.5 1.0 1.5 (m)

0.50 20000 0.31 0.29

0.75 8889 0.46 0.43

1.00 5000 0.61 0.57

1.25 3200 0.76 0.72

1.50 2222 0.92 0.86

1.75 1633 1.07 1.00

2.00 1250 1.22 1.15

2.25 988 1.38 1.29

2 x 16

max

VBA 2 x 17o

PAR 30L/035 10D 1 x CDM-R30-35W / 830

LVE019360C

Polar intensity diagram

(cd) 0o

180o

30oo

60oo

90oo

120oo

120

10000

20000

30000

40000

50000

Visual impact diagram

Accent

factor

100

Eh(lx)25 50 100 250 500 1000

2.00m

1.50m

1.00m

0.50m

Beam diagram

h(m) (m) (lx) VBA 1/2Imax

E0d(m)

0.50

1.00

1.50

2.00

2.501.5 1.0 0.5 0.0 0.5 1.0 1.5 (m)

0.50 --- 0.09 0.09

0.75 78222 0.13 0.13

1.00 44000 0.17 0.17

1.25 28160 0.22 0.22

1.50 19556 0.26 0.26

1.75 14367 0.31 0.31

2.00 11000 0.35 0.35

2.25 8691 0.39 0.39

2 x 5

max

VBA 2 x 5o

PAR 30L/035 30D 1 x CDM-R30-35W / 830

LVE019380C

Polar intensity diagram

(cd) 0o

180o

30oo

60oo

90oo

120oo

120

1500

3000

4500

6000

7500

Visual impact diagram

Accent

factor

100

Eh(lx)25 50 100 250 500 1000

2.00m

1.50m

1.00m

0.50m

Beam diagram

h(m) (m) (lx) VBA 1/2Imax

E0d(m)

0.50

1.00

1.50

2.00

2.501.5 1.0 0.5 0.0 0.5 1.0 1.5 (m)

0.50 29600 0.27

0.75 13155 0.40

1.00 7400 0.54

1.25 4736 0.67

1.50 3289 0.80

1.75 2416 0.94

2.00 1850 1.07

2.25 1462 1.21

2 x 15

max

NO VISIBLE SPOT

H.I.D. lamps MASTER Colour CDM-R

PAR 30L/070 10D 1 x CDM-R30-70W / 830

LVE019330C

Polar intensity diagram

(cd) 0o

180o

30oo

60oo

90oo

120oo

120

15000

30000

45000

60000

75000

Visual impact diagram

Accent

factor

100

Eh(lx)25 50 100 250 500 1000

2.00m

1.50m

1.00m

0.50m

Beam diagram

h(m) (m) (lx) VBA 1/2Imax

E0d(m)

0.50

1.00

1.50

2.00

2.501.5 1.0 0.5 0.0 0.5 1.0 1.5 (m)

0.50 --- 0.09 0.09

0.75 --- 0.13 0.13

1.00 67997 0.17 0.17

1.25 43518 0.22 0.22

1.50 30221 0.26 0.26

1.75 22203 0.31 0.31

2.00 16999 0.35 0.35

2.25 13432 0.39 0.39

2 x 5

max

VBA 2 x 5o

PAR 30L/070 40D 1 x CDM-R30-70W / 830

LVE019350C

Polar intensity diagram

(cd) 0o

180o

30oo

60oo

90oo

120oo

120

2000

4000

6000

8000

10000

Visual impact diagram

Accent

factor

100

Eh(lx)25 50 100 250 500 1000

2.00m

1.50m

1.00m

0.50m

Beam diagram

h(m) (m) (lx) VBA 1/2Imax

E0d(m)

0.50

1.00

1.50

2.00

2.501.5 1.0 0.5 0.0 0.5 1.0 1.5 (m)

0.50 39999 0.34

0.75 17777 0.52

1.00 10000 0.69

1.25 6400 0.86

1.50 4444 1.03

1.75 3265 1.21

2.00 2500 1.38

2.25 1975 1.55

2 x 19

max

NO VISIBLE SPOT
