Calculite® CFL Open Wall Washer 8087

Page 1 of 3 7 3/8" Aperture Triple Tube Horizontal Lamp

7-1/4" (184 mm) Dia.

7-7/8" Flush

(200 mm)

8-5/8" Self-Flanged

(209 mm)

(76 mm)

1" (25 mm) min.

2-1/8" (54 mm) max.-

1-1/8" (29 mm) max.

Ceiling Thickness

7-3/4"

(197 mm)

Top View

11-3/8"

(289 mm)

12-3/4"

(324 mm)

5-3/4"

(146 mm)

15"

(381 mm)

Reflector Trim Frame-In Kit

8087CLW Clear Iridescence Free, White Flange

8087CLP Clear Iridescence Free, Polished Flange

8087CL Clear Iridescence Free, Molded Trim Ring

8087 Add suffix. See options for other finishes.

S7126BU 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

S7132BU 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

S7142BU 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

Dimming Options:

S7132B or S7142B

CU3 Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)

J2LD3 Lutron 5% Dimming (277V) JUM7 Mark 7 Dimming (120/277V)

J1MX Mark 10 Dimming (120V) J2MX Mark 10 Dimming (277V)

Other dimming product available, please consult factory

Remodeler Frame-In Kits

7126BURM 7" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam))

7132BURM 7" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

7142BURM 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

Ceiling Cutout: 8" (203 mm) Dia.

Features

1. Downlight Wall Washer Reflector: 16 ga. Specular Alzak® aluminum, 55°

lamp cutoff to lamp and lamp image. Provides vertical surface wall wash and

downlighting. Iridescence Free finish. Self-flanged or flangeless with molded

white trim ring (field paintable).

2. Socket Cup: Snaps onto reflector neck to assure consistently correct optical

alignment without tools.

4. Retaining Springs: Precision-tooled steel friction springs secure reflector to

mounting frame for quick, tool-less installation.

5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or

1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.

6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain

lamp efficacy and life. Service from below without tools.

Electrical

Note: For ballast electrical data and latest lamp/ballast compatibility refer to

“Ballast” specification sheet for complete electrical data.

UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C

supply conductors.

Options and Accessories

Comfort Clear™Finishes1Other Finishes

Clear CCL White WH

Diffuse CCD

Champagne Bronze CCZ

1Specify desired flange

WWhite, PPolished

Blank - Molded Ring

Options and Accessories (continued)

Emergency Add suffix EM*

Chicago Plenum Add suffix LC

Existing/Thk. Ceiling FA EC7*

Emergency Ltg. Kit FA EM3E*

FA EM4E*

Fuse (Slow Blow) Add suffix F

*See Spec. Sheets: FAEC, FAEM

Mounting Bars & Accessories; see Specification Sheet MBA.

Sloped Ceiling Adapters; see Specification Sheet SCA

Labels

UL listed for damp locations, I.B.E.W.

Alzak® is a registered trademark of ALCOA.

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Calculite® CFL Open Wall Washer 8087

Page 2 of 3 7 3/8" Aperture Triple Tube Horizontal Lamp

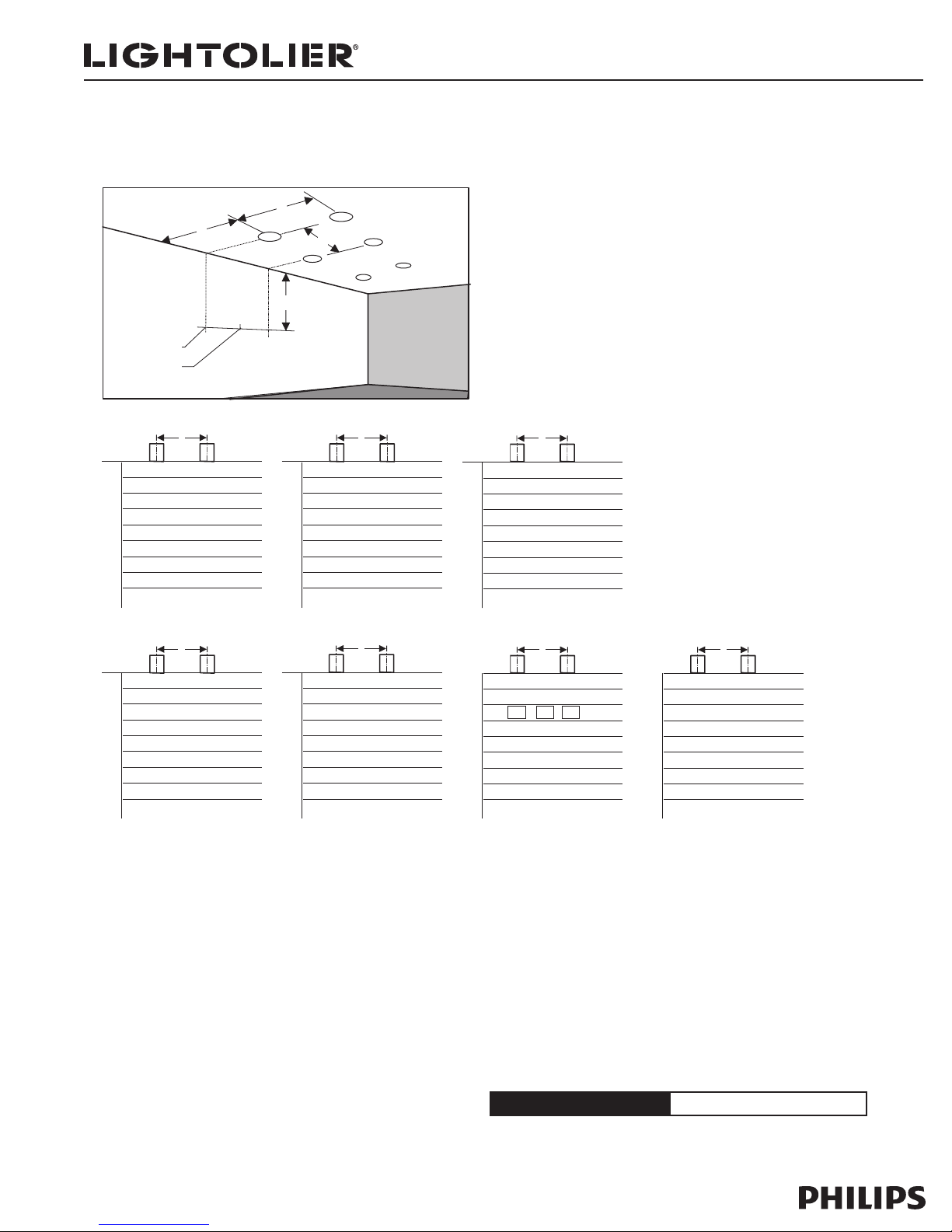

2' from Wall-4' On Center

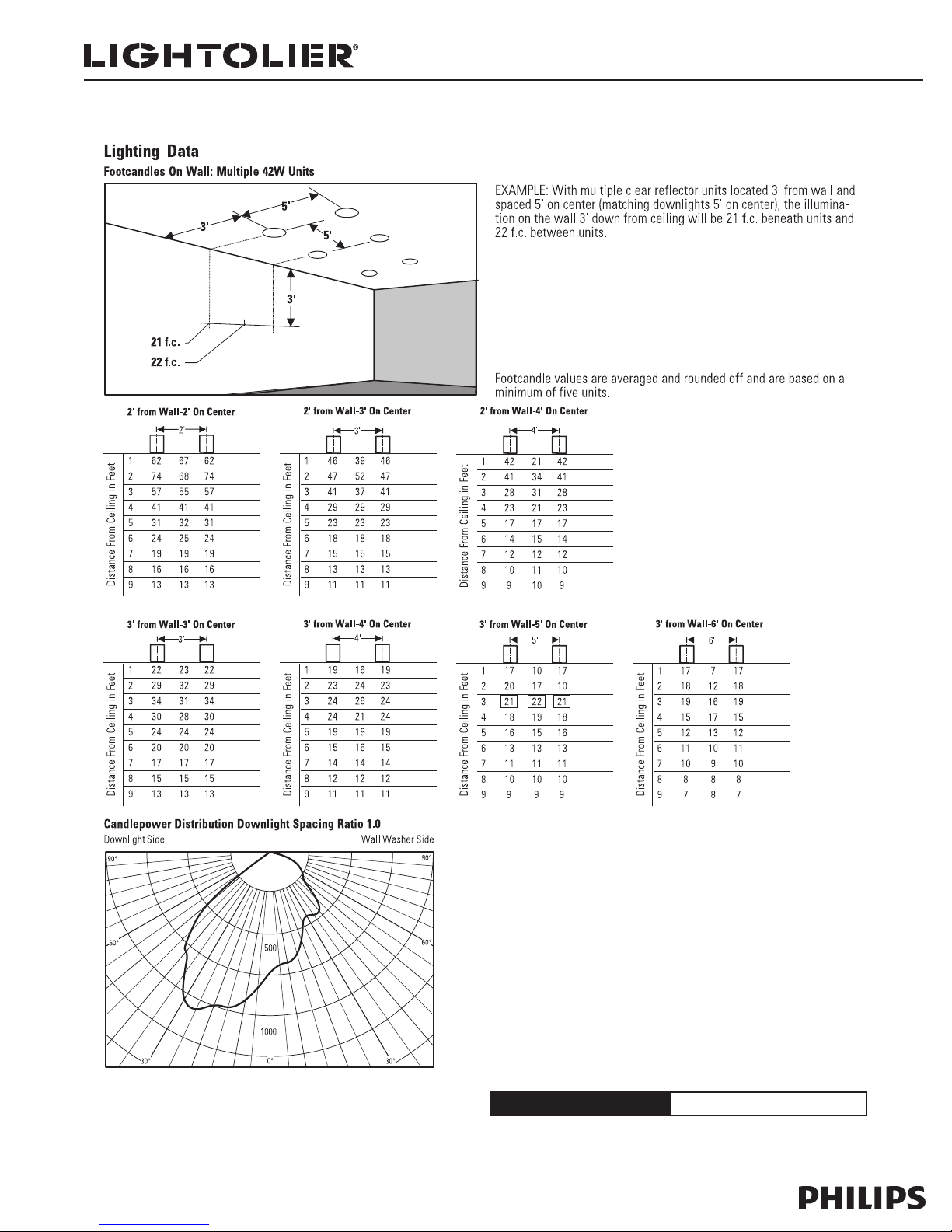

Lighting Data

Footcandles On Wall: Multiple 32W Units

2' from Wall-2' On Center

2' from Wall-3' On Center

EXAMPLE: With multiple clear reflector units located 3' from wall and

spaced 5' on center (matching downlights 5' on center), the illumina-

tion on the wall 3' down from ceiling will be 17 f.c. beneath units and

17 f.c. between units.

12 f.c.

13 f.c.

Footcandle values are averaged and rounded off and are based on a

minimum of five units.

Conversion Factor: 26W: (Clear), f.c. x 0.9.

3' from Wall-4' On Center

3' from Wall-3' On Center

3' from Wall-5' On Center

3' from Wall-6' On Center

Distance From Ceiling in Feet

1 37 40 37

2 42 43 42

3 33 32 33

4 26 26 26

5 22 22 22

6 19 20 19

7 16 17 16

8 14 15 14

9 13 13 13

1 16 14 16

2 19 20 19

3 20 21 20

4 18 17 18

5 15 15 15

6 13 13 13

7 12 12 12

8 11 11 11

9 10 10 10

1 13 9 13

2 13 14 13

3 14 16 14

4 13 12 13

5 11 10 11

6 9 9 9

7 9 9 9

8 8 8 8

9 7 7 7

1 12 6 12

2 12 11 12

3 12 13 12

4 10 11 10

5 9 9 9

6 8 8 8

7 7 7 7

8 7 6 7

9 6 6 6

1 11 4 11

2 11 8 11

3 11 9 11

4 8 9 8

5 7 7 7

6 6 6 6

7 6 5 6

8 5 5 5

9 5 5 5

1 28 23 28

2 27 30 27

3 22 22 22

4 18 17 18

5 15 15 15

6 13 13 13

7 11 11 11

8 10 10 10

9 9 9 9

1 26 11 26

2 23 18 23

3 15 17 15

4 13 13 13

5 11 10 11

6 9 9 9

7 8 8 8

8 7 7 7

9 6 6 6
