Philips LVL Series Manuale utente

LVL Series

VANDAL-RESISTANT WET/DAMP LOCATION LIGHTING

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: Illumination

is provided by two high-

performance 5.5 W, 6 VDC

MR16-style halogen lamps.

Lamps are held in an attractive

molded swivel assembly, and

are fully adjustable.

Housing: The high-abuse

housing, backplate and

electronics shell are molded

from high-impact, F1 rated,

GE Lexan®polycarbonate. All

injection molded components

meet the UL 94 V-0, 5 VA

flame retardant standard for

emergency lighting products.

All units are supplied standard

with a UL damp location

listing and tamperproof screw

kit. Optional wet location

listed products include a fully

gasketed cover. Installation

is simplified by the use of a

snap-together backplate and

housing. When installed with

the supplied tamperproof

screw kit, removal from

mounting surface, or removal

of outer protective cover is

not possible under normal

service conditions without the

use of a torx T-15 bit. Utility

supply is completed by use of a

modular plug-in wiring harness.

A convenient knockout is

also made available in the top

right section of product to

accommodate 1/2” conduit

(damp location listed units

only).

Operating Temperature

Range: Damp location

50°F (10°C) to 104°F (40°C)

Wet location

41°F (5°C) to 104°F (40°C)

Wet location with heater

-4°F (-20°C) to 104°F (40°C)

Electronics: 120/277 VAC

dual voltage input with surge-

protected, solid-state, fully

automatic, voltage regulated

charger. Charging system is

complete with low voltage

disconnect, AC lockout,

brownout protection and

combination indicator lamp and

illuminated test switch.

Electrical Specifications:

0.05 A (120 VAC)

0.30 A (120 VAC) with heater

option

0.02 A (277 VAC)

0.13 A (277 VAC) with heater

option

Battery

Maintenance free, sealed

lead calcium battery has an

expected service life of 5

years. Upon utility power

failure or brownout, the unit

shall automatically provide

emergency battery power and

maintain the stated illumination

level and output wattage for a

minimum period of 90 minutes.

Code Compliance

UL 924, UL damp location,

and optional UL wet location

listed. NFPA 101, NEC, BOCA,

OSHA and IBC illumination

standards. Meets ADA

specifications for wall mounted

lighting fixtures.

Warranty

Three year full electronics

warranty. One year full plus

four year prorated lead calcium

battery warranty.

LVLW

8.67"

(22.02 cm)

7.66"

(19.46 cm)

3.72"

(9.45 cm)

LVL Series

VANDAL-RESISTANT WET/DAMP LOCATION LIGHTING

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

LVL Series September 17, 2012

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

LV = LVL Series

Damp/Wet Location

Emergency Light

Optics

* The optics layout shown is intended to be used as reference only. Standard reflectances used were 80/50/20. Lightolier is not responsible for site specific conditions that

may alter the results.

Blank = Damp Location Listed

WL = Wet Location Listed

HR = Wet Location Listed with Battery Heater

Location Listing

Accessories (order as a separate item)

T15TPTOOL = Tamperproof Screwdriver

L= Lead Calcium

Battery

W= White

B= Black

BZ = Bronze

Housing Color

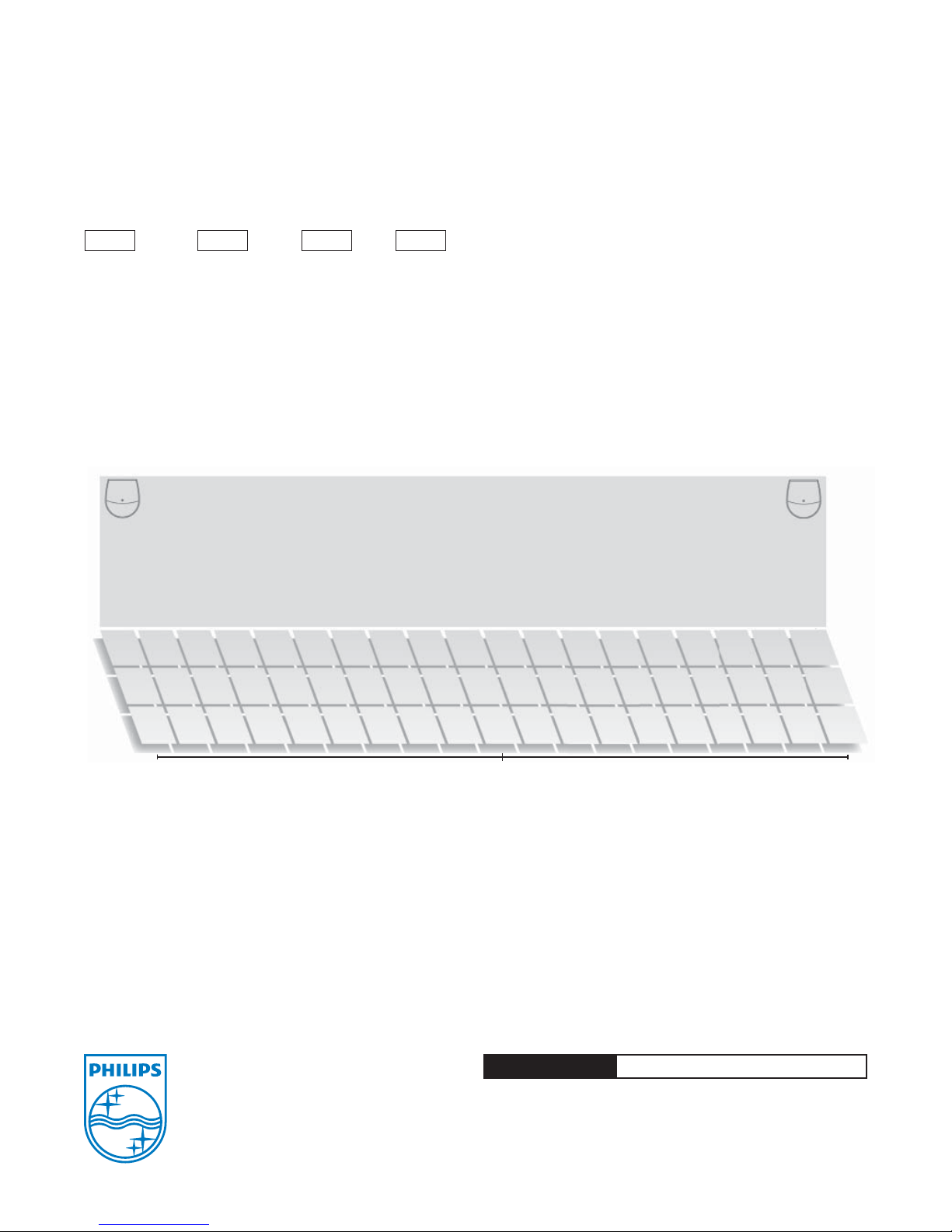

Chart represents (2) luminaires mounted on 18’ centers, mounting height 8’ AFF

0.28

0.31

0.33

0.31

0.36

0.41

0.35

0.57

0.52

1.04

1.86

1.96

1.56

3.82

3.40

1.58

3.55

2.83

0.90

1.33

0.72

0.26

0.24

0.17

0.14

0.13

0.11

0.20

0.18

0.16

0.14

0.13

0.11

0.26

0.24

0.17

0.90

1.33

0.72

1.58

3.55

2.83

1.56

3.82

3.40

1.04

1.86

1.96

0.35

0.57

0.52

0.31

0.36

0.41

0.28

0.31

0.33

Average initial footcandles at floor = 1.03 Minimum initial footcandles at floor = 0.28

Maximum initial footcandles at floor = 3.82 Maximum to minimum ratio = 13.7:1

9' 9'
