Philips Lytespan 6289 Manuale utente

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytespan®Track Lighting 6289

Page 1 of 2 Sof-Tech® Low Voltage, Enclosed Spot, AR111

Features

1. Ring: Die-cast aluminum with cool grip insulation band, a high temperature

silicone rubber which allows aiming adjustments while fixture is on.

2. Socket Boot: Electrical spade connectors with individual insulating rubber

silicone covers; 18 ga. stranded Teflon leads with fiberglass outer sleeve.

3. Transformer: Electronic low voltage transformer with integral radio

frequency interference filter and anti-crossover circuit for increased

reliability; housed in extruded aluminum.

4. Track Attachment Fitting: Molded polycarbonate, rotates into track and

locks on with push tab; integral polarity key guard.

5. Push Tab: Locks and detaches unit from track.

6. Brass Contacts: Extends for connection to second circuit in Advent®

Lytespan track.

7. Tension Pivot Mounts: Die-cast aluminum. Allows for 180° horizontal

rotation and 180° vertical rotation.

8. Lamp Guard: Molded pressed glass.

9. Spring: Steel springs hold lamp in place.

10.Housing: Aluminum, fully encloses lamp back and terminals. Vents dissipate

lamp heat.

Options & Accessories

Accessory Holder 7660

AF3 Series Lenses

AL3HC Louver

Electrical/Dimming

Dimming controls: Use only dimmers specifically designed for use with electronic

transformers, like Lightolier Sunrise™ and Neptune Momentum QE™ series. Low

voltage fixtures may produce audible sound when used with dimmers, which

may be objectionable in acoustically critical areas.

Labels

Ordering Information

Catalog No. Finishes Track Mountings Lamps

6289 WH Matte White All Lytespan AR111, 75W Max.

6289 BK Matte Black Track Systems 50W Max. with Accessories

6289 AL Metallic Aluminum

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting 6289

Page 2 of 2 Sof-Tech® Low Voltage, Enclosed Spot, AR111

DFC L

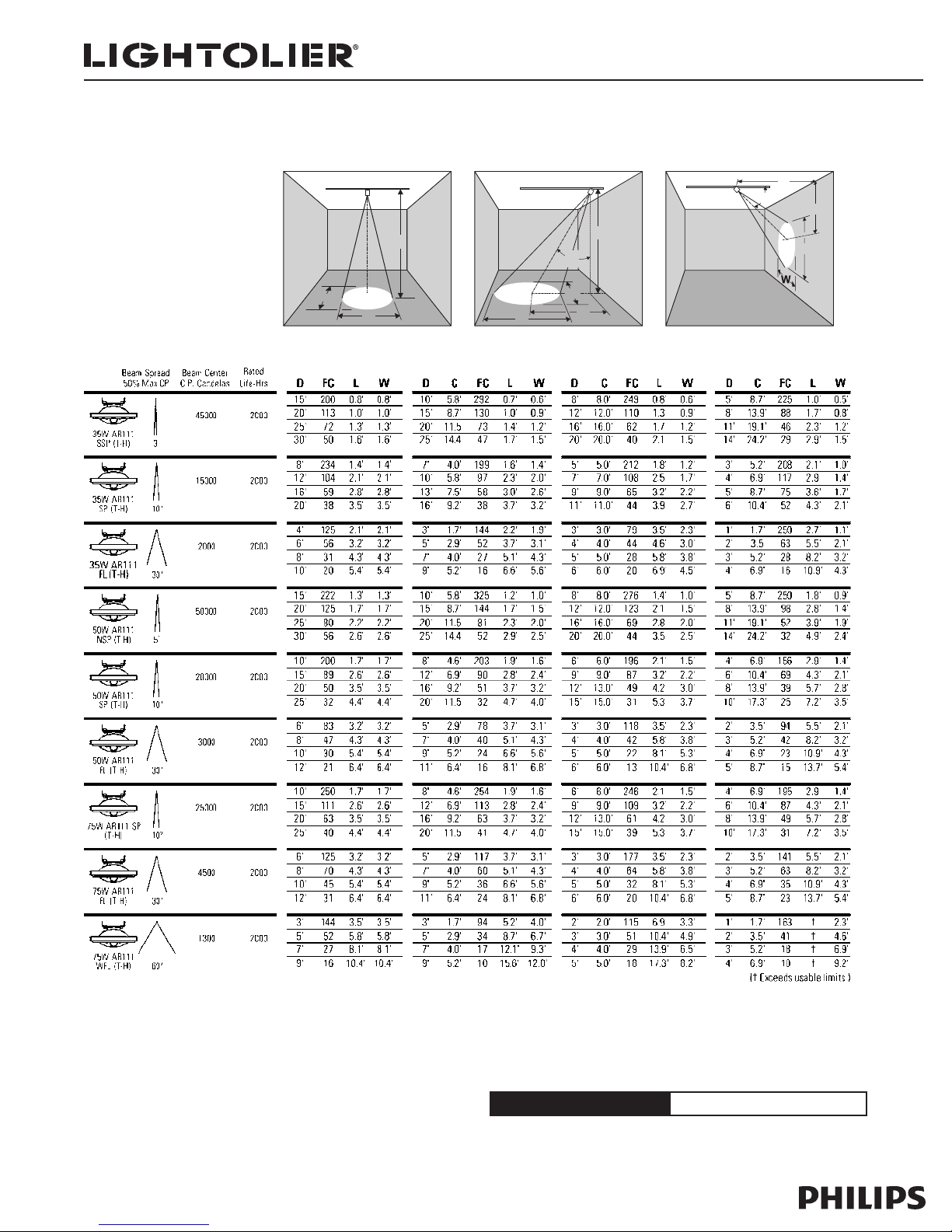

Lighting Data

LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A=45˚ AIMING ANGLE A=60˚ AIMING ANGLE

Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical

L Beam Length

W Beam Width

CDistance to center beam

D Distance

A Aiming Angle

FC Footcandles

Land Ware the outer points where the candle power

drops to 50% of the maximum. FC are the initial foot-

candles at the center of the beam.
