Calculite®CFL Lensed Wall Washer 8044

Page 1 of 2 7” Aperture (2) Quad Tube Wall Washer

Features

1. Optics: Directional prismatic glass spread lens and Alzak®"kick" reflector

direct light smoothly across and down wall. Rotates for correct orientation.

Aperture cone with Iridescence Free finish.

2. Socket Cup: Die-cast aluminum cup effectively dissipates heat and positions

lamp holder. Snaps onto reflector neck to assure consistently correct optical

alignment without tools.

3. Mounting Frame: Die-cast aluminum for dry or plaster ceilings.

4. Retaining Springs: Precision-tooled steel friction springs secure reflector to

mounting frame for quick, tool-less installation.

5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or

1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.

6. Ballast/J-Box: Outboard mounted to reduce heat transfer and maintain

lamp efficacy and life. Service from below without tools.

7. Torsiontite Springs: Wire formed steel holds reflector/spread lens

assembly snug to housing.

Electrical

Note: For ballast electrical data and latest lamp/ballast compatibility refer to

“Ballast” specification sheet for complete electrical data.

UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C

supply conductors.

Options and Accessories

Comfort Clear Finishes1Other Finishes

Clear CCL White WH

Diffuse CCD

Champagne Bronze CCZ

Pewter CPW

1Specify desired flange

WWhite, P Polished

Blank - Molded Ring

Ceiling Cutout: 8” (203 mm) Dia.

Reflector Trim Frame-In Kit

8044 CLW Clear Iridescence Free, White Flange S7218HU 7" aperture, 2 lamp 18W Quad Tube CFL (120/277V) 2-pin and 4-pin

8044 CLP Clear Iridescence Free, Polished Flange S7226HU 7" aperture, 2 lamp 26W Quad Tube CFL (120/277V) 2-pin and 4-pin

8044 Add suffix. See options for other finishes. Standard Dimming Options:

S7218H or S7226H

CU3 Lightolier PowerSpec 3% Dimming (120/277V)

J1LD3 Lutron 5% Dimming (120V)

J2LD3 Lutron 5% Dimming (277V)

JUM7 Mark 7 Dimming (120/277V)

J1MX Mark 10 Dimming (120V)

J2MX Mark 10 Dimming (277V)

Other dimming product available, please consult factory

Options and Accessories (continued)

Emergency Add Suffix EM*

Chicago Plenum Add Suffix LC

Existing/Thk. Ceiling FA EC7*

Emergency Ltg. Kit FA EM3E* (4 pin)

FA EM4E* (4 pin)

FA EM2T* (2 pin)

Fuse (Slow Blow) Add Suffix F

*See Spec. Sheets: FAEC, FAEM

Mounting Bars & Accessories; see Specification Sheet MBA.

Sloped Ceiling Adapters; see Specification Sheet SCA.

Labels

UL listed for damp locations, I.B.E.W.

Alzak®is a registered trademark of ALCOA.

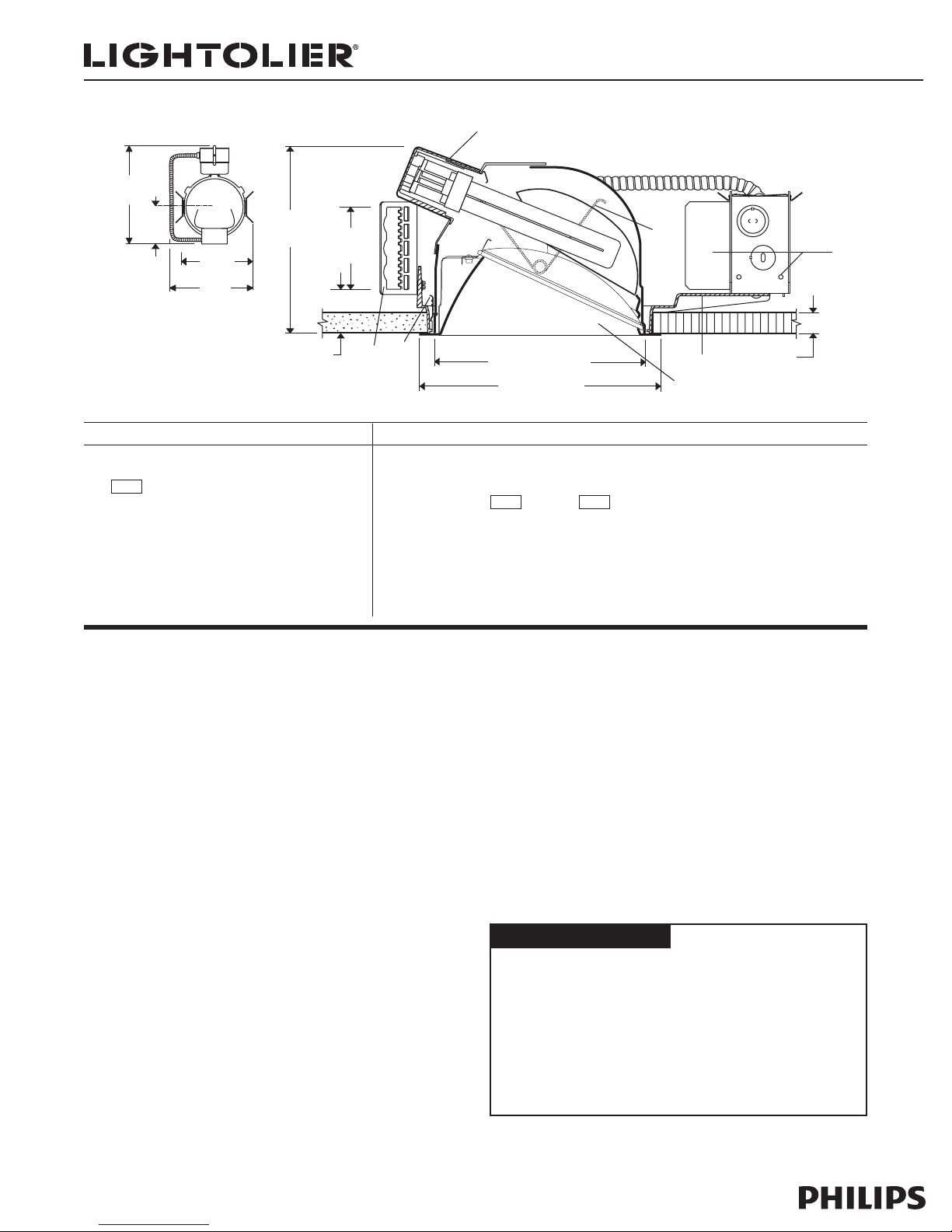

Top View

14-5/8"

(372 mm)

11-3/8"

(289 mm)

12-1/2"

(318 mm)

5-1/4"

(134 mm)

7-1/8" (181 mm) Dia.

8-5/8" Self-Flanged

(209 mm)

(76 mm)

1" (25 mm) min.

2-1/8" (54 mm) max.

1-1/8" (29 mm) max.

Ceiling Thickness

6-3/4"

(171 mm)

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Calculite®CFL Lensed Wall Washer 8044

Page 2 of 2 7” Aperture (2) Quad Tube Wall Washer

32 19 32

46 38 46

35 35 35

26 26 26

19 19 19

15 15 15

12 12 12

10 10 10

999

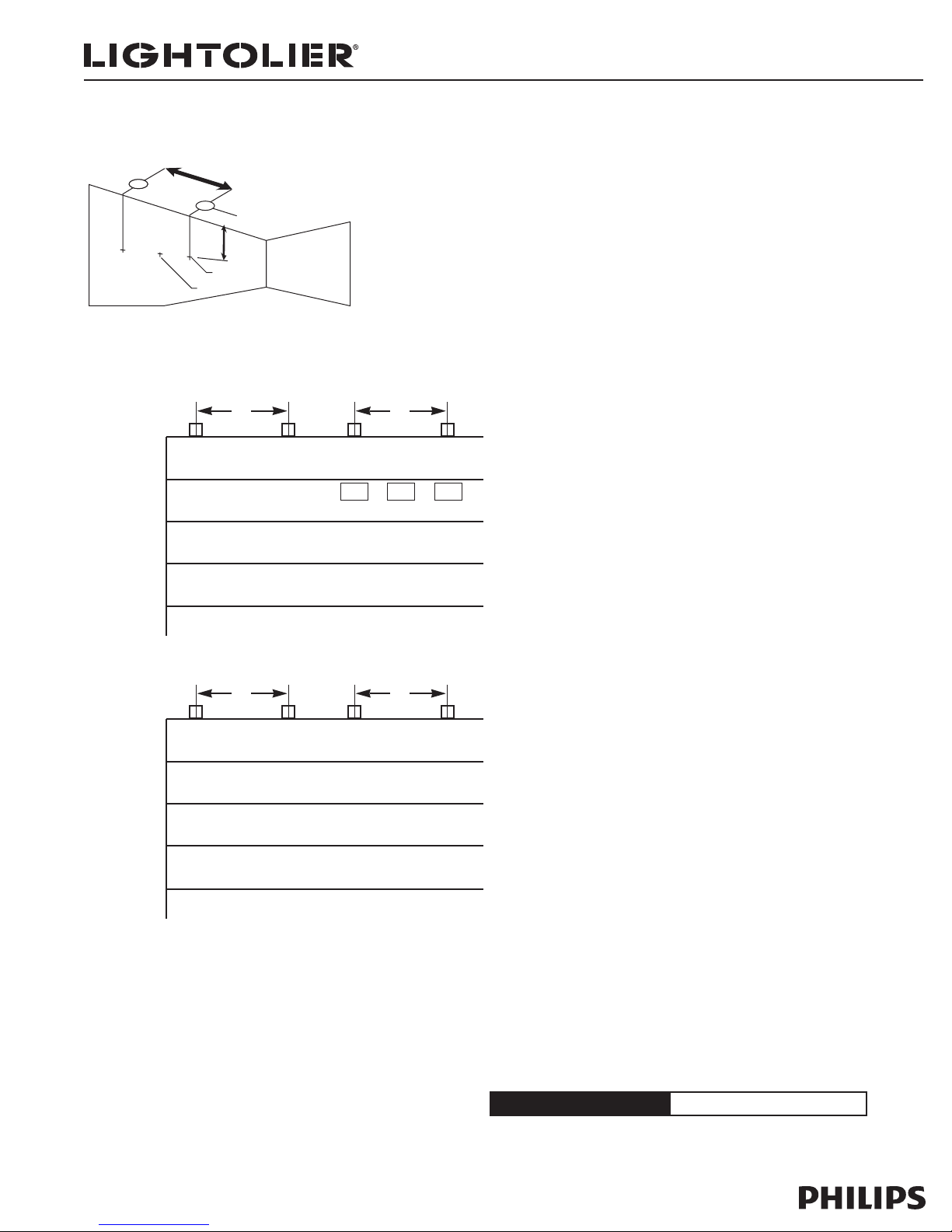

Lighting Data

EXAMPLE: With multiple clear reflector units located

2’ from wall and 3’ on center, the illumination on the

wall 3’ down from the ceiling is 35 f.c. beneath and 35

f.c. between fixtures.

Footcandles values are averaged and rounded off and are based on a minimum of five units. For fixture-to-wall distances, other than

those shown, use maximum of 1 to 1 spacing (distance between fixtures not more than distance to wall) for best results.

3’

2’

3’

35 f.c.

Footcandles On Wall From Multiple Units - 2 Lt. - 26w Quad TubeFootcandles On Wall From Multiple Units - 2 Lt. - 26w Quad Tube

40 36 40

63 64 63

52 53 52

38 39 38

29 29 29

23 23 23

18 18 18

16 16 16

14 14 14

2’ 3’

Units 2 Feet From Wall

Distance From Ceiling, Ft.

10 810

22 17 22

23 21 23

20 20 20

17 17 17

14 14 14

12 12 12

10 10 10

999

12 11 12

26 26 26

30 30 30

26 27 26

21 22 21

17 17 17

14 14 14

12 12 12

11 11 11

3’ 4’

Units 3 Feet From Wall

Distance From Ceiling, Ft.
