Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

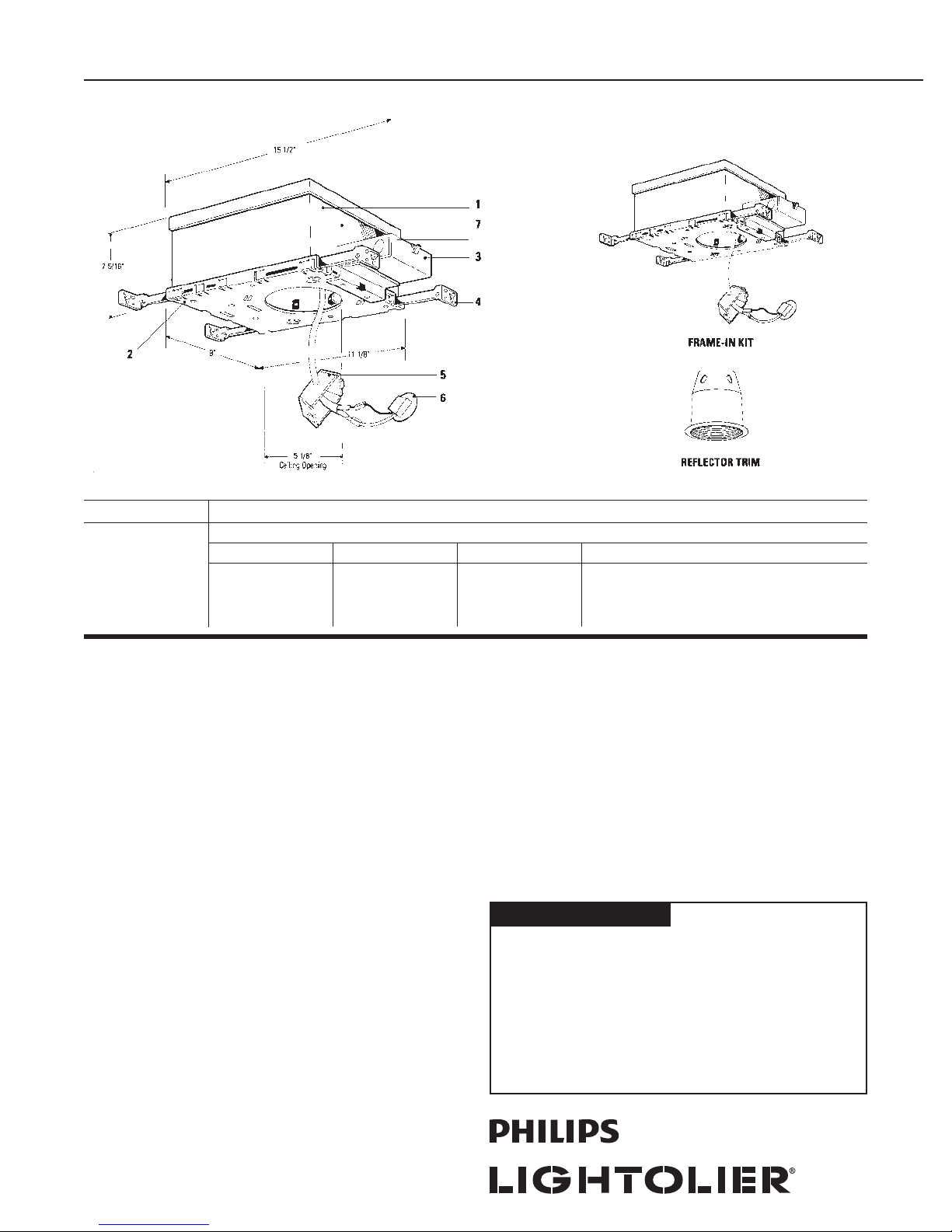

Lytecaster®Recessed Downlighting 1000ICV

Page 1 of 1 5" Aperture Incandescent Insulated Ceiling Frame-In Kit

Features

1. Housing: .026" (#20 ga.) galvanized steel. U.L. listed for direct contact with

thermal insulation. Access door for inspection of junction box.

2. Mounting Frame: .036” (#20 ga.) galvanized steel. Accommodates all

ceilings up to 1” thick. Four slots are positioned 90º apart to simplify

alignment. Push-in/twist-out rotoclips hold reflector flush to ceiling.

3. Junction Box: 2” x 4” x 4”, .063” (#14 ga.) galvanized steel. U.L. listed for,

maximum of 6 No. 12 ga., 90º C through branch circuit conductors. Quick

release “L” shaped cover for outside access to wiring. Access door inside of

housing allows easy inspection of wiring without removal of housing. Integral

cable clamps permit attachment of nonmetallic Romex®or armored cable

without the need for additional connectors.

4. Mounting Bars: .059” (#16 ga.) galvanized steel. 13” long bars extend to

27”, rotatable and lockable, with integral T-bar tabs. Attach to wood joist or

T-bar ceilings without need of accessories.

5. Socket Housing: .036” (#20 ga.) galvanized steel.

6. Socket: Field replaceable. Two pin socket, pre-wired with #18 SF1 leads to

junction box.

7. Thermal Protector: Meets NEC and U.L. requirements. Located inside

housing.

8. Transformer: Mounted inside, magnetic, 120V primary, norminal 12V

secondary. Removable from below.

Dimming

Dimming Controls: Use only dimmers specifically designed for use with magnetic

transformers, like Lightolier Onset, Sunrise series LV or VA, dimmers, or any

Lightolier Controls dimming system. Low voltage fixtures may produce audible

sound when used with dimmers, which may be objectionable in acoustically criti-

cal areas.

Options & Accessories

Mounting Bars: 1964 - 20" set of (2)

Plaster Ceiling Ring: 1960 - 7/8" depth for wet plaster ceilings.

Extra-Thick Ceiling

Mounting Ring: 1967B - up to 2" thick ceilings.

MR-16 Socket Replacement: 1975A

T-Bar Ceiling Clips: 1956 set of (4)

Labels

UL (Type I.C., Suitable for Damp Locations), I.B.E.W.

Romex® is a registered Trademark of General Cable Industries Inc.

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets

Adjustable

1000ICV Baffles Aperture Cone Pinhole Elbow

1055LV 1063LV 1064WDLV 1052LV 1062LV

1055WHLV 1064LV 1064WDPLV

1056LV

1064CDLV
