Philips Calculite 8046 Manuale utente

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

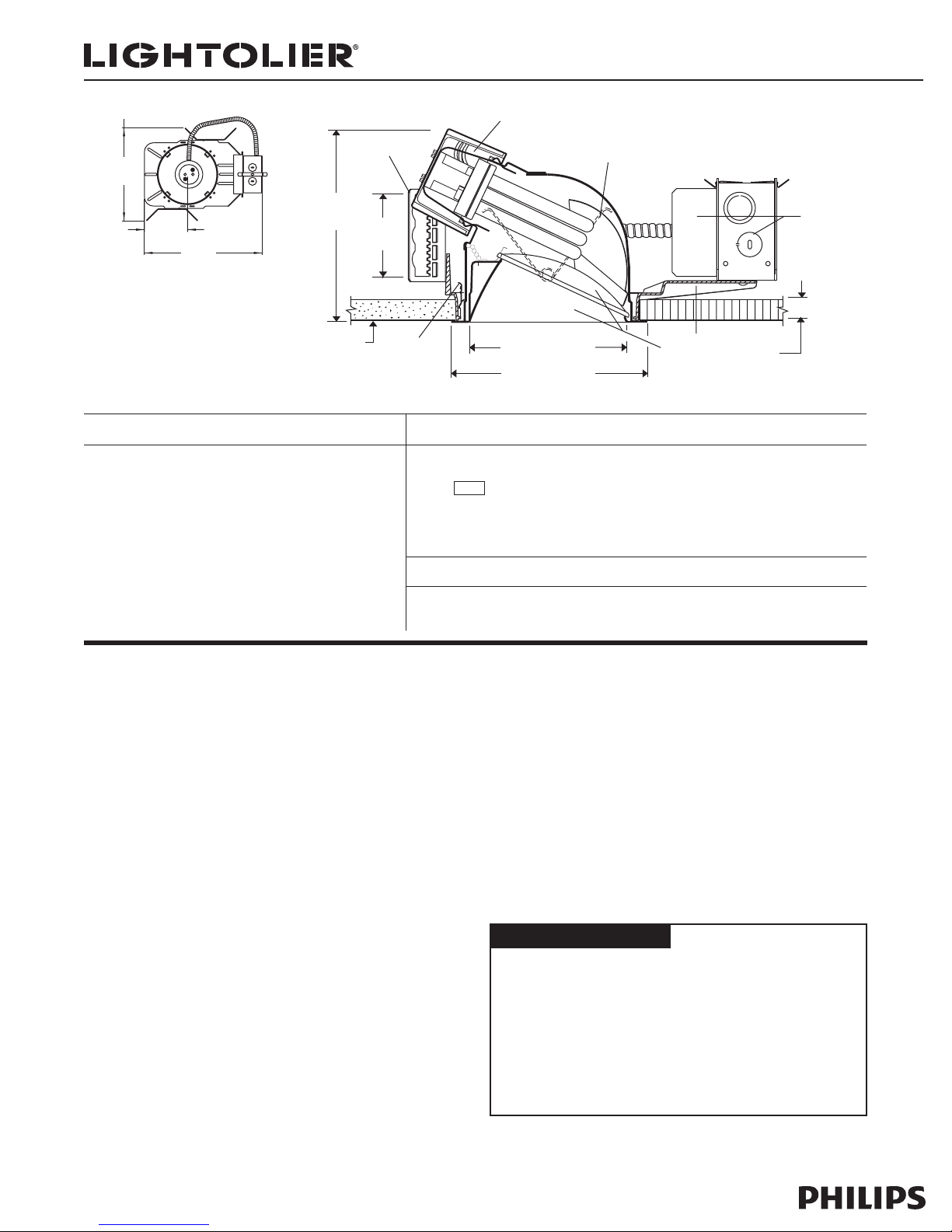

Calculite® CFL Lensed Wall Washer 8046

Page 1 of 2 6" Aperture Triple Tube Vertical Lamp

Reflector Trim Frame-In Kit

8046CLW Clear Iridescence Free, White Flange

8046CLP Clear Iridescence Free, Polished Flange

8046 Add suffix. See options for other finishes.

S6132BU 6" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

Dimming Options:

S6132B

CU3 Lightolier PowerSpec 3% Dimming (120/277V) J1LD3 Lutron 5% Dimming (120V)

J2LD3 Lutron 5% Dimming (277V) JUM7 Mark 7 Dimming (120/277V)

J1MX Mark 10 Dimming (120V) J2MX Mark 10 Dimming (277V)

Other dimming product available, please consult factory

Remodeler Frame-In Kits

6126BURM 6" aperture, 1 lamp 26W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

6132BURM 6" aperture, 1 lamp 26/32W Triple Tube CFL (120/277V) 4-Pin (Amalgam)

Features

1. Optics: Directional prismatic glass spread lens and Alzak®“kick” reflector

direct light smoothly across and down wall. Rotates for correct orientation.

Aperture cone with Iridescence Free finish.

2. Socket Cup: Effectively dissipates heat and positions lamp holder. Snaps

onto reflector neck to assure consistently correct optical alignment without

tools.

3. Mounting Frame: Galvanized steel for dry or plaster ceilings. Accepts other

6” Triple Tube reflectors (see S6132BU Spec Sheet).

4. Retaining Springs: Precision-tooled steel friction springs secure reflector to

mounting frame for quick, tool-less installation.

5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or 1

1/2" lathing channel, 1/2" EMT, or optional mounting bars.

6. Ballast/J-Box: Electronic 120V-277V. UL listed for through branch circuit

wiring with max of (8) No. 12AWG, 90°c supply conductors. Outboard mounted

to reduce heat transfer and maintain lamp efficacy and life.

Service from below without tools.

7. Torsiontite Springs: Wire formed steel holds reflector/spread lens assembly

snug to housing.

Electrical

Note: For ballast electrical data and latest lamp/ballast compatibility refer to

“Ballast” specification sheet for complete electrical data.

UL listed for through branch circuit wiring with max of (8) No. 12 AWG, 90° C

supply conductors.

Options and Accessories

Comfort Clear™Finishes1Other Finishes

Clear CCL White WH

Diffuse CCD

Champagne Bronze CCZ

1Specify desired flange. WWhite, P Polished, Blank - Molded Ring

Options and Accessories (continued)

Emergency Add suffix EM*

Chicago Plenum Use 6132BULC

Existing/Thk. Ceiling FA EC6*

Emergency Ltg. Kit FA EM3E*

FA EM4E*

Fuse (slow blow) Add suffix F

*See Spec. Sheets: FAEC, FAEM

Mounting Bars & Accessories; see Specification Sheet MBA.

Sloped Ceiling Adapters; see Specification Sheet SCA.

IC Frame available; see C6CFL32 specification sheet.

Labels

UL listed for damp locations.Alzak® is a registered trademark of ALCOA.

Top View

6 3/4"

(172 mm)

5 3/4" (146 mm) Dia.

7" Self-Flanged Trim

(178 mm)

1" (25 mm) min.-

2-1/8" (54 mm) max.

1 1/8" (29 mm) max.

Ceiling Thickness

(76 mm)

13 3/8"

(340 mm)

(127 mm)

10"

(254 mm)

11 1/8"

(283 mm)

4 5/8"

(117mm)

10"

(254mm)

12 3/4"

(324mm)

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Calculite® CFL Lensed Wall Washer 8046

Page 2 of 2 6" Aperture Triple Tube Vertical Lamp

2' From Wall-3' On Center

1271627

2362736

326 25 26

4191919

5141414

6111111

79 99

87 77

96 66

2' From Wall-2' On Center

1333033

2484648

3383838

4282828

5202020

6151515

7121212

8101010

98 88

2' From Wall-2' On Center

1242224

2313131

3282828

4222222

5171717

6131313

7101110

89 99

97 77

3' From Wall-4' On Center

1646

211911

3111011

4111011

5999

6888

7777

8666

9666

3' From Wall-3' On Center

1767

2131213

3141414

4141414

5121212

6101110

7999

8888

9777

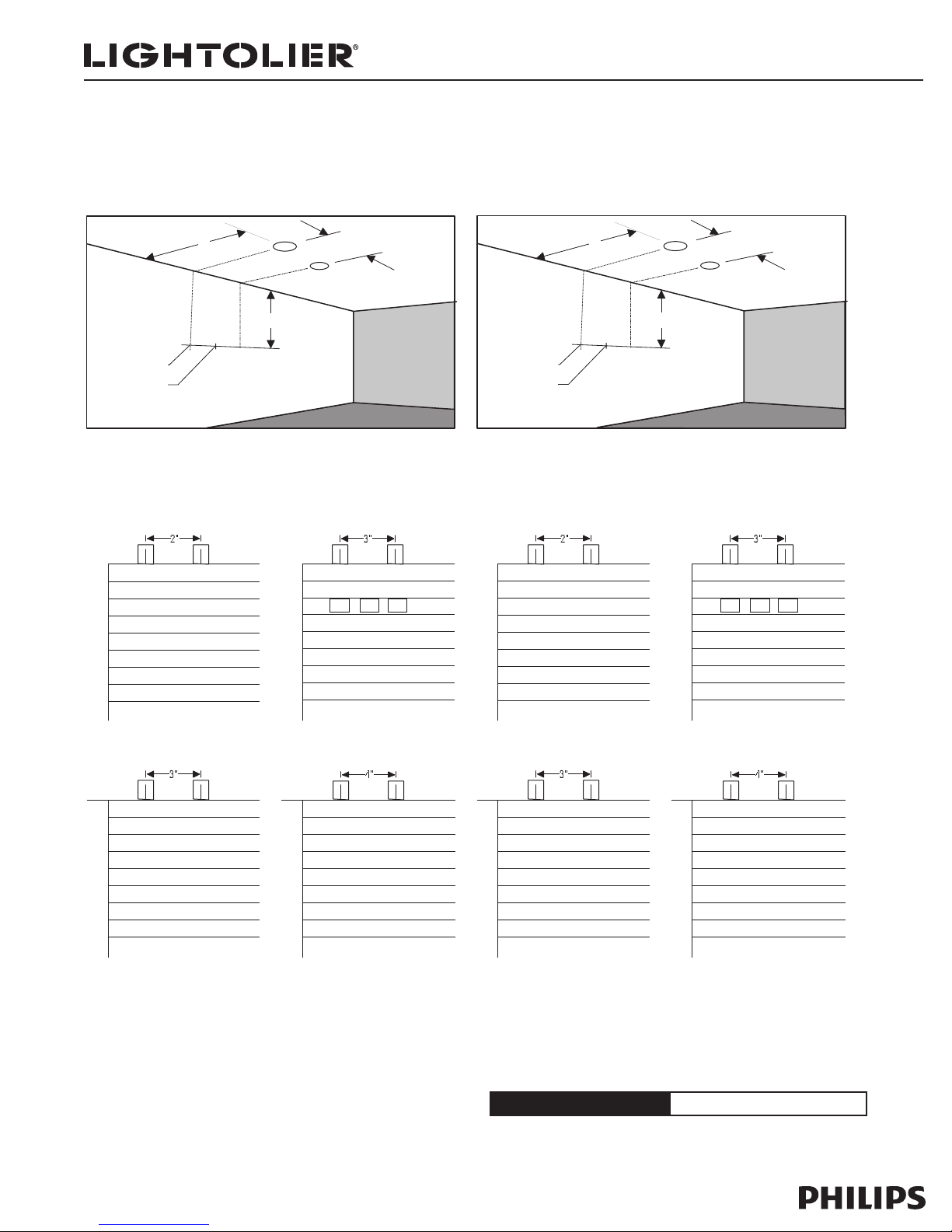

Lighting Data

Footcandles On Wall: Multiple 26w Units

20 f.c.

19 f.c.

2' From Wall-3' On Center

1191219

2231923

320 19 20

4151515

5121212

69 99

78 88

86 66

96 66

Footcandles On Wall: Multiple 32w Units

3' From Wall-3' On Center

19 89

2191819

3222122

4191919

5161616

6131313

7111111

89 99

98 88

3' From Wall-4' On Center

18 58

2161216

3171517

4151415

5121212

6101010

78 88

87 77

96 66

25 f.c.

26 f.c.

EXAMPLE: With multiple clear reflector units located 2' from wall and

spaced 3' on center, the illumination on the wall 3' down from ceiling

will be 19 f.c. beneath units and 20 f.c. between units.

EXAMPLE: With multiple clear reflector units located 2' from wall and

spaced 3' on center, the illumination on the wall 3' down from ceiling

will be 26 f.c. beneath units and 25 f.c. between units.

Footcandle values are averaged and rounded off and based on minimum of five units.

Distance From Ceiling in Feet

Distance From Ceiling in Feet Distance From Ceiling in Feet

Distance From Ceiling in Feet

Distance From Ceiling in FeetDistance From Ceiling in Feet

Distance From Ceiling in Feet
