LWL2 Series

VANDAL-RESISTANT WET/DAMP LOCATION LED EXIT

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: Illumination

of the exit stencil face is

accomplished with long lasting,

high-output LEDs. Hot spots

and striations are eliminated

by the internal light chamber,

which is specially designed

around the high-performance

LED array. Average illumination

levels are in excess of 25fl

(79 cd/m2).

Housing: Die-cast aluminum

housing with premium impact-

resistant injection molded

polycarbonate covers. Housing

is powder coated and back

cover is molded in color to

match. Front cover is clear.

Stencil is provided with field

selectable chevrons and is

contained inside the fully

gasketed housing. All exposed

hardware is both vandal-

resistant and anti-corrosion

coated. Universal knockouts on

backplate allow wall mounting

directly to standard junction

boxes. Die-cast aluminum

canopy is provided for top/side

mounting and is powder coated

to match housing.

Operating Temperature

Range: Wet/Damp Location

-40°F (-40°C) to 113°F (45°C)

Diagnostic Electronics

(standard): 120/277 VAC

dual voltage input with surge

protection is standard on all

AC models. For emergency

operation, the charging system

is microprocessor driven with

software embedded diagnostic

routine and temperature

compensation. 120/277 VAC

input, surge protection,

brownout, AC lockout and low

voltage disconnect features are

standard.

Self-Testing Diagnostics

(standard): The diagnostic/

charging platform with self-

testing mode automatically

runs a one-minute self-test

every 30 days and a 30-minute

test on the sixth and twelfth

month. A one-minute or

90-minute test may be initiated

via the push to test switch on

the unit or by activating the

appropriate test command on

the optional IR test device.

Electrical Specifications:

AC Only Red:

3.8 W (120 VAC), PF 0.96

3.8 W (277 VAC), PF 0.91

AC Only Green:

4.0 W (120 VAC), PF 0.95

4.0 W (277 VAC), PF 0.90

Self-Powered Red:

4.7 W (120 VAC), PF 0.95

4.8 W (277 VAC), PF 0.97

Self-Powered Green:

4.7 W (120 VAC), PF 0.95

4.7 W (277 VAC), PF 0.99

Code Compliance

UL 924 and UL wet/damp

location listed. NFPA 101,

NEC, BOCA, OSHA and IBC

illumination standards. Meets

ADA specifications for wall

mounted lighting fixtures. IEC

61951-1 Life Testing (batteries).

Certified to the California

Energy Commission in

accordance with California law.

NEMA Premium certified.

Warranty

Five-year full electronics and

five-year full plus five-year

prorated battery warranty.

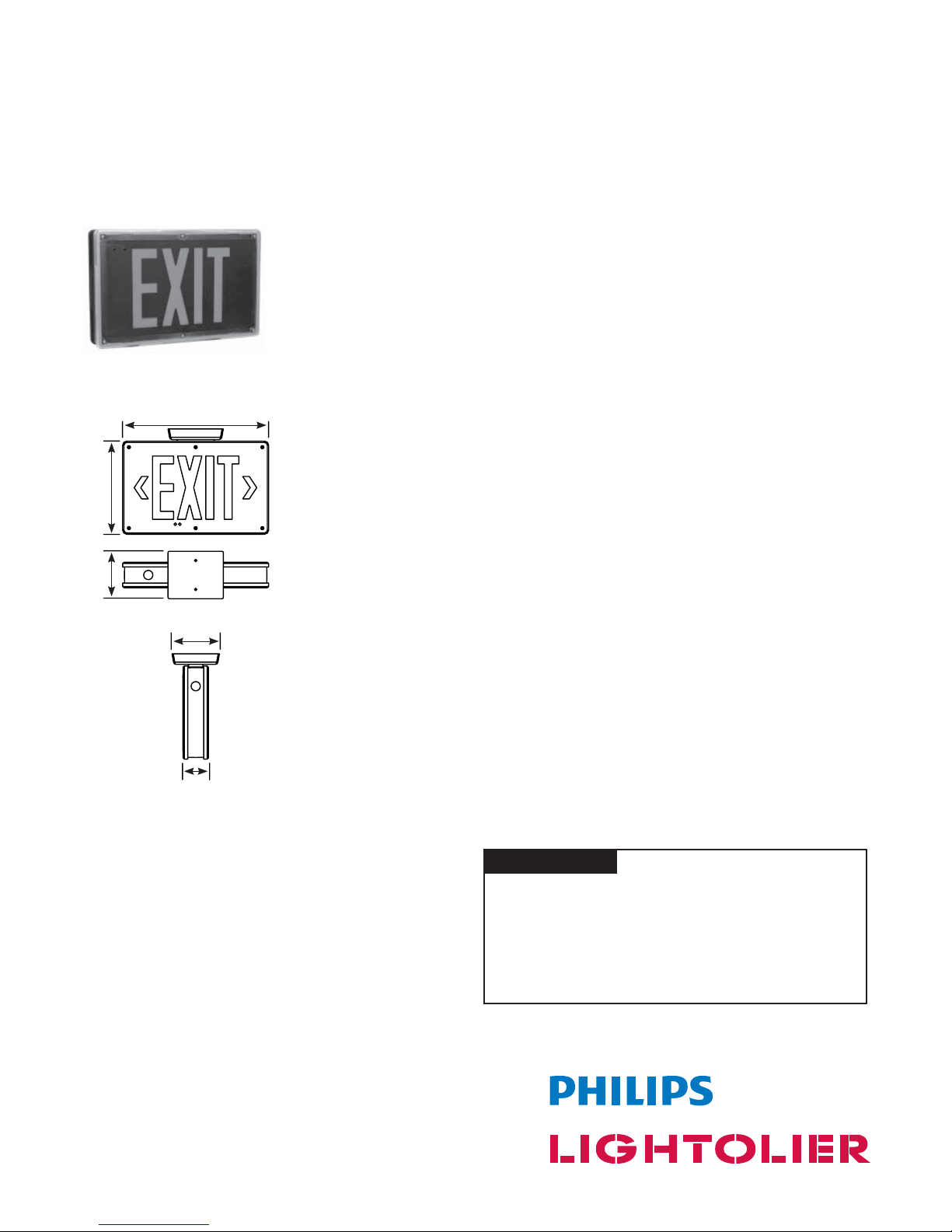

4.5"

(11.43 cm)

8.85"

(22.48 cm)

LWL2NURBSD2T

13.8"

(35.26 cm)

4.5"

(11.43 cm)

2.4"

(6.1 cm)

LWL2 Series

VANDAL-RESISTANT WET/DAMP LOCATION LED EXIT

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

LWL2 Series August 8, 2011

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

LWL2 = Wet/

Damp Location

LED Exit

Blank = AC Only

SD2T = Self-

Testing Diagnostic

Electronics

(required with

nickel cadmium

models)

Model Designator

Note

1) Some options may impact UL listing. Consult factory for specifics.

2) Must specify “PM” option for compatibility with pendant kit.

A= Audible Diagnostics

BF = Buzzer/Flasher (self-powered units only)

BZ = DC Buzzer

DC = 12-48 VDC Input (AC only models)

EX = Special Input Transformer (consult

factory)1

FA = 24 VDC Fire Alarm Interface

FL = Emergency Flasher (self-powered units

only)

PM = Pendant Mount Only (must order

pendant kit accessory)2

SW = Special Wording (consult factory)

2CKT1 = 120 VAC Two Circuit (AC only

models)

2CKT2 = 277 VAC Two Circuit (AC only

models)

Factory Installed Options

Accessories (order as a separate item)

SDREMOTE = Infrared Remote Test Device

T15TPTOOL = Tamperproof Tool

TPKITB = Pendant Kit, 12” Stem, Black

TPKITW = Pendant Kit, 12” Stem, White

A= AC Only

N= Nickel

Cadmium

Battery Type

W= White Housing and White

Stencil

B= Black Housing and Black

Stencil

G= Gray Housing and Gray

Stencil

WA = White Housing and

Brushed Aluminum Stencil

BA = Black Housing and Brushed

Aluminum Stencil

GA = Gray Housing and Brushed

Aluminum Stencil

Stencil Face/Housing Color

LWL2

1= Single

U= Universal

Single/Double

Face

Face Options

R= Red

G= Green

Letter Color

8.85"

(22.48 cm)

13.8"

(35.26 cm)

5.5"

(13.97 cm)

2.4"

(6.1 cm)

Pendant Kit
