Philips PTS5-1 Manuale utente

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems PTS5-1

1BHFPG 1FSJNFUFS5SPVHI3FDFTTFE-JHIU51FS/PNJOBM4FDUJPO

$

Quarter Scale

Features

1. Housing: Die-formed 20 gauge pre-painted steel. Integral heavy gauge bulk-

heads support housing and trim, permitting modules to be bolted together in

continuous runs and facilitate suspension.

2. Lamping: Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete ROW.

3. Stagger rows must be completed with an adjustable module.

4. Non-stagger rows must be completed with an adjustable module unless row

lengths are in precise 1 foot (30.48cm) intervals.

5. Order one END SET per ROW.

Labels

UL, cUL and IBEW

Ordering Instructions

Individual Fixtures:

1. Order number of MODULES required.

2. Order one END SET per MODULE.

(2-light only)

3. Reflector: Precision parabolic roll-formed semi-specular aluminum.

4. Louver: Lift and shift straight blade louver constructed fromdie-formed alu-

minumand painted to match housing. Louver blades are 1” (2.54cm) high on

1-1/8” (2.86cm) centers. (Optional)

Mounting

“J” Rail is first mounted to the wall and the modules connect to the rail for 1/4”

(0.64cm) wall adjustment. Modules are hung fromsuspension wires attached to the

fixture bulkheads and the structure above.

Electrical

Electronic Ballast: Programmed start, 3 conductor, 12 gauge wire. Color-coded

quick connectors allow easy connection for modular fixutres. Factory installed

ballast disconnect allows the ballast to be disconnected fromand reconnected to

incoming power under load without turning the entire circuit off.

Dimming: T5 lamp uses PowerSpec® HDF. Use PowerSpec® HDF compatible

Emergency Battery Pack: 450 Lumens @ 90 minimum.

three-wire control (extra control lead required).

T5 HO lamp uses Advance Mark X. Use Advance compatible two-wire control (no

extra control lead required).

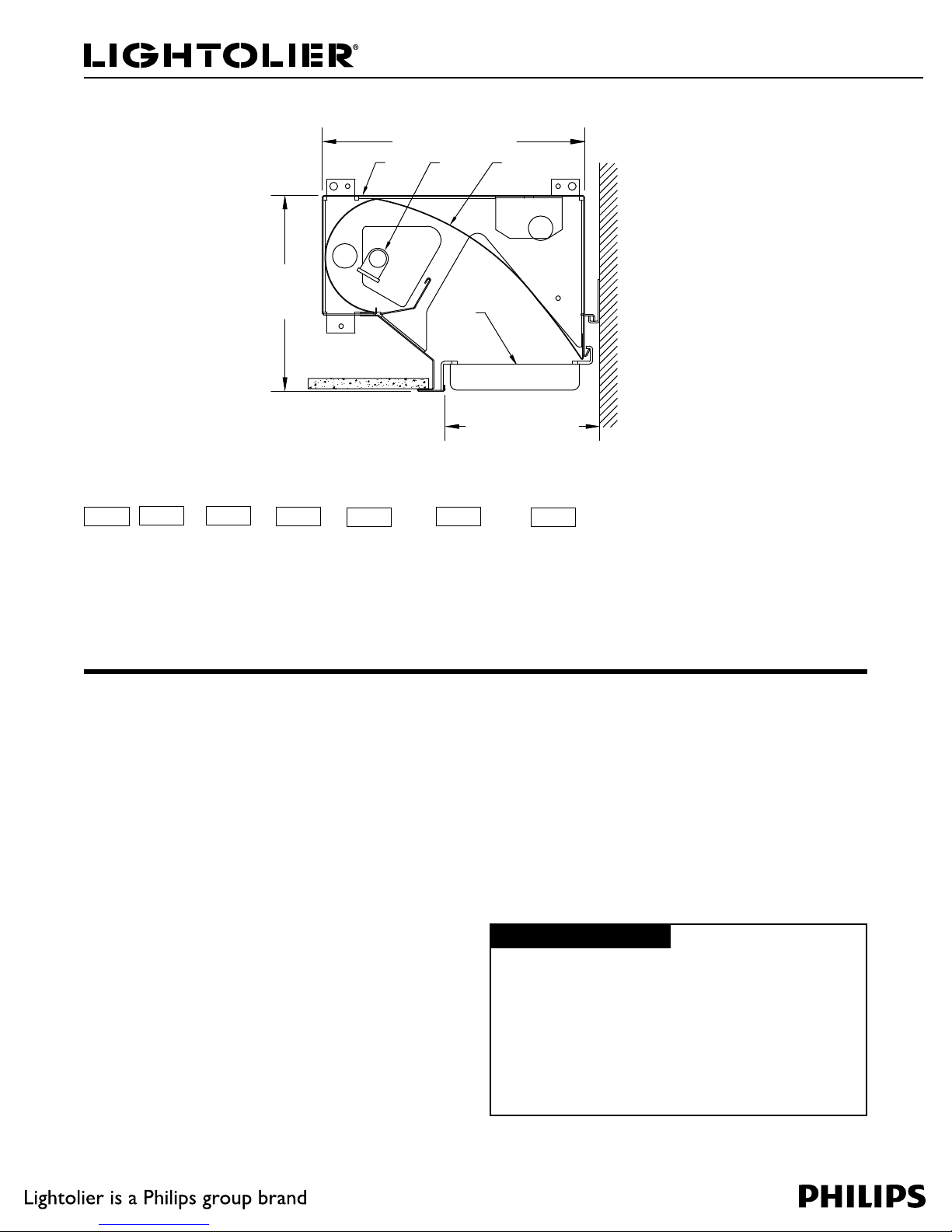

Cross-sectional one linear T5 fluorescent lamp. Provided by others.

Family Lamps Shielding Voltage

PTS5 1

Length Options

Blank = No Options

A= Adjustable*

X4 = 4 thru wires

X5 = 5 thru wires

A4 = Adjustable 4 thru wires*

A5 = Adjustable 5 thru wires*

1= 1 LampS= Standard

H= HO

O= Open

L= Lens

S= Straight

Blade Louver

1= 120V

2= 277V

3= 347V

D1 = 120V Dim.

D2 = 277V Dim.

E1 = 120V Emerg.

E2 = 277V Emerg.

Lamp Type

Module Ordering Information

* only available on Two-Foot, Three-Foot and Four-Foot versions. See length variations of adjustable fixtures on page 2.

2= Two-Foot

3= Three-Foot

4= Four-Foot

6= Six-Foot

8= Eight-Foot

(17.78cm)

9 3/8" (23.81cm)

5 1/2" (13.97cm)

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems PTS5-1

1BHFPG 1FSJNFUFS5SPVHI3FDFTTFE-JHIU51FS/PNJOBM4FDUJPO

$

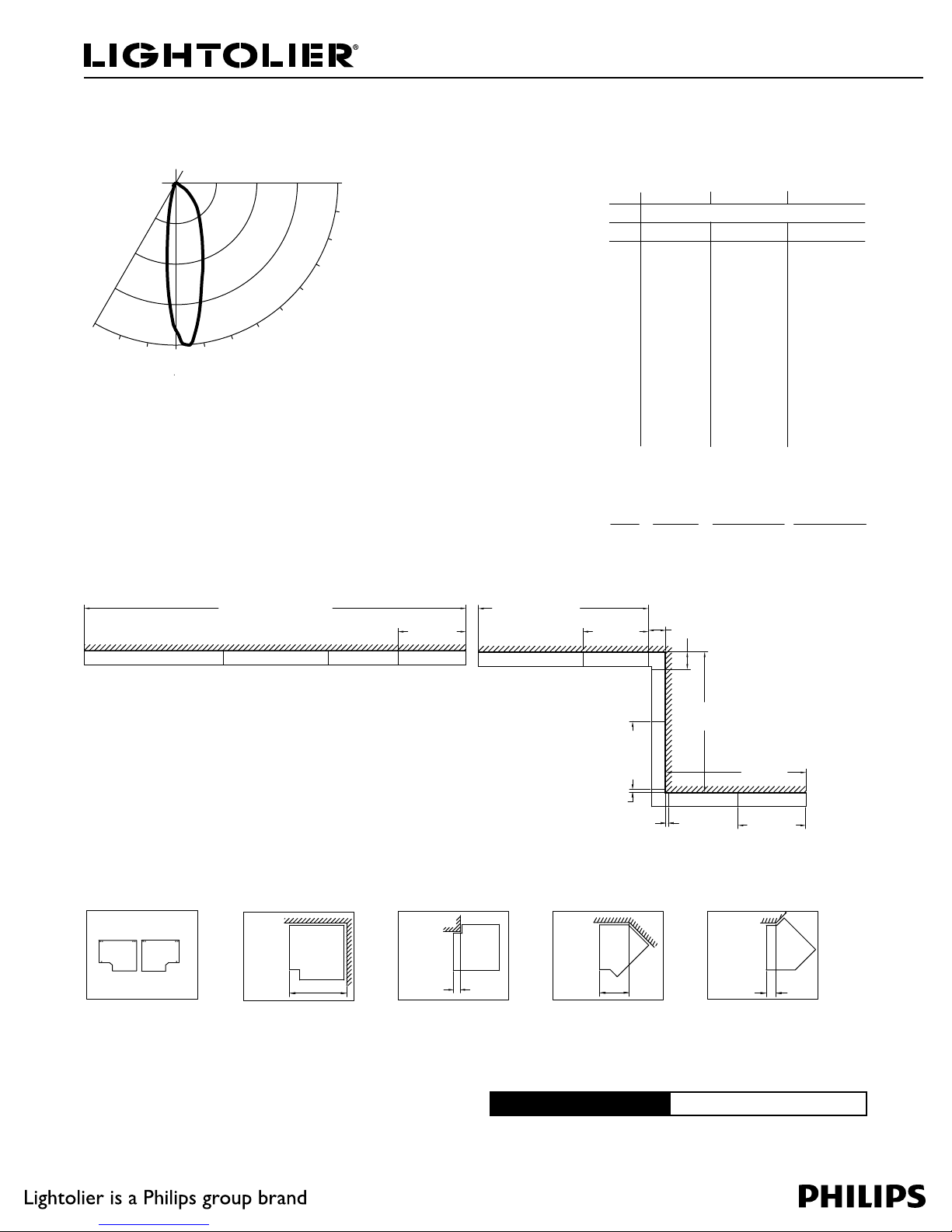

Floor cavity reflectance = 20%

Performance & Quick Calculators

2700

2025

1350

675

-30

-20

-10

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

% WALL REFLECTANCE

70 50 30 70 50 30 50 30 10

0444444434343 414141

1414039403938 283736

2393634383634 343332

3363331353330 323028

4343028333028 292725

5322825312825 272523

6302623292623 252321

7282422282422 242120

8272320262320 222018

9252119252119 211917

10 24 20 18 24 20 18 20 17 16

CANDLEPOWER

DEG.

180

175

165

155

145

135

125

115

105

Report No: ITL53559

Cat No: PTS51HS14

Lamps: 1 F54T5

Lumens: 5000

Efficiency: 37.2%

ROOM CAVITY RATIO

End Plate and Corner Block Accessories

End Cap Set:

PTSEP

ZONE

12”

(30.48cm)

1 3/4"

(4.45cm)

90° Inside Corner: 90° Outside Corner:

6 1/4"

(15.88cm)

135° Inside Corner:

PTS135INCO - Open

PTS135INCL - Lens

PTS135INCS - Straight

Blade Louver

(5.08cm)

135° Outside Corner:

PTS135OTCO - Open

PTS135OTCL - Lens

PTS135OTCS - Straight

Blade Louver

ZONAL LUMEN SUMMARY

ZONE LUMENS % BARELAMP % LUMINAIRE

0-90 1861 37.2 100.0

90-180 0.0 0.0 0.0

0-180 1861 37.2 100.0

Sample Run

224

428

673

1036

1674

2708

2450

190

262

408

686

1163

1943

2681

2450

45 180

343

1594

2450

135

128

130

123

203

611

1811

2450

106

176

433

997

1558

2044

2376

2450

PTS9ØINCO - Open

PTS9ØINCL - Lens

PTS9ØINCS - Straight

Blade Louver

PTS9ØOTCO - Open

PTS9ØOTCL - Lens

PTS9ØOTCS -Straight

Blade Louver

For Fixture Using Staggered Lamps

The Four-Foot Adjustable Staggered Fixture has a range of 51”(129.54cm) - 60”(152.40cm).

The Three-Foot Adjustable Staggered Fixture has a range of 39”(99.06cm) - 48”(121.92cm).

The Two-Foot Adjustable Staggered Fixture has a range of 27”(68.58cm) - 36”(91.44cm).

For Fixture Using non-Staggered Lamps

The Four-Foot Adjustable Fixture has a range of 48.75”(123.83cm) - 60”(152.40cm).

The Three-Foot Adjustable Fixture has a range of 36.75”(93.35cm) - 48”(121.92cm).

The Two-Foot Adjustable Fixture has a range of 24.75”(62.87cm) - 36”(91.44cm).

6' (182.88cm)4' (121.92cm)Three-Foot A¹

8' (243.84cm)Three-Foot A¹

6' (182.88cm)

Three-Foot A¹ 3' (91.44cm)

Three-Foot A¹4' (121.92cm)

1 3/4"

(4.45cm)1 3/4"

(4.45cm)

¹ A = Adjustable Fixture or Adjustable Staggered Fixture

21' - 10 3/4" (667.39cm)9' - 3 1/4" (282.58cm)

7' - 10 1/2"

(240.03cm)

7' - 10 1/2"

(240.03cm)

1’ (30.48cm)

Fixture used at

3’ - 10 3/4”

(118.75cm)

Fixture used at

3’ - 3 1/4”

(99.70cm)

Fixture used at

3’ - 10 1/2”

(118.11cm)

Fixture used at

3’ - 10 1/2”

(118.11cm)
