631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytespan Track Lighting System 8106

Page 1 of 2 Ring Spot Mini HID 39W PAR30 CMH

Features

1. Track Attachment Fitting: Molded polycarbonate, rotates into track.

2. Push Tab: Molded polycarbonate. Locks and detaches unit.

3. Track Adaptor Housing: Die-cast aluminum.

4. Movable Contact: Solid brass. Extends for connection to 2nd circuit in

Advent track.

5. Ballast Housing: Extruded aluminum housing with die-cast aluminum

end caps.

6. Ballast: High Power Factor metal halide electronic ballast. Thermally

protected, 0.40A maximum input current, 45W input power.

7. Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical

rotation with tensioned mounts for controlled aim.

8. Lamp Housing Ring: Die-cast aluminum with cool-grip® insulation band;

a high temperature silicone rubber which allows aiming adjustments while

fixture is on. Hold the lens and louver accessories in place. Integral color.

9. Lampholder: 5kV (600V) pulse rated glazed porcelain body socket with

plated nickel screw shell and lamp contacts; 18AWG SEW-2 (200°C) leads

encased in fiberglass sleeving.

10. Socket: Metal housing. Integral color.

Accessories

Holder: Integral, holds one accessory

Diffusion/ Special Filters: AF3 series

Color Filters: ADF3 series

Louver (Hex Cell): AL3HC

Mounting

All Monopoint, Multipoint, recessed track, suspension track, suspension stems,

sloped ceiling adapter, Basic, Advent and Radius track systems only. Ceiling and

horizontal or vertical wall mounted. Not compatible with ProSpec track system.

Finish

All painted finishes are baked powder or enamel.

Markings

cCSAus Certified for dry locations only.

Catalog No. Finish Lamp

8106WH White

8106BK Black 39W PAR30 CMH (M130) E26 base

8106AL Aluminum Not Included

6.89"

(175mm)

6.75"

(172mm)

6.25"

(159mm)

6.13"

(156mm)

4.63"

(117mm)

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lytespan Track Lighting System 8106

Page 2 of 2 Ring Spot Mini HID 39W PAR30 CMH

8000 12000

Sylvania

CMH39PAR30L/FL30 30°

39600 10000

GE CMH39PAR30L/SP10

10°

2900 10000

GE CMH39PAR30L/SP15

15°

11000 10000

GE CMH39PAR30L/FL25

25°

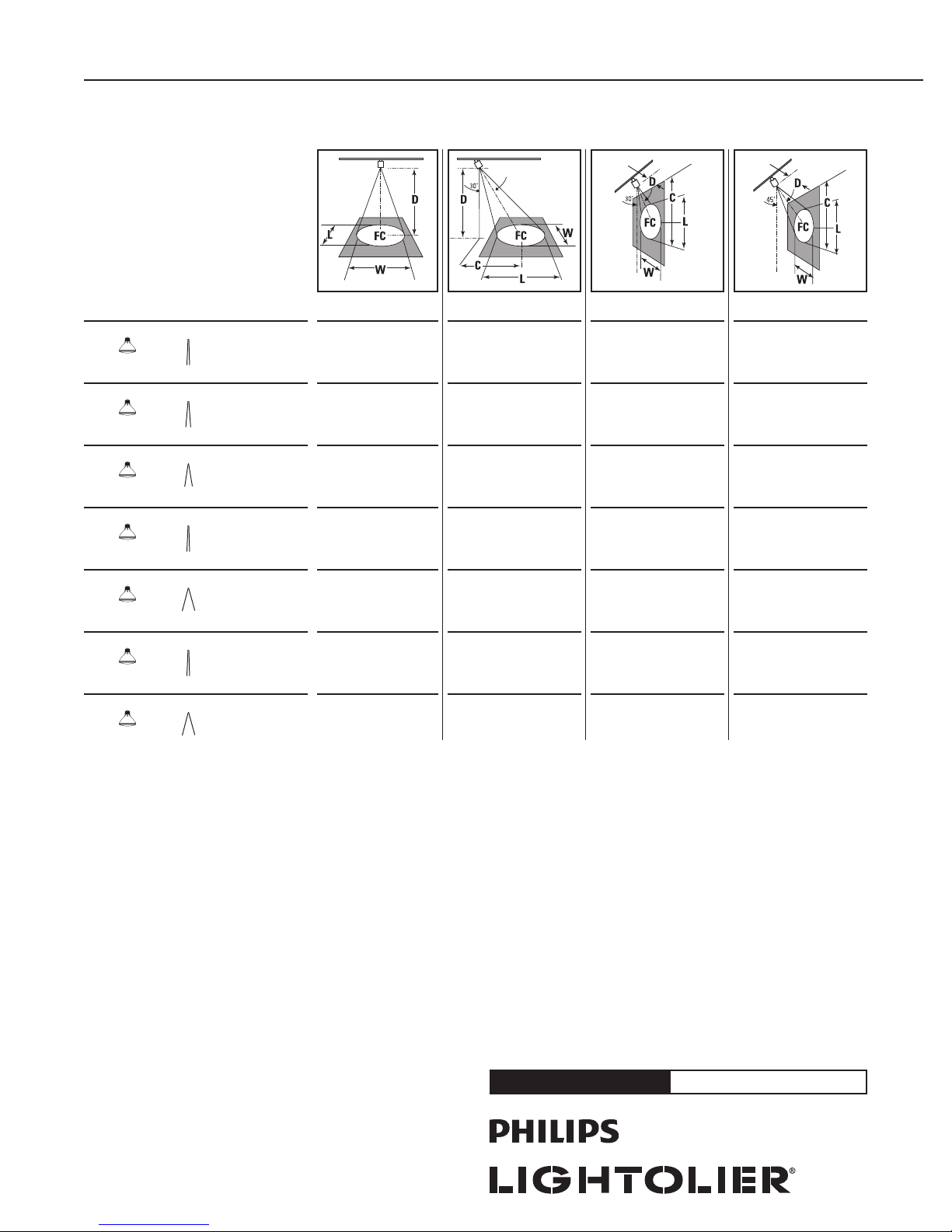

D FC L W D C FC L W D C FC L W D C FC L W

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length D Distance

W Beam Width A Aiming Angle

C Distance to center beam FC Footcandles

L and W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp manu-

facturers for availability and performance.

CBCP = Center Beam Candle Power.

12' 6.9' 179 2.8' 2.4'

14' 8.1' 131 3.3' 2.8'

16' 9.2' 100 3.7' 3.2'

18' 10.4' 79 4.2' 3.6'

5' 8.7' 198 3.6' 1.7'

6' 10.4' 138 4.3' 2.1'

7' 12.1' 101 5.0' 2.4'

8' 13.9' 77 5.7' 2.8'

7' 7.0' 286 2.5' 1.7'

8' 8.0' 219 2.8' 2.0'

9 9.0' 173 3.2' 2.2'

10' 10.0' 140 3.5' 2.5'

12' 275 2.1' 2.1'

14' 202 2.4' 2.4'

16' 155 2.8' 2.8'

18' 122 3.1' 3.1'

12' 6.9' 131 4.2' 3.6'

14' 8.1' 96 4.9' 4.3'

16' 9.2' 74 5.6' 4.9'

18' 10.4' 58 6.4' 5.5'

5' 8.7' 145 5.6' 2.6'

6' 10.4' 101 6.7' 3.2'

7' 12.1' 74 7.8' 3.7'

8' 13.9' 57 8.9' 4.2'

7' 7.0' 209 3.8' 2.6'

8' 8.0' 160 4.3' 3.0'

9 9.0' 127 4.8' 3.4'

10' 10.0' 103 5.4' 3.7'

12' 201 3.2' 3.2'

14' 148 3.7' 3.7'

16' 113 4.2' 4.2'

18' 90 4.7' 4.7'

8' 4.6' 112 4.8' 4.1'

10' 5.8' 71 6.0' 5.1'

12' 6.9' 50 7.2' 6.1'

14' 8.1' 36 8.4' 7.2'

3' 5.2' 153 6.2' 2.7'

4' 6.9' 86 8.3' 3.5'

5' 8.7' 55 10.4' 4.4'

6' 10.4' 38 12.5' 5.3'

5' 5.0' 156 4.7' 3.1'

6' 6.0' 108 5.6' 3.8'

7' 7.0' 79 6.5' 4.4'

8' 8.0' 61 7.5' 5.0'

8' 172 3.5' 3.5'

10' 110 4.4' 4.4'

12' 76 5.3' 5.3'

14' 56 6.2' 6.2'

36900 12000

Sylvania

CMH39PAR30L/SP10 10°

12' 6.9' 179 2.8' 2.4'

14' 8.1' 131 3.3' 2.8'

16' 9.2' 100 3.7' 3.2'

18' 10.4' 79 4.2' 3.6'

5' 8.7' 198 3.6' 1.7'

6' 10.4' 138 4.3' 2.1'

7' 12.1' 101 5.0' 2.4'

8' 13.9' 77 5.7' 2.8'

7' 7.0' 286 2.5' 1.7'

8' 8.0' 219 2.8' 2.0'

9 9.0' 173 3.2' 2.2'

10' 10.0' 140 3.5' 2.5'

12' 275 2.1' 2.1'

14' 202 2.4' 2.4'

16' 155 2.8' 2.8'

18' 122 3.1' 3.1'

8' 4.6' 81 5.9' 5.0'

10' 5.8' 52 7.3' 6.2'

12' 6.9' 36 8.8' 7.4'

14' 8.1' 27 10.2' 8.7'

3' 5.2' 111 8.2' 3.2'

4' 6.9' 63 10.9' 4.3'

5' 8.7' 40 13.7' 5.4'

6' 10.4' 28 16.4' 6.4'

5' 5.0' 113 5.8' 3.8'

6' 6.0' 79 6.9' 4.5'

7' 7.0' 58 8.1' 5.3'

8' 8.0' 44 9.2' 6.1'

8' 125 4.3' 4.3'

10' 80 5.4' 5.4'

12' 56 6.4' 6.4'

14' 41 7.5' 7.5'

44000 9000

Philips

CMH35PAR30L/SP10 10°

12' 6.9' 198 2.8' 2.4'

14' 8.1' 146 3.3' 2.8'

16' 9.2' 112 3.7' 3.2'

18' 10.4' 88 4.2' 3.6'

5' 8.7' 220 3.6' 1.7'

6' 10.4' 153 4.3' 2.1'

7' 12.1' 112 5.0' 2.4'

8' 13.9' 86 5.7' 2.8'

7' 7.0' 317 2.5' 1.7'

8' 8.0' 243 2.8' 2.0'

9 9.0' 192 3.2' 2.2'

10' 10.0' 156 3.5' 2.5'

12' 306 2.1' 2.1'

14' 224 2.4' 2.4'

16' 172 2.8' 2.8'

18' 136 3.1' 3.1'

7400 9000

Philips

CMH35PAR30L/FL30 30°

8' 4.6' 75 5.9' 5.0'

10' 5.8' 48 7.3' 6.2'

12' 6.9' 33 8.8' 7.4'

14' 8.1' 25 10.2' 8.7'

3' 5.2' 103 8.2' 3.2'

4' 6.9' 58 10.9' 4.3'

5' 8.7' 37 13.7' 5.4'

6' 10.4' 26 16.4' 6.4'

5' 5.0' 105 5.8' 3.8'

6' 6.0' 73 6.9' 4.5'

7' 7.0' 53 8.1' 5.3'

8' 8.0' 41 9.2' 6.1'

8' 116 4.3' 4.3'

10' 74 5.4' 5.4'

12' 51 6.4' 6.4'

14' 38 7.5' 7.5'
