ProSpec™120V/277V Track Lighting 37106

Page 1 of 2 Mini HID, Ring, 39W PAR30 CMH

Features

1. Track Attachment Fitting: Molded polycarbonate, rotates into track.

2. Locking Lever: Steel pin. Locks and detaches unit.

3. Track Adaptor Housing: Die-cast aluminum.

4. Ballast Housing: Extruded aluminum housing with die-cast aluminum

end caps.

5. Ballast: Electronic HID.

6. Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical

rotation with tensioned mounts for controlled aim.

7. Lamp Housing Ring: Die-cast aluminum with cool-grip® insulation band;

a high temperature silicone rubber which allows aiming adjustments while

fixture is on. Hold the lens and louver accessories in place. Integral color.

8. Lampholder: Medium base 5kV pulse rated glazed porcelain body socket

with plated nickel screw shell and lamp contacts; 18AWG SEW-2 leads

encased in fiberglass sleeving.

9. Socket Cup: Metal housing. Integral color.

Accessories

Holder: Integral, holds one accessory

Diffusion/ Special Filters: AF3 series

Color Filters: ADF3 series

Louver (Hex Cell): AL3HC

Electrical

Electronic Ballast (Thermally Protected)

Input Voltage: 120V/277V Total Harmonic Distortion: <10%

Power Factor: >0.99 ANSI Code: M (C) 130

Input Power: 44W Do not use on dimming circuit

Max Input Current: 0.37A@120V/0.16A@277V

Finish

All painted finishes are baked powder or enamel.

Markings

UL, cUL

7 7/32"

[184 mm]

7 7/8"

[200 mm]

[51 mm]

7 11/32"

[187 mm] 6 5/32"

[156 mm]

4 15/32"

[114 mm]

1 5/8"

[41 mm]

2 1/2"

[64 mm]

6 3/16"

[157 mm]

4 1/2"

[115 mm]

Catalog No. Finish Mounting Lamp

37106WH

37106BK

White

Black

ProSpec®120V/277V track systems only. 39W PAR30 CMH (M130) E26 medium base

Not included

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

ProSpec™120V/277V Track Lighting 37106

Page 2 of 2 Mini HID, Ring, 39W PAR30 CMH

8000 12000

Sylvania

CMH39PAR30L/FL30 30°

39600 10000

GE CMH39PAR30L/SP10

10°

2900 10000

GE CMH39PAR30L/SP15

15°

11000 10000

GE CMH39PAR30L/FL25

25°

D FC L W D C FC L W D C FC L W D C FC L W

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

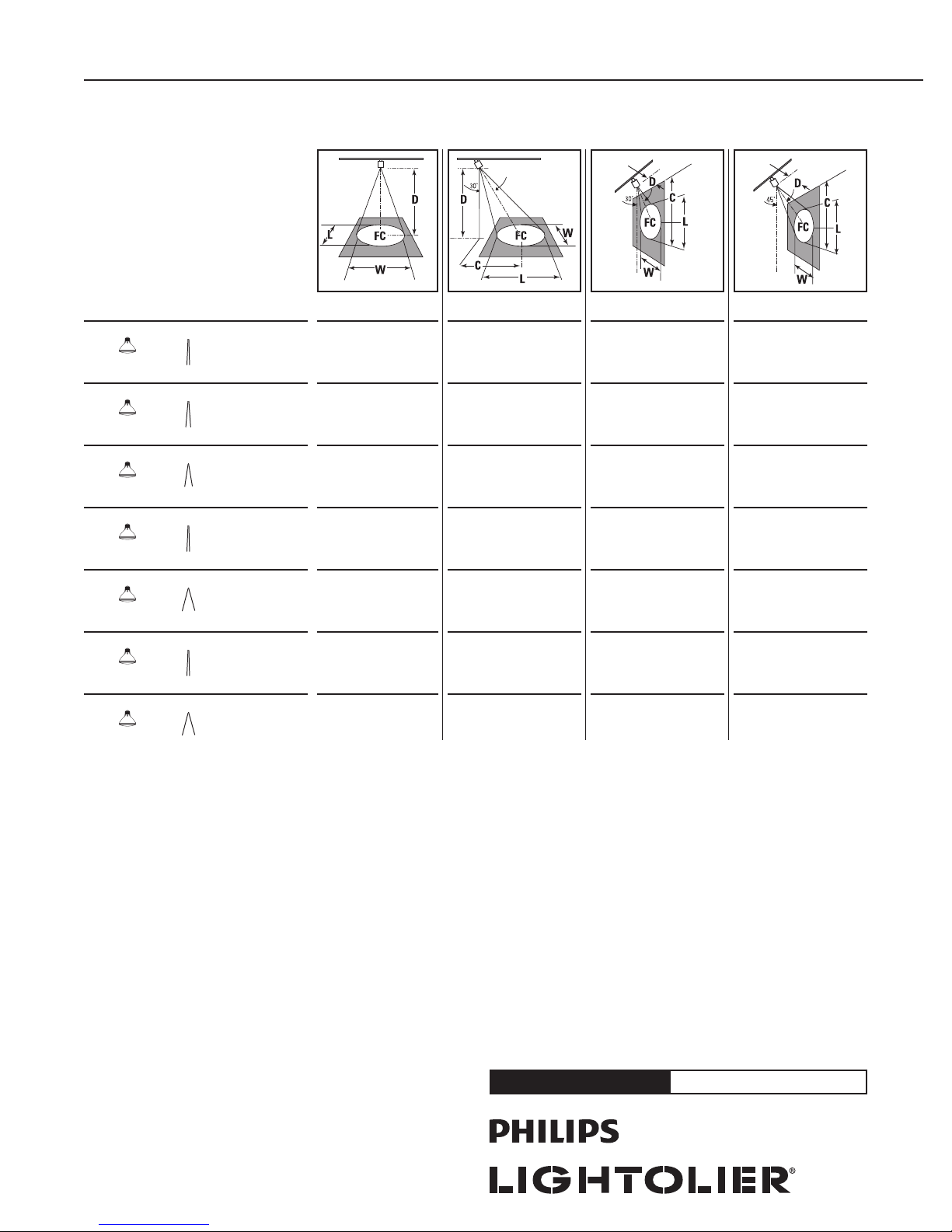

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length DDistance

W Beam Width AAiming Angle

CDistance to center beam FC Footcandles

Land W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp manu-

facturers for availability and performance.

CBCP = Center Beam Candle Power.

12' 6.9' 179 2.8' 2.4'

14' 8.1' 131 3.3' 2.8'

16' 9.2' 100 3.7' 3.2'

18' 10.4' 79 4.2' 3.6'

5' 8.7' 198 3.6' 1.7'

6' 10.4' 138 4.3' 2.1'

7' 12.1' 101 5.0' 2.4'

8' 13.9' 77 5.7' 2.8'

7' 7.0' 286 2.5' 1.7'

8' 8.0' 219 2.8' 2.0'

9 9.0' 173 3.2' 2.2'

10' 10.0' 140 3.5' 2.5'

12' 275 2.1' 2.1'

14' 202 2.4' 2.4'

16' 155 2.8' 2.8'

18' 122 3.1' 3.1'

12' 6.9' 131 4.2' 3.6'

14' 8.1' 96 4.9' 4.3'

16' 9.2' 74 5.6' 4.9'

18' 10.4' 58 6.4' 5.5'

5' 8.7' 145 5.6' 2.6'

6' 10.4' 101 6.7' 3.2'

7' 12.1' 74 7.8' 3.7'

8' 13.9' 57 8.9' 4.2'

7' 7.0' 209 3.8' 2.6'

8' 8.0' 160 4.3' 3.0'

9 9.0' 127 4.8' 3.4'

10' 10.0' 103 5.4' 3.7'

12' 201 3.2' 3.2'

14' 148 3.7' 3.7'

16' 113 4.2' 4.2'

18' 90 4.7' 4.7'

8' 4.6' 112 4.8' 4.1'

10' 5.8' 71 6.0' 5.1'

12' 6.9' 50 7.2' 6.1'

14' 8.1' 36 8.4' 7.2'

3' 5.2' 153 6.2' 2.7'

4' 6.9' 86 8.3' 3.5'

5' 8.7' 55 10.4' 4.4'

6' 10.4' 38 12.5' 5.3'

5' 5.0' 156 4.7' 3.1'

6' 6.0' 108 5.6' 3.8'

7' 7.0' 79 6.5' 4.4'

8' 8.0' 61 7.5' 5.0'

8' 172 3.5' 3.5'

10' 110 4.4' 4.4'

12' 76 5.3' 5.3'

14' 56 6.2' 6.2'

36900 12000

Sylvania

CMH39PAR30L/SP10 10°

12' 6.9' 179 2.8' 2.4'

14' 8.1' 131 3.3' 2.8'

16' 9.2' 100 3.7' 3.2'

18' 10.4' 79 4.2' 3.6'

5' 8.7' 198 3.6' 1.7'

6' 10.4' 138 4.3' 2.1'

7' 12.1' 101 5.0' 2.4'

8' 13.9' 77 5.7' 2.8'

7' 7.0' 286 2.5' 1.7'

8' 8.0' 219 2.8' 2.0'

9 9.0' 173 3.2' 2.2'

10' 10.0' 140 3.5' 2.5'

12' 275 2.1' 2.1'

14' 202 2.4' 2.4'

16' 155 2.8' 2.8'

18' 122 3.1' 3.1'

8' 4.6' 81 5.9' 5.0'

10' 5.8' 52 7.3' 6.2'

12' 6.9' 36 8.8' 7.4'

14' 8.1' 27 10.2' 8.7'

3' 5.2' 111 8.2' 3.2'

4' 6.9' 63 10.9' 4.3'

5' 8.7' 40 13.7' 5.4'

6' 10.4' 28 16.4' 6.4'

5' 5.0' 113 5.8' 3.8'

6' 6.0' 79 6.9' 4.5'

7' 7.0' 58 8.1' 5.3'

8' 8.0' 44 9.2' 6.1'

8' 125 4.3' 4.3'

10' 80 5.4' 5.4'

12' 56 6.4' 6.4'

14' 41 7.5' 7.5'

44000 9000

Philips

CMH35PAR30L/SP10 10°

12' 6.9' 198 2.8' 2.4'

14' 8.1' 146 3.3' 2.8'

16' 9.2' 112 3.7' 3.2'

18' 10.4' 88 4.2' 3.6'

5' 8.7' 220 3.6' 1.7'

6' 10.4' 153 4.3' 2.1'

7' 12.1' 112 5.0' 2.4'

8' 13.9' 86 5.7' 2.8'

7' 7.0' 317 2.5' 1.7'

8' 8.0' 243 2.8' 2.0'

9 9.0' 192 3.2' 2.2'

10' 10.0' 156 3.5' 2.5'

12' 306 2.1' 2.1'

14' 224 2.4' 2.4'

16' 172 2.8' 2.8'

18' 136 3.1' 3.1'

7400 9000

Philips

CMH35PAR30L/FL30 30°

8' 4.6' 75 5.9' 5.0'

10' 5.8' 48 7.3' 6.2'

12' 6.9' 33 8.8' 7.4'

14' 8.1' 25 10.2' 8.7'

3' 5.2' 103 8.2' 3.2'

4' 6.9' 58 10.9' 4.3'

5' 8.7' 37 13.7' 5.4'

6' 10.4' 26 16.4' 6.4'

5' 5.0' 105 5.8' 3.8'

6' 6.0' 73 6.9' 4.5'

7' 7.0' 53 8.1' 5.3'

8' 8.0' 41 9.2' 6.1'

8' 116 4.3' 4.3'

10' 74 5.4' 5.4'

12' 51 6.4' 6.4'

14' 38 7.5' 7.5'
