Philips BSure 1 Manuale utente

multimedia projector

cClear

Philips

User guide

English

XP cClear10 English (good) 24-07-2003 15:52 Pagina 1

4-5

Packaging contents 4

Optional accessories 5

Service accessories 5

6-11

Controls 6-9

Remote control 10

Connections 11

12-14

Positioning the projector and screen 12

Switching the projector on and off 12

Adjusting the focus and size of the image 13

Adjusting the vertical angle of the projector 13

Keystone correction 13

Moving/transporting the projector 14

Preparation 14

Moving/transporting the projector 14

Inserting the batteries in the remote control 14

15-23

General information 15

Computer input 15

RS-232 connection 15

Universal Serial Bus (USB) 15

External monitor connection 16

Wireless image transfer (cClear Wireless version only) 16

Video input 16

Connecting to a computer 17-19

Analog connection 17

Connection to an external monitor 18

Digital connection 19

Connecting to video equipment 20-22

CVBS (Video) 20

S-VHS (S-Video) 20

Scart connection 20

Component/HDTV (Pr,Y, Pb/ Cr,Y, Cb) 21

Scart connection (RGBS) 22

Connecting to audio equipment 23

1. Introduction

2. Functional overview

3. Set up

4. Installation

Index

Philips Multimedia Projector 2English User guide cClear

XP cClear10 English (good) 24-07-2003 15:52 Pagina 2

24-40

Preparation 24

General 24

Messages 24-25

Direct key feedback 24

Feedback messages 25

Error messages 25

Warning messages 25

Some examples 18

On Screen Display Menu 26-40

Menu tree 26-28

General explanation 29

Computer adjustments 30-31

Picture adjustments 30

Display adjustments 31

Component/Video/S-Video adjustments 31-32

Picture adjustments 31

Display adjustments 32

General adjustments/settings 33

Settings 33

Audio adjustments 33

General settings 25-27

Examples 34-40

Digital Zoom/Magnification 34

Auto image 34

Horizontal size 34

Shift 34

Picture in picture (PIP) / Double window 35

PIP / Double window - Possible combinations 36-38

Picture Format 38

Loading your own personal start-up screen 39

Restarting the projector 40

41-43

Cleaning 41

Cleaning the cabinet 41

Cleaning the lens 41

Cleaning the dust filter 41

Lamp 42

Lamp replacement 43

Resetting the lamplife time 43

44-47

5. Operation

6. Maintenance

7.Troubleshooting

Index

Philips Multimedia Projector 3English User guide cClear

XP cClear10 English (good) 24-07-2003 15:52 Pagina 3

Congratulations on your purchase of one of the most sophisticated and reliable products on the

market today. We are sure that, used properly, it will bring you years of enjoyment.You will want

to keep this manual handy, as it is a convenient source of information about your projector.

For your own protection and prolonged operation of your projector, please read the enclosed

Safety Sheet.

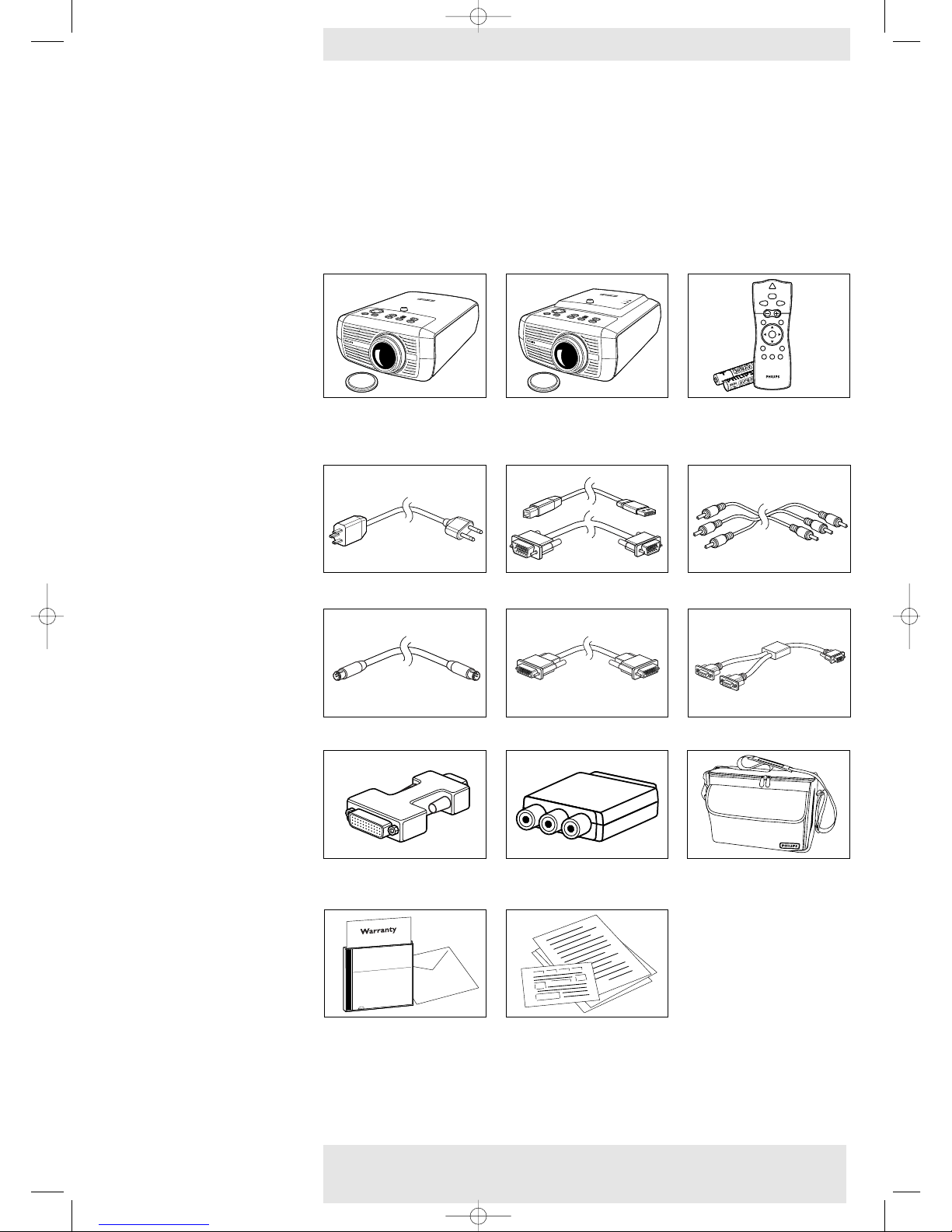

Please confirm that the following items are packed in the projector box.They are provided to

help you use or set up your projector.

Projector - Lens cap Projector - Lens cap Laser pointer remote

cClear - XG1 Brilliance cClear - XG1 Wireless control + batteries 2 x

cClear - SV10 AAA Zinc Carbon, 1.5 V

Mains Lead Integrated VGA/USB Cable Audio/Video RCA Cable

S-Video Cable DVI-I Cable VGA-Y Cable

DVI-I/VGA adapter Scart/RCA Audio Video Softbag

adapter (not for USA version)

Cd-rom (with Projection Quick set up Card and

Assistant, Warranty card, Safety Sheet

SecurityMax, User Guide,

Data sheet and more.)

Packaging contents

1. Introduction

Philips Multimedia Projector 4English User guide cClear

LASER

VOolume

OKMenu

Standby

AVMute

SelectModeSource

Mouse RIGHTLEFT RIightLeft

Window

XP cClear10 English (good) 24-07-2003 15:52 Pagina 4

The following accessories are available via the dealer from whom you purchased your Philips projector:

• LCA 3123/00 - 200 W replacement lamp - 8670 931 23009

• LCA 2211/00 - Ceiling mount - 8670 922 11009

• LCA 5310/00 - Monitor Y-cable - 8670 953 10009

• LCA 5300/00 - VGA extension cable (15 m) - 8670 953 0009

• LCA 5312/00 - Scart/RCA Component Video adapter - 8670 953 12009

The following accessories are available via the Philips Projectors Service organisation only:

• Compact remote Control - 3139 228 60500

• Laser pointer remote Control - 3139 228 60550

• Dust filter - 3122 434 01570

• Mains lead USA - 4822 321 11294

• Mains lead Euro - 4822 321 11399

• Mains lead UK - 4822 321 11431

• Integrated VGA/ USB cable - 3122 438 75120

• MAC adapter (option) - 4822 263 21201

• Audio/Video RCA cable (cinch) - 4822 320 12281

• SCART/RCA Audio Video adapter - 2422 033 00345

• User Guide (Cd- rom) - 3122 438 71130

Optional accessories

Service accessories

1. Introduction

Philips Multimedia Projector 5English User guide cClear

XP cClear10 English (good) 24-07-2003 15:52 Pagina 5

Mutes sound and picture of the projector.

Selects the current projection source: Auto, RGB sync,YPbPr, RGB sog, S-Video,Video,

Mutimedia, Wireless (only available on cClear Wireless version), DVI-RGB, DVI-YPbPr.The button

toggles between the nine/ten signals.

Adjusts the volume.

Activates and deactivates the menu.

Confirms actions in the menu when the menu is on screen.

Switches the projector in or out of the Power/Standby mode.

The Standby indicator (text on button/ring around button):

– lights up orange when the projector is warming up;

– lights up red when the projector is in Power/Standby mode;

– lights up green as when the projector is operating;

– slowly blinks orange when the projector is cooling down.

– Lights up red in case of temperature error.

– Flashes in case of fan error.

– Lights up green when the lamp is on.

– Lights up orange when lamp life has almost expired.

– Lights up red when lamp life has expired.

– Fast blinks red when lamp start has failed.

Receives the signals from the remote control.

Corrects picture distortion of the horizontal and vertical keystone type by internal scaling.

Manipulate the mouse cursor on the connected computer as long as the menu is not active.

When the menu is active the Cursor Control controls the menu cursor to navigate through the

OSD menu.The cursor control works with up/down and left/right button operation.

The Cursor Control can only function as a mouse cursor when projector and computer are connected

via the USB or PS/2 connectors. Make sure your operating system supports USB or PS/2.

A(udio)/V(ideo) Mute 1

Source 2

Volume – / + 3

Menu 4

OK 5

Standby/

Standby indicator 6

Temperature indicator 7

Lamp indicator 8

IR sensor 9

Keystone 0

Cursor Control !

Note

2. Functional overview

Philips Multimedia Projector 6English User guide cClear

Menu OK

Mute Source

Stand

Lamp

Tem p

Menu OK

Mute Source

Stand

Lamp

Temp

789

123

Controls

XP cClear10 English (good) 24-07-2003 15:52 Pagina 6

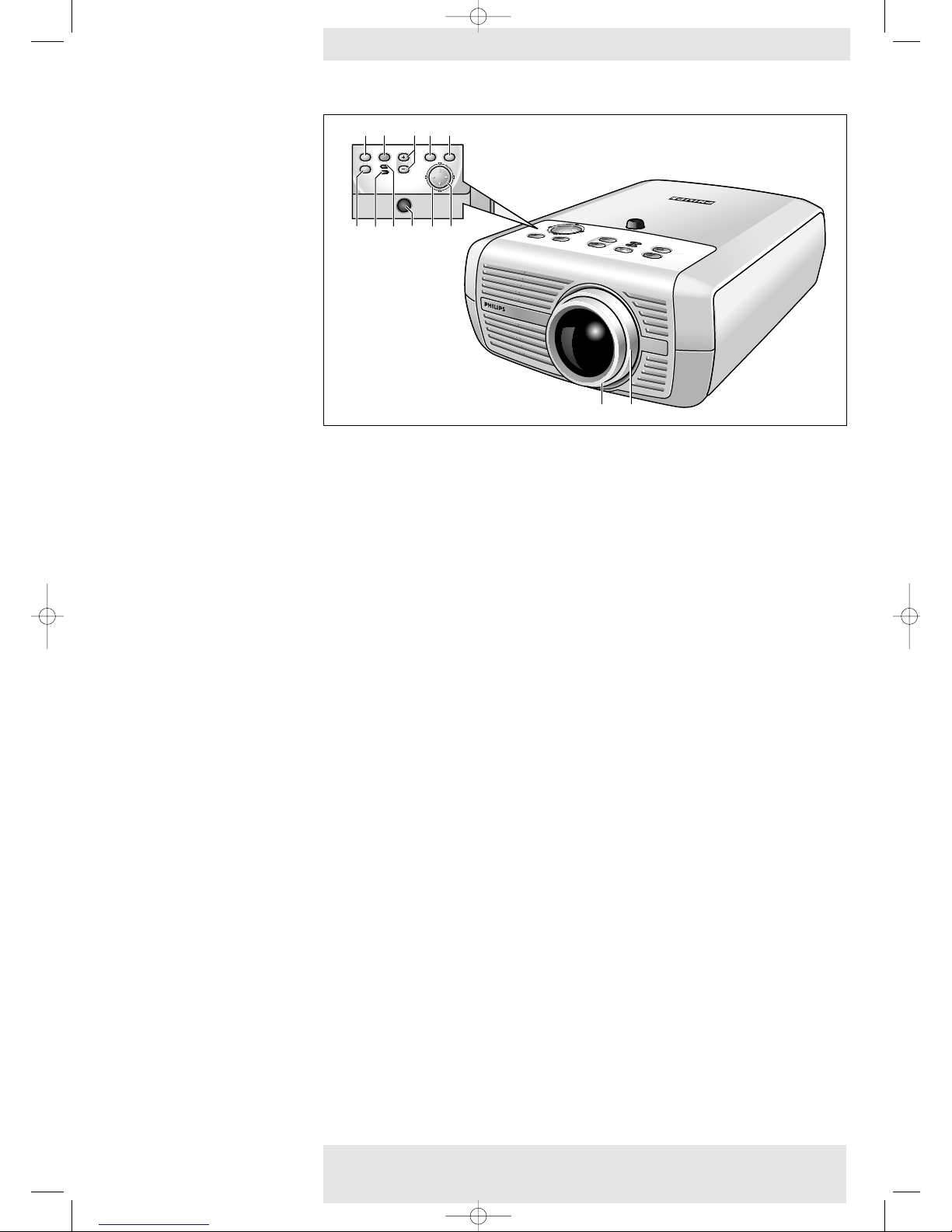

Adjusts the focus of the projected image.

Adjusts the size of the projected image.

Focus ring @

Zoomring #

2. Functional overview

Philips Multimedia Projector 7English User guide cClear

Controls >

Menu OK

Mute Source

Stand

Lamp

Tem p

Menu OK

Mute Source

Stand

Lamp

Temp

789

123

XP cClear10 English (good) 24-07-2003 15:52 Pagina 7

cClear Wireless version only

Lights up green when wireless operation is activated.

Lights up green when the projector operates in a wireless network.

Lights up green when wireless connection has been made.

Resets all network settings to the default settings

The Reset button is recessed to prevent accidental resets of the network settings.To reset:

Insert e.g. a paperclip into the small hole marked Reset and gently press the Reset button.

Do not use excessive force to press the RESET button for this could damage the button.

Power indicator $

Ready indicator %

WLAN indicator ^

(Wireless Local Area

Network)

Reset &

Note

2. Functional overview

Philips Multimedia Projector 8English User guide cClear

Controls >

XP cClear10 English (good) 24-07-2003 15:52 Pagina 8

To adjust the vertical angle of the projector.

To connect the projector to the mains.

To insert an optional locking device (Kensington lock).

Height/Level adjuster #

Dust filter $

Mains inlet socket %

Lock slit ^

Lamp compartment &

2. Functional overview

Philips Multimedia Projector 9English User guide cClear

%^&

Controls

XP cClear10 English (good) 24-07-2003 15:52 Pagina 9

Philips Multimedia Projector 10 English User guide cClear

2. Functional overview

Activates the laser pointer to indicate items on the screen.

Note:The laser pointer sends out a laser beam. Do not look into this beam!

Function as the Left and Right mouse keys of your pc when USB or PS/2 connection has been

made.

Adjusts the volume.

Activates and de-activates the menu.

Mutes sound and picture of the projector.

Selects the current projection source: Auto, RGB sync,YPbPr, RGB sog, S-Video,Video,

Mutimedia, Wireless (only available on cClear wireless version), DVI-RGP, DVI-YPbPr.The button

toggles between the nine/ten signals.

Selects projection from one or two input sources.The button toggles between:

– Default - only images from current source projected

– Double Window - images from two sources projected next to each other .

– PIP - images from second source projected within currently shown image .

Selects the window for which you wish to change settings when in PIP or Double Window

mode.

Switches the projector in or out of the Power/Standby mode.

Manipulates the mouse cursor on the connected computer as long as the menu is not active.

When the menu is active the Cursor Control controls the menu cursor to navigate through the

OSD menu.The cursor control works with up/down and left/right button operation.

The Cursor Control can only function as a mouse cursor when projector and computer are connected

via the USB or PS/2 connectors. Make sure your operating system supports USB or PS/2.

Confirms actions in the menu when the menu is on screen.

Exit point of laser pointer.

Laser 1

Mouse Left/Right 2

–Volume + 3

Menu 4

A(udio)/V(ideo) Mute 5

Source 6

Window Mode 7

Window Select 8

Stand by On 9

Cursor Control 0

Note

OK !

Laser pointer @

<Remote control

VOLUME

OKMENU

Stand by

SelectModeSOURCE

MOUSE RightLeft

Laser

RightLeft

AV MUTE

Window

XP cClear10 English (good) 24-07-2003 15:52 Pagina 10

Altri manuali per bSure 1

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Philips Proiettore

Philips

Philips PicoPix PPX 4935 Manuale utente

Philips

Philips HDP1690TV Manuale utente

Philips

Philips PicoPix Nano PPX120 Manuale utente

Philips

Philips PicoPix PPX 4835 Manuale utente

Philips

Philips PicoPix Manuale utente

Philips

Philips NeoPix Start Manuale utente

Philips

Philips NeoPix Easy+ Manuale utente

Philips

Philips Bedtime Magic SBCSC940 Manuale utente

Philips

Philips NeoPix Ultra One+ Manuale utente

Philips

Philips LC3500 Manuale utente

Philips

Philips NeoPix Ultra 2+ Manuale utente

Philips

Philips PicoPix PPX 1430 Manuale utente

Philips

Philips NPX530 Manuale utente

Philips

Philips DTR2610/28 Manuale utente

Philips

Philips ProScreen PXG30 Series Manuale utente

Philips

Philips LC4433 Manuale utente

Philips

Philips PPX2055/EU Manuale utente

Philips

Philips PICOPIX PPX1020 Manuale utente

Philips

Philips cBright Series Manuale utente

Philips

Philips Bogart Matchline LC7281 Manuale utente

Philips

Philips NeoPix Ultra 2+ Manuale utente

Philips

Philips PicoPix PPX3414 Manuale utente

Philips

Philips PICOPIX PPX1230 Manuale utente

Philips

Philips NeoPix Easy Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente

Asus

Asus ZenBeam Latte Manuale utente

Philips bSure 1 Manuale utente

Manuali Proiettore popolari di altre marche
