Philips SLV5405 Manuale utente

Wireless TV Link

User Manual

SLV5405

WIRELESS TV LINK RECEIVER

Contents

Page

Overview 4

Control and display elements 4

Your Wireless TV Link 5

Safety 5

Installation 6

Operation 6

Enjoy your Wireless TV Link 6

Troubleshooting 8

Information 10

Health and safety 10

Maintenance and service 10

Recycling and disposal 10

Warranty 11

Glossary 11

EN Overview

Control and display elements

A Receiver

1 On/off switch

2 Power light

> red: standby

> green: on

> blinking: remote control signalling

3 Source selector buttons (+/-)

> in combination with the SLV5400 transmitter

4 Integrated remote control blaster light

5 Antenna

6 Wireless channel selection switch

7 SCART port for TV2

8 Power input connector (DC 12V)

Your Wireless TV Link

You can say good-bye to wires. With your Wireless TV

Link receiver you can now wirelessly connect a third TV

and choose between four devices to watch on your third

TV.

Safety

• Read the instructions in this manual carefully before

you connect, install and use the product.

• Keep this manual for future reference.

• The product is for indoor use only.

• Do not use the product close to water.

• Do not expose the product to extreme heat.

• In case of technical difficulties, do not open the

product. Bring it to your Philips dealer.

• Do not cover the product.

• Connect the power adapters only to a

220-240 V AC/50 Hz power supply.

• The product can cause interference to other

equipment. Check if any equipment near the product

can be affected before you start using it.

EN Installation

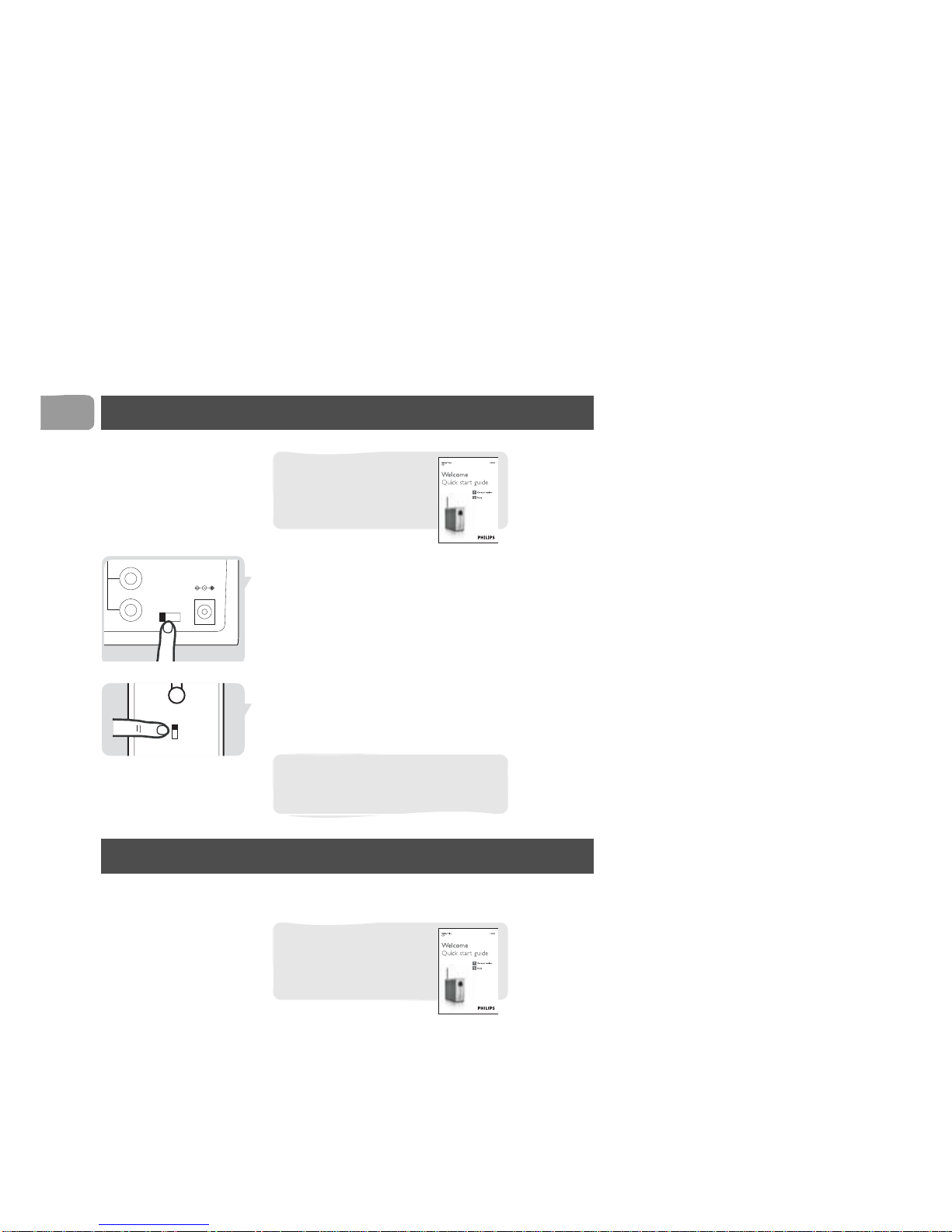

Remove interference on TV3

1 Find the CHANNEL switch on the transmitter.

2 Check the setting of the CHANNEL switch.

3 Find the CHANNEL switch on the receiver (A).

4 Set the CHANNEL switch to the same number as

on the transmitter.

Operation

Enjoy your Wireless TV Link

For basic installation, see

the quick start guide that

came with your Wireless

TV Link.

Channel

DC 12V

1 2 3 4

CHANNEL

Make sure to set the CHANNEL

switch on both the original and the new

receiver.

For basic installation, see

the quick start guide that

came with your Wireless

TV Link.

Operation

Watch a cable TV program on TV3

1 Switch on the transmitter.

2 Switch on the VCR or DVD recorder.

3 Take the remote control of the VCR or DVD

recorder with you.

4 Go to TV3.

5 Switch on TV3.

6 Switch on the receiver (A).

7 Press +or -on the receiver (A) to select the VCR or

DVD recorder;

or: press 4on the remote control.

8 Select the channel on the VCR or DVD recorder

with its remote control.

Your VCR or DVD recorder needs to

be connected to the transmitter (A) of

the Wireless TV Link and connected to

the Cable-TV signal.

STANDBY SELECT

SLV5400WIRELESS TV LINK TRANSMITTER

WIRELESS TV LINK RECEIVER

Turn off the auto standby mode when

you use the VCR or DVD recorder to

watch a cable tv program. Refer to the

user manual of the VCR or DVD

recorder.

If the VCR or DVD recorder records a

television program, you watch the

recorded channel.

EN Troubleshooting

Problem Tip

No image or wrong

image on TV3 • Make sure SCART cables are

firmly inserted.

• Make sure the receiver (A) is

connected to TV3.

• Make sure both receiver (A) and

transmitter are switched on.

• Make sure the video source is

switched on.

• Make sure the correct SCART

input on TV3 is selected.

• Select the correct video source

with +/- on the receiver (A).

> In combination with the

SLV5400 transmitter.

• If the video source gives proper

image on TV1:

Make sure the video source gives

video signal in CVBS mode. See

its user manual

• Change the wireless channel that

is used for communication. See

page 6.

• The receiver (A) is out of range

of the transmitter. The number

of walls and ceilings in between

the receiver (A) and transmitter

restrict the distance.

Interference in the

image on TV3 •

Slightly change the position of the

receiver (A) or the transmitter.

• Change the wireless channel that

is used for communication. See

page 6.

• The receiver (A) is out of range

of the transmitter. The number

of walls and ceilings in between

the receiver (A) and transmitter

restrict the distance.

Troubleshooting

Problem Tip

The video sources

do not respond to

the remote

controlcommands

from TV3

• Point the remote control directly

to the receiver (A).

• Replace the batteries of the

remote controls with new ones.

• Install the remote control blaster

cord. See the user manual of the

Wireless TV Link.

• The maximum operating distance

of the remote control is 5 m.

The image of the

video source dis-

appears on TV3

• Turn off the auto standby mode

of the video source. See its user

manual.

• Follow the instructions to recon-

nect the video sources. See the

quick start guide.

Buzzing sound

when you use the

remote control.

• Slightly change the position of the

receiver or the transmitter until

the buzzing sound stops.

• Sometimes it is not possible to

solve the problem.

Black and white

image with S-VHS

VCR.

• Check if the SCART connector of

the S-VHS VCR gives signal in

CVBS. See its user manual.

EN Information

Health and safety

The product transmits and receives radio waves when it

is switched on. The product complies with the standards

that are defined for it.

The quality of the image can be influenced by the use of

microwave ovens. Other wireless systems (Bluetooth,

wireless networks etc.) can also have influence on the

quality of the image.

The product is based on RF technology. Therefore the

product can suffer from the same kinds of interference

as GSMs, portable radios and other RF-based products.

Maintenance and service

If your product is defective and needs repair, but your

warranty period has expired, you can consult our

specialists (see the rear page)

Recycling and disposal

All redundant packaging material has been omitted. Your

set consists of materials that can be recycled if

disassembled by a specialized company. Please observe

the local regulations regarding the disposal of packaging

materials, batteries and old equipment.

Disposal of your old product

Your product is designed and manufactured with high

quality materials and components, which can be recycled

and reused.

When this crossed-out wheeled bin symbol is attached

to a product it means the product is covered by the

European Directive 2002/96/EC.

Please inform yourself about the local separate collection

system for electrical and electronic products.

Please act according to your local rules and do not

dispose of your old products with your normal

household waste. The correct disposal of your old

product will help prevent potential negative

consequences for the environment and human health.
