Philips CDR570BK99 Manuale utente

Audio CD-Recorder

CDR570

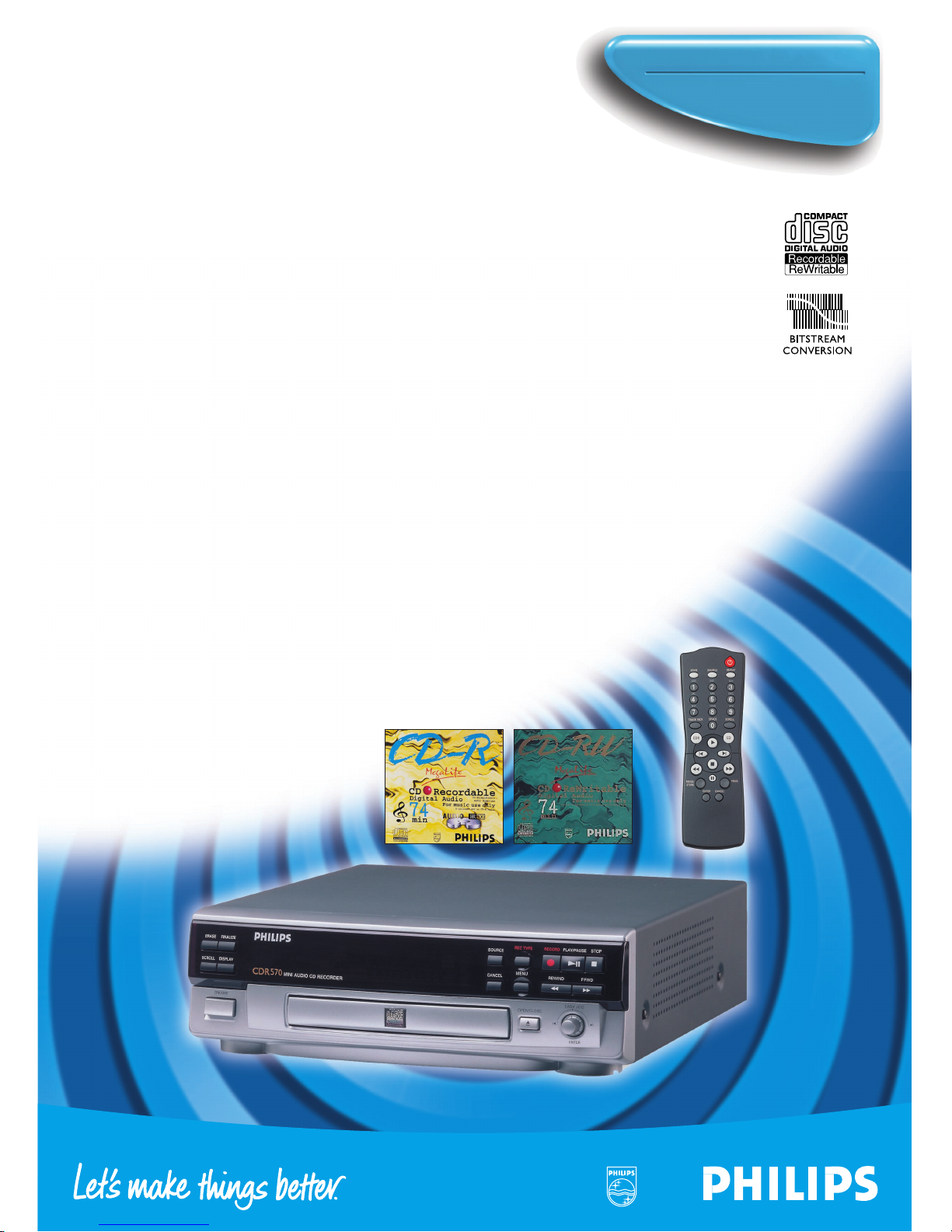

Philips Mini component CD-Recorder CDR 570

• AD - DA convertor UDA1341TS (CODEC)

• Sample Rate Conversion (12-56 kHz)

• Direct Line Recording (DLR)

• Records HQ-CD format

• Analogue + digital (separate channel) record level control (64 steps)

• Continuous calibration (Running OPC)

• 2x CD text features (input & editing for max.60 characters)

• Max.99-track program

• CD Synchronised auto start recording from

all analogue and digital sources (disc & track)

• Text scrolling

• Standby (via RC) + hard on/off

• Music calendar

• Easy jog (Menu controlled user interface)

• High quality starbust FTD (display)

• Auto (un) finalise

• Erasing per track,selection of last tracks & whole disc

(takes max.2 min.)

• Introscan

• Tray blocking (dealer function)

• Remote control

Audio CD-Recorder

CDR570

700+ series CD player

Technical Specifications CDR 570

General

• System Compact disc digitalAudio (CD-recorder)

• Number of channels 2 (stereo)

• Applicable supply Multi voltage 100V -240V 50-60 Hz (/00 only) 117V (/17)

• Power consumption 15W (<= 6W in standby)

• Operating temperature 5-35°C

• Weight 4 kg

• Dimensions 264 x 305 x 86 mm (w x d x h)

Audio

• Digital frequency range 2 Hz - 22,05 kHz

• Playback S/N 100 dB (A- weighted)

• Playback dynamic range 95 dB

• Play back total harmonic distortion

+ noise 91 dB (0,0039%)

• Recording S/N (Analogue) 98 dB (A- weighted)

• Recording S/N (Digital) Recording quality equal to Source

• Recording dynamic range 92 dB

• Recording total harmonic distortion

+ noise 85 dB (0,0079%)

Output

• 1xAnalogue line output 2Vrms +/- 2 dB / 0.2 kΩ

• 1x Digital coaxial output 0.5V(pp) / 75Ω

Input (level adjustment)

• Direct line recording (bypass SRC) for 44.1 kHz +/- 100 ppm

• 1x Digital coaxial input (SRC) 12 - 56 kHz / 0.5Vrms / 75Ω

• 1x Digital optical input (SRC) 12 - 56 kHz

• 1xAnalogue input 500 mVrms / 50 kΩ= 0 dB

Recording functions

• Recording on CD-R & CD-RW disc

• Records from all home stereo analogue and digital sources

• Auto start recording per disc,track

• Soft mute insert function

• Multi track erase (CD-RW disc)

• Erase disc (CD-RW disc)

• Auto finalise / unfinalise disc (CD-RW disc)

• Manual /Auto track increment

• Remaining recording time display

• Double speed finalising (make disc compatible to CD-player)

• SCMS (Serial Copy management system)

• RID code (Recorder Unique identifier)

Playback functions

• Plays allAudio CD’s

(120 mm + 80 mm discs)

• Play - Introscan - Pause - Stop

• Direct track selection

• Track selection with easy jog

• Search forward / reverse

• Repeat (all / per track)

• Program play (99 tracks)

• Time display switching

• Permanent text option

Theproductsandservicesdescribed here arenot necessarily tobecome available inthe market. Thisdocument contains preliminaryinformation.Dueto continuousimprovementsthis specificationissubject tochangeswithout notice. Printedinthe Netherlands.2/99

Accessories

• Remote control + batteries

(DR570 only)

• Audio cable (x2)

• Digital coaxial cable (x1)

• AC mains cord

SCAN

ABC

GHI

DEF

JKL OPQ

RST XYZ

UVW

SPACE

ENTER CANCEL

TRACK INCR.

MENU/

STORE

PROG.

CDR CD

SCROLL

SHUFFLE REPEAT
