Taking a First Look

ProntoPro NG:

The Home Theater Control Panel

ProntoPro NG is a Home Theater Control Panel that allows maximum flexibility and

customization for even the most sophisticated home entertainment system. It can

control almost any device that works with infrared (IR) remote control signals.

Its intuitive interface makes it a perfect remote control for every user.

ProntoPro NG is easy to configure. It contains a huge universal database where

IR codes are stored to control different brands for all kinds of video, audio devices

and even home automation equipment. By default ProntoPro NG is set up to

control Philips and Marantz devices. For other brands you simply choose the

brands of your devices when you use ProntoPro NG for the first time.

Furthermore the ProntoPro NG is equipped with a color touch screen. This TFT-

display supports 65536 colors so you can upload any color picture.

ProntoPro NG offers you some extra powerful features:

■You can create and edit macros, allowing you to send a series of commands

with one single touch.

■You can set timers for certain actions to be carried out at predefined times,

e.g. switching on your lights or recording your favorite daily TV-show with

your VCR.

■You can choose to have ProntoPro NG working with radio frequency (RF)

signals to operate devices from a distance or from an adjacent room. To do

this, you need an optional RF Extender that converts ProntoPro NG RF signals

into IR signals.

With ProntoProEdit NG software you can create your own screens and define a

personal look. ProntoProEdit NG’s Online Help system (accessible via the ‘Help’

icon in ProntoProEdit NG) will guide you through the process.

See ‘ProntoProEdit NG’ on page 53 for more information. You can find

ProntoProEdit NG on the included CD-ROM and on the Philips website

www.pronto.philips.com. In the Downloads section of the website you can also

find the latest upgrades for your ProntoPro NG software.

ProntoProNG_0505_ML_1EN.qxd 14-06-2005 09:54 Pagina 4

User Guide

Taking a First Look

The Device

ProntoPro NG has several hard buttons. Most are freely programmable, some have

a predefined function:

■The buttons on the left side of the ProntoPro NG screen have predefined

functions: Page up, Page down and Backlight.

■The 4 firm keys below the touch screen are freely programmable. You can

reprogram the function of these buttons and change the label on the touch

screen.

■The cursor and the Home button on the right side of the cursor are

programmed to operate devices (e.g. navigating through the on screen menu of

your TV). With the Toggle button you can change the working of the cursor.

The free programmable and the OK button are meant for future purposes.

The buttons on the right side of the screen are used to control the volume and

channel: Channel up, Channel down, Mute, Volume up and Volume down.

Although these buttons each have a predefined function, you can program

them yourself. If you learn one of these buttons or assign a macro to it, its

predefined function will be permanently lost.

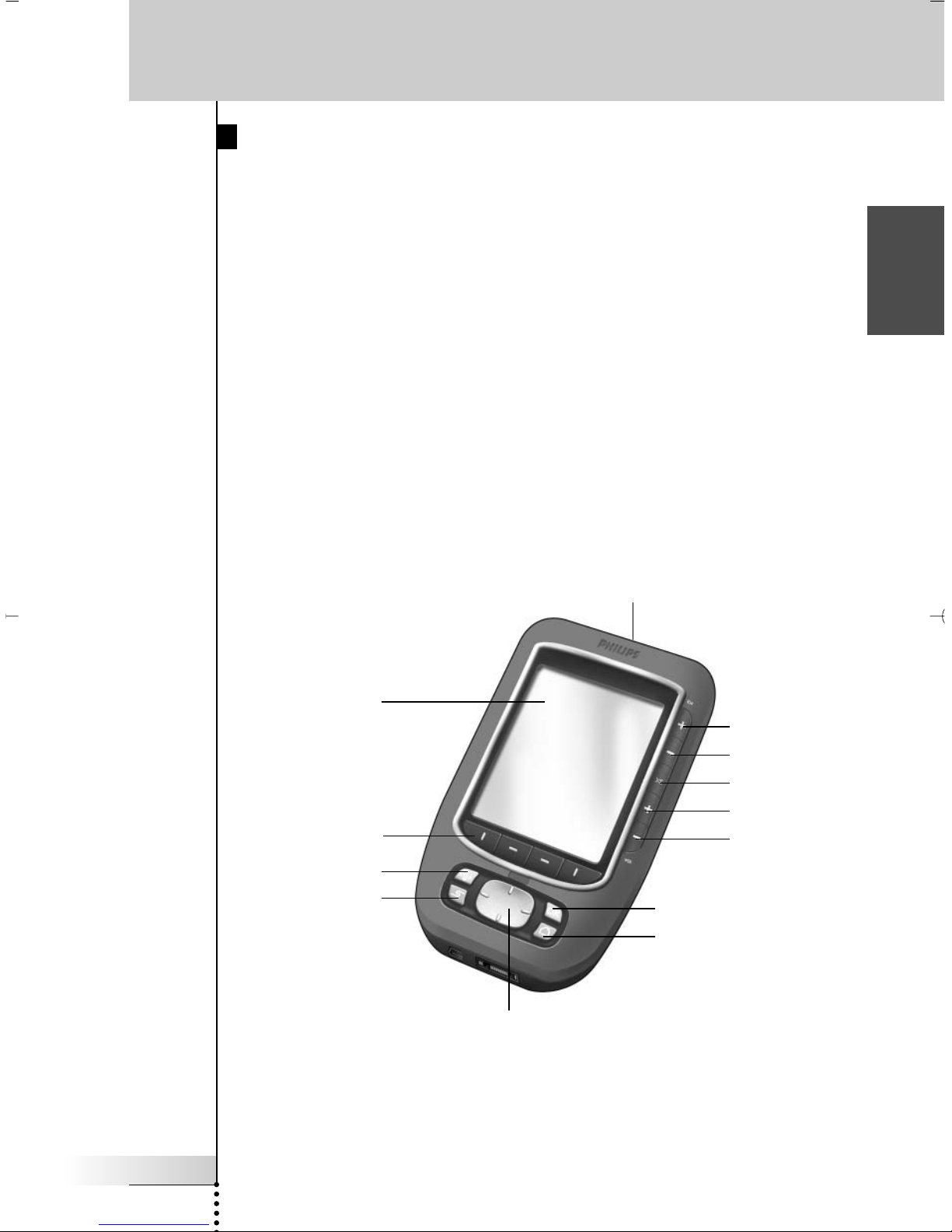

Learning eye

LCD touch screen

Firm keys

Free programmable

Toggle button

Cursor

Channel up

Channel down

Mute

Volume up

Volume down

Home

ProntoProNG_0505_ML_1EN.qxd 14-06-2005 09:54 Pagina 5

User Guide

Taking a First Look

Backlight

Page up

Page down

USB port

Reset button

Connection to docking station

Battery

compartment

ProntoProNG_0505_ML_1EN.qxd 14-06-2005 09:54 Pagina 6

User Guide

Taking a First Look

Labels for the

firm keys

Device

ProntoPro NG

Icon

Device

Overview

button

Page

Overview

button

Soft

buttons

The Touch Screen

ProntoProNG_0505_ML_1EN.qxd 14-06-2005 09:54 Pagina 7

User Guide

Taking a First Look

The Docking Station

The docking station is used to charge the ProntoPro NG’s battery pack.

When your ProntoPro NG is placed in the docking station, you can connect

ProntoPro NG to your computer via the USB port of the docking station, instead of

the USB port of the ProntoPro NG.

USB port

Connector for

ProntoPro NG

Adapter Connector

ProntoProNG_0505_ML_1EN.qxd 14-06-2005 09:54 Pagina 8
