Philips HTR3465/98 Manuale utente

What’s in the box?

Need help?

User Manual

See the user manual that came with your Philips Digital AV Receiver System.

2008 CKoninklijke Philips N.V.

www.philips.com

sgpjy_0814/98_4

www.philips.com/welcome

Quick Start Guide

Connect

Set up

Enjoy

HTR3465

Main Unit Remote Control

and 2 batteries

User

Manual

1 centre, 2 front, 2 rear speakers

and subwoofer

Audio cable

Power cable

Adjusting the speakers

APress 2on main unit to turn it on.

BPress SURR to switch to multi-channel surround

mode.

CPress PROG to access the system setup menu.

To adjust the audio delay for the

centre speaker:

zPress .or >until ‘CENTER DELAY’ appears.

zPress PROG.

zRotate the VOLUME control to change the delay

time.

To adjust the audio delay for the rear speaker:

zPress .or >until ‘REAR DELAY’ appears.

zRotate the VOLUME control to change the delay

time.

DTo confirm all settings, press PROG.

See the accompanying user manual for other

options to ne-tune your speaker settings.

Start Playback

APress 2on the main unit to turn it on.

Note Ensure all the audio/video devices are connected

before you start playback.

BTurn on the connected audio/video device.

CPress PLAY on the connected audio/video device.

DPress DI/AUX to select the preferred audio input

source.

Playback from portable audio

player

Listen to audio from your portable audio player by

connecting the device to your main unit.

AConnect the MP3 LINK cable (supplied) from the

MP3 LINK socket on the main unit to the

headphone output socket on your portable audio

player.

BPress PLAY on your portable audio player.

CPress MP3 LINK to listen to the playback.

See the accompanying user manual for radio

tuning and other playback settings.

2Set up 3Enjoy

Coaxial cable

MP3 LINK cable

for portable audio player

FM wire antenna

htr3465_98_qsg_eng.indd 1htr3465_98_qsg_eng.indd 1 2008-04-10 1:14:15 PM2008-04-10 1:14:15 PM

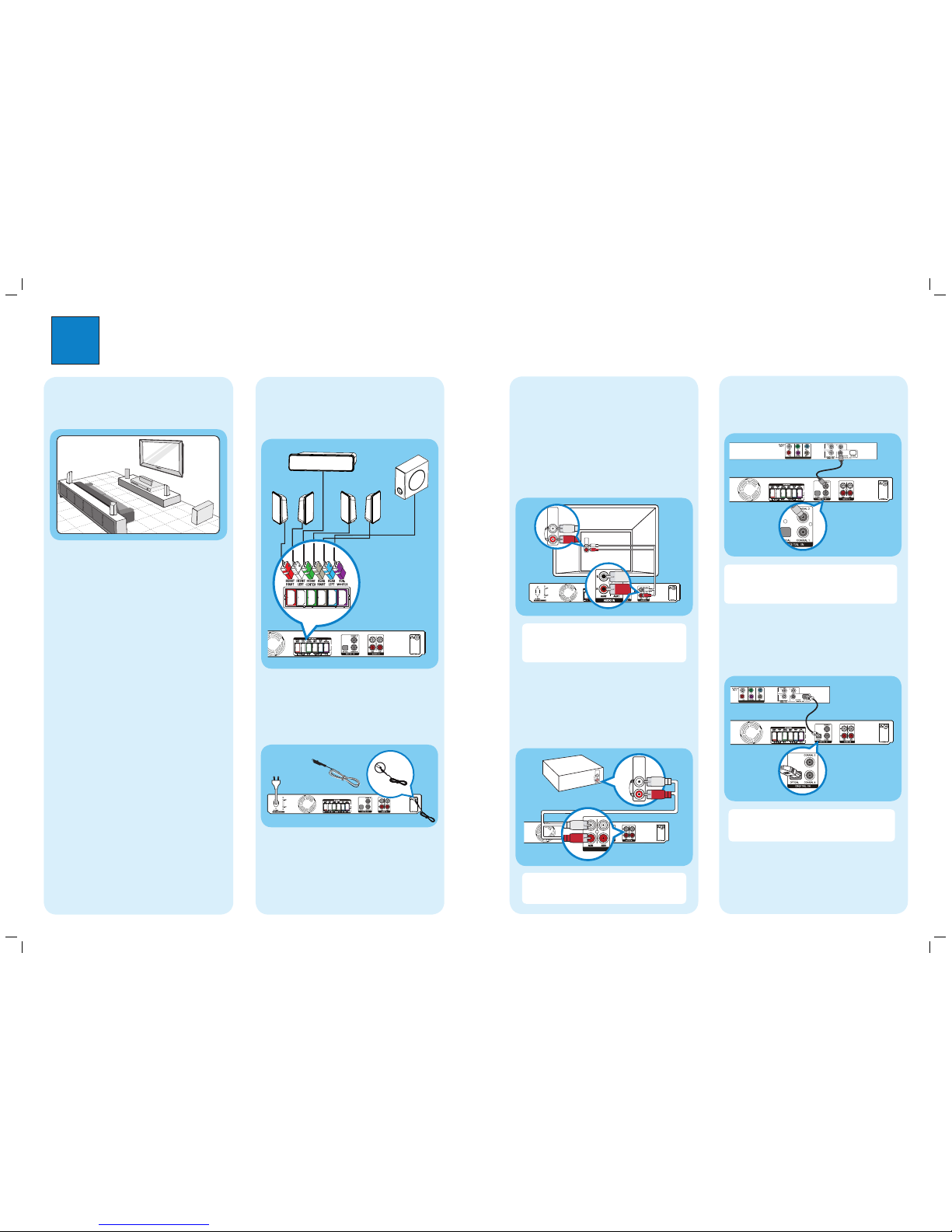

1Connect

Placement

Proper speakers system placement is important to

ensure optimum sound performance.

FRONT

RIGHT

SUBWOOFER

FRONT

LEFT

CENTER

REAR

RIGHT

REAR

LEFT

APlace the centre speaker above or close to the TV.

BPlace the subwoofer on the floor, at least one metre

away from the TV.

CPlace the front speakers at equal distances from the

TV.

DPlace the rear speakers at the back or beside the

listening position.

Connect the speakers and subwoofer

Connect the various coloured plugs from the speakers

and subwoofer to the same coloured sockets at the rear

of the main unit.

Connect the radio antenna and

power cable

Keep the antennas away from the electronic devices to

prevent unwanted interference.

AConnect the FM antenna (supplied) to the inner pin

of the FM 75 socket. (For some models, it has

been connected in the factory.) Extend the wire for

optimum reception.

BConnect the power cable from the main unit to the

AC power outlet.

Connect the audio from audio/video

devices (TV, DVD Player, Recorder, Cable/

Satellite Receiver or Game Console) (optional)

Option 1: Using the analogue audio sockets

(Connect audio output from TV)

To hear the TV audio through this unit, use a red and

white audio cables (supplied) to connect the AUDIO IN-

AUX sockets on the main unit to the AUDIO OUT

sockets on your TV.

AUDIO

OUT

AUDIOIN

AUDIO

OUT

AUDIO OUT

Note When watching the TV programs, you can

press DI/AUX repeatedly on the remote control until

‘AUX 1’ or ‘AUX 2’ is displayed to get the sound

output from the speakers.

Option 2: Using the analogue audio sockets

(Connect audio output from other device)

Connect a red and white audio cables (supplied) to

connect the AUDIO IN-AUX sockets on the main unit

to the AUDIO OUT sockets on the connected device

(for example, DVD recorder, VCR, Cable/Satellite Box).

AUDIO

OUT

AUDIO OUT

AUDIO

OUT

Note Press DI/AUX repeatedly on the remote

control until ‘AUX 1’ or ‘AUX 2’ is displayed as the

source you want to listen to.

Main Unit (rear)

FM antenna

SUBWOOFER

FRONT

RIGHT

FRONT

LEFT

REAR

RIGHT

REAR

LEFT

FRONT CENTER

Main Unit (rear)

Option 3: Using the Coaxial In socket

Connect a coaxial cable (supplied) from the DIGITAL

IN-COAXIAL socket on the main unit to the COAXIAL

OUT sockets on the other device.

Note Start playback on the device. Press DI/AUX

repeatedly on the remote control until ‘COAX IN1’ or

‘COAX IN2’ is displayed as the source you want to listen

to.

Option 4: Using the Optical In socket

Connect an optical cable (not supplied) from the

DIGITAL IN-OPTICAL sockets on the main unit to the

OPTICAL OUT sockets on the other device.

Note Start playback on the device. Press DI/AUX

repeatedly on the remote control until ‘OPTI IN’ is

displayed as the source you want to listen to.

Main Unit (rear)

TV (rear)

DVD recorder/ VCR/

Cable/ Satellite Box

Main Unit (rear)

Audio/ Video device (rear)

Main Unit (rear)

Audio/ Video device (rear)

htr3465_98_qsg_eng.indd 2htr3465_98_qsg_eng.indd 2 2008-04-10 1:14:17 PM2008-04-10 1:14:17 PM
