Introduction of FW-C399/25/30/34

For Service documentation please refer to FW-C399

Service Manual 12NC: 3139 785 30031

FW-C399/25 refers to FW-C399/22 except the following

adaptations:

385 2422 070 98147 Mains Cord

FW-C399/30 refers to FW-C399/22 except without

RDS/NEWS and the following adaptations:

1. Mechanical & Accessories

101 3139 118 17081 Cabinet Front

128 3139 118 16750 Window Display

142 Deleted

256 3139 114 73140 Panel Rear

385 2422 070 98148 Mains Cord

387 3139 115 21120 Instruction For Use

2. Front Board

Delete 1425, 1427, 1433, 2449 - 2455, 2479, 3510,

3530, 3576 - 3580, 5403, 6426, 7401

2400 4822 124 41584 100uF 20% 10V

3432 4822 116 80176 1R 5% 0,5W

3433 4822 116 80176 1R 5% 0,5W

3511 4822 051 30103 10k 5% 0,062W

3581 4822 051 30103 10k 5% 0,062W

3. It refers to ECO6 Tuner Board - System Non-

Cenelec /01 version.

FW-C399/34 refers to FW-C399/22 except the following

adaptations:

1. Accessories

387 3139 115 21240 Instruction For Use

3. It refers to ECO6 Tuner Board - System Non-

Cenelec /14 version.

Service Information

Service

Product Service Group CE Audio

3139 785 30096

2002 - 07 - 15

FW-C399

A02 - 176

CHANGES DURING PRODUCTION

3CDC MODULE

* From production wk224 onwards a new 3CDC-LLC-DA11

module with Sanyo DA11 Drive is introduced as an alterna-

tive module.

The new module can be recognized by:

a) the label on the left side of the module

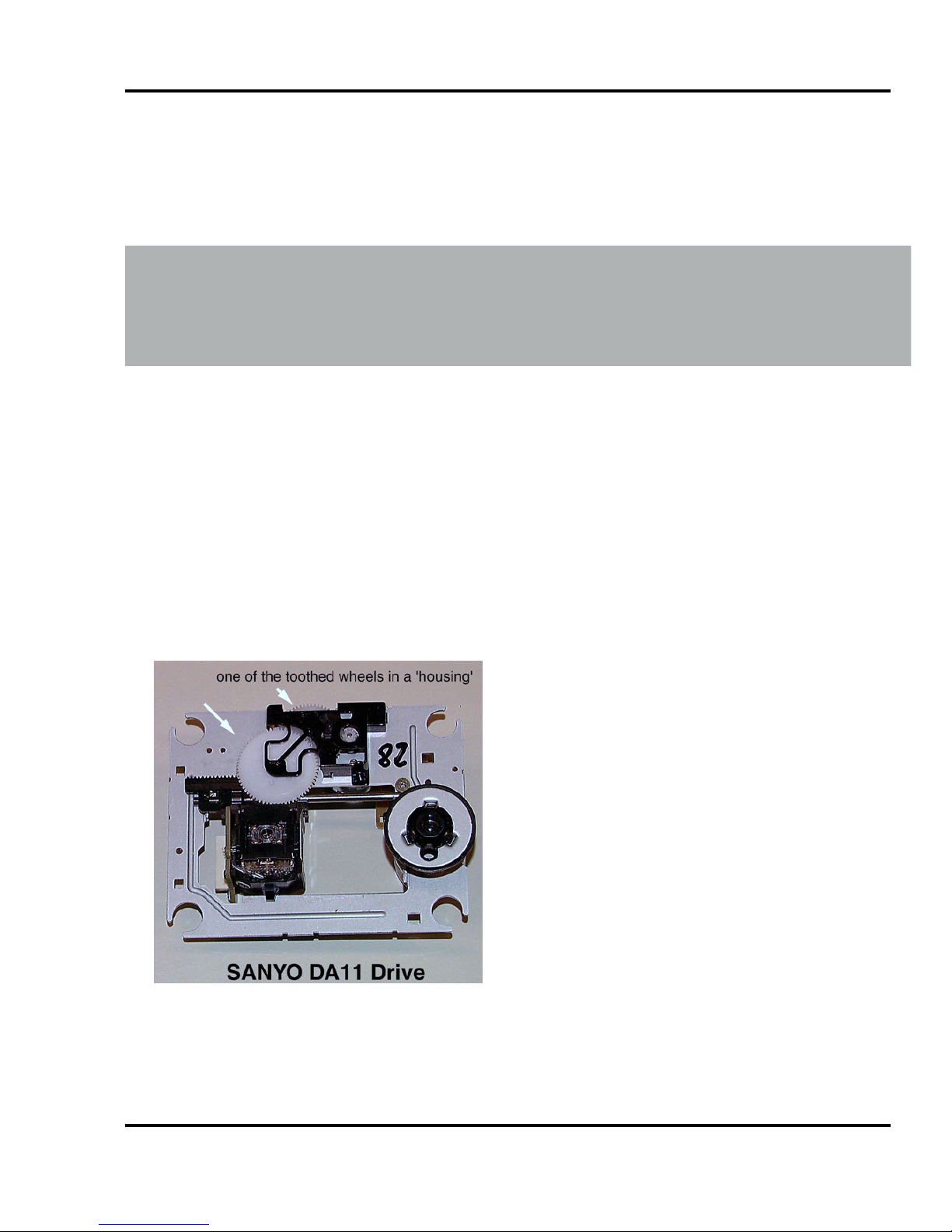

b) the additional housing over one of the toothed wheels as

shown in the picture below

Enclosed is the complete new chapter 10 for the new

module.

Already published Service Informations: A02-159 3139 785 30073

MMPWR 100W MODULE

*From wk238onwards (begin with /37 versions) the following

changes are make to improve reliability of the Power ampli-

fier.

Delete: 2360, 2363, 3371 and 3374

Add: 2361 5322 121 42386 100nF 10% 50V

2364 5322 121 42386 100nF 10% 50V

3372 4822 053 10478 4R7 5% 1W

3374 4822 053 10478 4R7 5% 1W

Change: 2362 to 4822 121 43856 4,7nF 10% 50V

2365 to 4822 121 43856 4,7nF 10% 50V

7330 to 9322 182 31682 STK442-110i

All components are already provided as provision in the

existing schematics & layout drawings.

10-1

TABLE OF CONTENTS

Service Hints.....................................................................10-2

Blockdiagram ....................................................................10-5

Component Layout Main Board ........................................10-6

Circuit Diagram part1........................................................10-7

Component Layout Main Board ........................................10-8

Circuit Diagram part2........................................................10-9

Exploded View ..................................................................10-10

Partslist .............................................................................10-12

3CDC-LLC-DA11

(3 Disc Carousel Changer)

Layout stage .3

10-2

The following steps have to be done when replacing the CD mechanism:

1. Disconnect flexfoil cable from the old CD drive

2. Put a paperclip on the flexfoil to short-circuit the contacts (fig.1)

3. Remove the old CD drive

4. Remove paperclip from the flexfoil and connect it to the new drive

5. Position the new CD drive in its studs

6. Remove solder joint from the Laserunit

CHARGED CAPACITORS ON THE SERVO BOARD MAY DAMAGE THE CD DRIVE ELECTRONICS WHEN

CONNECTING A NEW CD MECHANISM. THAT´S WHY, BESIDES THE SAFETY MEASURES LIKE

• SWITCH OFF POWER SUPPLY

• ESD PROTECTION

ADDITIONAL ACTIONS MUST BE TAKEN BY THE REPAIR TECHNICIAN.

fig.1

Attention: The laser diode of this CD drive is protected against ESD by a solder joint which shortcircuits the

laserdiode to ground.

For proper functionality of the CD drive this solder joint must be removed after connection the drive to

the set.

Emergency open

Service hints

In case of a Supply fault, the tray can be opened manually.

1. Remove the top cover of the set to get access to the Changer Module.

2. Turn gearwheel clockwise (as shown in picture below).

CAUTION

10-3

Pos 49 Guiding

Pos 48 Cam

Detail A

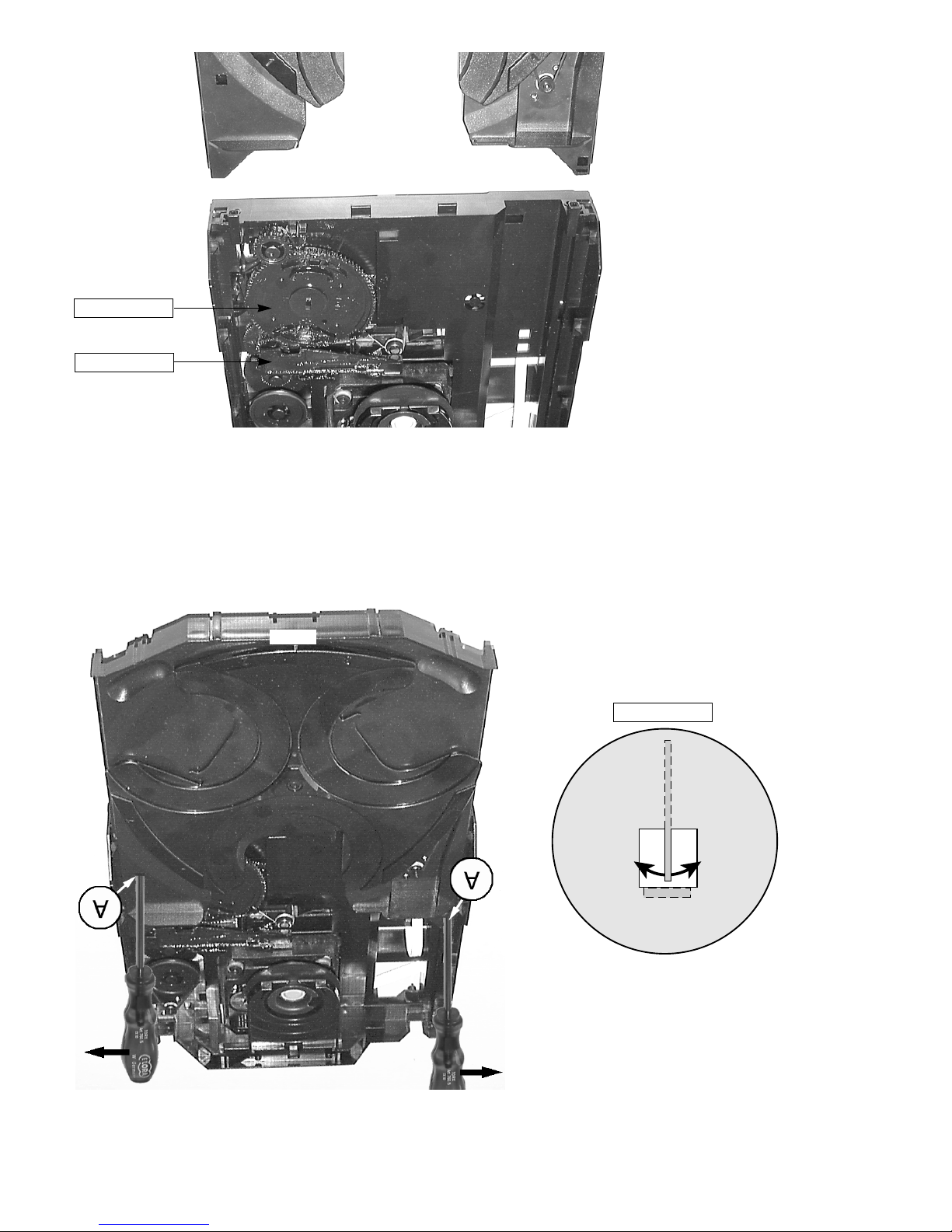

Dismantling of Tray

Service hints

1. Open the tray.

2. Release 2x catch as shown in fig. 2 and

Detail A

3. Pull tray out.

fig.2

Assembling of Tray

1. Turn Cam (pos. 48) clockwise to end

position.

2. If necessary - move Guiding (pos. 49) to the

right end position.

3. Insert the Tray.

10-4

Service Position

10-510-5

SDA

VCC

DOBM

A-D

A-C

7871

1876 1875

1877 1878

7873

HEF4094BT

LD ON

HF IN

R1,R2

MOT1

SHIFT

SIGNAL PROCESSOR

CD10

SAA7324 (SAA7325)

TRAY

MOTOR

CAROUSEL

MOTOR

VDD

DIODES


INNER SWITCH

SWITCH INFO

LASER &

MONITOR

DIODE

TURNTABLE

MOTOR

DISC

CD MECHANISM

CAROUSEL

TRAY

MAINBOARD

DATA

SHR_CL

7802

5,17,21,52,57

63 51

STB

1,3

+3,3V

SCL

SILD

RESET

Blockdiagram 3CDC-LLC 2001-09-04

+5V

+4V

+3,3V

+10V

7875

+5V

6877

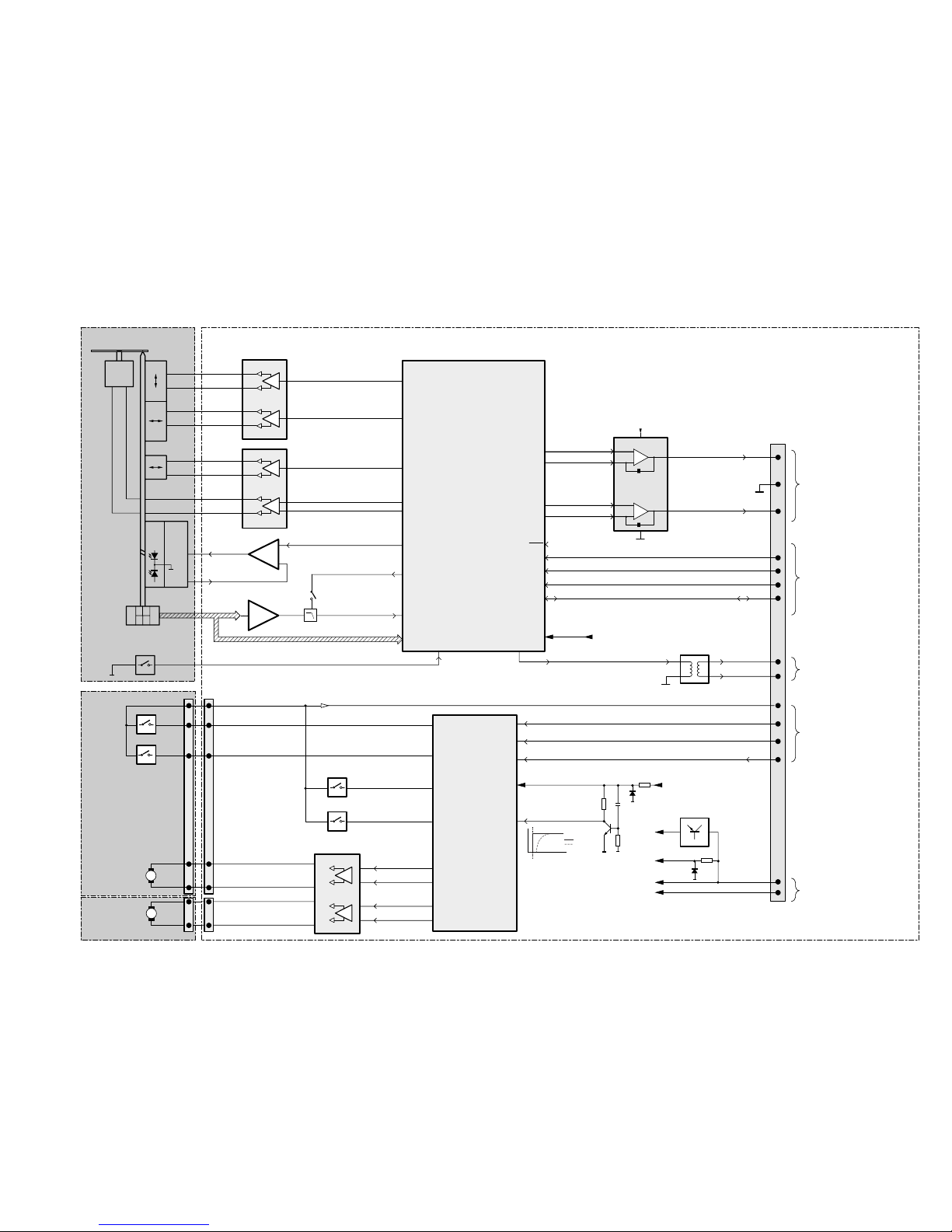

BLOCK DIAGRAM 3CDC-LLC-DA11

+10V

5V1

EN1

CD DRIVE UP/DOWN SWITCH

1881

1880

TRAY SWITCH

1882

CD POS.1 SWITCH

POS. RECOGNITION

1882 closed if carousel is in Position 1.

1883

1883 open if carousel is in a valid Play-Position.

CD RW= 3V

CD DA= 0V

EQ-Selection

Closed if the tray is in one endposition.

Open during movement.

Open if the drive is in one endposition.

Closed during movement.

VDD (pin 16)

EN1 (pin 15)

Power on

FOCUS

MOTOR

RADIAL

MOTOR

SLEDGE

MOTOR

TURNTABLE

7806

TDA7073A

7807

7808,7809

7803,7802

7810

TDA7073A

TTM+

TTM-

MON

SLEDGEB-

SLEDGEB+

RADB-

RADB+

FOCB-

FOCB+

MOT2

EBU OUT

DA11

RAB

SHR_STR

TDA7073A

1805

SHR-DATA

Active low pass

Filter

TDA1308

7805

+5V

CD LEFT

CD RIGHT

DATA

SHR_CL

SWITCH INFO

COAX1

COAX2

RAB

EBU OUT

5802

SICL

SILD

+5V

+10V

Supply

Digital Audio

Changer

Control Logic

Analog Audio

Communication

µP ↔Signal Processor

10-6 10-6

This assembly drawing shows a summary

of all possible versions.

For components used in a specific version

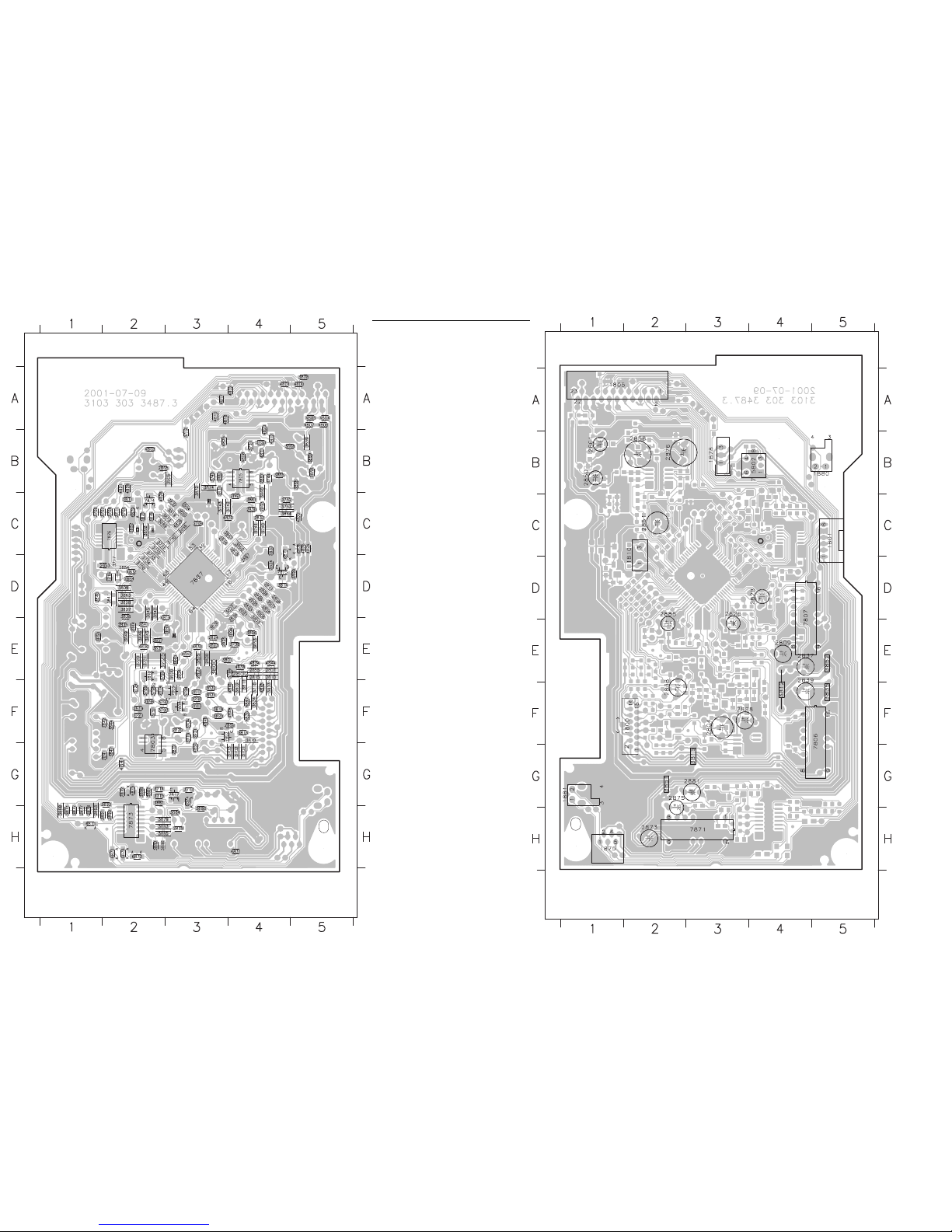

see schematic diagram respectively partslist. 3CDC-LLC Layout stage .3 2001-07-25

3CDC-LLC Componentside view

This assembly drawing shows a summary

of all possible versions.

For components used in a specific version

see schematic diagram respectively partslist. 3CDC-LlC Layout stage .3 2001-07-25

3CDC-LLC Copperside view

2800 E3

2801 D4

2802 E4

2803 D4

2805 D4

2806 D4

2807 E4

2808 D4

2810 E4

2811 D4

2812 G3

2813 F3

2814 F2

2815 E4

2816 C3

2817 F3

2818 C4

2819 F2

2820 F3

2822 E3

2823 E3

2824 E3

2825 E3

2829 H3

2830 C4

2831 B3

2832 C4

2833 C4

2834 D4

2835 E2

2836 D4

2840 D1

2841 E2

2842 F2

2844 E2

2850 C3

2852 C2

2853 D2

2854 D2

2855 E4

2856 C3

2857 E2

2862 C4

2863 C4

2864 D2

2865 B3

2867 B4

2869 F4

2872 G2

2877 H1

2878 H1

2882 B3

2887 C4

2891 G2

2893 H1

2894 F2

2895 E3

2896 C3

2897 C2

3700 D2

3701 G4

3702 G4

3703 G4

3704 F3

3705 C2

3706 C1

3707 C2

3708 C2

3709 C3

3710 F4

3711 C2

3712 A3

3713 G3

3714 G2

3715 G2

3716 D2

3717 D2

3718 C2

3719 F3

3720 E2

3721 E2

3723 F2

3724 F2

3725 E2

3730 C3

3731 C2

3732 C2

3733 C2

3734 D2

3740 C4

3741 C4

3742 C4

3743 C3

3744 B4

3746 B3

3750 B4

3751 B4

3752 C4

3753 C4

3789 F2

3790 F3

3791 F2

3792 F3

3793 F3

3794 F3

3795 E2

3796 F2

3798 E4

3799 E4

3800 E3

3801 E4

3802 F4

3803 D4

3804 C3

3805 D4

3806 D4

3807 D4

3808 D4

3809 D2

3811 F4

3813 F4

3814 D4

3818 F3

3819 C3

3820 F3

3821 F3

3822 F3

3825 E3

3826 E3

3827 D4

3828 D2

3831 C2

3832 C3

3833 F4

3834 F4

3837 D2

3838 D2

3839 E2

3840 E3

3841 D2

3842 D2

3843 E2

3844 F2

3845 D2

3846 E2

3847 G2

3849 E2

3850 E1

3853 E4

3858 B5

3859 B5

3860 B4

3861 C4

3862 C4

3863 D2

3864 C4

3865 B4

3866 B5

3867 C4

3868 B5

3869 B5

3870 F4

3871 H1

3872 B3

3873 C3

3874 B3

3875 C2

3876 C2

3877 H1

3878 A5

3879 H3

3880 G3

3881 G2

3882 H2

3883 H3

3884 H3

3885 H3

3886 H2

3887 G2

3888 H1

3889 C2

3890 H2

3891 H2

3892 C2

3893 G2

3894 E4

3895 E3

3896 E4

3898 G2

3899 D5

3900 E3

3901 F3

3904 E3

3905 B3

4800 A5

4801 A4

4802 A4

4803 B2

4804 A5

4805 A5

4806 A5

4807 A5

4808 B4

4811 B4

4812 B4

4814 D3

4817 A3

4818 A3

4819 A3

4820 C4

4821 B2

4822 C5

4823 A4

4824 C5

4825 B3

4826 C3

4828 C2

4829 B2

4830 E2

4831 H4

4832 D2

4833 E3

4834 E4

4835 F4

4838 E4

4840 F4

4841 G2

4842 E3

4844 E4

4845 F4

4846 F3

4847 F4

4848 F4

4850 G3

4876 C5

6871 H1

6872 H2

6873 H2

6874 G3

6875 G2

6876 C5

6877 C4

6878 H2

6879 C2

7802 F4

7803 F2

7805 B4

7808 F3

7809 F3

7810 E2

7812 G3

7873 H2

7874 C2

7875 D4

7876 C2

7877 D3

1800 F2

1801 C5

1805 A2

1810 C2

1875 H1

1878 B3

1880 B5

1881 G1

2804 F3

2809 E4

2826 D3

2828 D4

2837 E5

2838 F2

2839 E5

2851 C2

2858 B2

2860 B1

2861 B1

2873 H2

2875 G3

2876 B2

2881 G3

2885 D2

2888 F4

3812 F4

3815 G3

3835 F5

3851 G2

3852 E5

5802 B4

7806 F5

7807 D5

7871 H3

Mapping

Copperside

Componentside

10-710-7

VDD INTERFACE

VERSATILE

DEMOD

EFM

PLL

DIG.

STAGES

OUTPUT

CONTROL

MOTOR

KILL

INTERF.

LOOPBACK

SER. DATA

INTERF.

VERSAT.

INTERFACE

SER. DATA

BITSTREAM DAC

TIMING

INTERFACE

MICROCONTROLLER

PROCESSOR

AUDIO

PROCESSING

PRE-

FUNCTION

CONTROL

SRAM

ADDR

INTERF.

EBU

DET.

PEAK

CORR.

ERROR

PROCESSOR

SUBCODE

END

FRONT

VREF GEN.

ADC

VDD

MP847 H2

MP848 E2

MP849 E2

MP850 E2

MP851 E2

MP852 G2

MP853 G2

120K

LDON

MP730 C9

TRACK

FOCUS

on7876

(CD-TEXT IC)

4.7V

MP841 F6

MP842 H6

MP843 G7

MP844 E9

MP845 F4

MP846 H2

3789 F8

3790 F7

3791 E7

3792 F8

Servo driver

Motor Driver

2851 B11

7808 F7

7809 G8

7810 F9

7877 D12

MP713 C9

MP715 D9

MP716 B9

MP717 A9

MP729 B9

3842 E6

3843 E5

3844 E5

(uP-interface)

180K

TRACK

3798 D8

11.3 MHz

CD Drive

control

to 7805 on part 2

3704 D4

3709 C14

3710 B8

3719 D4

3720 D5

3721 D6

3723 E6

3724 D6

3725 D6

2838 D8

2839 F4

3863 = 33R

part 2

2802 C8

SLIDE

2801 D8

2840 G4

2841 F5

2842 E5

2844 F5

2850 C14

3828 G11

3832 C15

3833 A8

3834 B8

3835 F5

3837 G7

3838 H7

3839 H6

3840 G5

3841 G5

R1 (CD10)

from 1801

2820 D4

Laser power

2816 B12

2817 F7

2818 B11 3793 E8

3794 F7

3795 F8

3796 F8

2822 F9

2823 F10

2824 F10

2825 E9

2826 G12

2828 G13

2833 B10

2834 B10

2835 H7

2836 E10

2837 H4

123456

1810 B10

2800 D8

2855 C8

2856 D15

2857 H5

2869 D3

2885 E9

2887 B10

2888 C4

2891 F4

2894 F8

2895 G12

2896 H12

2897 H12

3701 D3

MON

VREF

only for digital out versions

2819 E5

1800 F1

1801 G1

TRACK

SLIDE

D4 (CD10)

7 8 9 101112131415

2345678

INNERSW.

D3 (CD10)

PIN50

DISC

dig. out circuitry

#.... for provision only

T+

(Quartz used)

DISC DISC

1805

for digital out version:

F+

R2 (CD10)

10 11 12 13 14 15

SLIDE

/ SAA7325

D1 (CD10)

mainboard

GND

3CDC-LLC

F-

part 1

FOCUS

3702 D3

2803 C8

2804 D4

2805 C8

2806 B8

2807 B8

2808 B9

2809 H4

2810 A8

2811 A9

2812 D5

2813 F7

2814 F7

2815 B8

GND

for CD TEXT only

sheet 2

7803-B D5

7806 G3

7807 H3

3815 C4

3818 B3

3819 D14

3820 C3

3821 B3

3822 B3

3825 F9

3826 F9

3799 D8

3800 D8

3801 D8

3802 C8

3803 C8

3804 C14

3805 B8

3806 C8

3807 B9

3808 A9

3811 C8

3812 H4

3813 E2

FOCUS

MP818 C4

MP819 F10

MP820 F8

VCC

3845 F6

3846 F5

3847 F5

3849 H5

3850 H5

3852 H5

3853 E9

3862 A10

3703 D3 3867 A11

3870 E2

3873 D14

3889 D15

3892 E15

3894 E9

3895 G12

3896 E9

3900 F9

3901 D4

3904 G10

7802 D3

7803-A B5

MP883 C4

MP884 C5

MP893 F10

part 2

to 7877

120K

D2 (CD10)

MP821 C15

MP827 B10

MP828 G11

MP829 A3

MP831 A4

MP836 D3

MP837 D4

MP838 G6

MP839 G6

3827 E10 MP731 B13

MP743 D2

MP744 C2

MP745 E2

MP800 E2

MP802 B15

MP809 D10

MP812 G2

MP813 B3

MP814 G2

MP815 B3

MP816 A3

MP817 A3

Signal Processor

MP840 E6

T-

HF-Amplifier

DOBM

3863 G13

MP858 G8

MP859 E10

MP860 C2

MP872 C15

MP873 H4

MP875 F13

MP876 E2

MP877 E3

MP878 B13

MP879 B11

39K

3721

47n2835

470n

2894

100n2820

2812

33p

2834

33p

GND GND

3704

27p

2856

3800

2826

47u

3802

2K2

3795

10K

3803

33p

2833

2836

47n

1810

TF01

EBUGND

2807

2815

GND

+3.3V

330K

3849

3837

VSSD3

WCLI

WCLK

470R3873

V2|V3

VDDA1

VDDA2

VDDD1P

VDDD2C

VNEG

VPOS

VRIN

VSSA1

VSSA2

VSSD1

VSSD2

SBSY

SCL

SCLI

SCLK

SDA

SDI

SELPLL

SFSY

SILD

STATUS

SUB

TEST1

TEST2

TEST3

IREF

ISLICE

KILL

LDON

MOTO1

MOTO2

RAB

RCK

RESETn

CL11|4

CL16

CRIN

CROUT

DATA

DOEM

HFIN

HFREF

SAA7324

7877

CFLG

4K7

3870

7803-B

LM358D

10K

8,11,15

3842

7806 TDA7073A

32822

2819

470R

3889

3834

10K

3832

220n

2809

+3servo

47R

4R7

3835

3701

2804

47u

+3.3V

3789

470R

220p

2805 2806

220p

3846

2816

1n5

47K

3811

3710

BC847B

7810

2841

2840

100n

2825

47R3702

3820

1K3838

2K2

3798

BC847B

7808

2855

2891

1n5

1800 1

2824

47R3703

GND

3844

3806

10K

3K3

2800

2823

10K

+3.3V

3892

470R

2808

220p

3805

TDA7073A7807

2814

2802

3862

120R

3840

47u

2888

1801

PH-S

3719

3801

10K

3853

470R

2839

47u

10n

3895

15R

+3servo

2857

3807

10K

10u

2838

2K7

3900

3894

100R

+10V

2801

220p

+3.3V

2850

+3servo

3845

10K

3799

+3.3V

2869

47n

2K2 3821

470R

3819

3863

100R

560R

3790

2828

47u

2844

+3.3V

3796

3K3

1n5

2818

10K3901

3812

2R2

3850

8K2

470K

3720

2K2 3818

2813

82p

3826

120R

3867

3724

8K2

2817

560p

2842

1n5

10K

3841

3815

4R7

2811

220p

3808

10K

BC807-40

7802

4u7

+10V

2851

220u

2885

2K2 3822

4K7

3847

3K3

3792

2803

3791

220p

3813

4R7

3833

2K7

3723

100n

2897

100n

2895

100n

2896

3794

3852

2R2

3828

22K

BC847B

7809

27K 3827

47K

3843

+5V

3725

47u

2837

3896

220K

100n

2887

3904

100K

3839

820R

3793

2810

3825

SBSY

SFSY

SUB

Innersw

+5V_HF

+3.3V

+5V_HF

CL11

DOBM

M1M2 RA

RCK

Vref

Innersw Vref

+5V_HF

VrefCD10

+3.3V

VrefCD10

SILD

SICL

SDA

PORE

Vref

Vref HFIN

3709

47K

180p 180p 180p 180p

1K5

680n

22K

6n8

2n2 1K

47n

820R

47p

39K

180p 100p

Sanyo DA11T3C

3CDC-LLC (Sanyo) part1 2001 12 20

+3.3V

10K

3804

drive recognition

either or

4.9V

10V

1.7V

3.3V

1.7V

3.2V

1.6V

3.4V

3.2V

4.8V

1.6V

4.6V

4.7V

0.8V

10V

0.3V

1.7V

5.1V

1.6V

3.2V

1.6V

1.7V

0.3V

1.6V

1.7V

1.6V

3.2V

1.8V

1.2V

0.6V

2.4V

2.7V

4.7V

+3.3V

->Laser damaged !

U >400mV

CD_RW : 3V

CD_DA : 0V

800mVpp

EYE-PATTERN

TB = 0.5us/div

during Focus search

ESD sensitive lines!

. .. V DC voltages measured in

PLAY MODE

with following conditions:

"+10V" = 10V

"+5V" = 5V

EVM

10-8 10-8

This assembly drawing shows a summary

of all possible versions.

For components used in a specific version

see schematic diagram respectively partslist. 3CDC-LLC Layout stage .3 2001-07-25

3CDC-LLC Componentside view

This assembly drawing shows a summary

of all possible versions.

For components used in a specific version

see schematic diagram respectively partslist. 3CDC-LlC Layout stage .3 2001-07-25

3CDC-LLC Copperside view

2800 E3

2801 D4

2802 E4

2803 D4

2805 D4

2806 D4

2807 E4

2808 D4

2810 E4

2811 D4

2812 G3

2813 F3

2814 F2

2815 E4

2816 C3

2817 F3

2818 C4

2819 F2

2820 F3

2822 E3

2823 E3

2824 E3

2825 E3

2829 H3

2830 C4

2831 B3

2832 C4

2833 C4

2834 D4

2835 E2

2836 D4

2840 D1

2841 E2

2842 F2

2844 E2

2850 C3

2852 C2

2853 D2

2854 D2

2855 E4

2856 C3

2857 E2

2862 C4

2863 C4

2864 D2

2865 B3

2867 B4

2869 F4

2872 G2

2877 H1

2878 H1

2882 B3

2887 C4

2891 G2

2893 H1

2894 F2

2895 E3

2896 C3

2897 C2

3700 D2

3701 G4

3702 G4

3703 G4

3704 F3

3705 C2

3706 C1

3707 C2

3708 C2

3709 C3

3710 F4

3711 C2

3712 A3

3713 G3

3714 G2

3715 G2

3716 D2

3717 D2

3718 C2

3719 F3

3720 E2

3721 E2

3723 F2

3724 F2

3725 E2

3730 C3

3731 C2

3732 C2

3733 C2

3734 D2

3740 C4

3741 C4

3742 C4

3743 C3

3744 B4

3746 B3

3750 B4

3751 B4

3752 C4

3753 C4

3789 F2

3790 F3

3791 F2

3792 F3

3793 F3

3794 F3

3795 E2

3796 F2

3798 E4

3799 E4

3800 E3

3801 E4

3802 F4

3803 D4

3804 C3

3805 D4

3806 D4

3807 D4

3808 D4

3809 D2

3811 F4

3813 F4

3814 D4

3818 F3

3819 C3

3820 F3

3821 F3

3822 F3

3825 E3

3826 E3

3827 D4

3828 D2

3831 C2

3832 C3

3833 F4

3834 F4

3837 D2

3838 D2

3839 E2

3840 E3

3841 D2

3842 D2

3843 E2

3844 F2

3845 D2

3846 E2

3847 G2

3849 E2

3850 E1

3853 E4

3858 B5

3859 B5

3860 B4

3861 C4

3862 C4

3863 D2

3864 C4

3865 B4

3866 B5

3867 C4

3868 B5

3869 B5

3870 F4

3871 H1

3872 B3

3873 C3

3874 B3

3875 C2

3876 C2

3877 H1

3878 A5

3879 H3

3880 G3

3881 G2

3882 H2

3883 H3

3884 H3

3885 H3

3886 H2

3887 G2

3888 H1

3889 C2

3890 H2

3891 H2

3892 C2

3893 G2

3894 E4

3895 E3

3896 E4

3898 G2

3899 D5

3900 E3

3901 F3

3904 E3

3905 B3

4800 A5

4801 A4

4802 A4

4803 B2

4804 A5

4805 A5

4806 A5

4807 A5

4808 B4

4811 B4

4812 B4

4814 D3

4817 A3

4818 A3

4819 A3

4820 C4

4821 B2

4822 C5

4823 A4

4824 C5

4825 B3

4826 C3

4828 C2

4829 B2

4830 E2

4831 H4

4832 D2

4833 E3

4834 E4

4835 F4

4838 E4

4840 F4

4841 G2

4842 E3

4844 E4

4845 F4

4846 F3

4847 F4

4848 F4

4850 G3

4876 C5

6871 H1

6872 H2

6873 H2

6874 G3

6875 G2

6876 C5

6877 C4

6878 H2

6879 C2

7802 F4

7803 F2

7805 B4

7808 F3

7809 F3

7810 E2

7812 G3

7873 H2

7874 C2

7875 D4

7876 C2

7877 D3

1800 F2

1801 C5

1805 A2

1810 C2

1875 H1

1878 B3

1880 B5

1881 G1

2804 F3

2809 E4

2826 D3

2828 D4

2837 E5

2838 F2

2839 E5

2851 C2

2858 B2

2860 B1

2861 B1

2873 H2

2875 G3

2876 B2

2881 G3

2885 D2

2888 F4

3812 F4

3815 G3

3835 F5

3851 G2

3852 E5

5802 B4

7806 F5

7807 D5

7871 H3

Mapping

Copperside

Componentside

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Philips Impianto stereo

Philips

Philips FW-C355 Manuale utente

Philips

Philips MCM1006 Manuale utente

Philips

Philips MCD183 Manuale utente

Philips

Philips MCD709/98 Manuale utente

Philips

Philips FW 8 Manuale utente

Philips

Philips FW-C38 Manuale utente

Philips

Philips FCD 485 Manuale utente

Philips

Philips MC-20/25 Manuale utente

Philips

Philips FW-C250 Manuale utente

Philips

Philips FW-R7 Manuale utente

Philips

Philips MCM240/15 Manuale utente

Philips

Philips MCM285/79 Manuale utente

Philips

Philips FWP2000/85 Manuale utente

Philips

Philips FWD182/79 Manuale operativo

Philips

Philips FWT6600 Manuale utente

Philips

Philips Micro Hi-Fi System MCM285 Manuale utente

Philips

Philips Streamium WAC5 Manuale utente

Philips

Philips NX5 Manuale utente

Philips

Philips NTRX500 Manuale utente

Philips

Philips MCM190/22 Manuale utente

Philips

Philips MP3-CD SOUNDMACHINE AZ1816 Manuale utente

Philips

Philips DCM3155/12 Manuale utente

Philips

Philips MC145 Manuale utente

Philips

Philips MCB700/05 Manuale utente

Manuali Impianto stereo popolari di altre marche

LG CM3330B Manuale utente

Sony

Sony SS-CEP50 Manuale utente

Cetacea Sound

Cetacea Sound CVS-II Manuale utente

Aiwa

Aiwa XR-H66MD Manuale utente

Denon

Denon UCD-250 Manuale utente

Sanyo

Sanyo DC-MX41i Manuale utente

Sharp

Sharp CD-ES600V Manuale utente

Exibel

Exibel BDX600-UK Manuale utente

Sanyo

Sanyo DC-F320 Manuale utente

Sharp

Sharp CD-C462 Manuale utente

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuale utente

Aiwa

Aiwa XR-EM70 Manuale utente

Cyrus

Cyrus Lyric Manuale utente

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuale utente

RCA

RCA RS3965SB Manuale utente

Sharp

Sharp XL-UH240 Manuale utente

LG FB165DAB Manuale utente

Sanyo

Sanyo DC-UB1475M/XE/UK Manuale utente
