Philips SWW1810/27 Manuale utente

www.philips.com/welcome

SWW1810

EN User manual 3

English

Contents

1 Important 4

Safety 4

2 Your Wireless HD AV Connect 6

What is in the box 6

3 Overview 7

The transmitter 7

The receiver 7

The remote control 8

4 Installation 9

Connect the transmitter to your HD devices 9

Connect the receiver to the HDTV set 9

Connect the IR blaster and IR sensor

extender cables 10

Install remote control batteries 10

5 Activate your Wireless HD AV

Connect and set up the link 11

Turn on the power of your HDTV 11

Activate the wireless link 12

6 Mount your receiver 13

Mount your receiver on the wall 13

Mount your receiver on the back of the

HDTV 14

7 Technical data 15

Supported resolution 15

Product specications 15

8 Notice 16

Notice for USA 16

Notice for Canada 16

Recycling 17

Disposal of your old product and batteries 17

One Year Limited Warranty 17

9 Frequently asked question 18

Contents

eDo not use this apparatus near water.

fClean only with dry cloth.

gDo not block any ventilation openings.

Install in accordance with the

manufacturer’s instructions.

hDo not install near any heat sources such

as radiators, heat registers, stoves, or

other apparatus (including ampliers) that

produce heat.

iDo not defeat the safety purpose of

the polarized or grounding-type plug. A

polarized plug has two blades with one

wider than the other. A grounding type

plug has two blades and a third grounding

prong.The wide blade or the third prong

are provided for your safety. If the provided

plug does not t into your outlet, consult

an electrician for replacement of the

obsolete outlet.

jProtect the power cord from being

walked on or pinched, particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

k Only use attachments/accessories specied

by the manufacturer..

lUse only with the cart, stand, tripod,

bracket, or table specied by the

manufacturer or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination to

avoid injury from tip-over.

mUnplug this apparatus during lightning

storms or when unused for long periods of

time.

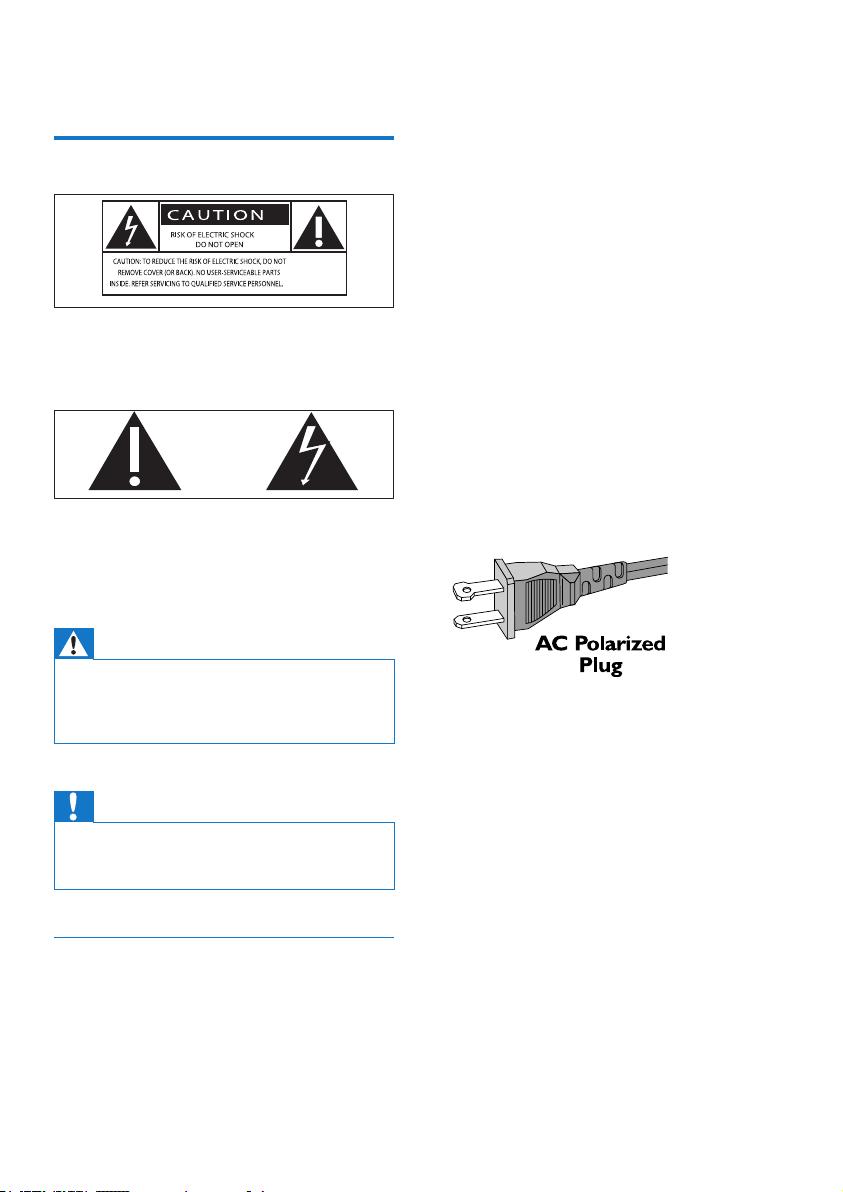

1 Important

Safety

This ‘bolt of lightning’ indicates uninsulated

material within your unit may cause an electrical

shock.

The ‘exclamation mark’ calls attention to

features for which you should read the enclosed

literature closely to prevent operating and

maintenance problems.

Warning

•To reduce the risk of re or electric shock, this

apparatus should not be exposed to rain or moisture

and objects lled with liquids, such as vases, should not

be placed on this apparatus.

Caution

•To prevent electric shock, fully insert the plug. (For

regions with polarized plugs:To prevent electric shock,

match wide blade to wide slot.)

Important Safety Instructions

aRead these instructions.

bKeep these instructions.

cHeed all warnings.

dFollow all instructions.

English

n Refer all servicing to qualied service

personnel. Servicing is required when

the apparatus has been damaged in any

way, such as power-supply cord or plug

is damaged, liquid has been spilled or

objects have fallen into the apparatus, the

apparatus has been exposed to rain or

moisture, does not operate normally, or

has been dropped.

oBattery usage CAUTION – To prevent

battery leakage which may result in bodily

injury, property damage, or damage to the

unit:

• Do not mix batteries (old and new or

carbon and alkaline, etc.).

• Remove batteries when the unit is not

used for a long time.

pApparatus shall not be exposed to

dripping or splashing.

qDo not place any sources of danger on the

apparatus (e.g. liquid lled objects, lighted

candles).

Warning

•Use only the provided power adapter.

HDMI cable

IR blaster extender cable

Power adapter for the transmitter and receiver

x 2

IR sensor extender cable

Anchors x 2 Screws x 2

Quick Installation Guide

Adhesive tape x 2 Quick start guide

User manual

2 Your Wireless

HD AV Connect

Congratulations on your purchase and welcome

to Philips!

To fully benet from the support that Philips

offers, register your product at www.philips.

com/welcome.

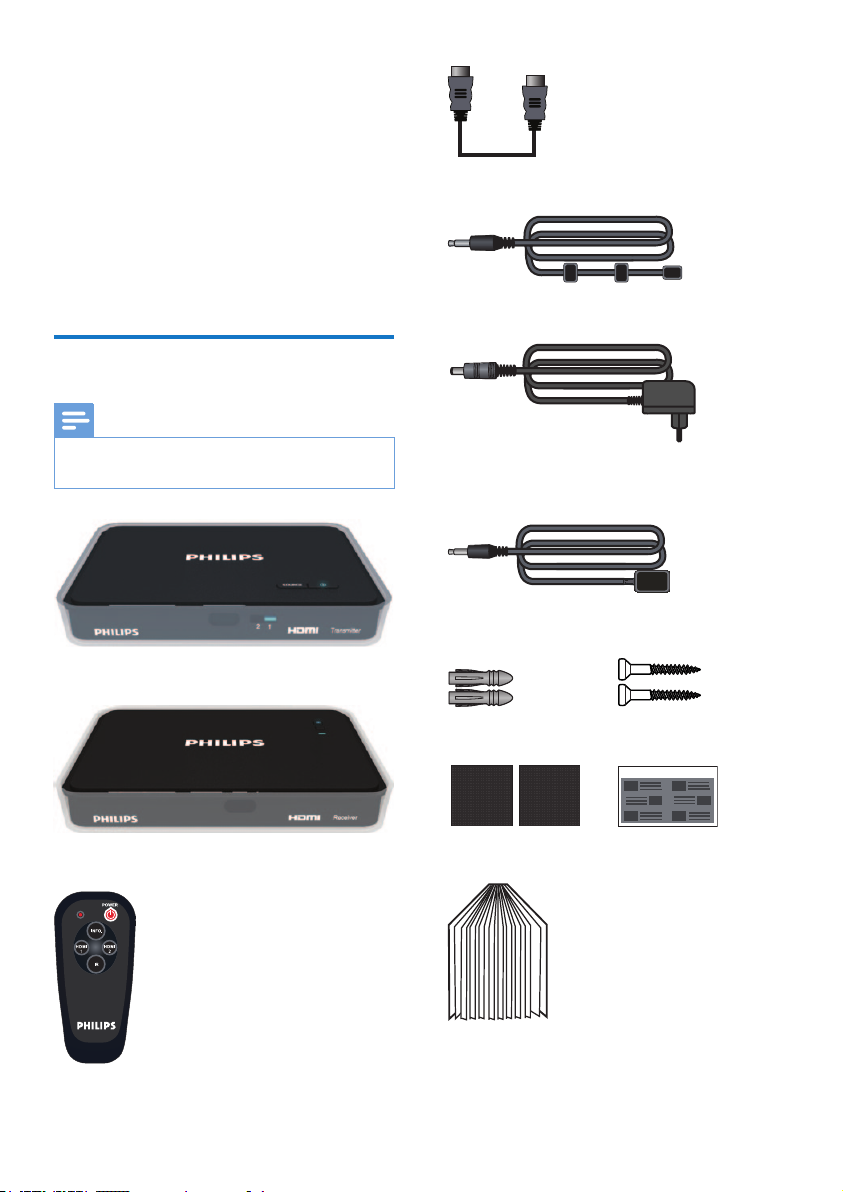

What is in the box

Note

•Make sure you have all these items in the box. Contact

your dealer for any missing or damaged items.

Transmitter

Receiver

Remote control

English

The receiver

Top view

1 Source LEDs Indicators for HDMI1

and HDMI2

2Power

button with

the LED

indicator

Press to turn the receiver

on/off.

3 Source

button

Press to select the

source input.

Rear view

1DC IN

jack

Connect the power adapter

of the receiver.

2HDMI

OUT

adapter

Connect the HDTV with an

HDMI cable.

3IR IN jack Plug in the IR sensor

extender cable.

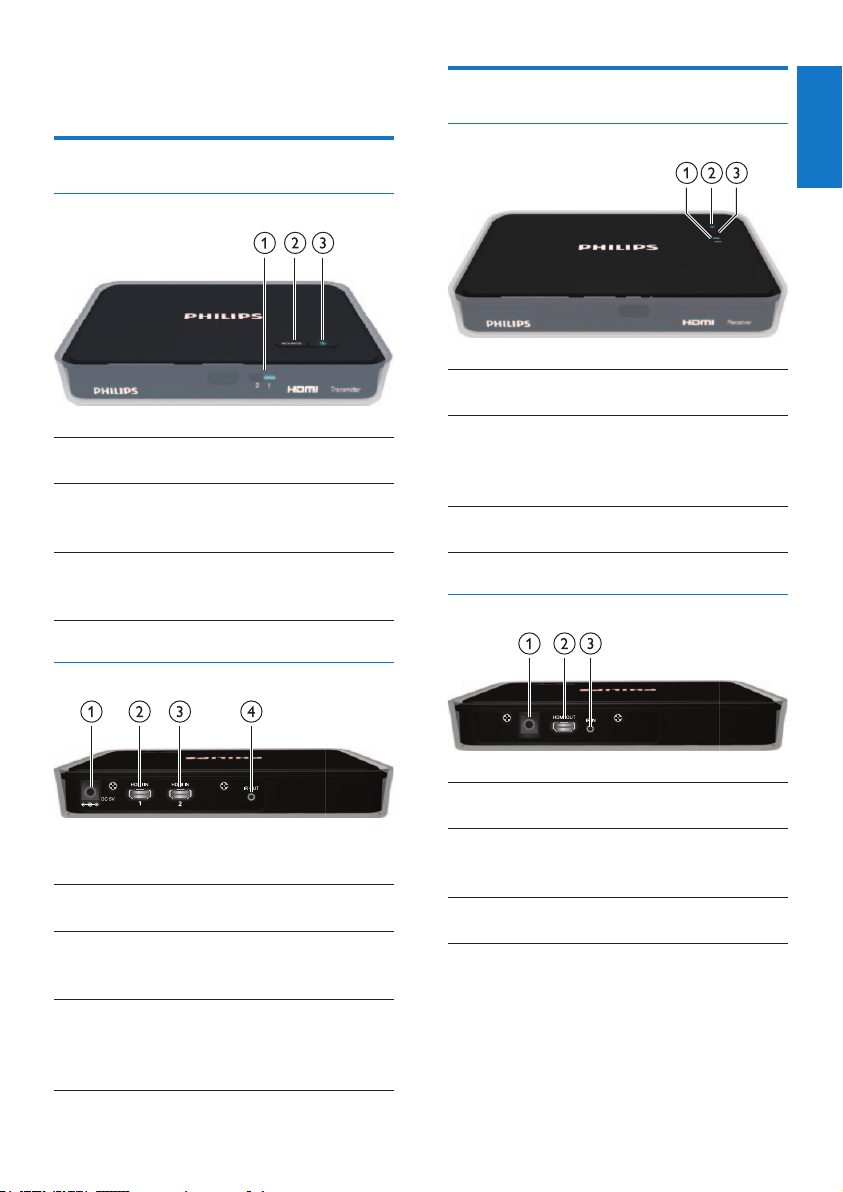

3 Overview

The transmitter

Front view

1 Source LEDs It displays the current

source input.

2SOURCE

button

Press to switch the

source input of the

transmitter.

3 Power button

with the LED

indicator

Press to turn the

transmitter on/off

Rear view

POWER

1DC IN jack Connect the power

adapter of the transmitter.

2 & 3 HDMI IN

adapters

Connect the HD audio/

video device with the

HDMI cables.

4IR OUT

blaster

extender

jack

Plug in the IR blaster

extender cable.

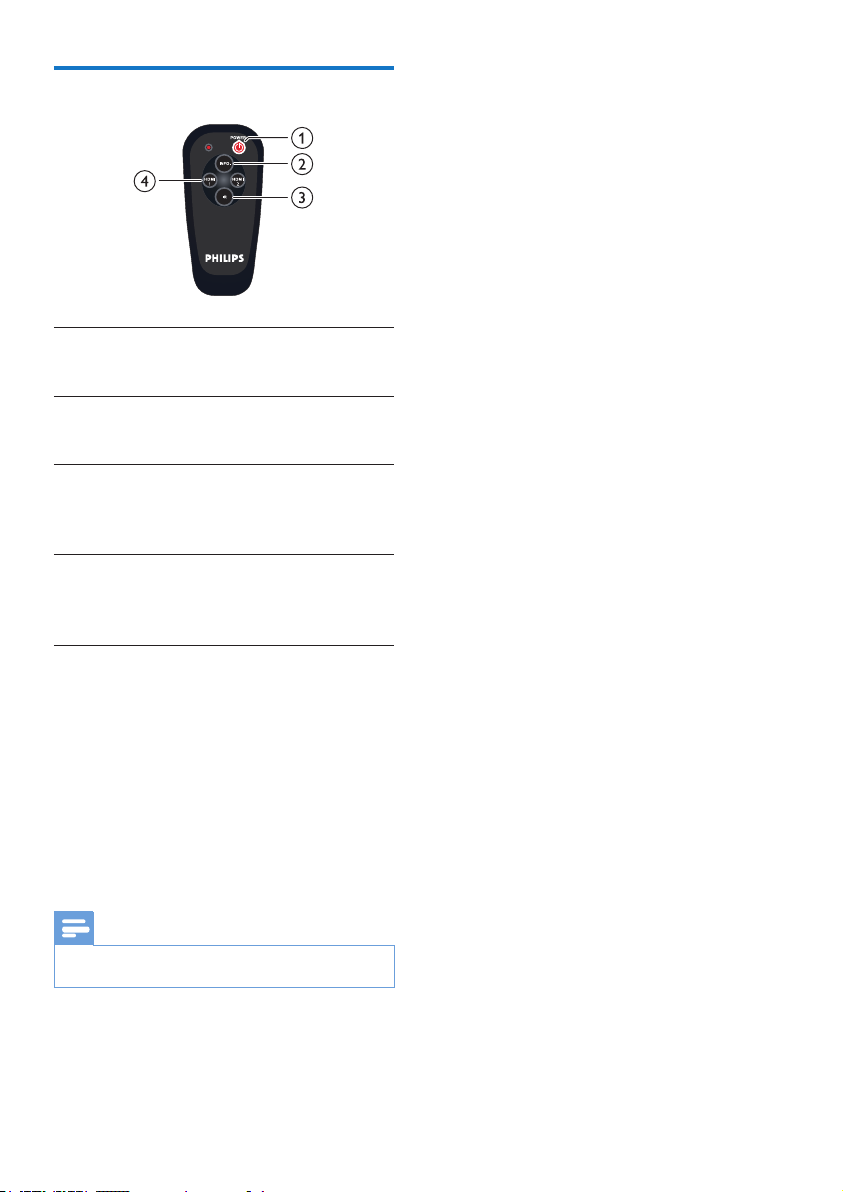

The remote control

1POWER

button

Press to turn the

transmitter and receiver

on/off.

2INFO

button

Displays on the HDTV

the connection status of

the receiver.

3IR

button

Press to switch the IR

blaster frequency to meet

the requirement of the

source device.

4SOURCE

button

Press to switch the

audio/video source

inputs connected to the

transmitter.

The Wireless HD AV Connect gives you a total

wireless solution to place your HDTV set or

projector anywhere you want.The transmitter

can transmit uncompressed video content

over 65 feet (19.7 meters) without latency. The

receiver can receive signals for viewing on your

HDTV. All you need to do is to:

• Connect the transmitter to your HD

devices. Examples of HD devices are cable/

satellite box, Blu-Ray/HD DVD player, game

console or computer.

Note

•These devices must have an HDMI port..

• Connect the receiver to your HDTV set.

• Control the transmitter with the remote

control.

English

2Connect the supplied power adapter to

the transmitter.

• Connect one end of the power

adapter to the DC IN jack of the

transmitter.

• Connect the other end of the power

adapter to a power outlet.

»The power button of the transmitter

is lit in solid blue and turns red in

standby mode.

Connect the receiver to the

HDTV set

DC 5V

HDMI OUT IR IN

HDMI IN

1Connect the receiver with an additional

HDMI cable (not supplied):

• Connect one end of the HDMI cable

to the receiver.

• Connect the other end to the HDMI

IN connector of your HDTV.

2Connect the supplied power adapter to

the receiver:

• Connect one end of the power

adapter to the DC IN jack of the

receiver.

• Connect the other end of the power

adapter to a power outlet.

»The power button of the receiver is lit

in solid blue and turns red in standby

mode.

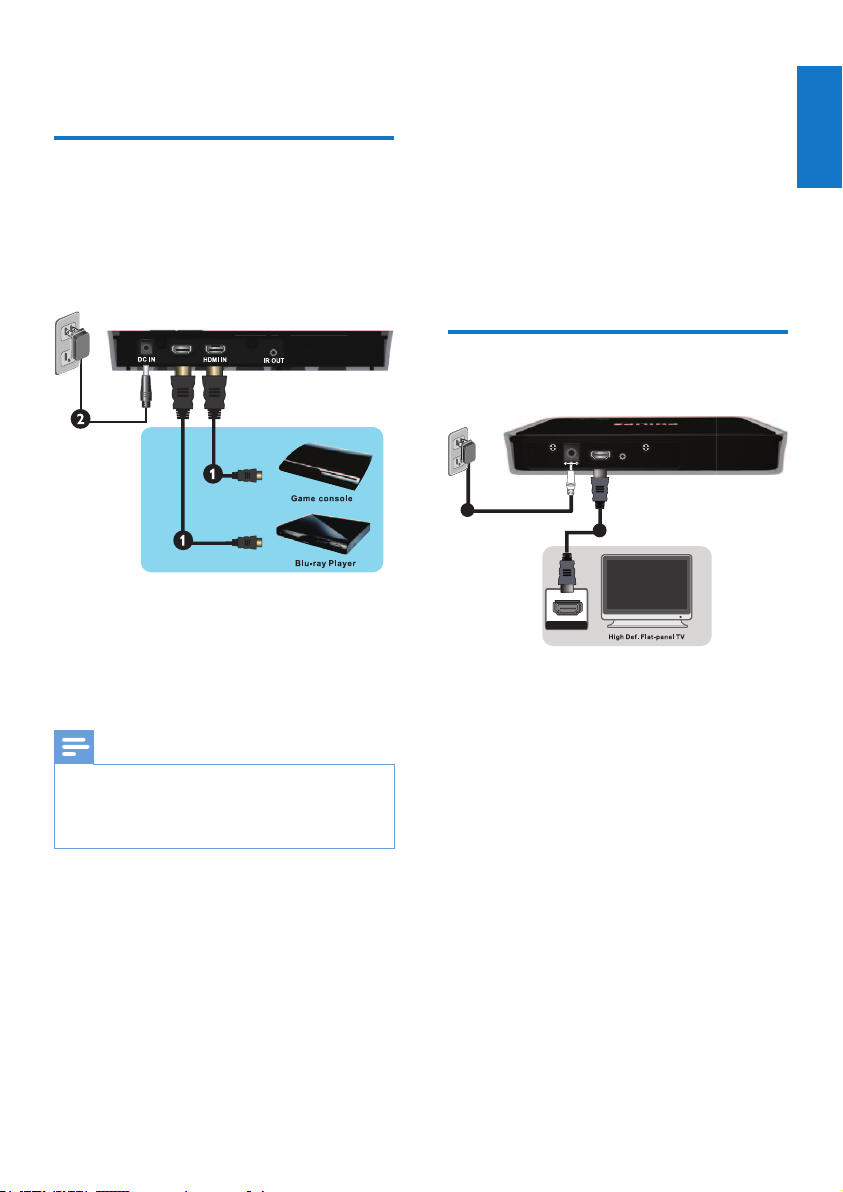

4 Installation

Connect the transmitter to

your HD devices

You can connect two audio/video sources to

the transmitter at the same time, but only one

source can be selected and played.

1Connect the audio/video source to the

transmitter using the supplied HDMI cable.

• Connect one end of the HDMI cable

to the HDMI IN connector of the

transmitter.

Note

•There are two HDMI IN ports but only one HDMI

cable is supplied.To connect two audio/video sources

to the transmitter at the same time, you need an

additional HDMI cable.

• Connect the other end of the HDMI

cable to the HDMI OUT connector of

the video source.

5Extend and stick the IR sensor extender

cable onto the front side of your HDTV.

Note

•The IR blaster support 47KHz remote signal protocol,

while the IR sensor supports 36KHz - 56KHz (NEC,

RC5, RC6) remote signal protocol.

Install remote control

batteries

Caution

•Risk of explosion! Keep batteries away from heat,

sunshine or re. Never discard batteries in re.

•Risk of decreased battery life! Never mix different

brands or types of batteries.

•Risk of product damage! When the remote control is

not used for long periods, remove the batteries.

AAA

1Open the battery compartment.

2Insert two AAA batteries with correct

polarity (+/-) as indicated.

3Close the battery compartment.

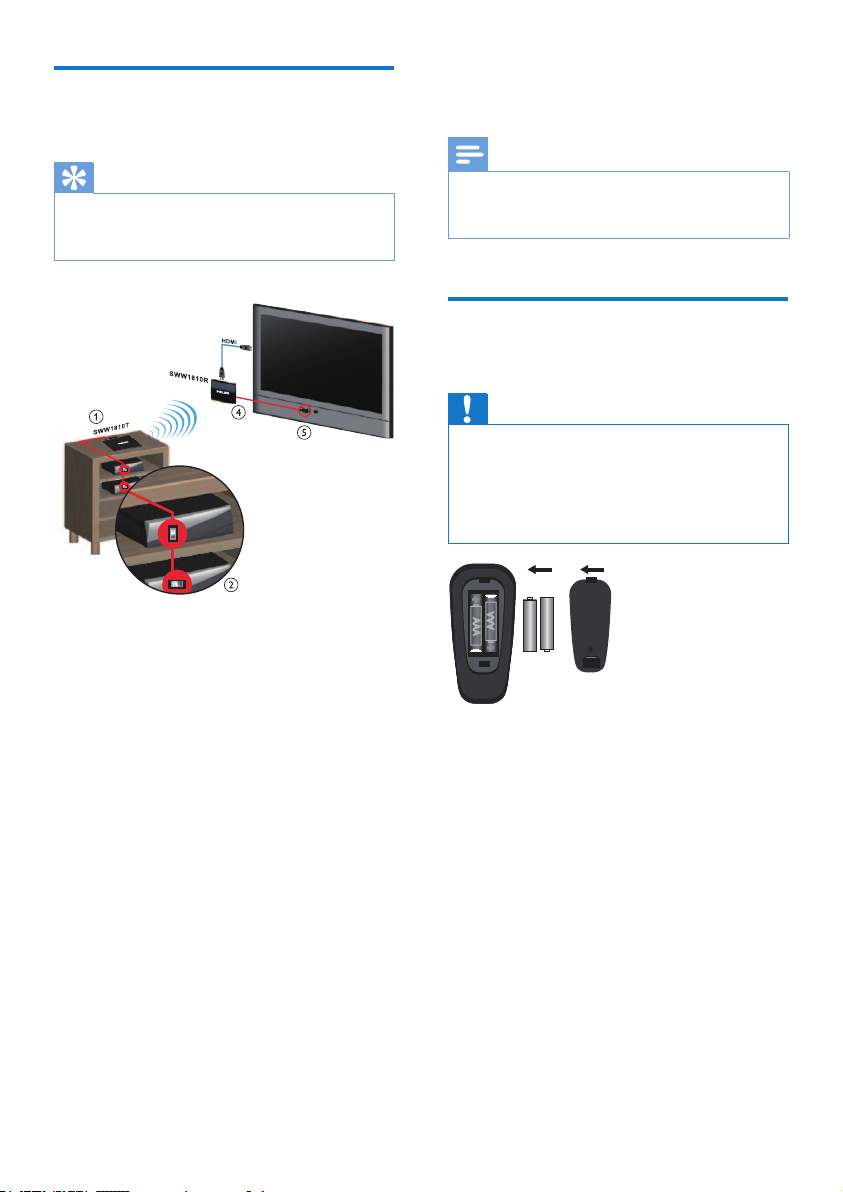

Connect the IR blaster and IR

sensor extender cables

Tip

•If you cannot use the remote control of your device,

follow the steps in this section to connect the sensor

extender cables .

Connect the infrared blaster or sensor extender

cables if necessary.

1Plug the IR blaster extender cable into

the IR OUT blaster extender jack of the

transmitter.

2Extend and stick the IR blaster extender

cable onto the front panel of the HD

device.

3After the IR blaster extender cable is

connected to the transmitter, you can

control your HD device with the remote

control. Make sure that the remote control

points to the receiver.

4If the distance between the receiver and

receiver has obstruction (e.g. the receiver

is mounted at the back of the HDTV), plug

the IR sensor extender cable into the IR

IN jack of the receiver.

Altri manuali per SWW1810/27

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Philips Accessori TV

Philips

Philips SWV3804NZ Manuale utente

Philips

Philips SWV2392W Manuale utente

Philips

Philips Flavors 32FDF1013 Manuale utente

Philips

Philips Flavors 42FDF4013 Manuale utente

Philips

Philips Flavors 22FDF4013 Manuale utente

Philips

Philips Flavors 22FDF2013 Manuale utente

Philips

Philips Flavors 42FDF6033 Manuale utente

Philips

Philips SVC2546W Manuale utente

Philips

Philips Network Adaper Manuale utente

Philips

Philips SBCVL1200/86 Manuale utente

Philips

Philips 42FWF1013/00 Manuale di istruzioni per l'installazione

Philips

Philips SWV2034 Manuale utente

Philips

Philips SWS2827T Manuale utente

Philips

Philips SWV2040 Manuale utente

Philips

Philips Flavors 22FDF6013 Manuale utente

Philips

Philips Flavors 22FDF1013 Manuale utente

Philips

Philips Wireless TV Link SBC VL1400 Manuale utente

Philips

Philips SWW1800/27 Manuale utente

Philips

Philips SRU4000/17 Manuale utente

Philips

Philips SVC1116G/10 Manuale utente

Philips

Philips Flavors 42FDF1013 Manuale utente

Philips

Philips SVC1116F/27 Manuale utente

Philips

Philips SVC2545W Manuale utente

Philips

Philips SWV2046 Manuale utente

Manuali Accessori TV popolari di altre marche

pass & seymour

pass & seymour GFCI Manuale utente

Skyvue

Skyvue SECURITY ALARM DEVICE Manuale utente

Niles

Niles C5-RFWM Manuale utente

Sony

Sony CRU-52X1 Manuale utente

Sony

Sony BRAVIA KDL-46Z4100/S Guida

BVE

BVE MATRIX 7xe Manuale utente

Epson

Epson Moverio BT-100 Manuale utente

Alcatel

Alcatel onetouch v100 Manuale utente

Flow

Flow 836 ONT Manuale utente

AIRIS

AIRIS G819 Manuale utente

Loewe

Loewe Digital Recorder + Manuale utente

Sceptre

Sceptre Stello Manuale utente

Goodmans

Goodmans GD11FVRSD32 Manuale utente

Serene

Serene TVDirect TV-95 Manuale utente

TRUlink

TRUlink 89000 Manuale utente

Panasonic

Panasonic DigiCard Manuale utente

Alpine communications

Alpine communications Roku Device Manuale utente

LEGRAND

LEGRAND SANUS BSA-IWP801 Manuale utente
