EN User manual 3
SWW1890
3
Contents
1 Important 4
Safety 4
2 Your Philips Wireless HD Net Connect 6
What is in the box 6
3 Overview 7
The transmitter 7
The receiver 7
4 Installation 9
Connect the transmitter to your computer 9
Connect the receiver to the HDTV set 9
5 Activate your Philips Wireless HD
Net Connect and set up the link 10
Turn on the power of your HDTV 10
Activate the wireless link 10
6 Mount your receiver 12
Mount your receiver on the wall 12
Mount your receiver on the back of the
HDTV 13
7 Technical data 14
Supported resolution 14
Product specications 14
8 Notice 15
Notice for USA 15
Notice for Canada 15
Recycling 16
One Year Limited Warranty 16
9 Frequently asked questions 17
Contents
EN
English
4
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
hDo not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including ampliers) that
produce heat.
iDo not defeat the safety purpose of
the polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong.The wide blade or the third prong
are provided for your safety. If the provided
plug does not t into your outlet, consult
an electrician for replacement of the
obsolete outlet.
jProtect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
k Only use attachments/accessories specied
by the manufacturer.
lUse only with the cart, stand, tripod,
bracket, or table specied by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
1 Important
Safety
This ‘bolt of lightning’ indicates uninsulated
material within your unit may cause an electrical
shock.
The ‘exclamation mark’ calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
Warning
•To reduce the risk of re or electric shock, this
apparatus should not be exposed to rain or moisture
and objects lled with liquids, such as vases, should not
be placed on this apparatus.
Caution
•To prevent electric shock, fully insert the plug. (For
regions with polarized plugs:To prevent electric shock,
match wide blade to wide slot.)
EN
5
mUnplug this apparatus during lightning
storms or when unused for long periods of
time.
n Refer all servicing to qualied service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
oApparatus shall not be exposed to
dripping or splashing.
pDo not place any sources of danger on the
apparatus (e.g. liquid lled objects, lighted
candles).
EN
English
6
USB cable for the power supply of the
transmitter (2 feet 1 inch / 1.5 meters)
Power adapter for the receiver
Anchors x 2
Screws x 2
Adhesive tape x 2
Quick Installation Guide
Quick start guide
User manual
2 Your Philips
Wireless HD
Net Connect
Congratulations on your purchase and welcome
to Philips!
To fully benet from the support that
Philips offers, register your product at
www.philips.com/welcome.

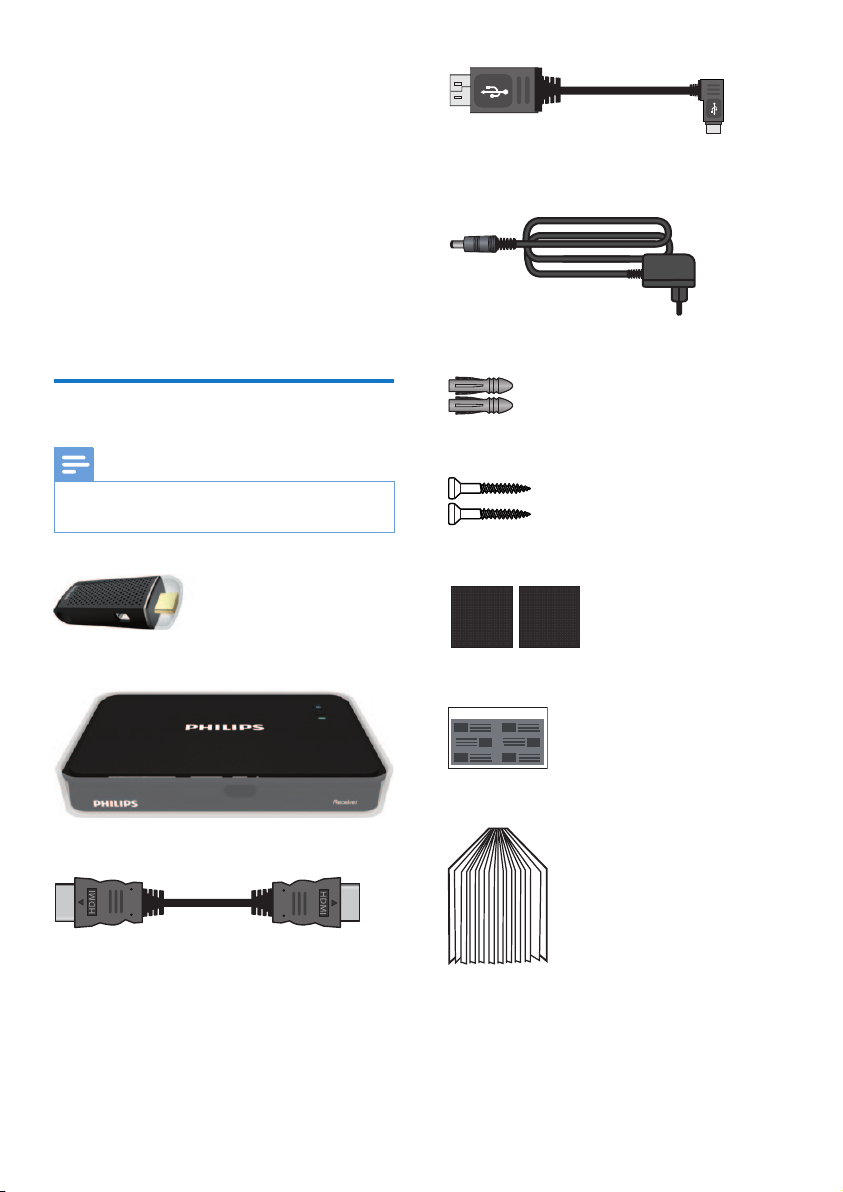

What is in the box
Note
•Make sure you have all these items in the box. Contact
your dealer for any missing or damaged items.
Transmitter
Receiver
HDMI cable (5 feet / 0.64 meters)
EN
7
The receiver
Top view
1 LED indicator Displays the status of the
receiver.
2 Power button
with LED
indicator
Press to turn the receiver
on/off or to standby
mode.
3INFO button Displays on the HDTV
the connection status of
the receiver.
Rear view
1DC IN
connector
Connect the power adapter
of the receiver.
2HDMI OUT
connector
Connect to the HDTV with
an HDMI cable

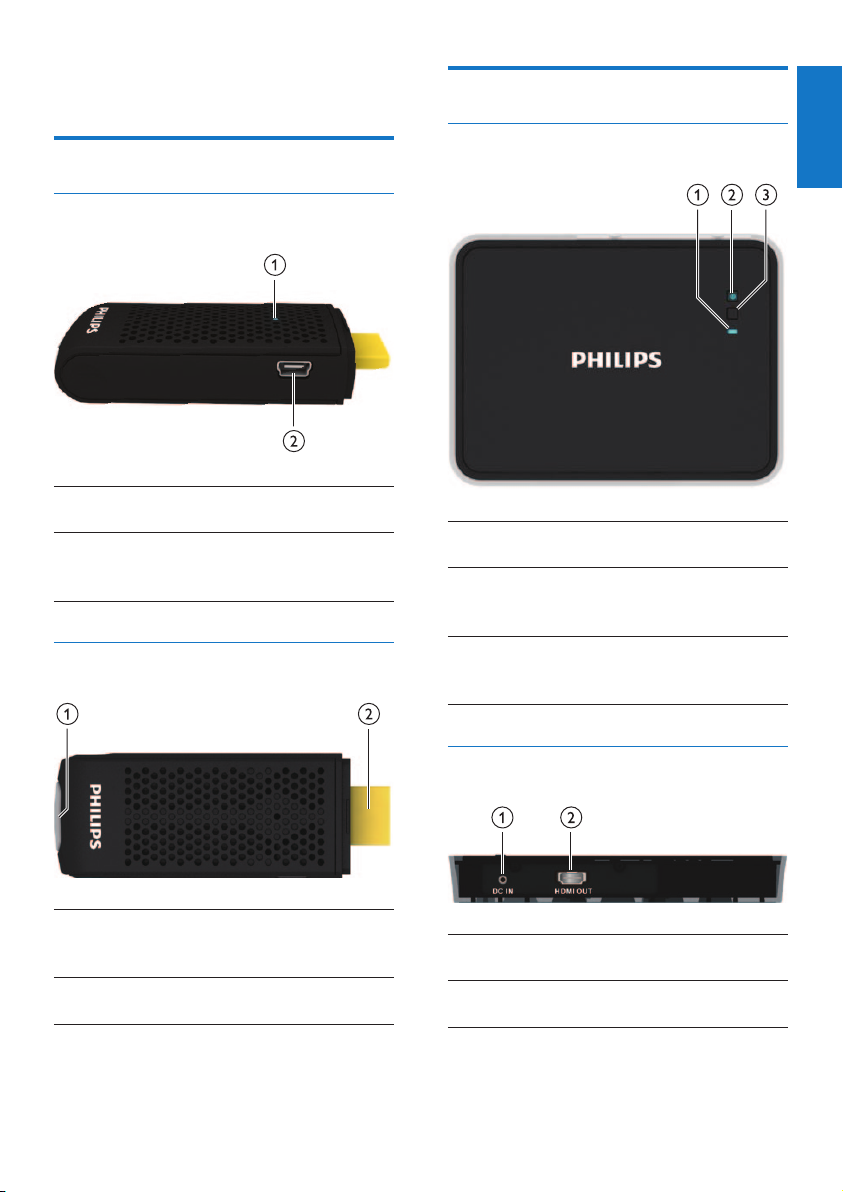

3 Overview
The transmitter
Front view
POWER
1 LED
indicator
Displays the connection status
of the transmitter.
2 USB
power
jack
Connect the transmitter to the
computer with the USB cable.
Top view
1INFO
button
Displays on the HDTV the
connection status of the
transmitter.
2 HDMI IN
connector
Plug into the HDMI port of
the computer.
EN
English
8
The Philips Wireless HD Net Connect gives
you a total wireless solution to enjoy the
content from your computer on your HDTV.
The transmitter can transmit an uncompressed
video content up to 23 feet (7 meters) without
latency.The receiver can receive signals for
viewing on your HDTV. All you need to do is:
• Connect the transmitter to your computer.
• Connect the receiver to your HDTV set.
EN
9
»The power LED indicator of the
transmitter ashes in blue, then turns
into solid blue when the connection is
established.

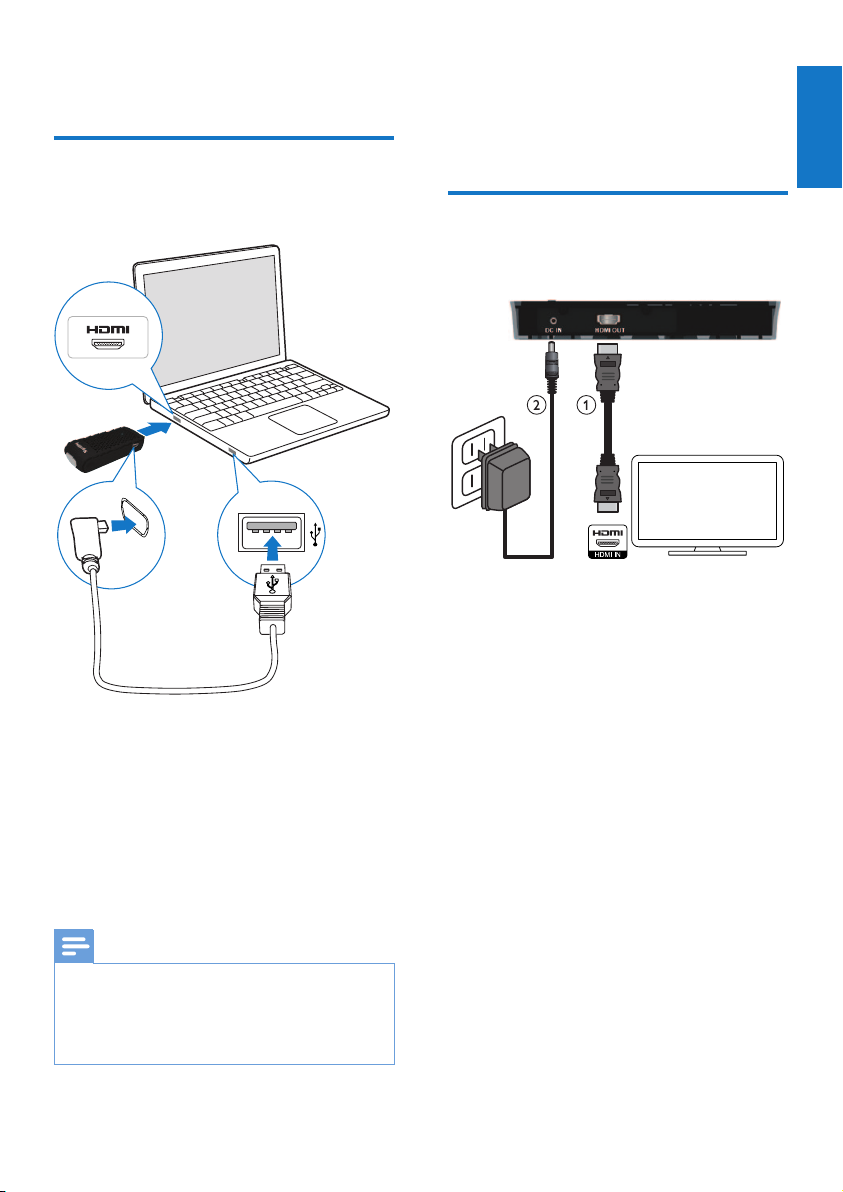

Connect the receiver to the
HDTV set
HDMI
HDMI
1Connect the receiver with the supplied
HDMI cable:
• Connect one end of the HDMI cable
to HDMI OUT connector of the
receiver.
• Connect the other end of the HDMI
cable to the HDMI in connector of
your HDTV.
2Connect the power adapter to the
receiver with the supplied power adapter:
• Connect one end of the power
adapter to the DC IN connector of
the receiver.
• Connect the other end of the power
adapter to a power outlet.
4 Installation
Connect the transmitter to
your computer
a
bc
Connect the transmitter to the computer using
the supplied USB cable.
1Connect the transmitter to the HDMI port
of the computer.
2Connect the small end of the USB cable to
the POWER jack of the transmitter;
3Connect the other end of the USB cable
to your the USB port of your computer.
Note
•For some computers, the HDMI and USB ports are
located in different sides of the computer. It is not
recommended to use the USB port that sits right next
to the HDMI port.There may not be enough space for
both connectors.
EN
English
10

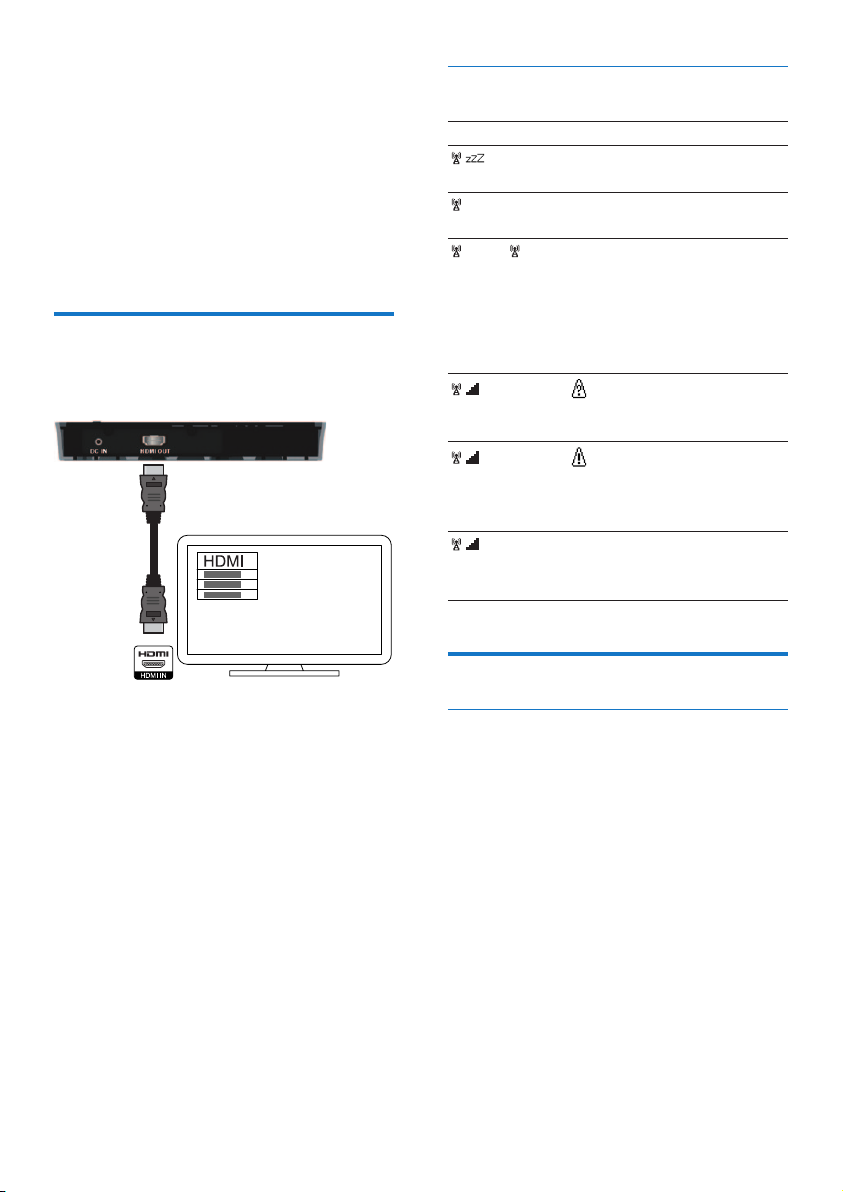

On screen display on HDTV
On screen display Mode and status
Standby mode: it is a
power-saving mode
..... Start up in progress: It
takes 15-20 seconds.
x and .... Searching available
channels: It occurs
when the link cannot
establish over
80 seconds after
initialization.
HDMI CH1 On mode with
unrecognized video
format
HDMI CH1 On mode but
without input from
the computer/source
device
HDMI CH1 1080P On mode with
recognized video
format
Activate the wireless link
Switch on the transmitter and
receiver
Once the transmitter and receiver are powered
up, the link is automatically established after
15-20 seconds.
5 Activate your
Philips Wireless
HD Net
Connect and set
up the link
Turn on the power of your
HDTV
HDMI
HDMI
1Go to the source menu under the settings
menu of your HDTV.
2Select the HDMI input to which the
receiver is connected.
EN
