Safety Information/UsefulTips...........................................................................3

Before Calling Service......................................................................................4

Hooking UpYourTV (Basic Connection).............................................................5

Use/Care of Remote Control ..............................................................................5

Connecting the Audio/Video Sockets (Playback) ................................................6

Functions of Remote Control .............................................................................7

Functions ofTV Controls...................................................................................8

TABLE OFCONTENTS

Introduction

Selecting the Main Menu...................................................................................9

Automatic Tuning of Channels ...........................................................................10

ManualTuningof Channels ................................................................................10

FineTuning of Channels ....................................................................................12

Selecting the Colour/Sound System ..................................................................13

Adjusting theTV Picture ...................................................................................14

Smart Picture Control .......................................................................................15

TV Installation

Basic Installation/Function

General

Specification.....................................................................................................16

Recycling Directive _ To minimise harm to the environment, the batteries

supplied with theTV set do not contain mercury or nickel cadmium. If possible,

when disposing of batteries, use recycling means available to you.Your TV set uses

materials which are reusable or which can be recycled.To minimise the amount of

waste in the environment, specialist companies recover used sets for dismantling and

collection of reusable materials (contact your dealer).

ËµÃ÷Êé.p65 02-7-2, 17:412

Safety Information

•Disconnect mains plug when:

_ the red light below the TV screen is flashing continuously.

_a bright white line is displayed across the screen.

_cleaning the TV screen. Never use abrasive cleaning agents. Use a slight damp

chamois leather or soft cloth.

_there is a lightning storm.

_the set is left unattended for a prolonged period of time.

•No naked flame sources, such as lighted candles, should be placed on top of theTV or

in the vicinity.

•Do not place your TV set under direct sunlight or heat.

•Leave at least 5 cm around each side of TV set to allow for proper ventilation.

•Avoid placing your set (e.g. near the window) where it is likely to be exposed to rain or

water.

•No objects filled with liquids should be placed on top the TV so as to avoid dripping or

splashing of liquids on the set.

Useful Tips

• Do not leave your set on standby mode for a prolonged period of time. Switch off set to

allow it to be demagnetised. A demagnetised set supports good picture quality.

•Do not shift or move the set around when it is switched on. Uneveness in colour in

some parts of the screen may occur.

•Never attempt to repair a defective TV yourself. Always consult a skilled service

personnel.

SAFETY INFORMATION AND USEFUL TIPS

ËµÃ÷Êé.p65 02-7-2, 17:413

BEFORE CALLING SERVICE

Below is a list of frequently occurred symptoms. Before you call for service, make these

simple checks. Some of these symptoms can easily be rectified if you know what to do.

Symptom

• Switch off the TV by the mains power button.Wait for 20

minutes before switching on again.

• Check the TV is not placed too near speakers or mag-

netic objects.

Colour patch

(uneveness)

No power • Check theTV’s AC power cord is plugged into the mains

socket. If there is still no power, disconnect plug. Wait

for 60 seconds and re-insert plug. Switch on TV again.

• Check the antenna connection at the rear of the TV.

• Possible TV station problem.Try another channel.

• Try increasing the volume.

• Check that the sound is not muted. If it is muted, press

the Mute button on the remote control to restore sound.

No picture

Good picture

but no sound

Good sound but poor

colour or no picture • Try increasing the contrast colour and brightness setting.

Snowish picture and

noise • Check antenna connection at the rear of the TV.

Horizontal dotted lines • Possible electrical interference e.g. hairdryer, vacuum

cleaner, etc. Switch off appliances.

Double images or

“Ghost” images • Possible poor positioning of antenna. Using a highly

directional antenna may improve reception.

TV not responding to

remote control handset • Check life span of batteries of remote control handset.

• Aim remote control handset directly at remote control

sensor lens on the TV.

What you should do

ËµÃ÷Êé.p65 02-7-2, 17:414

HOOKING UP YOUR TV (BASIC CONNECTION)

USE/CARE OF REMOTE CONTROL

Antenna Connection

• Connect the aerial plug to the antenna socket

on the backcover.

• Insert the mains plug into the wall socket.

Mains Connection

• For correct mains voltage, refer to type sticker at the

rear of the TV set.

• Consult your dealer if mains supply is different.

Note : This diagram is not representative of the

actual plug and socket.

Switch on the set

• Press the main power button to switch on/off theTV.

• If the set is on standby (indicator is red), press the

Power button on the remote control to switch on

set.

• Insert the correct type of batteries into the

compartment.

• Ensure the batteries are placed in the right direction.

ËµÃ÷Êé(ºÏ¶©±¾).p65 02-7-4, 13:165

CONNECTING THE AUDIO/VIDEO SOCKETS (PLAYBACK)

You can view the playback ofVCR/VCD/DVD tapes by using the AUDIO andVIDEO INPUT

sockets on the side or rear of the TV.

Connect the VIDEO and AUDIO IN sockets on the side or rear of the TV to theVIDEO and

AUDIO OUT sockets on the audio/video equipment.

Note:

• For S-VIDEO IN and VIDEO 1 IN share the same channel, therefore can not be used

stimultaneously.

• S-VIDEO offers superior colour and detail reproduction over conventional video

connections.

ËµÃ÷Êé.p65 02-7-2, 17:446

DISPL AY

SLEEP

SKIP

NORMAL

STANDBY MUT E

TV/AV

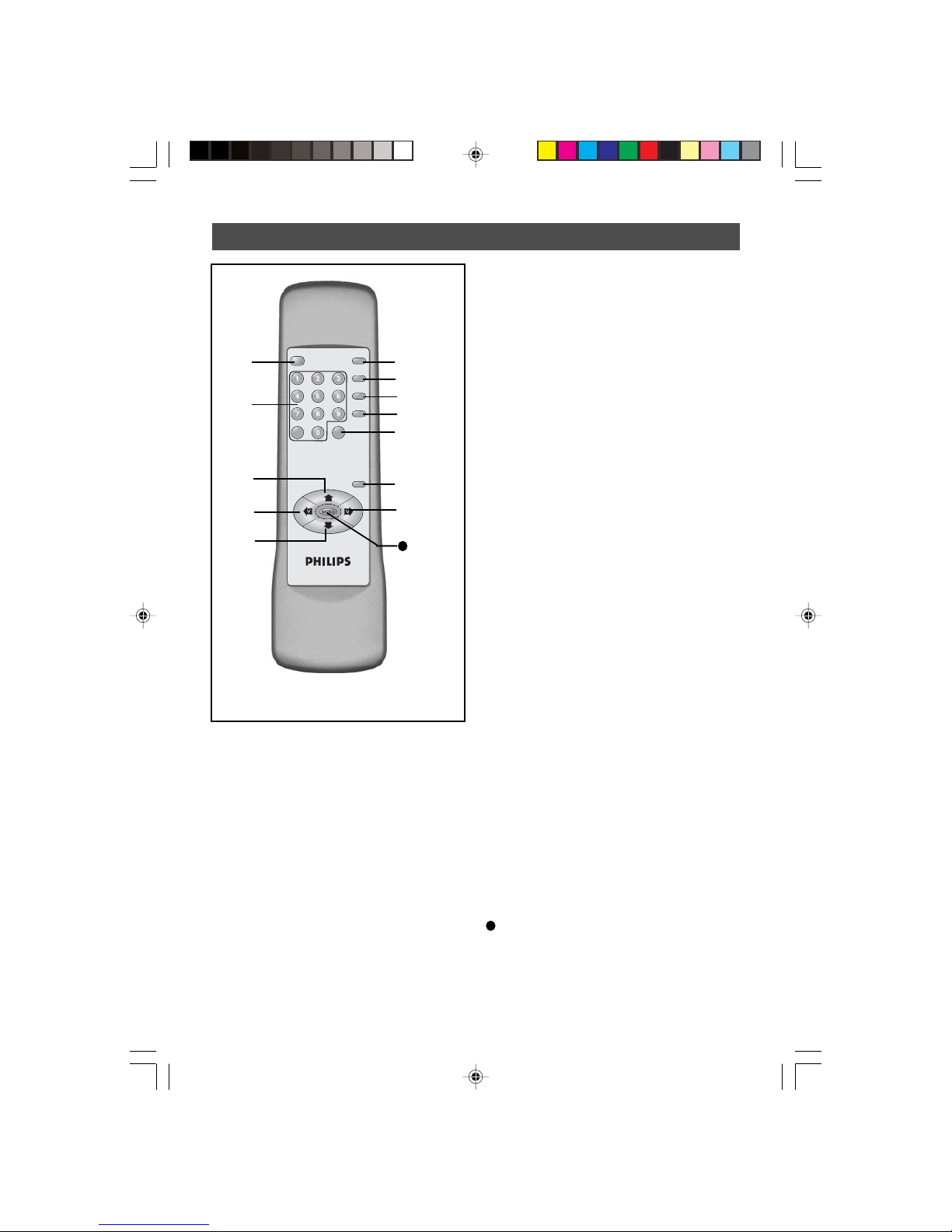

FUNCTION of REMOTE CONTROL

nStandby button

_ Switch the set off temporarily to standby mode.

(The red light indicator lights up when the set

is on standby mode).

_ To switch on set from standby mode, press

Channel +/- , or TV/AV, Standby button.

oDigit (0-9) / -/-- Buttons

_ Press 0-9 buttons to select a channel. For a 2-

digit channel number, press -/-- button fol-

low by the required digits.

pMute Buttons

_ Mute sound.To restore sound, press button

again.

qDisplay Button

_ Press to display the current channel NO. ,

colour and sound system.

rSleep Button

Allows you to select a time period after which

the set will switch to standby mode

automatically.This television can be programmed

up to 120 minutes (10 minutes intervals).

sSkip Button

Select an unwanted channel NO., press button

to skip.The channel number will be displayed

in red. Note:To restore the skipped channel,

press digit button or -/-- button to recall the

skipped channel NO., then press Skip button

to change the channel NO. from red to green

colour.

uTV/AV Button

To switch between TV channel and AV input

sources.

vVolume +/- Buttons

_ Increases or decreases volume.

_ Allows you to access the sub-menus and

adjust the settings.

wChannel +/- Buttons

_ Allows you to select channels in ascending

or descending order.

_ Allows you to select the next item in the

menu.

Menu Button

Display the main menu.Also exits menu from

screen.

w11

tNormal Button

To switch between the 4 picture settings:

DYNAMIC, STANDARD, MILD and MEMORY.

ËµÃ÷Êé.p65 02-7-2, 17:467

FUNCTION OF TV CONTROLS

nMains Power button Switch mains power on or off

oRemote Sensor Acts as a sensor for activating the controls of the TV

when remote control handset is aimed at it.

pStandby light indicator Indicate red light when standby mode is activated.

•Select channel in descending/ascending order.

•Turn on the TV when it is in standby mode.

•Select the next item on the menu.

rVolume down/up button •Adjust sound volume softer/louder.

•Access sub-menu and adjusting the settings.

sMenu button •Enter the main menu.

tTV/AV button •Switch between TV channel and AV input sources.

•Turn on the TV when it is in standby mode.

CH.

qChannel down/up button

14PT2010

CH.

21PT2010

qrst n

qrst

ËµÃ÷Êé(ºÏ¶©±¾).p65 02-7-4, 12:408

SELECTING THE MAIN MENU

Operating instructions generally explains the operation of theTV set using

the buttons on the remote control unless otherwise stated. Please read the

following instructions carefully and follow the steps as shown to familiarise

yourself with the installations and all features available in your set.

Press the Menu button repeatedly to select the main menu PICTURE, MEMORY and SYSTEM.

Press once to enter PICTURE

main menu.

Press twice to enter MEMORY

main menu.

Press three times to enter

SYSTEM main menu.


COLOR 50

BRIGHT 50

CONT 100

SHARP 50

SELECTÇÈ ADJUSTÅÆ

MEMORY

AUTO SEARCH

MANUAL STORE

FINE TUNE

SELECTÇÈ CONFIRMÅÆ

SYSTEM

COLOR AUTO

SOUND BG

LANGUAGE

B.B ON

SELECTÇÈ ADJUSTÅÆ

Menu exit from screen.

Step Press button Result on screen

ËµÃ÷Êé(ºÏ¶©±¾).p65 02-7-4, 12:479

Press twice to enter MEMORY

main menu. MEMORY

AUTO SEARCH

MANUAL STORE

FINE TUNE

SELECTÇÈ CONFIRMÅÆ

AUTOMATIC TUNING OF CHANNELS

Automatic tuning of channels allows you to store each programme automatically.

Press button repeatedly until

AUTO SEARCH is selected.

1 AUTO VHFL

STOPÅ

Start automatic tuning of

channels.

○○○○○○○○○○

Press button to stop tuning.

Note: when the tuning is

completed, the menu will quit

automatically.

MANUAL TUNING OF CHANNELS

Manual tuning allows you to select your preferred channel number for every available programme.

Press button repeatedly until

Manual Store is selected.

MEMORY

AUTO SEARCH

MANUAL STORE

FINE TUNE

SELECTÇÈ CONFIRMÅÆ

Press twice to enter MEMORY

main menu. MEMORY

AUTO SEARCH

MANUAL STORE

FINE TUNE

SELECTÇÈ CONFIRMÅÆ

Step Press button Result on screen

ËµÃ÷Êé.p65 02-7-2, 17:4710

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Philips TV

Philips

Philips Cineos 32PF9967D/10 Manuale utente

Philips

Philips 8389 Series Manuale utente

Philips

Philips 32PW8760/05 Manuale utente

Philips

Philips 43PUS6031 Manuale utente

Philips

Philips 221TE4LB/57 Manuale utente

Philips

Philips 75PFL6621 Manuale utente

Philips

Philips 43 4 Series Manuale utente

Philips

Philips 21PT2324 Manuale utente

Philips

Philips 42PFL7422D Manuale utente

Philips

Philips L04HU Manuale utente

Philips

Philips 29PT8659/12 Manuale utente

Philips

Philips 8857 Series Manuale utente

Philips

Philips M1432/07 Manuale utente

Philips

Philips 42PFL5008G Manuale utente

Philips

Philips 27PT8302/37 Manuale utente

Philips

Philips 9206 Series Manuale utente

Philips

Philips 20HF5335D Manuale

Philips

Philips 21PT5432/55R Manuale utente

Philips

Philips BDS46622R Manuale utente

Philips

Philips 43PP8445 Manuale

Philips

Philips MatchLine 30PF9975 Manuale utente

Philips

Philips 32 IN HDTV MONITOR WITH ACTIVE CONTROL 32PT830H... Manuale utente

Philips

Philips 22PFL3403/60 Manuale utente

Philips

Philips 25PT9001 Manuale utente

Manuali TV popolari di altre marche

Toshiba

Toshiba 27A10 Manuale utente

Hitachi

Hitachi 32FX48B Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuale utente

Changhong Electric

Changhong Electric uhd55b6000is Manuale utente

Panasonic

Panasonic Genus TX-G10 Manuale utente

Toshiba

Toshiba 19A20 Manuale utente

Sony

Sony XBR-100Z9D Manuale utente

Samsung

Samsung 55S9 B Series Manuale utente

Sharp

Sharp LC-40FI5012E Manuale utente

Loewe

Loewe Table Stand Reference 55 Manuale utente

Sylvania

Sylvania 6427FB Manuale utente

Sanyo

Sanyo CE19LD90N-B Manuale utente

North State

North State TV2GO Manuale utente

RCA

RCA RTU7877 Manuale utente

Sharp

Sharp 21K-FG1RU Manuale utente

Sony

Sony Esprit TAV-L1 Manuale utente

Grundig

Grundig 43 VLE 4820 Manuale utente

Samsung

Samsung LN26C350D1D Manuale utente
