Philips 20PT1582-75R Manuale utente

Instructions for use

Colour Television

14"/20"/21"

3139 125 27303

14PT1582

20PT1582

21PT1582

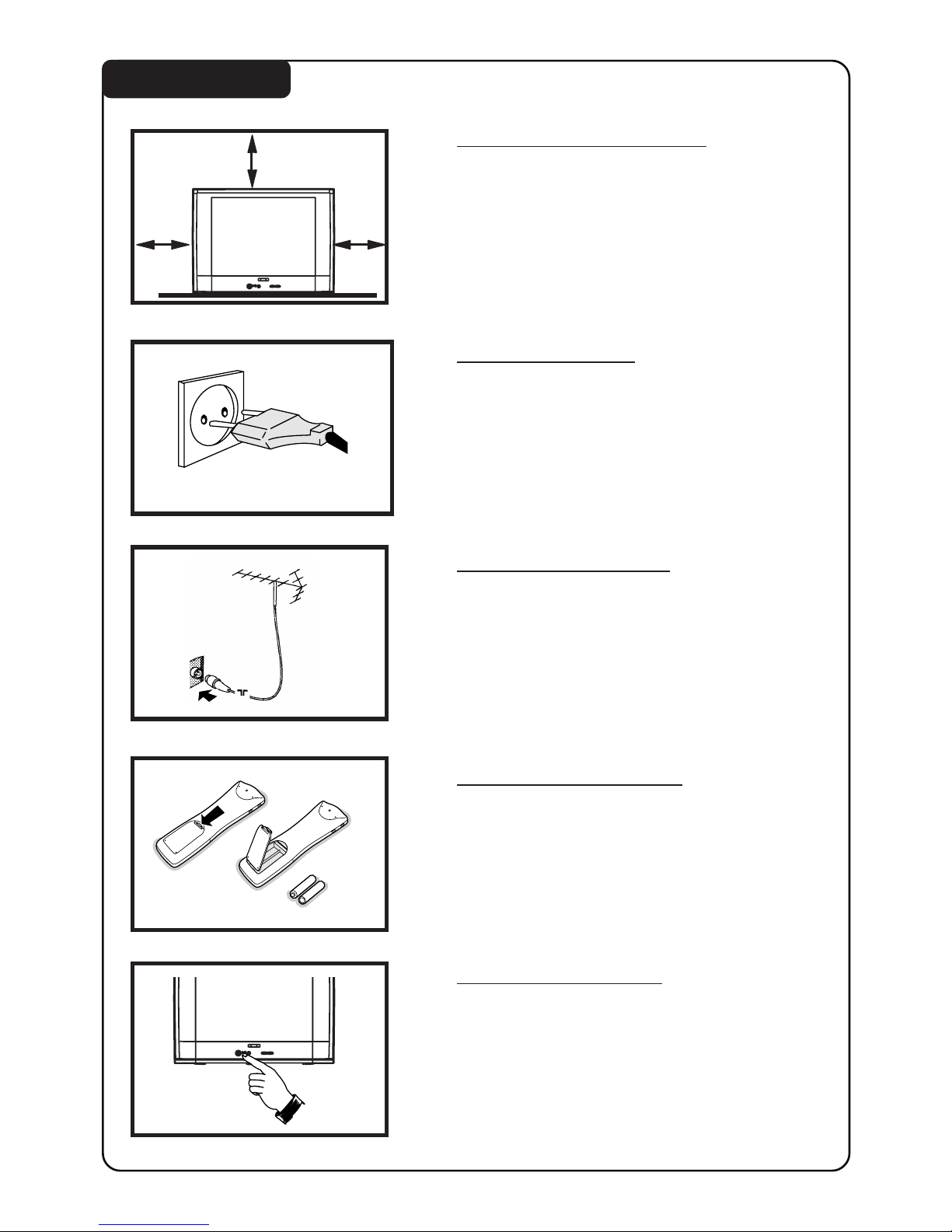

Positioning of the TV set

• Place TV set on a solid base (e.g. a TV/Video

cabinet)

• Leave at least 5 cm around each side of TV

set for ventilation to avoid over-heating.

• Do not place TV set near a radiator or other

sources of heat.

• Do not place TV set where it can be exposed

to rain or excessive moisture.

Mains Connection

• For correct mains voltage, refer to type sticker

at the rear of the TV set

• Consult your dealer if mains supply is different.

Note : This diagram is not representative of the

actual plug and socket.

Antenna Connections

• Connect the aerial plug to the antenna socket

¬¬

¬on the backcover.

• Insert the mains plug into a wall socket.

Use of Remote Control

• Insert correct type of batteries into the

compartment.

• Ensure the batteries are placed in the right

direction.

Switching on the set

• Press the mains power button to switch on/off

the TV.

• If the set is on standby mode (indicator is red),

press STANDBY button on the remote control

to switch on set.

INSTALLATION

5 cm 5 cm

5 cm

CONNECTING PERIPHERAL EQUIPMENT

Equipment such as VCR, Laser disc player, VCD, etc. can be connected to the video and

audio (AV) sockets at the rear of the TV. Switch off mains power of the TV and equipment

before making any connections.

Connection for Playback

• Connect the Video Output socket of the

VCR/laser dissc player to the AV “in”

socket at the rear of the TV to playback

programmes.

Connection for recording

1. From the TV channel you are watching

• Connecct input sockets of the VCR to the

Monitor “out” sockets at the rear of the

TV to do recording.

2. From one VCR to another VCR

• Connect the sockets of the VCR which you

wish to record from to the Input sockets at

the rear of the TV.

• Connect the sockets of the receiving VCR to

the Monitor “out” sockets at the rear of the

TV.

VIDEO

AUDIO

outin

VIDEO

AUDIO

outin

VIDEO

AUDIO

outin

VCR

OR Laser

disc

player

VCR

VCR 1 VCR 2

VIDEO AUDIO

˝˚

VOLUME CHANNEL

LK ˚

INSTALL /

FUNCTIONS OF TV FRONT CONTROLS/SOCKETS

14PT1582

20PT1582

1. Mains Power button Switch mains power on or off.

2. Standby light indicator Indicate red light when standby mode is activated.

3. Remote Sensor Aim remote control handset at remote sensor when

operating the TV.

4. Headphone socket Connect headphone jack to socket for personal listening.

5. AV “in” sockets Connect to Video “out” and Audio “out” sockets of VCR

laser disc player, etc.

6. Volume ˝˝

˝˝

˝ / ˙˙

˙˙

˙button Adjust sound volume louder/softer.

7. Channel ¸¸

¸¸

¸ / ˚˚

˚˚

˚button Select channel in ascending/descending order.

Note : You can enter the main menu by pressing both

the Volume ˝˝

˝˝

˝/ ˙˙

˙˙

˙buttons at the same time.

Press Channel ¸¸

¸¸

¸/ ˚˚

˚˚

˚button to select items on the menu.

Press Volume ˝˝

˝˝

˝/ ˙˙

˙˙

˙button to activate sub-menu.

345

6 7

nVIDEO AUDIO

VOLUME

˙

˝ ˚

¸

CHANNEL ˚

¸

INSTALL /

nVIDEO AUDIO

VOLUME

˙

˝ ˚

¸

CHANNEL ˚

¸

INSTALL /

21PT1582

345

6 7

ehf

123

456

789

MENU INC.

SURR.

SLEEPOSDAV

SMART SMART

±`

A/CH

SURF

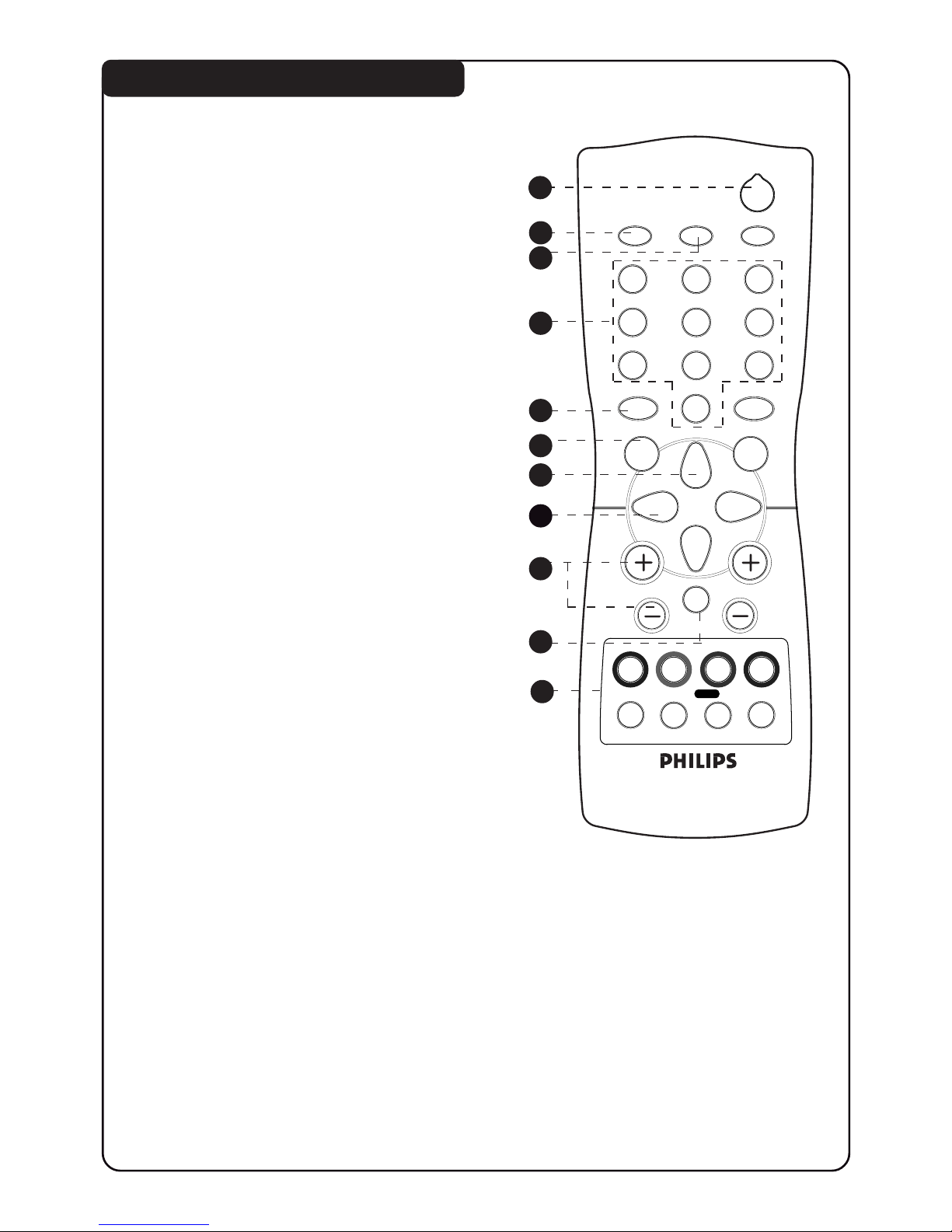

FUNCTIONS OF REMOTE CONTROL

1. STANDBY

Switch off set temporarily to standby

mode. (The red light indicator lights

up when set is on standby mode). To

switch on set, press STANDBY or any

DIGIT button.

2. AV

Selects AV channels.

3. OSD (On-Screen Display)

– Displays channel number and

sound transmission mode.

– Allows you to exit menu from screen.

4. DIGIT (0 - 9)

Allows you select a channel. For a

2-digit channel number, the second

digit must be entered before the

“ – “ sign disappears.

5. SMART SOUND

Allows you to access 4 different

types of sound settings and select

your preferred setting.

6. MENU

To display or exit menu from screen.

7. CURSOR UP

Allows you to select the next

item on the menu.

8. CURSOR LEFT

Allows you to access the sub-menus

and adjust the settings.

9. VOLUME + / –

Increases / decreases volume.

10. MUTE

Mutes sound. To restore sound,

press button again.

11. TELETEXT

Not applicable.

ehf

123

456

789

MENU INC.

SURR.

SLEEPOSDAV

SMART SMART

±`

A/CH

SURF

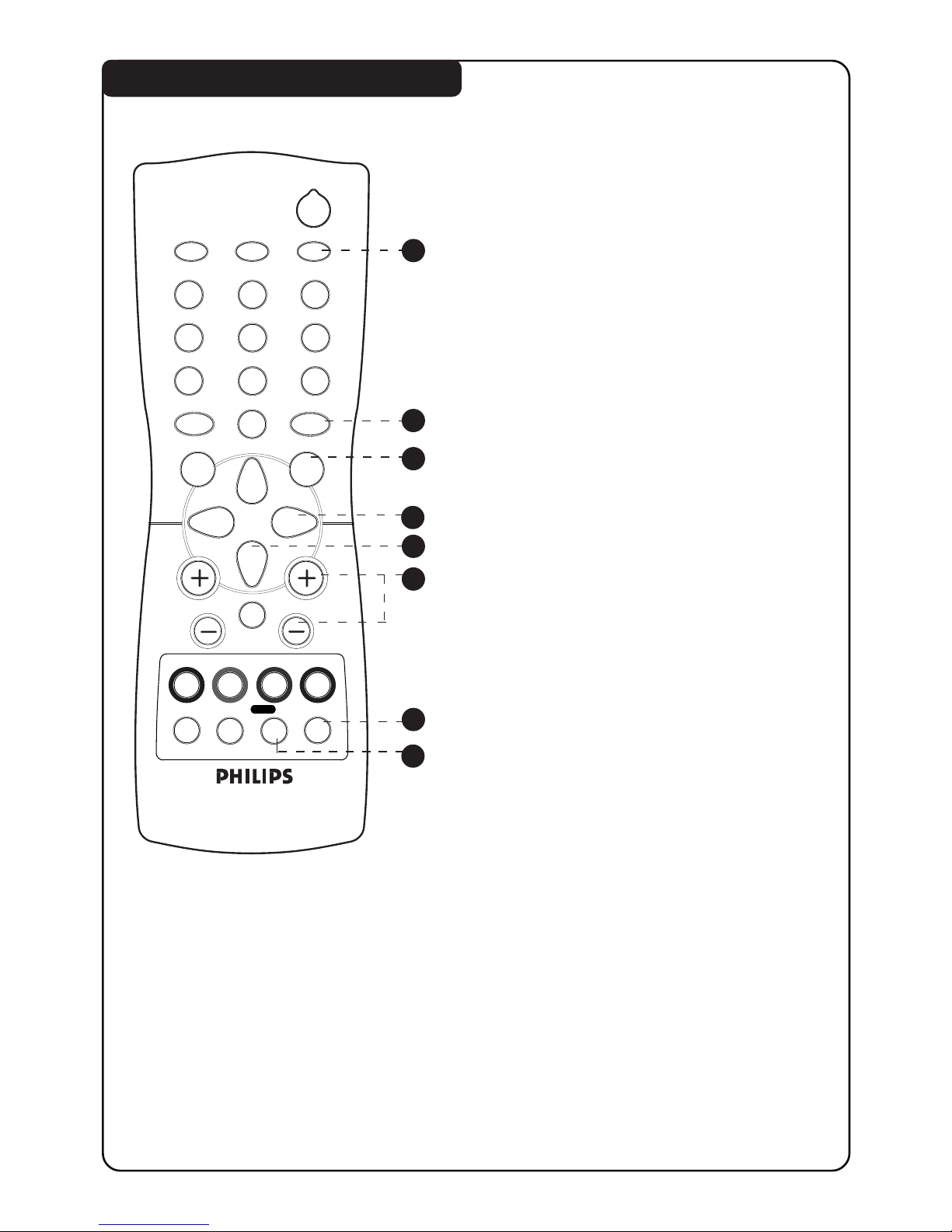

FUNCTIONS OF REMOTE CONTROL

12. SLEEPTIMER

Allows you to select a time period after

which the set will switch to standby

mode automatically. You can set the

timer from OFF mode up to a maximum

of 240 minutes.

13. SMART PICTURE

Allows you to access 4 different types

of picture settings and select your

preferred setting.

14. INCREDIBLE SURROUND

Not applicable.

15. CURSOR RIGHT

Allows you to access the sub-menus

and adjust the settings.

16. CURSOR DOWN

Allows you to select the next item

on the menu.

17. CHANNEL + / –

Allows you to select channel in

ascending or descending order.

18. 44

Not applicable for 44

4 feature.

19. SURF / ALTERNATE CHANNEL

– When surf mode is activated through

the main menu, it allows you to select

up to a maximum of 8 channels and

view quickly the selected channels .

– It also allows you to alternate between

the last viewed channel and the present

channel if alternate channel mode is

activated.

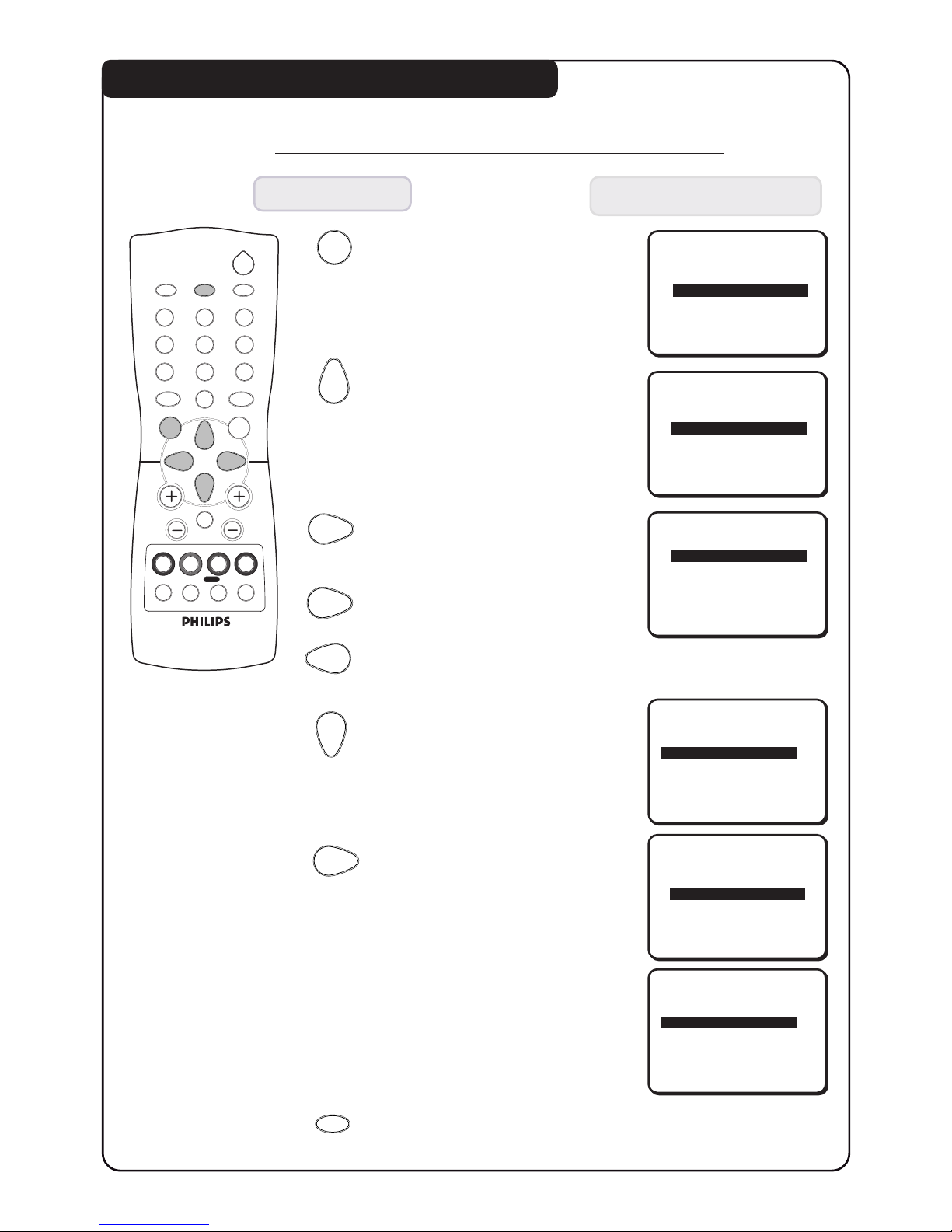

AUTOMATIC TUNING OF THE TV CHANNELS

LANGUAGE ENGLISH

AUTO STORE ÉÉ

ÉÉ

SWAP ÉÉ

ÉÉ

BLUE MUTE OFF

INSTALLATION ÉÉ

ÉÉ

BRIGHTNESS

IIIII

❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙

COLOUR

IIII

❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙

CONTRAST

IIIIIIII

❙ ❙ ❙ ❙ ❙ ❙

LANGUAGE ENGLISH

AUTO STORE ÉÉ

ÉÉ

SWAP ÉÉ

ÉÉ

SKIP ÉÉ

ÉÉ

AUTOSTORE 050 MHZ

CHANNEL 1

LANGUAGE ENGLISH

AUTO STORE ÉÉ

ÉÉ

SWAP ÉÉ

ÉÉ

SKIP ÉÉ

ÉÉ

OSD

SURF A/CH

BLUE MUTE OFF

INSTALLATION ÉÉ

ÉÉ

BRIGHTNESS

IIIII

❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙

COLOUR

IIII

❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙

Selecting the language and Automatic Tuning

Press button Result on TV Screen

1. Enter main menu.

2. Select INSTALLATION.

3. Enter installation

menu. LANGUAGE

option is highlighted.

4. Select your desired

language.

5. Select AUTO STORE.

6. Start automatic tuning.

7. After tuning is completed,

the installation menu

will appear.

8. Exit menu from screen.

ehf

123

456

789

MENU INC.

SURR.

SLEEPOSDAV

SMART SMART

±`

A/CH

SURF

SWAP ÉÉ

ÉÉ

SKIP ÉÉ

ÉÉ

MANUAL ÉÉ

ÉÉ

SYSTEM AUTO

SEARCH 044 MHZÉÉ

ÉÉ

FINE TUNE

❙ ❙ ❙ ❙ ❙ ❙

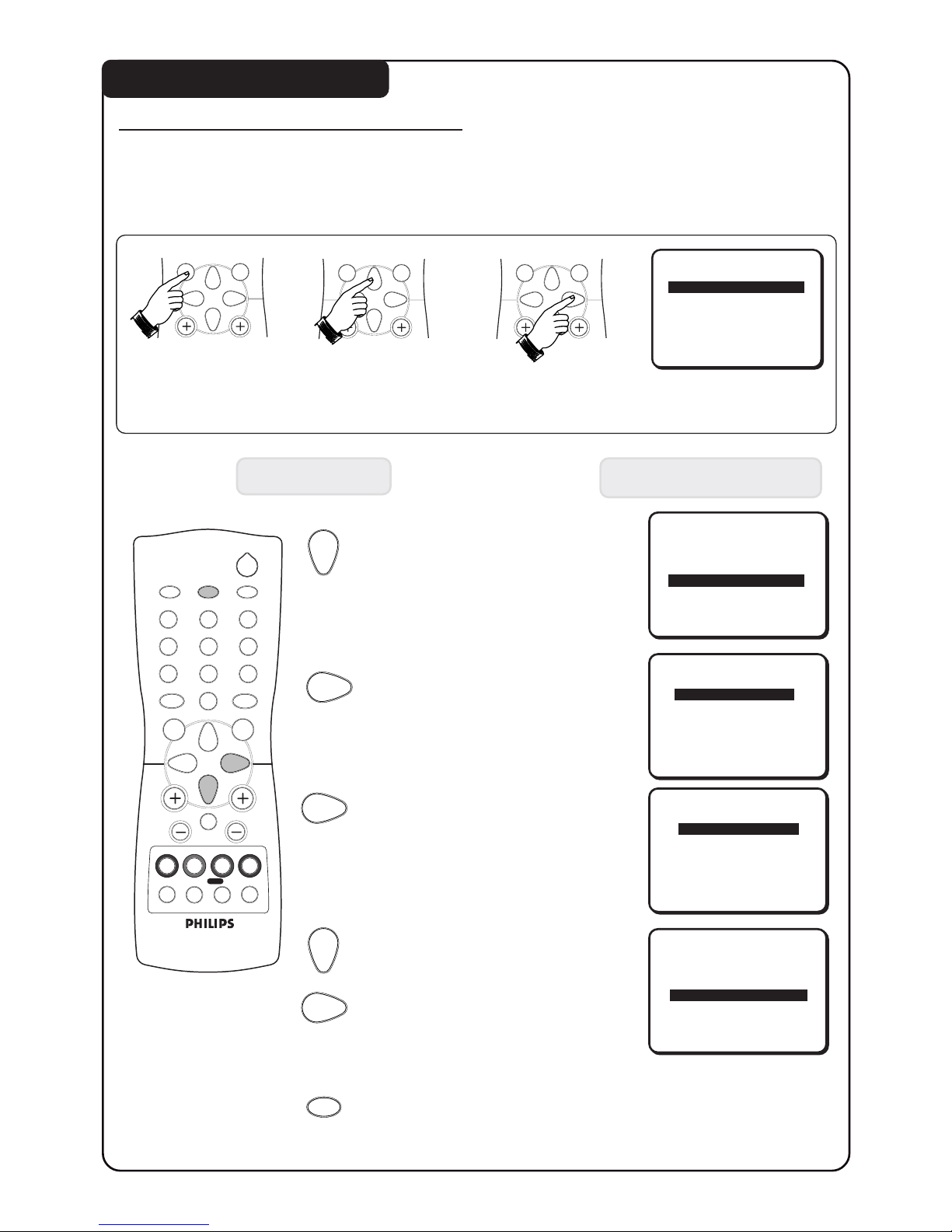

SELECTION OF TV SYSTEM

➠➠➠ LANGUAGE ENGLISH

AUTO STORE ÉÉ

ÉÉ

SWAP ÉÉ

ÉÉ

MENU INC.

SURR. MENU INC.

SURR.

SYSTEM AUTO

SEARCH 044 MHZÉÉ

ÉÉ

FINE TUNE

❙ ❙ ❙ ❙ ❙ ❙

(Applicable to certain models only)

This feature allows you to select your desired TV system. If AUTO is selected, the respective

colour system will be automatically selected according to the transmission system.

Note : Select another system if reception is poor at AUTO mode.

1. Enter main menu. 2. Select INSTALLATION. 3. Enter installation mode.

Press button Result on TV Screen

4. Press button repeatedly

until MANUAL is selected.

5. Enter system menu.

6. Press button repeatedly

to cycle through the

respective transmission

system and select the

desired system.

7. Select STORE.

8. Store system.

9. Exit menu from screen.

OSD

eh f

123

456

789

MENU INC.

SURR.

SLEEPOSDAV

SMART SMART

±`

A/CH

SURF

FINE TUNE

❙ ❙ ❙ ❙ ❙ ❙

CHANNEL 8

STORED

MENU INC.

SURR.

MENU INC.

SURR. MENU INC.

SURR.

➠➠➠LANGUAGE ENGLISH

AUTO STORE ÉÉ

ÉÉ

SWAP ÉÉ

ÉÉ

SWAP ÉÉ

ÉÉ

SKIP ÉÉ

ÉÉ

MANUAL ÉÉ

ÉÉ

SYSTEM AUTO

SEARCH 044 MHZ ÉÉ

ÉÉ

FINE TUNE

❙ ❙ ❙ ❙ ❙ ❙

SYSTEM AUTO

SEARCH 055 MHZ ÉÉ

ÉÉ

FINE TUNE

❙ ❙ ❙ ❙ ❙ ❙

CHANNEL 2

SEARCH 055 MHZ ÉÉ

ÉÉ

FINE TUNE

❙ ❙ ❙ ❙ ❙ ❙

CHANNEL 8

STORE ÉÉ

ÉÉ

FINE TUNE

❙ ❙ ❙ ❙ ❙ ❙

CHANNEL 8

STORED

123

456

789

OSD

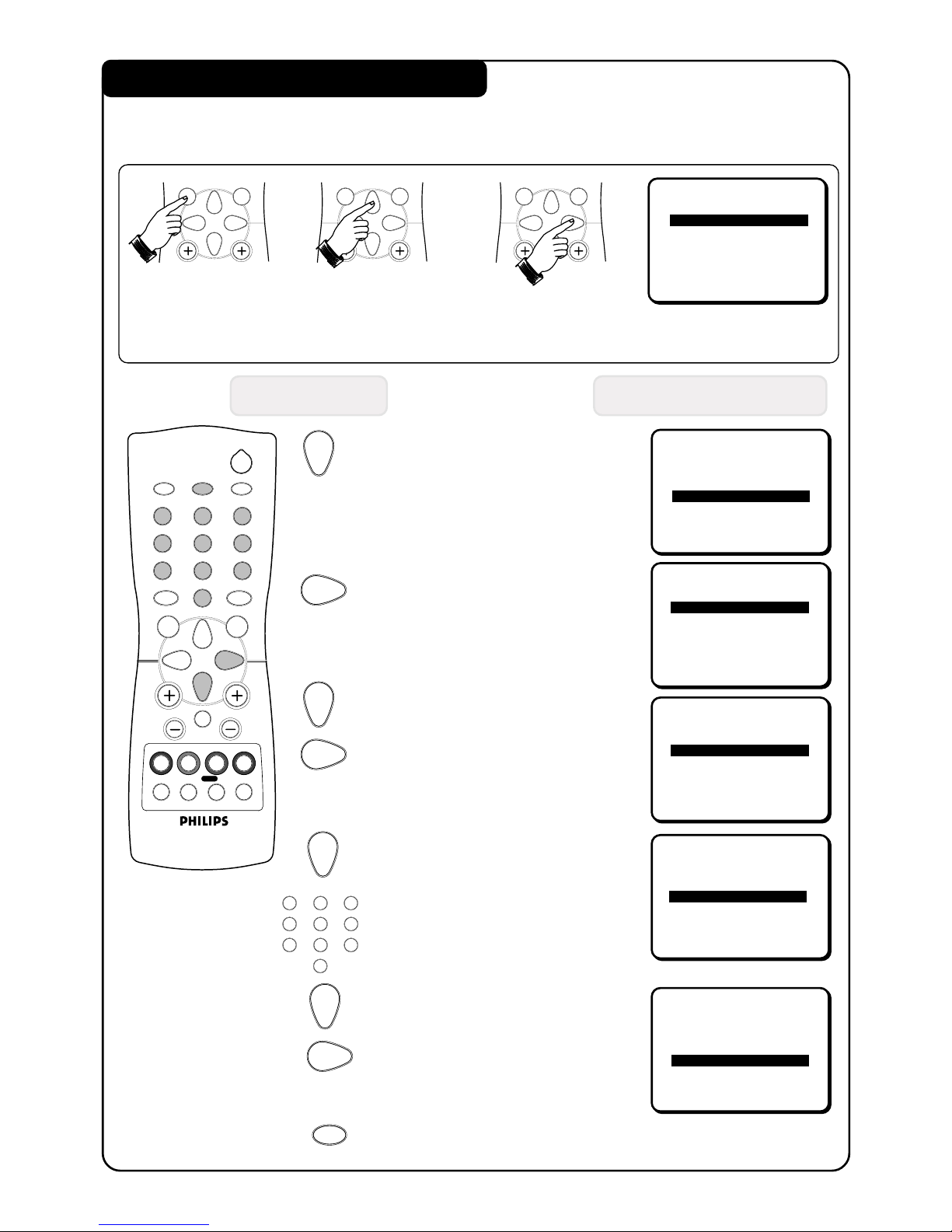

MANUAL TUNING OF TV CHANNELS

Manual tuning of channels allows you to select your preferred channel number for

every available programme.

1. Enter main menu. 2. Select INSTALLATION. 3. Enter installation mode.

Press button Result on TV Screen

4. Press button repeatedly

until MANUAL is selected.

5. Enter manual tuning menu.

6. Select SEARCH.

7. Start searching for a

transmitting channel.

Searching stops once a

transmitting channel is found.

8. Press button repeatedly until

CHANNEL is selected.

9. Key in the desired channel

number.

10. Select STORE.

11. Store tuned channel. To

continue searching for the

next transmitting channel,

repeat steps 7 to 12 again.

12. Exit menu from screen.

ehf

1 2 3

456

789

INC.

SURR.

SLEEPOSDAV

SMART SMART

A/CH

SURF

1010

MENU INC.

SURR. MENU INC.

SURR.

➠➠➠LANGUAGE ENGLISH

AUTO STORE ÉÉ

ÉÉ

SWAP ÉÉ

ÉÉ

123

456

789

123

456

789

LANGUAGE ENGLISH

AUTO STORE ÉÉ

ÉÉ

SWAP ÉÉ

ÉÉ

SKIP ÉÉ

ÉÉ

MANUAL ÉÉ

ÉÉ

FROM 3

TO 2

EXCHANGE ÉÉ

ÉÉ

FROM 3

TO 8

EXCHANGE ÉÉ

ÉÉ

FROM 3

TO 8

EXCHANGED

OSD

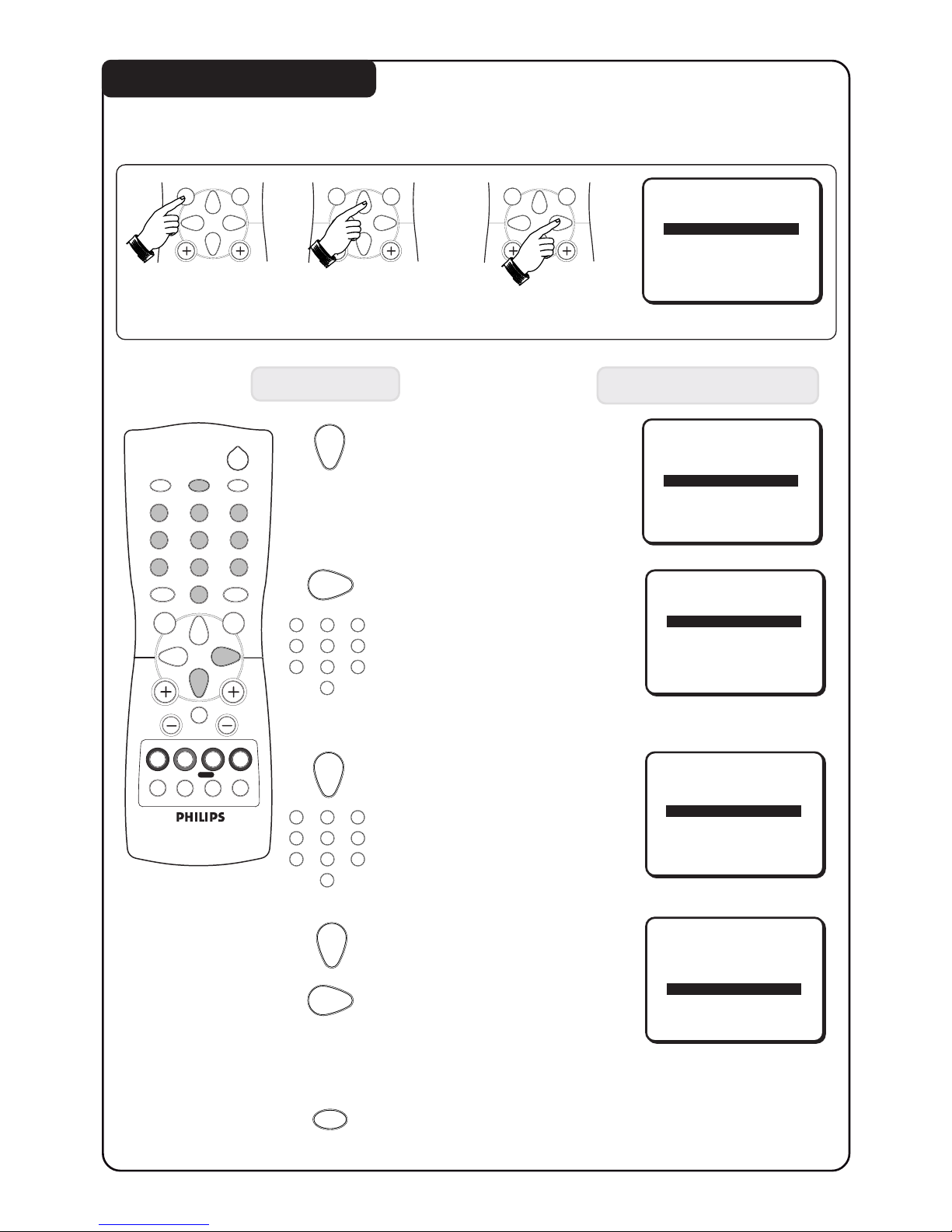

SWAPPING OF CHANNELS

This feature allows you to change the channel number to your choice for a particular TV

station.

1. Enter main menu. 2. Select INSTALLATION. 3. Enter installation mode.

Press button Result on TV Screen

4. Select SWAP.

5. Enter swap menu.

6. Key in the desired

channel number

you want to exchange

from in the FROM

column.

7. Select TO.

8. Key in the programme

number you want to

exchange to in the TO

column.

9. Select EXCHANGE.

10. Activate exchange of

channels.

11. Exit menu from screen.

ehf

123

456

789

MENU INC.

SURR.

SLEEPOSDAV

SMART SMART

±`

A/CH

SURF

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Philips TV

Philips

Philips 28PT7138 Manuale utente

Philips

Philips 42PFL76 6M Series Manuale utente

Philips

Philips Cineos 32PF9631D Manuale utente

Philips

Philips 20PT9007D Manuale utente

Philips

Philips 32PFL5605/98 Manuale utente

Philips

Philips Magnavox TS2754 Manuale utente

Philips

Philips 44PL9522/17 Manuale utente

Philips

Philips Roku TV 32PFL6472 Manuale utente

Philips

Philips 32PW6305/58 Manuale utente

Philips

Philips 29PT5431/85R Manuale utente

Philips

Philips 6103 Series Manuale utente

Philips

Philips 15AA3330 Manuale utente

Philips

Philips 43PUT7406 Manuale utente

Philips

Philips Matchline 28PW9617 Manuale utente

Philips

Philips 22PFL2978H/12 Manuale utente

Philips

Philips OLED856 Series Manuale utente

Philips

Philips 29PT5645 Manuale utente

Philips

Philips MX975D Manuale utente

Philips

Philips 32HFL5763H Manuale tecnico

Philips

Philips 43PUS7303 Manuale utente

Philips

Philips 17PF9946 Manuale utente

Philips

Philips 32PF9968/10 Manuale utente

Philips

Philips 6927 Series Manuale utente

Philips

Philips 37DC2090 Manuale utente

Manuali TV popolari di altre marche

Toshiba

Toshiba 27A10 Manuale utente

Hitachi

Hitachi 32FX48B Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuale utente

Changhong Electric

Changhong Electric uhd55b6000is Manuale utente

Panasonic

Panasonic Genus TX-G10 Manuale utente

Toshiba

Toshiba 19A20 Manuale utente

Sony

Sony XBR-100Z9D Manuale utente

Samsung

Samsung 55S9 B Series Manuale utente

Sharp

Sharp LC-40FI5012E Manuale utente

Loewe

Loewe Table Stand Reference 55 Manuale utente

Sylvania

Sylvania 6427FB Manuale utente

Sanyo

Sanyo CE19LD90N-B Manuale utente

North State

North State TV2GO Manuale utente

RCA

RCA RTU7877 Manuale utente

Sharp

Sharp 21K-FG1RU Manuale utente

Sony

Sony Esprit TAV-L1 Manuale utente

Grundig

Grundig 43 VLE 4820 Manuale utente

Samsung

Samsung LN26C350D1D Manuale utente
