About this handbook

This handbook has been designed to help you install and operate yourTV set.

We would strongly advise you to read it thoroughly.

4This little circle in front of a sentence indicates what you must do.

5This arrow shows the result of your action.

The text in italics is a note or comment.

A glossary (p.18) is provided for more detailed information on the terms used

in this handbook.

Table of contents

Installation

TV set and remote control.........................................................................2

Switching on..............................................................................................2

Calling up the installation menu................................................................3

Selecting the menu language and country ..................................................3

Tuning-in TV channels: automatic store....................................................4

Sorting.......................................................................................................4

Manual store..............................................................................................5

Operation

Operating the TV set.................................................................................6

Keys on the TV set.....................................................................................6

Keys on the remote control........................................................................7

16/9 functions ...........................................................................................8

Using the menus: picture and sound adjustment......................................10

Special features.........................................................................................11

Special functions......................................................................................12

Teletext....................................................................................................13

Peripheral equipment

Connecting other equipment...................................................................15

Tips .........................................................................................................17

Glossary...................................................................................................18

Index........................................................................................................18

Installation of the TV set

4Place your TV set on a solid, stable surface

(please ensure that this surface is strong enough).

For ventilation allow a space of at least 5 cm around the TV set.

Do not place anything on the TV set which might damage it: plants

(risk of water entering the casing), covering material, lamp, or any

other heat source (risk of overheating).

4Insert the aerial plug into the Msocket at the rear.

4Insert the mains plug into a wall socket (220-240 V / 50 Hz).

In some countries the mains plug may differ from that illustrated.

Remote control

4Open the battery compartment on the remote control.

4Insert the two LR03-type batteries (supplied) making sure they are

the right way round.

In a effort to help protect the environment the batteries supplied with this

television do not contain mercury or nickel cadmium. If a means of recycling

batteries is available please use this (if in doubt contact your dealer).

Switching on

4Press the Akey on the front of the TV set.

5A green indicator appears and the screen lights up.

If the red indicator comes on, the TV set is in standby mode:

4Press the key on the remote control.

5The screen lights up.

When the remote control is being used, the indicator flashes orange.

Installation menu

This menu enables you to tune in the channels on the TV set.

4Open the flap on the remote control.

Selecting the menu language

You may choose between several languages for the menu display.

After calling up the INSTALLATION menu :

4Select the LANGUAGE adjustment using the keys.

5A display area appears at the bottom of the screen.

4Select the language you wish to use by means of the keys.

5The text of all themenuswill appear in thelanguageyou have chosen.

Move to the next adjustment.

Selecting the country

You should now select the country in which you are living.

4Select the COUNTRY adjustment using the keys.

4Select your country using the keys (GB for Great Britain).

5Your choice is displayed at the bottom of the screen.

Move to the next adjustment.

The country selected affects the way in which channel frequencies are

allocated to the channel numbers. Your TV set will automatically allocate

the appropriate frequencies for the country you select.

To leave the INSTALLATION menu:

4Press the and keys at the same time.

Using the menus:

4Use the keys to select the adjustment to be made.

4Use the keys to make the adjustment.

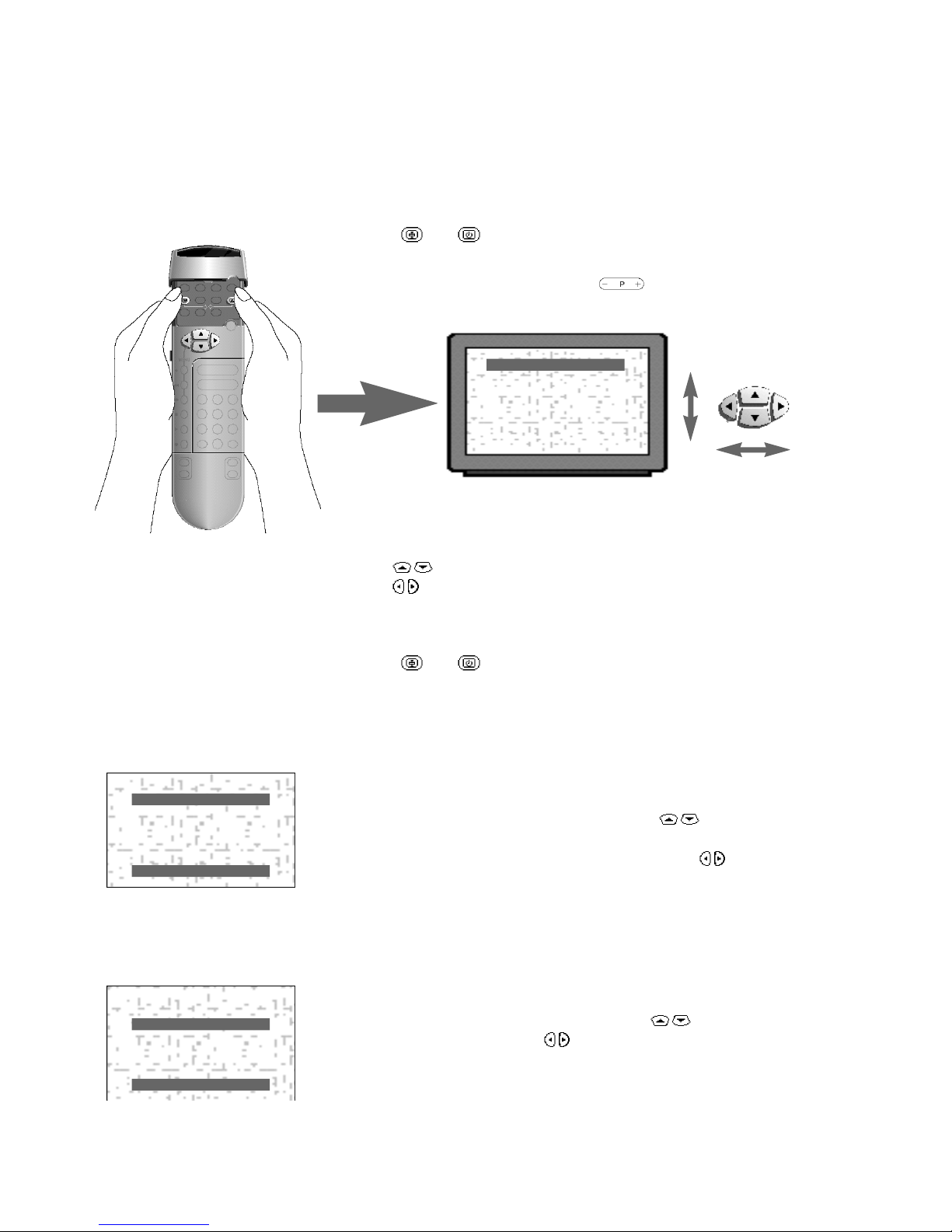

To call up the installation menu

4Press the and keys at the same time.

5The INSTALLATION menu appears on the screen.

If the menu display is not stable, press the key.

INSTALLATION x y

LANGUAGE GB

COUNTRY GB

AUTO STORE.

MANUAL STORE.

SORT

INSTALLATION

LANGUAGE GB

COUNTRY GB

AUTO STORE.

MANUAL STORE.

SORT

- GB +

INSTALLATION

LANGUAGE GB

COUNTRY GB

AUTO STORE.

MANUAL STORE.

SORT

- GB +

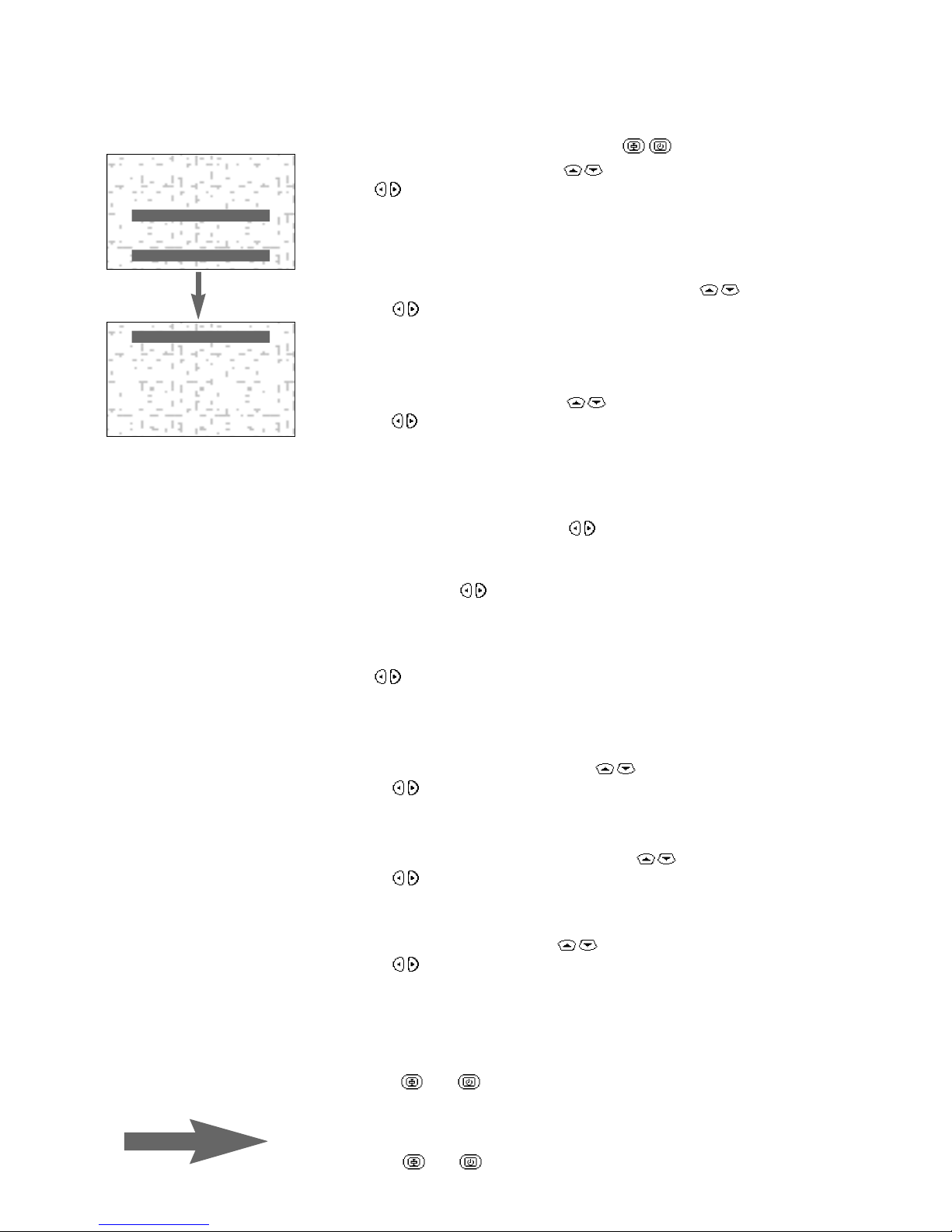

Channel search

There are two ways the television may be tuned in : automatic store

or manual store (tuning-in channel by channel).

Automatic store

From the INSTALLATION menu (keys ).

4Select AUTO STORE using the keys.

4Press .

5The AUTO STORE menu appears. The search begins.

The message SEARCHING PLEASE WAIT appears on the screen.

The TV set searches through the complete frequency range and

stores all the channels it finds. The search operation takes a few

minutes. A horizontal scale indicates the progress of the search.

You must wait for the horizontal bar to reach the end of the line.

When the search is completed:

The INSTALLATION menu reappears automatically.

You must now sort the channels.

If no channels have been found, refer to ‘Tips’ (page 15).

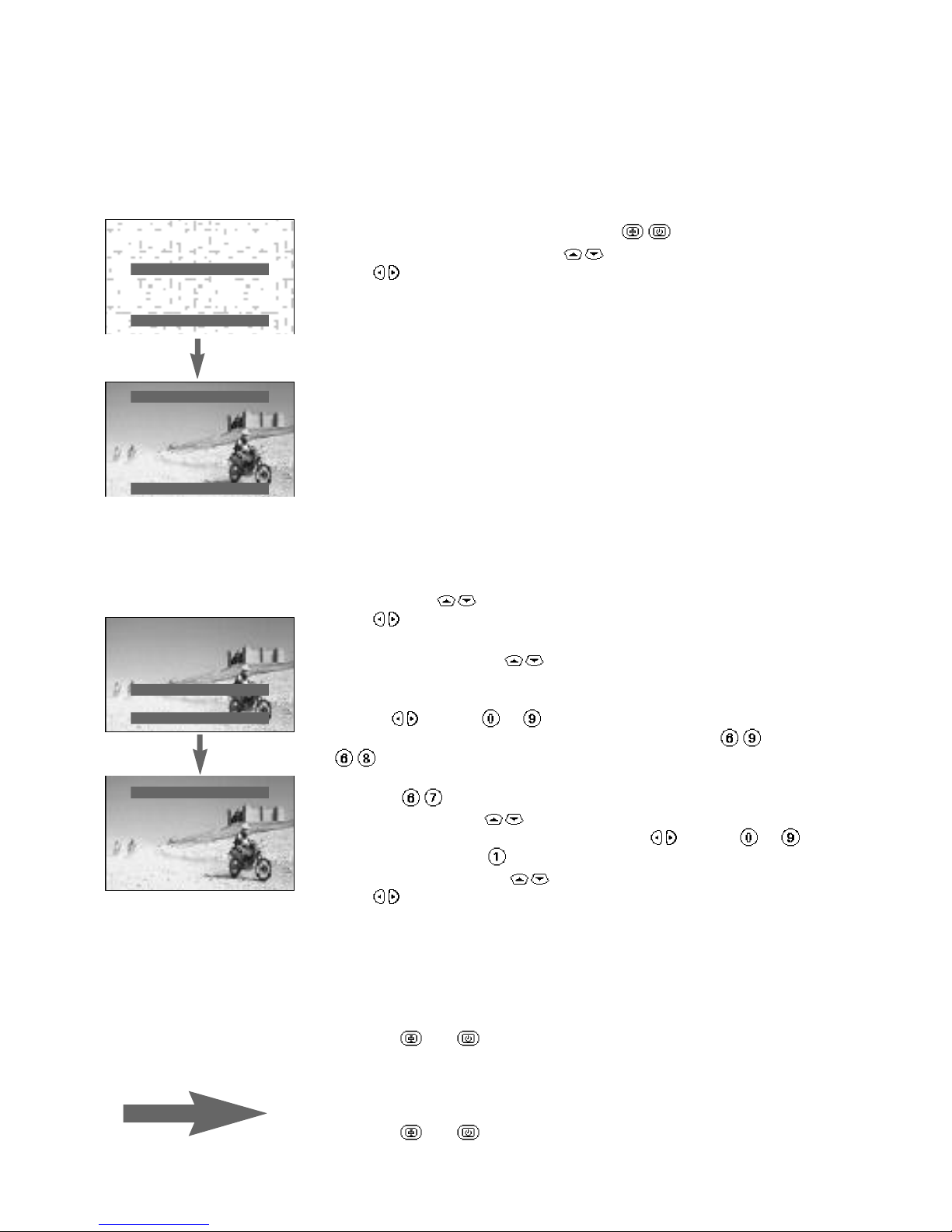

Sorting

This menu enables you to renumber the TV channels in the order

you wish.

4Select SORT ( keys).

4Press .

5The SORT menu appears.

4Select FROM using the keys.

5The program number and its frequency (or channel) appear on

the screen.

4Use the keys (or to ) to look through the channels which

have been found and stored from 69 downwards (press ,

, etc.), until the channel you wish to renumber is present on

the screen. For example, to renumber programme 67 as programme

01, enter , then:

4Select TO using the ( keys).

4Enter the new programme number using the keys (or to ).

In our example, press to enter programme 01.

4Select STORE using the keys.

4Press .

5OK appears. The new programme number is stored.

In our example, programme 67 becomes programme 01

(and programme 01 becomes programme 67).

Repeat this sequence to renumber the remaining programmes.

To leave the SORT menu:

4Press the and keys at the same time.

5The INSTALLATION menu reappears.

To leave the INSTALLATION menu:

4Press the and keys at the same time.

You may now use the TV set (p. 6).

AUTO STORE.

SEARCHING

PLEASE WAIT.

PRESS < > TO START

PRESS 67 TO STOP

STATIONS FOUND : 00

I I I I I I

INSTALLATION

LANGUAGE GB

COUNTRY GB

AUTO STORE.

MANUAL STORE.

SORT

- +

SORT x y

FROM P69

TO P01

STORE

INSTALLATION

LANGUAGE GB

COUNTRY GB

AUTO STORE.

MANUAL STORE.

SORT

- +

Manual store

From the INSTALLATION menu (keys ).

4Select MANUAL STORE (keys ).

4Press .

5The MANUAL STORE menu appears.

Selecting channel or frequency mode (depends on country)

For certain countries this adjustment is not available.

4Select the CHANNEL/FREQUENCY adjustment ( keys).

4Use the keys to select the tuning mode: FREQ (frequency

search), or CHAN. Cand CHAN. S (channel search, if you know

the channel numbers on which the programmes are broadcast).

Programme number

4Select the PROG. NUMBER adjustment ( keys).

4Use the keys to enter the channel number.

Storing

4Select the STORE adjustment ( keys).

4Use the keys to store the setting.

5The OK message appears.

Selecting the TV system

4Select the SYSTEM adjustment ( keys).

4Use the keys to select : EUROPE (automatic detection) or

manual selection of the system : EUR.W, EUR. E or UK .

For more information, see the glossary on p.18.

4Select the SEARCH adjustment ( keys).

4If you know the frequency (or channel number) of the programme

that you wish to receive, you can enter the number directly,

otherwise use the keys to start the search.

5The search begins. When a programme is found, the search will stop.

Go to step 2.

If you do not want to store this channel:

4Press again to continue the search.

If no picture is found, refer to ‘Tips’ (page 17).

Fine tuning

If reception is not satisfactory, you can use the fine tuning function.

4Select FINE TUNE from the menu ( keys).

4Use the keys to make the adjustment.

To leave the INSTALLATION menu:

4Press the and keys at the same time.

steps 1, 2, 3to store all the available TV channels.

repeat

To leave the MANUAL STORE menu:

4Press the and keys at the same time.

5The INSTALLATION menu reappears.

INSTALLATION

LANGUAGE GB

COUNTRY GB

AUTO STORE.

MANUAL STORE.

SORT

- +

MANUAL STORE x y

CHANNEL/FREQ FREQ.

SYSTEM EUROPE

SEARCH 815MHZ

FINE TUNE ON

PROG. NUMBER 1

STORE

Operating the TV set

Standby

The standby keyenables you to switch off the TV using the remote control.

4Press the key.

5The TV set is switched off and the red indicator lights up.

4To switch the TV set on again, press the key or one of

the keys numbered to (or the key).

For further information, see ‘Tips’: standby (p.17).

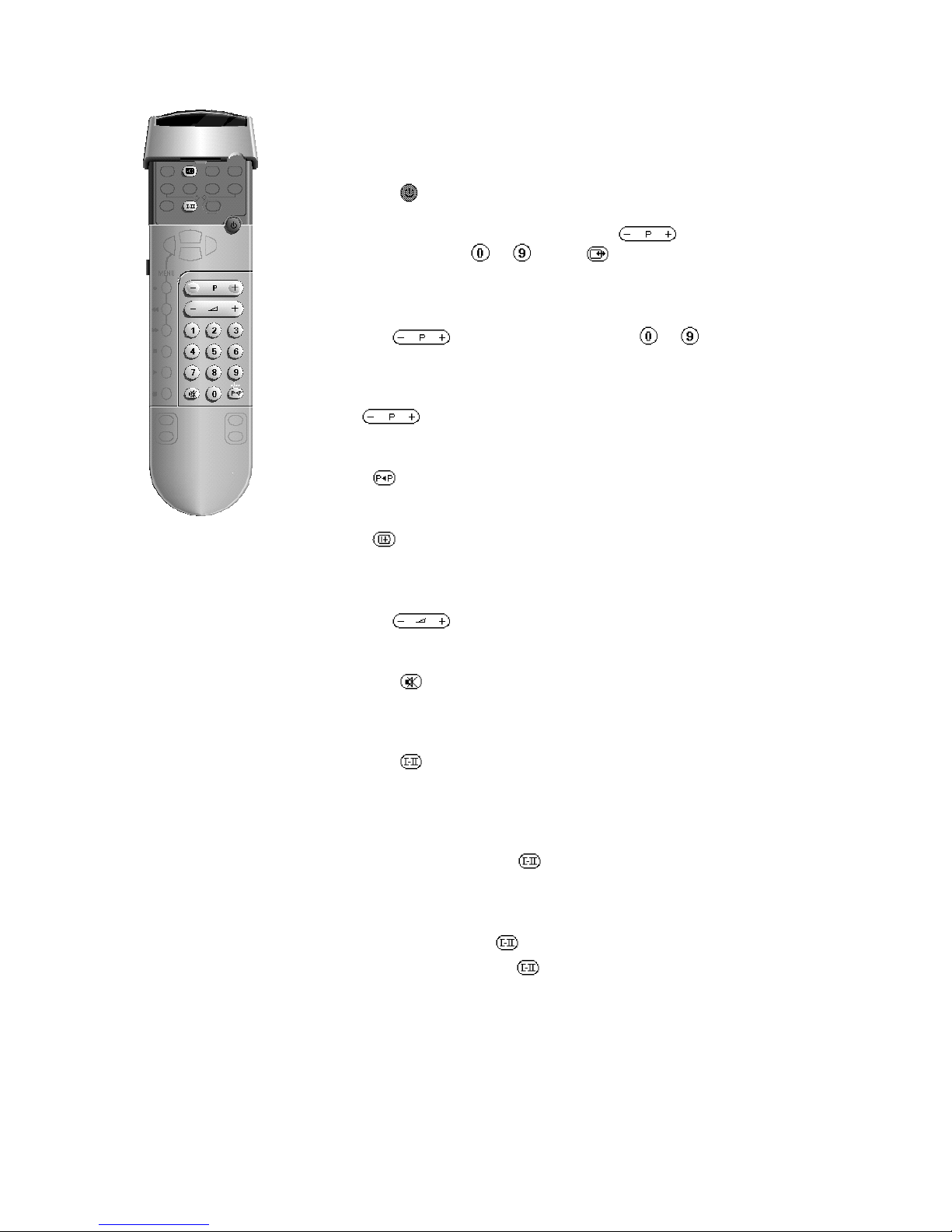

Selecting TV programmes

4Use the key or the keys numbered to .

5The number is displayed and the programme selected.

For a 2-figure number, you must enter the second figure before

the dash disappears. If you select a programme below zero using

the key, the EXT sockets are accessed.

Previous programme

4Press .

On Screen Display (OSD)

4Press to view the programme number, sound reception and

time remaining (see SLEEPTIMER, p.11).

Volume control

4Use the key.

Mute key

4Press the key to mute the sound.

Stereo/Mono/Language key

TV programmes may be transmitted with different soundcharacteristics.

4Press the key to choose the type of sound.

5The indication for gappears when two languages are transmitted:

5The indication MONO or STEREO appears when the programme

is in mono or stereo.

If the sound quality in STEREO is not satisfactory (noise,

interference, etc.): use the key to switch to MONO

(the indication STEREO appears in red)

5For TV sets fitted with NICAM reception, the indication DIGITAL

appears when a NICAM broadcast is received.

In stereo NICAM, the key is used to switch to mono.

In bilingual NICAM, the key is used to choose between

NICAM language f, NICAM language gand mono.

The keys on the TV set

The TV set has three keys: MENU, - and +.

(On some models they may be concealed by a cover).

TheMENUkey isusedtoaccessvolumeand the”smartcontrols”(p.10).

The - and + keys are used to select the TV channels and alter the

adjustments of the MENU key.

Themenuis automatically switched off aftera fewseconds ifno adjustment is made.

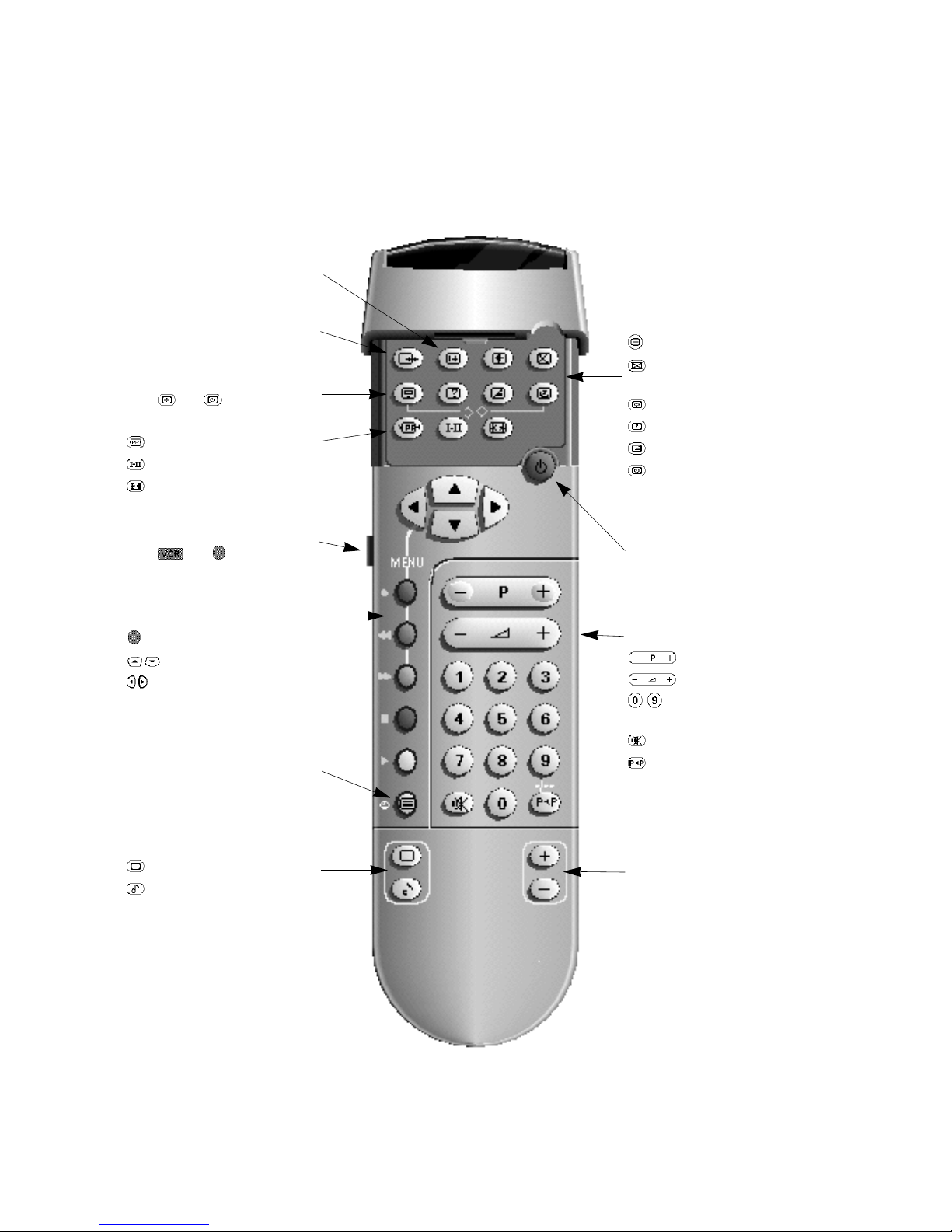

Remote control keys

On Screen Display (p.6)

EXTconnectorsselection(p.15)

Call upINSTALLATION menu

Press and (p.3)

Personal preferences (p11)

stereo/mono/language (p.6)

16/9 functions (p.8)

Video recorder key (p.12)

Press and .

Menu (p.10)

display/cancel menus

select adjustment

make adjustment

Call up teletext (p.13)

”Smart control” keys (p.12)

picture presets

sound presets

Teletext functions (p.13)

enlarging a page

temporary interruption of

teletext

stop sequence of pages

game solutions

screen overlay

display time or enter a sub-

page n°.

(p.6) programme selection

volume

/ enter a programme

number

mute key

previous programme

Switch to standby (p.6)

Programmable keys (p.12)

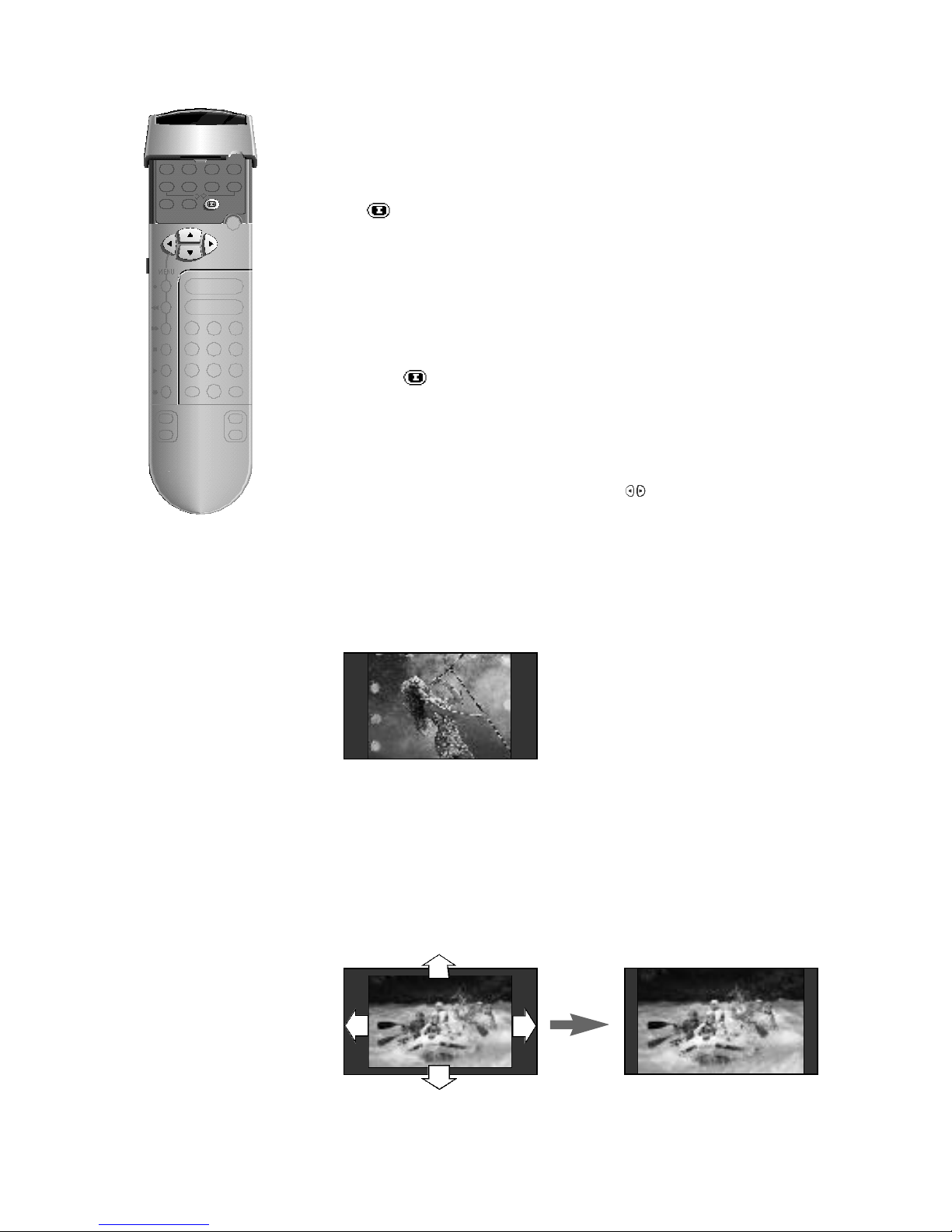

16/9 Functions

Your TV sets wide screen has a width/height ratio of 16/9.

Not all today’s broadcasts are in a 16/9 format, many are still

transmitted in a conventional 4/3 format.

The key found under the flap of the remote control can be used

to adapt the format of the received pictures to that of your screen.

Your TV also has an automatic switching function.

Video recorders or programmes carrying special switching signals will

automatically switch the TV to the correct screen format.

4 : 3

Use of different screen formats

4Press the key.

5Each time the key is pressed a different picture format is displayed.

Each format has a corresponding symbol which appears on the

screen for a few seconds :

4 : 3, 14 : 9, ,, -, 16 : 9 and 4 : 3 again.

The same adjustments can be made using the keys.

4 : 3 displayed on-screen

This function displays 4/3 format pictures in their original format.

Black bands are seen on either side of the screen.

14 : 9 displayed on-screen

This function is used to display 4:3 pictures that have narrow black

bars at the top and bottom of the picture.

The picture is enlarged, the upper and lower black bars disappear. The

black bands on either are reduced in size.

4/3 picture

4/3 picture Result

4 : 3 14 : 9

4 : 3 16 : 9

4 : 3

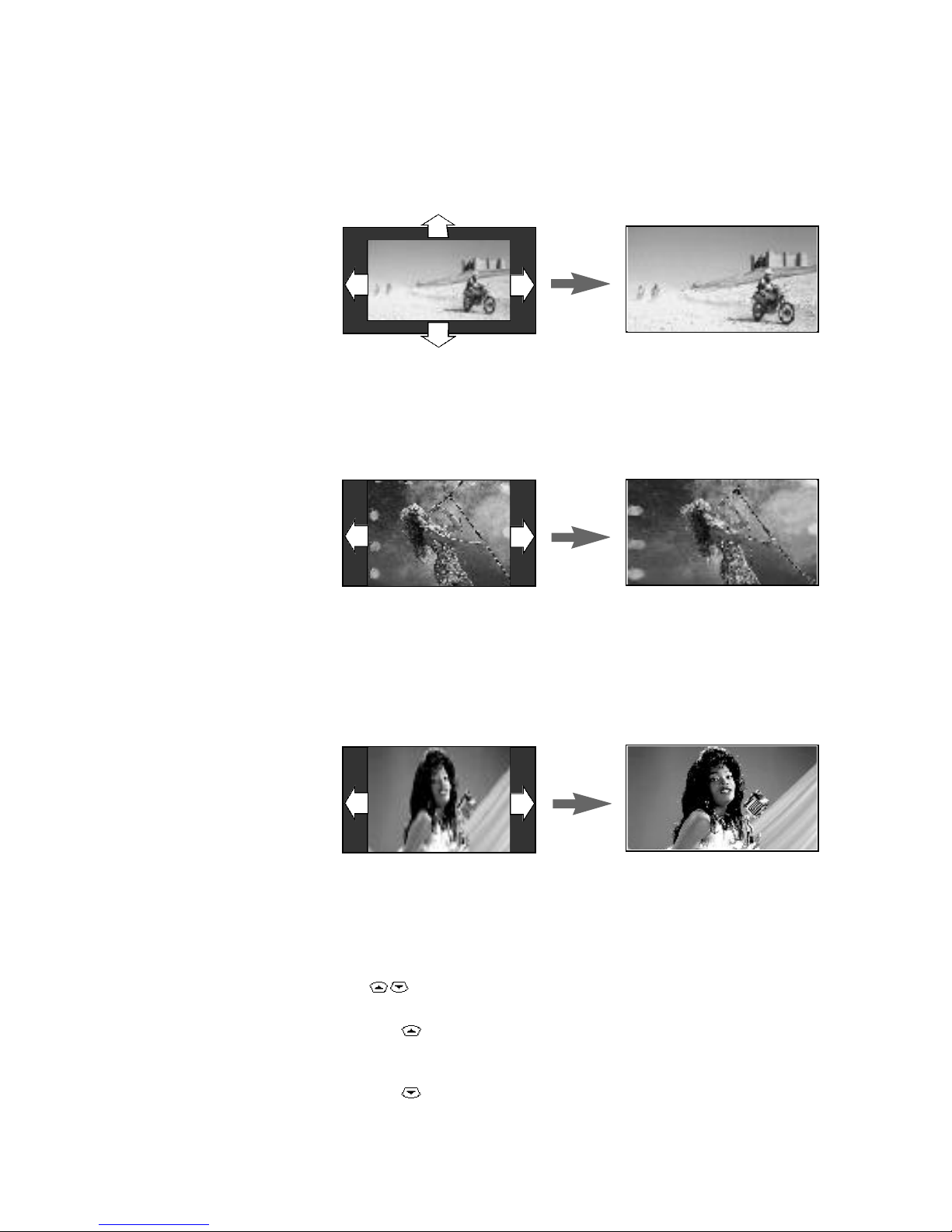

,displayed on-screen

This function is used to display 4:3 pictures that have wide black

bars at the top and bottom of the picture.

The picture is enlarged, the black bars disappear from the screen.

-displayed on-screen

This function is used to display conventional 4:3 pictures so they fill

the entire screen. The sides of the picture are stretched and the loss

of picture at the top and bottom of the screen is minimised.

16 : 9 displayed on-screen

This setting is used to display a picture broadcast in a 16:9 format in

the correct proportions.

N.B. : if you are viewing a 4/3 picture, the picture will be enlarged

horizontally.

Subtitles

When using 14 : 9, ,and -modes, the picture is enlarged,

therefore some information may be lost from the top or bottom of

the picture.

The keys can be used to view the bottom of the picture to

restore important information e. g. subtitles.

4Press the key.

5The xsymbol appears, the bottom of the picture gradually moves

upwards.

4Press the key.

5The ysymbol appears, the bottom of the picture gradually moves

downwards.

This function is not available in 4 : 3 and 16 : 9 modes.

Result

4/3 picture

16/9 picture

4 : 3 ,

PICTURE xy

BRIGHTNESS I I I I I

COLOUR I I I I

CONTRAST I I I I I

SHARPNESS I I

TINT I I I I I I

SOUND xy

BALANCE . . . I . . .

TREBLE I I I I

BASS I I I I I

SPATIAL OFF

Using the menus

The red, green and yellow keys can be used to access

the adjustment menus and special functions directly.

The red key gives access to the PICTURE menu,

The green key calls up the SOUND menu, and

The yellow key displays the FEATURES menu.

4Press one of these keys to display/cancel the menu.

4Use the keys to select the adjustment to be made.

5Use the keys to make the adjustment.

Adjusting the picture

4Press the red key.

5The PICTURE menu appears on the screen.

4Use the keys to select the adjustment to be made.

5A horizontal scale appears at the bottom of the screen.

4Use the keys to adjust.

The TINT adjustment is used to change colour reproduction:

- ‘cool’ picture (bluer whites): minimum position.

- ‘warm’ picture (redder whites): maximum position.

Adjusting the sound

4Press the green key.

5The SOUND menu is displayed on the screen.

4Use the keys to select the adjustment to be made and the

keys to make the adjustment.

The SPATIAL setting gives the impression that the loud-speakers are spaced

futher apart from one another.

To store your settings

See Personal Preference in the FEATURES menu, .

PICTURE menu

SOUND menu

FEATURES menu

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Philips TV

Philips

Philips OLED807 Series Manuale utente

Philips

Philips 6203 series Manuale utente

Philips

Philips 32PT563R Manuale

Philips

Philips 42PF7220A/37B Manuale utente

Philips

Philips 42PFL3403/98 Manuale utente

Philips

Philips 32PFL3 6D Series Manuale utente

Philips

Philips 32PFT5500 Manuale utente

Philips

Philips 25GR5765 Manuale utente

Philips

Philips 22PFS5303 Manuale utente

Philips

Philips 24PFT5505/98 Manuale utente

Philips

Philips 21PT2684 Manuale utente

Philips

Philips FTL2.2E Manuale utente

Philips

Philips 32PFL3506/F7 Manuale utente

Philips

Philips 9206 Series Manuale utente

Philips

Philips 21PT3136 Manuale utente

Philips

Philips 17PT1565 Manuale utente

Philips

Philips 32PFL4556/V7 Manuale utente

Philips

Philips 32PHD5678 Manuale utente

Philips

Philips SmartCard PA9027C1 Manuale utente

Philips

Philips COLOR TV 25 INCH TABLE TS2574C Manuale utente

Philips

Philips 37KV1232/08B Manuale utente

Philips

Philips POS9002 Series Manuale utente

Philips

Philips TV Manuale utente

Philips

Philips 32PW9523-05M Manuale utente

Manuali TV popolari di altre marche

Toshiba

Toshiba 27A10 Manuale utente

Hitachi

Hitachi 32FX48B Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuale utente

Changhong Electric

Changhong Electric uhd55b6000is Manuale utente

Panasonic

Panasonic Genus TX-G10 Manuale utente

Toshiba

Toshiba 19A20 Manuale utente

Sony

Sony XBR-100Z9D Manuale utente

Samsung

Samsung 55S9 B Series Manuale utente

Sharp

Sharp LC-40FI5012E Manuale utente

Loewe

Loewe Table Stand Reference 55 Manuale utente

Sylvania

Sylvania 6427FB Manuale utente

Sanyo

Sanyo CE19LD90N-B Manuale utente

North State

North State TV2GO Manuale utente

RCA

RCA RTU7877 Manuale utente

Sharp

Sharp 21K-FG1RU Manuale utente

Sony

Sony Esprit TAV-L1 Manuale utente

Grundig

Grundig 43 VLE 4820 Manuale utente

Samsung

Samsung LN26C350D1D Manuale utente
