Philips 6002 Series Manuale utente

Published by Yingqun.wen 6002 Quality Subject to modification

2017 © TP Vision Netherlands B.V.

property of Koninklijke Philips Electronics N.V. or their respective owners.

TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust

earlier supplies accordingly.

PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.

Platform Chassis name Model name

MSD6A638 6002 43PUT6002/56

6002

2017-Dec-8

1.Product inforamtion……….……………………………………………………………………………………3

2.Connections overview……..…..…..………………..…………………………………………………………6

3.Mechanical Instructions………………….…………………………………………………………………….7

Cable dressing (43" 6002 series)……………………………………………………………………7

A s s e m b l y / P a n e l R e m o v a l …… … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4. Fac to ry Mo des …… … .. .. . .. . .... . ... .. ... .. . .. . .. . .. . ... . .. . ... .. ... .. . .. . .. . .. . ... . .. . ... .. ... .. . .. . .. . .. . ... . .. . 1 5

5.Software upgrading, Panel PN…...…….....................................………………………………………..16

6.Circuit Descriptions…..……………………….………………………………………………………………18

7.IC Data Sheet……...……………………………………………………………………………………….…..24

8.Circuit Diagrams……………...……………………………………………………………………………….28

Power board Circuit Diagrams …………………………… …………………………………………………28

Main board Circuit Diagrams …………………………… …………………………………………………29

9.Styling Sheet……………….…………………….……………………………………………………………..40

6 00 2 Se ri e s 43 " .. . . . .. . . . .. .. .. . . . . .. . . .. .. . .. . . . .. . . . .. .. .. . . . .. .. .. . . . . .. . . .. . .. .. . . . .. . . . .. .. .. . . . .. .. .. . . . . . 40

1. Product information

Product information is subject to change without notice.

For detailed product information，please visit www.philips.com/support

43PUT6002/56

Display Type

Diagonal screen size: 42.51inch

Display resolution: 3840 x 2160p

Input resolution

• 800 x 600p - 60 Hz

• 1024 x 768p - 60 Hz

• 1280 x 768p - 60 Hz

• 1360 x 765p - 60 Hz

• 1360 x 768p - 60 Hz

• 1280 x 1024p - 60 Hz

• 1920 x 1080p - 60 Hz23.5

Video formats

Resolution — Refresh rate

480i, 480p,576i, 576p,720p,1080i,1080p,3840x2160p 24/25/30/50/60Hz

Computer formats

Resolutions (amongst others)

• 720*400@70HZ

• 640*480@60HZ

• 800*600@60HZ

• 1024*768@60HZ

• 1360*768@60HZ

• 1280*720@60HZ

• 1280*960@60HZ

• 1280*1024@60HZ

• 1600*900@60HZ

• 1920*1080@60HZ

Dimensions and Weights

• without TV stand:

Width 969 mm - Height 567mm - Depth 83

mm - Weight 7.3 kg

• with TV stand:

Width 969mm - Height 629 mm - Depth 240

mm - Weight 7.5 kg

Connectivity

I/O port to be clearly indicated

TV*1

HDMI*3

Audio out*1

VGA*1

USB*2

AV IN*1 Coaxial out*1 RJ45*1

Playback YES

Component (HD/SD)@24p/50/60 (HD/SD)@24p/50/60

HDMI Number 3

HDMI 1 HDMI 2.0 /up to 4k@60hz

4:4:4 down

HDMI 2 HDMI 2.0 /up to 4k@60hz

4:4:4 down

HDMI 3 HDMI 2.0 /up to 4k@60hz

4:4:4 side

HDMI 4 NA

HDCP v2.2 (on HDMI 2.0 port) YES

HDMI ARC HDMI-2

PC input (VGA) VGA

AV （input）YES

Headphone N/A

Video and Audio out Audio out

Digital audio out (SPDIF)

co-axial/Optical Co-axial Out

RJ45 YES

DLNA/ Certification NA

WiFi 802.11 b/g/n; 1T1R ;

EasyLink (HDMI-CEC) YES

Antenna Tuner /Satellite tuner Antenna Tuner(down)

Wireless connections YES

Wi-Fi Band Concurrent 1T1R

Bluetooth for subwoofer/RC (do not claim commercially) N/A

MHL(Version ) HDMI -3 MHL3.0

Reception

• Image Codecs : JPEG

• Limitations :

– Maximum supported total bit rate for a media file is

30Mbps.

– Maximum supported video bit rate for a media file

is 20Mbps.

– MPEG-4 AVC (H.264) is supported up to High

Profile @ L4.1.

– VC-1 is supported up to Advanced Profile @ L3.

Wi-Fi Certified

This TV supports Miracast certified devices.

Supported media server software (DMS)

• You can use any DLNA V1.5 certified media server

software (DMS class).

• You can use the Philips TV Remote app (iOS and

Android) on mobile devices.

Performance may vary, depending on the capabilities

of the mobile device and the software used.

Sound

Mono/Stereo/Virtual Surround Mono/Stereo/Virtual Surround

Output Power (10% THD) RMS (RMS Watts) 16W

Speaker configuration 8Wx2

Speaker system (Number of on board Speakers ) 2.0

Speaker type built-in(normal)

Auto Volume Levelier / Auto Volume Levelier + N/A

Dolby Digital DecoderType(DD/DD+) DD

DTS Studio Sound N/A

DTS 2.0+ Digital out N/A

SPL (>= 84dB @ 2m) 78dB @ 2m

Acoustic frequence range

( 160~8K HZ<=16dB)

160~8K HZ<=16dB

Multimedia

Video Playback Formats MPEG-2/MPEG-4 /

H.264

H265-up to 4K

Subtitles Formats Support SRT、ASS

Music Playback Formats AC3，AAC-LC,HE-AAC,WMA

Picture Playback Formats JPEG、BMP、PNG

Pause TV/USB recording (PVR) YES

Time shift YES

PIP/POP NA

USB USB2.0(*2)

USB Harddisk Format (Power) FAT/NTFS (500mA)

Power

• Mains power : AC 100-240V 50/60Hz

• Standby Energy Consumption:≤0.5W

• Ambient temperature : 5°C to 40°C

2. Connections Overview

Network

HDMI

3. Mechanical Instructions

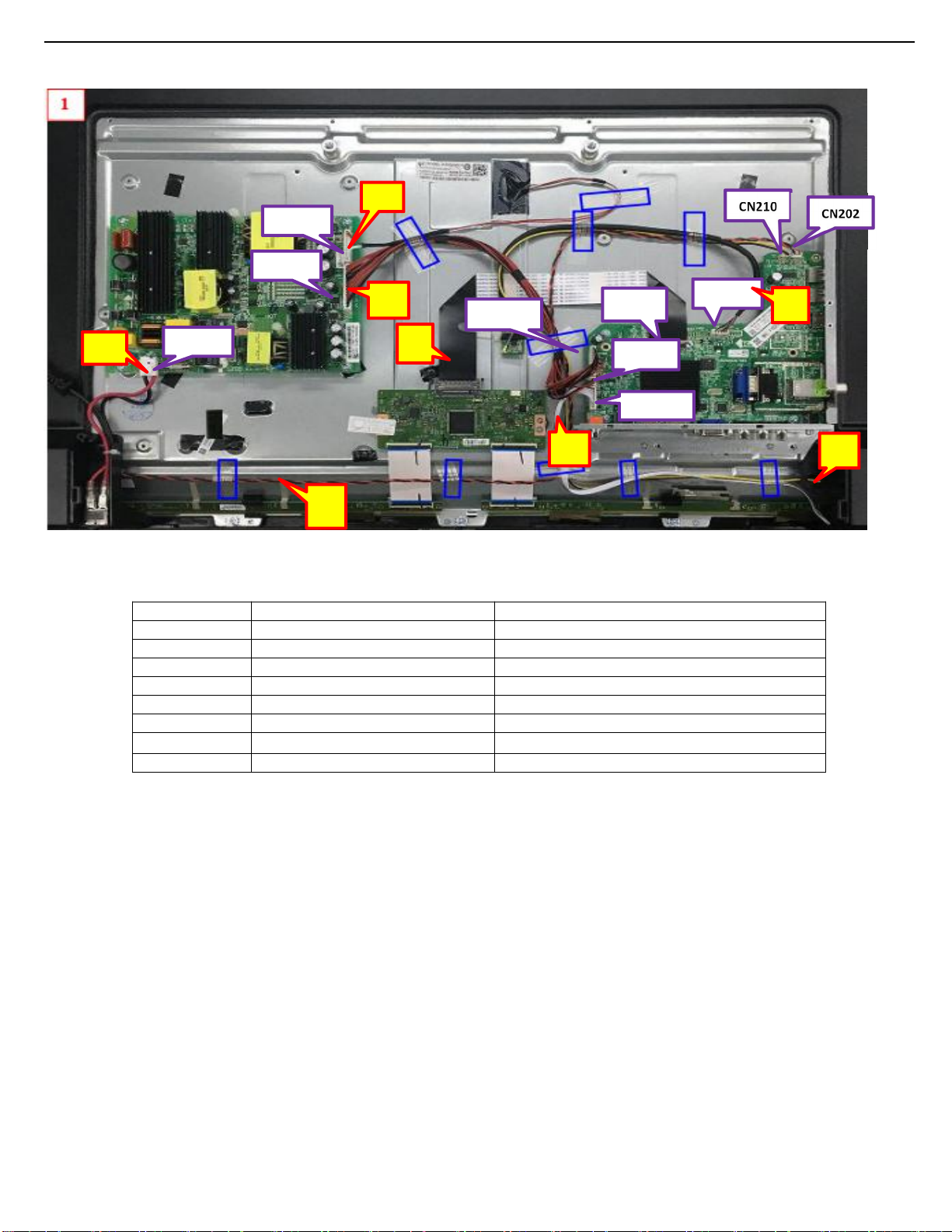

3.1 Cable dressing

Serial no

art descri

tion function

1 Back li

ht wire Connect to CN302

2 Power wire Connect to CN101

3 LVDS wire J455 to T-CON board

4 S

eaker wire CN210 to s

eaker

ellow black wire

)

5 S

eaker wire CN202 to s

eaker

(

red black wire

)

6 two-terminal wire CN103 to IR board&LED

7 Supply line CN203、CN101 to supply main board

8 WIFI line CN207 to WIFI board

CN101

J455

CN203

CN207

CN103

CN102

CN302

CN103

3. Mechanical Instructions

3.1 Cable dressing

Serial no part description function

1 Back light wire Connect to CN3

2 Power wire Connect to PCN1

3 LVDS wire J455 to T-CON board (CN2)

4 Speaker wire CON203 to speaker (yellow black wire)

5 Speaker wire C0N201 to speaker (red black wire)

6 two-terminal wire CN103 to IR board&LED

7 Three port line C0N5、CN1、CN102 to control back light

8 Supply line CON4、CN101 to supply main board

9 WIFI line CN207 to WIFI board

Cable dressing( 43" 6002 series)

3.2 Assembly/Panel Removal

3.2.1 Stand removal

1. Remove the fixation screws [1] 4pcs, that secure the stand

2. Take the stand bracket out from the set.

CN101

PCN1

J455

CN1

CN207

C0N4

CN103

CN201

CN203

CN2

CN3

CON5

CN102

3.2.2 Disassemble back cover

1. Use electric screwdriver to disassemble Ф3×10mm screw,and put it at appointed position. Figure 1/3

2. Put removed decorative part at the appointed position

3. Use electric screwdriver to dismantle M6*25 P head black zinc plating machine screw,and put it at appointed position. Figure 1

4. Use electric screwdriver to disassembleΦ3×6 countersunk head black zinc plating machine screw, and put it at appointed

position. Figure 1

5. Use electric screwdriver to dismantle Ф3×5mm flat head black zinc plating machine screw,and put it at appointed position.

Figure 1

6. When dismantle back cover-M,dismantle the side with M/B interface firstly,prevent interface damaged

7. Put removed back cover-M at appointed position.After self-check OK,flow it into next station by foot switch

3.2.3 Disassemble tape/ aluminum foil

1. Tear off fiber tapes from the back plate and put them at appointed position,as Figure show.

2. Tear off aluminum foil from the back plate and put it at appointed position,as Figure show.

3. After self-check OK,flow it into next station by foot switch

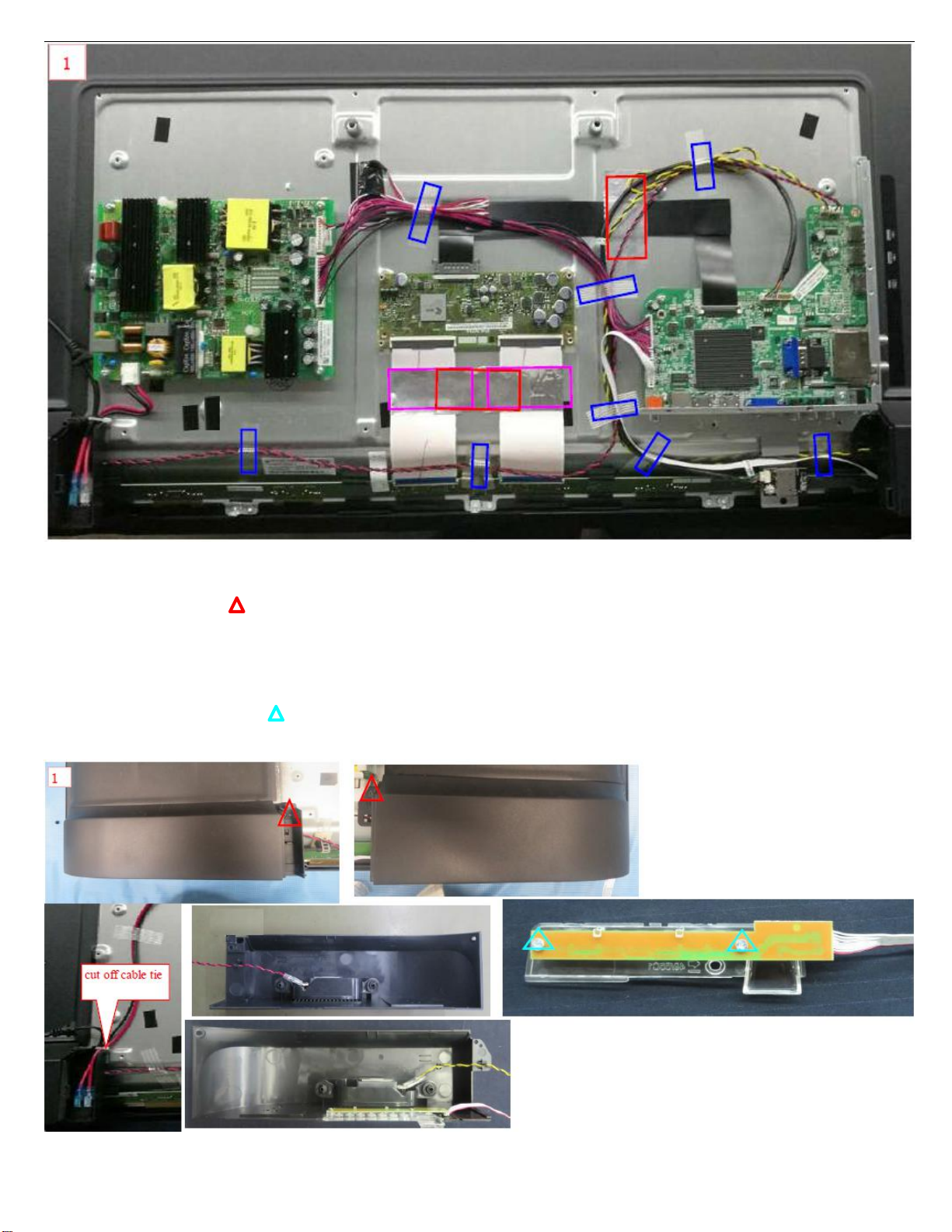

3.2.4 Dismantle left/right back cover,key module

1. Use electric screwdriver to dismantle 2pcs Ф3×5mm flat head black zinc plating machine screws，and Put at the appointed

position. Figure 1

2. Unplug speaker wire and key wire from the socket of M/B,use cutting nippers to cut off cable tie on the back cover.Then take down rocker

switch from back

3. Take down speaker’s module from the speaker pillar on the left /right back cover, put them at the appointed position.

Take down key module from back cover,and then put removed back cover at appointed position

4. Use electric screwdriver to dismantle Φ3×5mm flat head and tail blue zinc plating self-tapping screw, and put them at the

appointed position. Figure 1

5. Split key module into keypad,key wire and button array,and put them at the appointed position.

6. After self-check OK,flow it into next station by foot switch
